HALJIA AC Current Detection Sensor Module 12V Relay Protection Module 5A Over-current Protection Switch Output

• Country of Manufacture: CHINA
• Material: Electronic Parts
• Net Weight: 24g
• Package Content: 1 x Current Detection Sensor Module
• Working Voltage: DC 12V

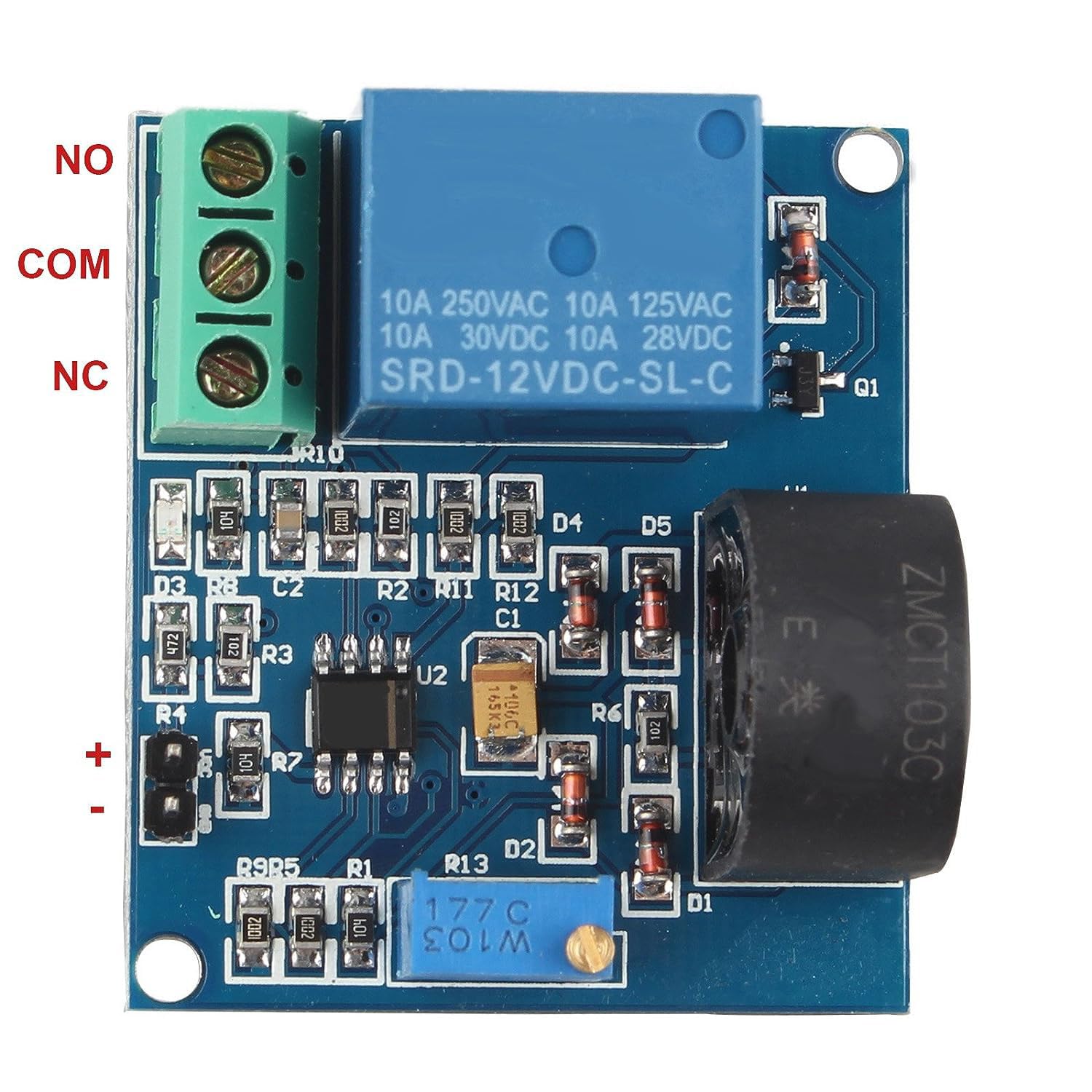

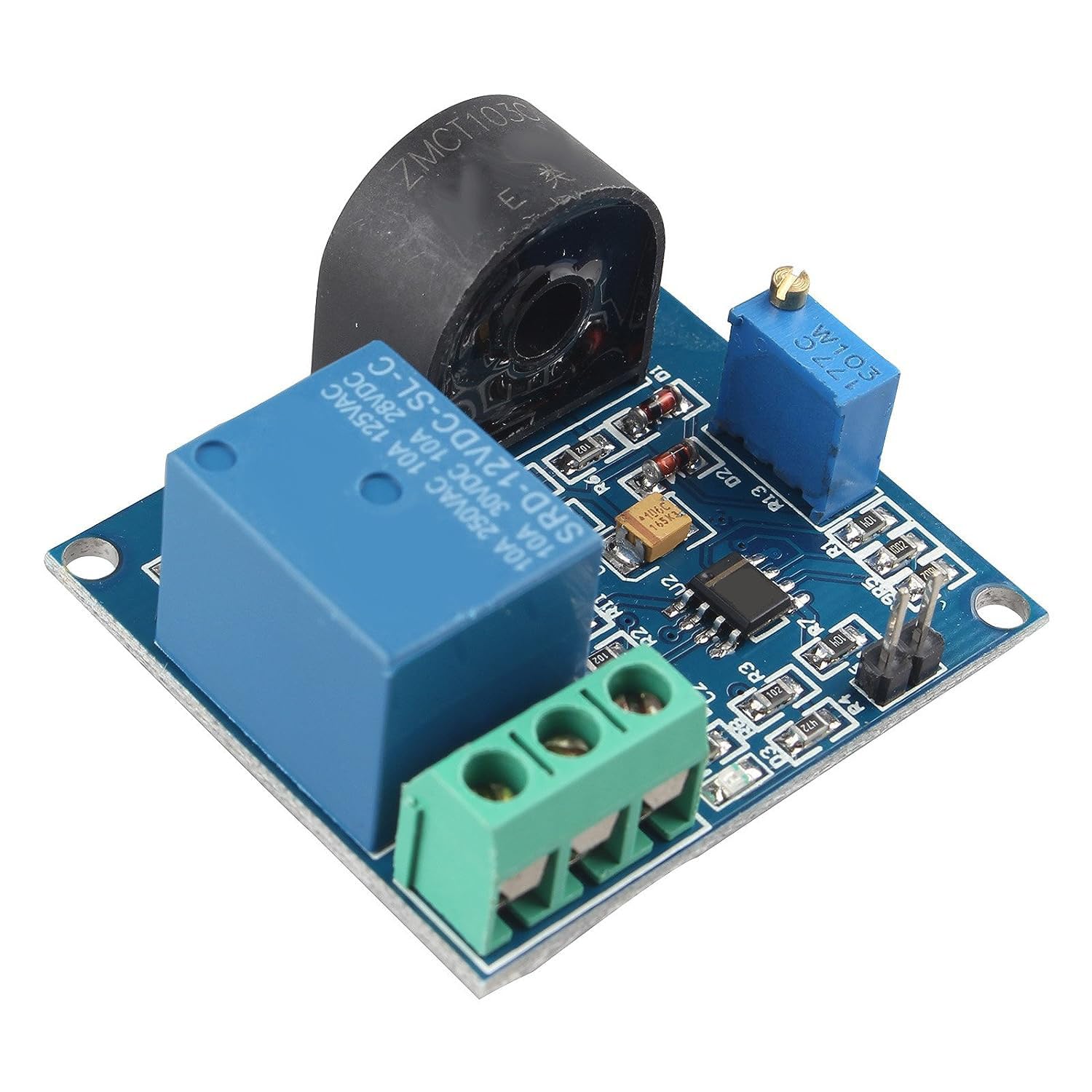

LC 5A Over-current protection Sensor module uses current transformer to collect the AC signal to achieve the relay over-current signal output within 0-5A. Relay pull while over-current, relay released while not over-current. Users can use the relay COM, NC, NO three ports to control the external circuit on and off, in order to achieve over-current protection. 1, Operating voltage: DC12V; 2, Operating current: <20MA; 3, Operating frequency range: 20Hz ~ 400Hz 4, Output mode: switch signal output; 5, Maximum detection wire diameter: 5.2mm; 6, Mounting hole: hole diameter is 3mm, hole distance is 52.5mm; 7, Operating environment: -40 'C ~ +85 'C; 8, Current detection resolution can change the parameter of resistance parameters; 9, Output over-current switching signal output; 10,Over-current signal setting critical point adjustable, the current detection range AC0.3A-5A; Packing List: 1 x Current Detection Sensor Module
