Hailege 6V-90V 15A DC Motor Speed Control 16KHZ PWM Controller Speed Regulator Module Board Support PLC Control

• 6V-90V 15A DC Motor Speed Control 16KHZ PWM Controller Speed Regulator
• Adjust the order of the cable to change the orientation; Can control motor speed to change from 0% to 100%, and it is noise free when motor is at low speed.
• Adjust the knob of potentiometer to change the output occupying vacancy proportion of controller, and the motor speed will change.

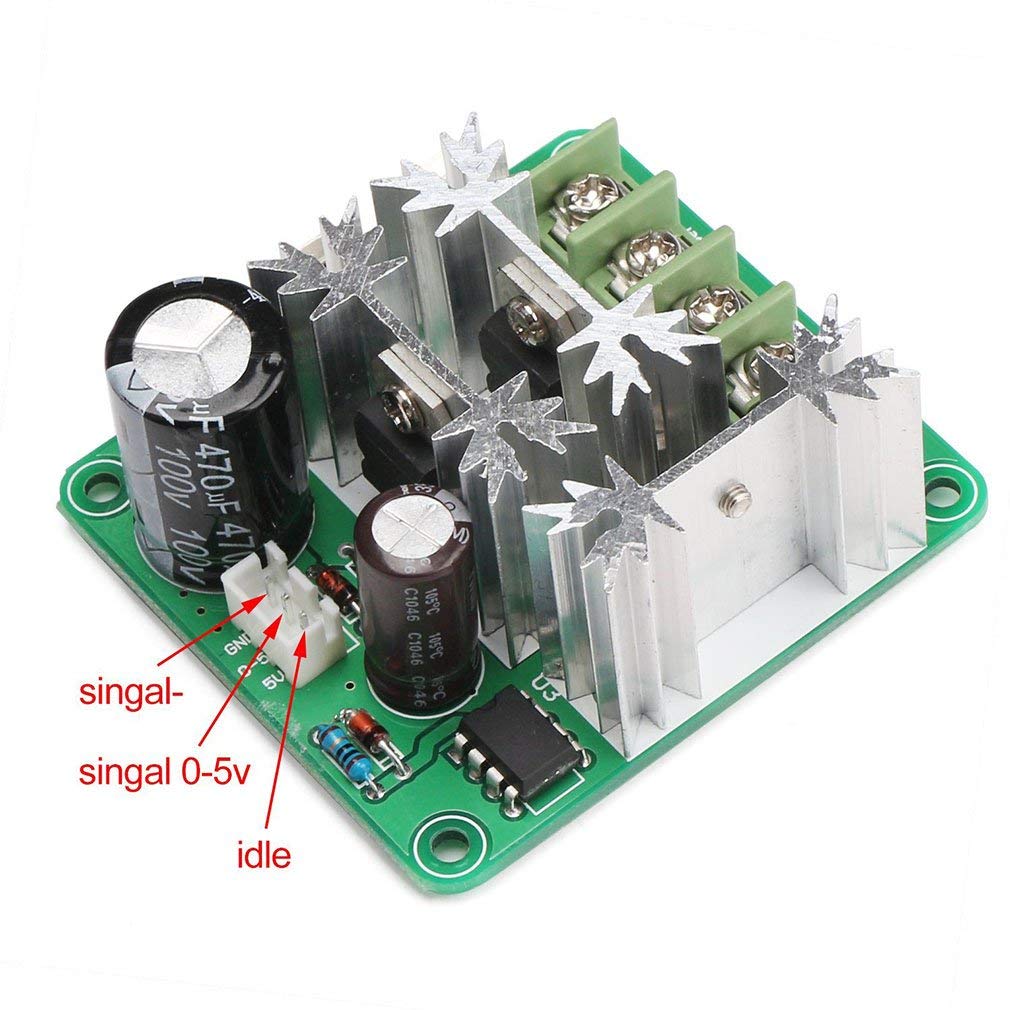

• Can be controlled by external 0-5V, and used on PLC to control motor speed directly.
• Connecting external positive negative switch can achieve positive inversion function.

Specifications: Working Voltage: DC 6V - DC 90V (Ultra wide working voltage) Control Power: 0.01 - 1000W(Max current :15A) Static Current: 0.005A ( Standby) PWM Duty Cycle: 0% -100% PWM Frequency: 15Khz Voltage control:0-5v(Voltage -mode control ,can use PLC to control the motor speed directly) Note: The power supply should be DC, can't be AC, or the DC motor speed controller will be burnt. Please make sure the connection with power supply is correct, or the speed controller will be broken. expectations, you can adjust the order of the cable to change the orientation. Adjust potentiometer knob, which can change the output occupying vacancy proportion of controller, to change motor speed. Package Included: 1* 6V-90V 15A DC Motor Speed Control 16KHZ PWM Controller Speed Regulator
