Good Connections Premium Cat. 8.1 Flat Patch Cable ? 1 m ? U/FTP ? 40 GBit/s ? 2000 MHz ? Copper Conductor CU ? Halogen LSZH ? Network LAN Cable Compatible with CAT. 7/6 / 5e ? Red

• Flat cable with CU/copper conductor and U/FTP shielding, 2000 MHz, 40 GIGABIT
• CAT8.1 flat band cable - backwards compatible with CAT7 / CAT6A / CAT6 / CAT5e and older versions

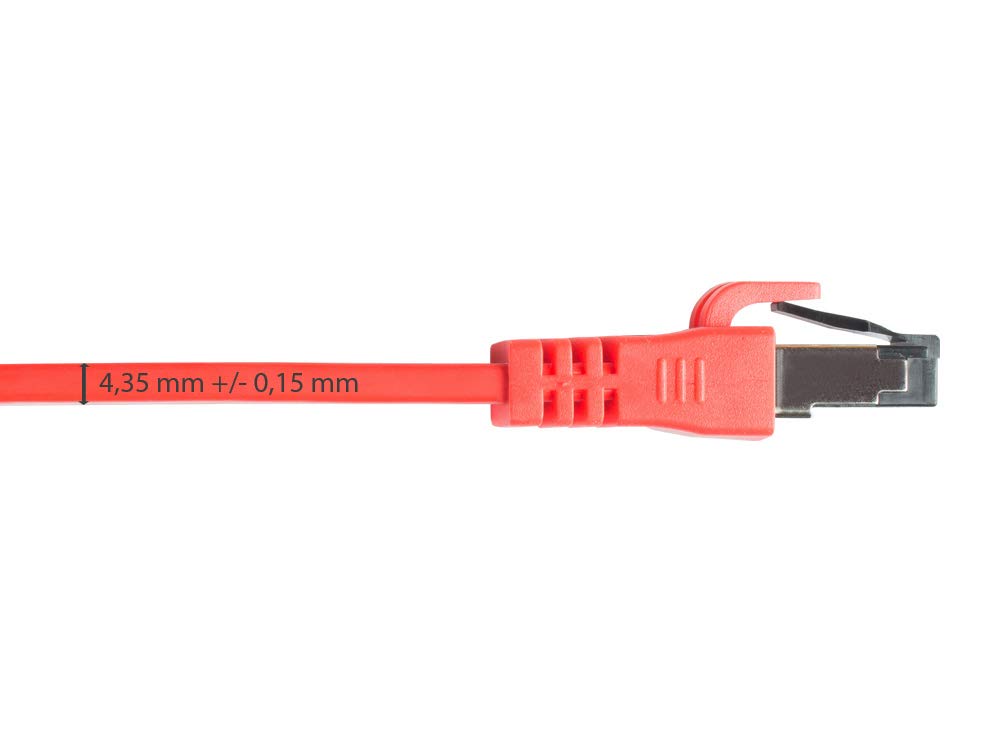

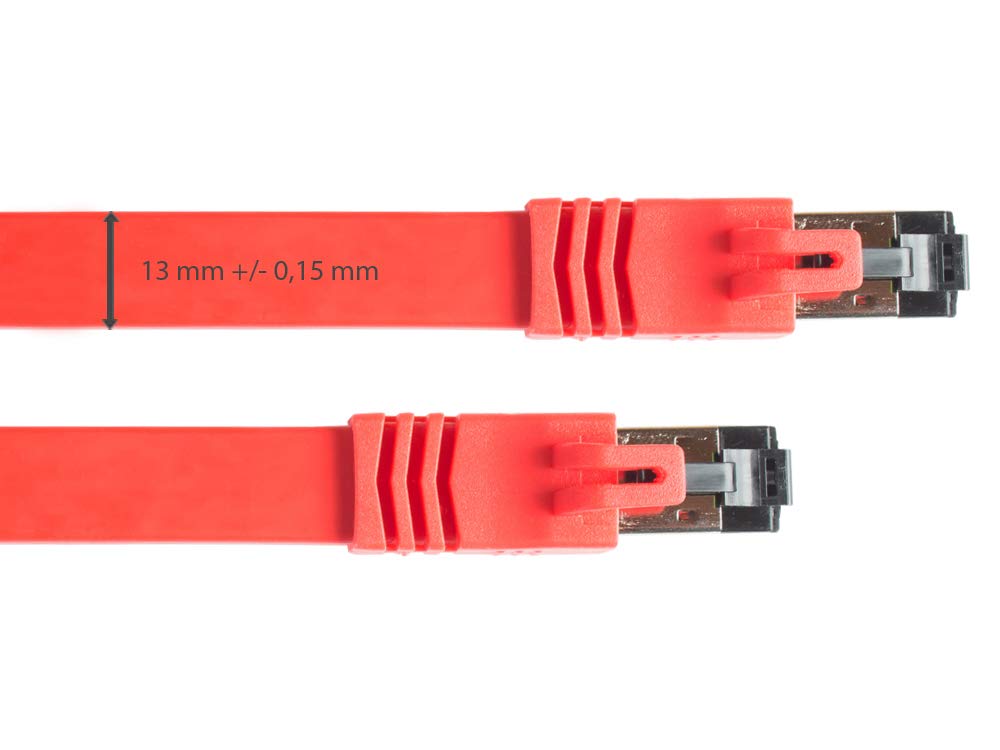

• Width 13 mm / height 4.35 +/- 0.15 mm - 2000 MHz max. Bandwidth! - 4x higher than Cat.6A
• Quality: 40 GIGABIT-capable Cat.8.1 network cable with pure copper / OFC / CU conductor
• U/FTP shielding (PiMF) for interference-free and consistently high signal transmission. Halogen-free LSZH

CAT 8.1 flat patch cable from Good Coonnecks. Flat patch cable Due to the flat design (4.35 mm height), the Cat. 8.1 FLAT patch cables under laminate, parquet, carpeted floors or behind skirting boards at any time. This simplifies the installation and routing of cables even in tight spaces. In addition, the cables are characterised by their mechanical resilience and long durability. High-quality cable construction. The conductor of this patch cable is made of 99.99% Oxygen Free Copper (OFC). This high-quality cable construction allows optimal signal transmission and higher break resistance of the cable. For perfect signal transmission, the RJ45 connectors are shielded and equipped with 50 µ gold-plated copper contacts. U/FTP shielding The U/FTP shielding (PiMF) of the cable and the shielded RJ45 connectors ensure consistently high and lossless signal transmission. LSZH coat for added safety In contrast to PVC cables, the low smoke zero halogen (LSZH) cable sheath causes very low toxic smoke gases and low smoke generation in the event of fire. This makes the cables ideal for laying indoors - in public areas they are regulated. Compatibility The Cat. 8.1 patch cables from Good Connections are fully backwards compatible with previous versions with RJ45 connectors. So you can easily integrate into existing installations. Technical specification: - Cat. 8.1 patch cable, fully backward compatible - Suitable for 40000 Base-T Ethernet networks (40 Gigabit capable) and backward compatible - Max. Bandwidth: 2000 MHz / 2 GHz. - Shielded RJ45 plugs (8P8C) on both sides with latch protection - Plug with 50 µ gold-plated contacts - S/FTP cable (shielding foil + braid). - PiMF (pairs of wires in metal foil). - Inner conductor: AWG 24. - Impedance: 100 ohms. - Assignment 1:1 according to EIA/TIA-568B. - Operating temperature: -20°C to +75°C. - 2 x dust cover / dust cover for plug included - DSX 8000 Fluke tested: channel test at 2000 MHz (including measurement protocol and serial number)
