deleyCON 100m (328.08 ft.) CAT.7 Installation Cable Copper Rigid S/FTP PIMF Network Installation LAN Ethernet Data Cable Gigabit CAT7 10Gbit 1000MHz LSZH Halogen Free Declaration of Performance - GHMT Certified

• CAT7 copper rigid installation cable // S/FTP double shielded PIMF // LSZH halogen-free // 1000 MHz // 10 Gbit // AWG 4x2x23/1
• Warning: rigid CAT7 LAN installation cable for LSA connections (not for crimping) // GHMT certified and tested

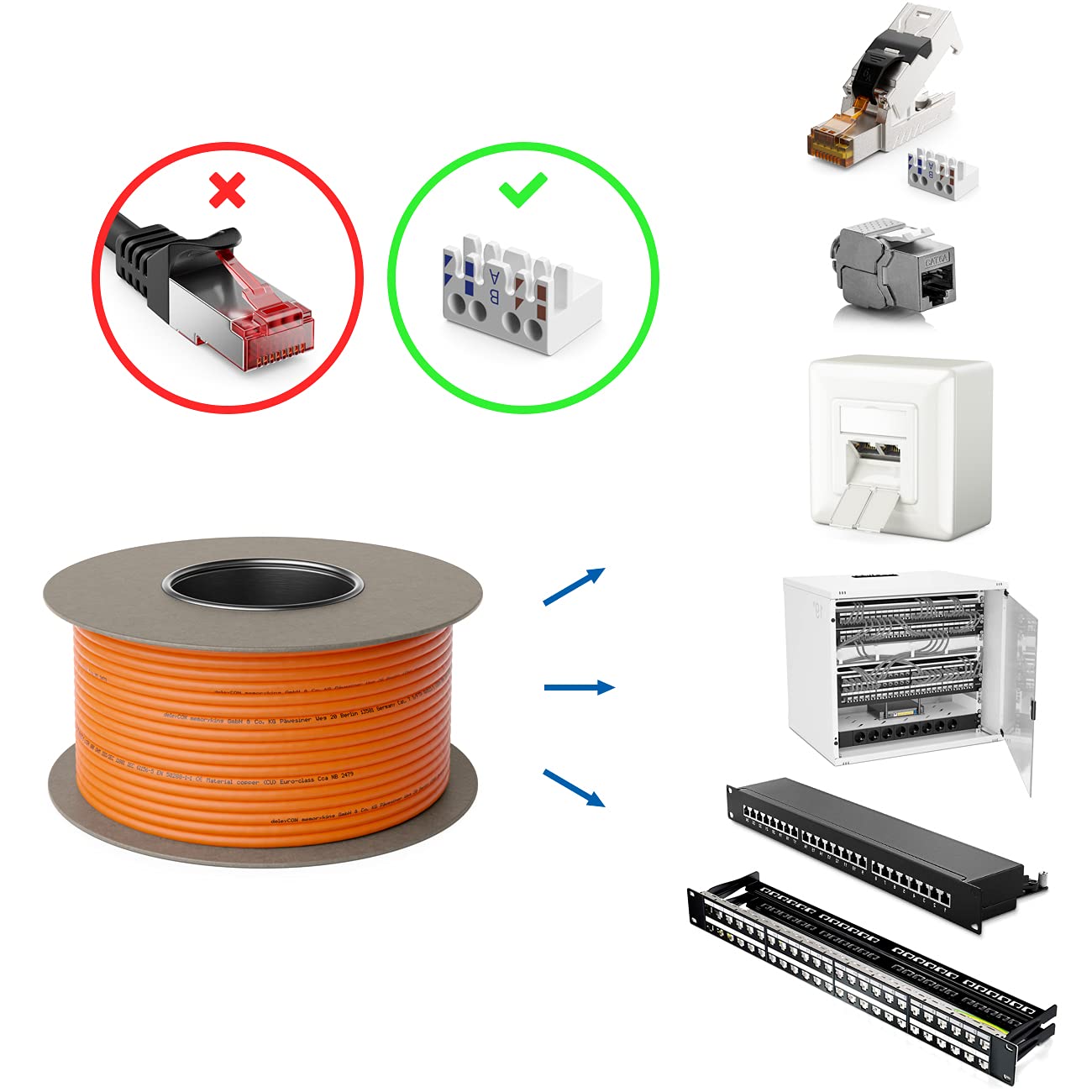

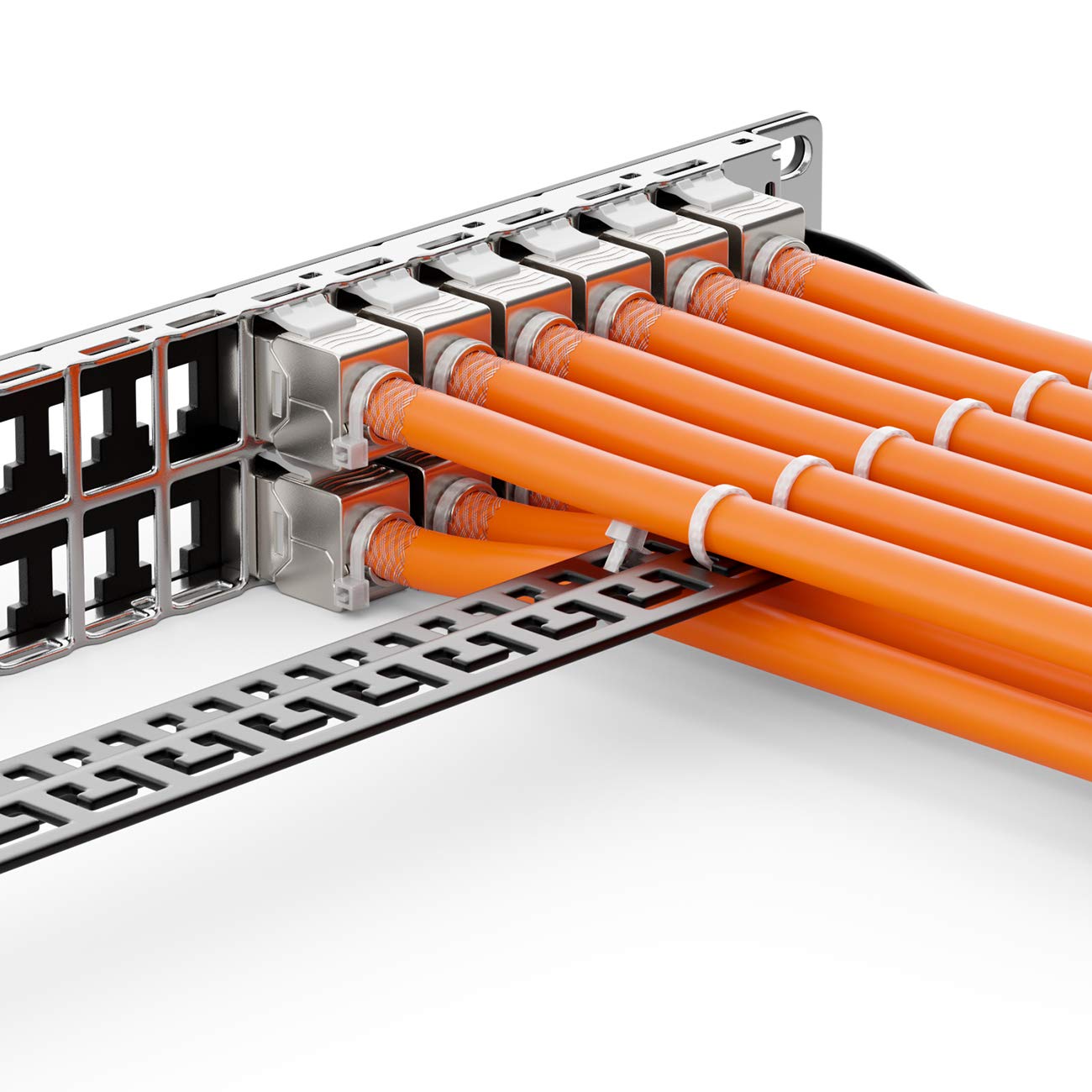

• Copper installation cable rigid for LSA connections: network sockets, patch panel, keystone modules etc.
• Euro fire class: Cca S1 d1 a1 // Complies with Building Products Regulation (BauPVo) EN 50575:2014
• Inner conductor: copper (CU) // Fire class: Cca of the BauPVO (not confused with inner conductor CCA) // Length: 100 m

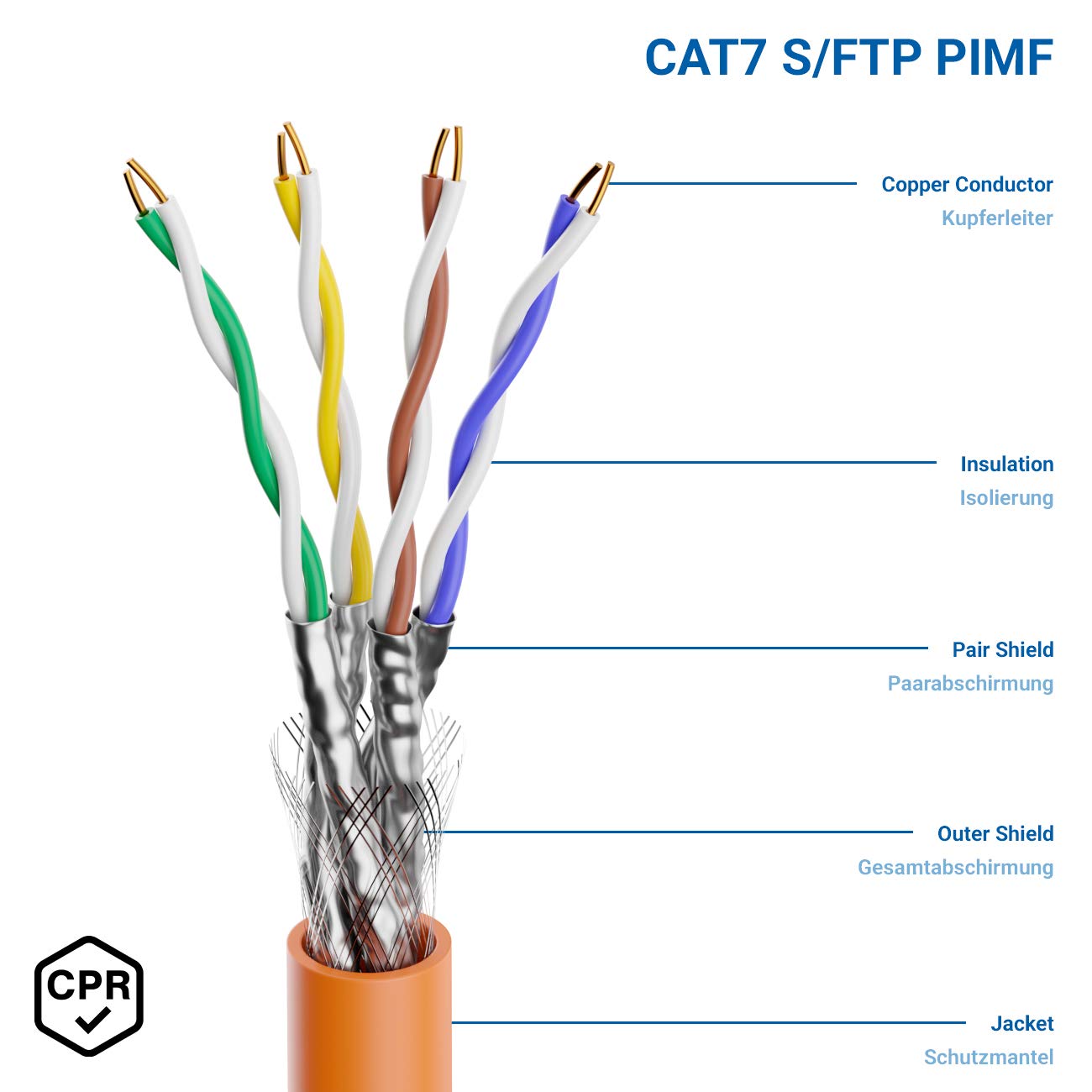

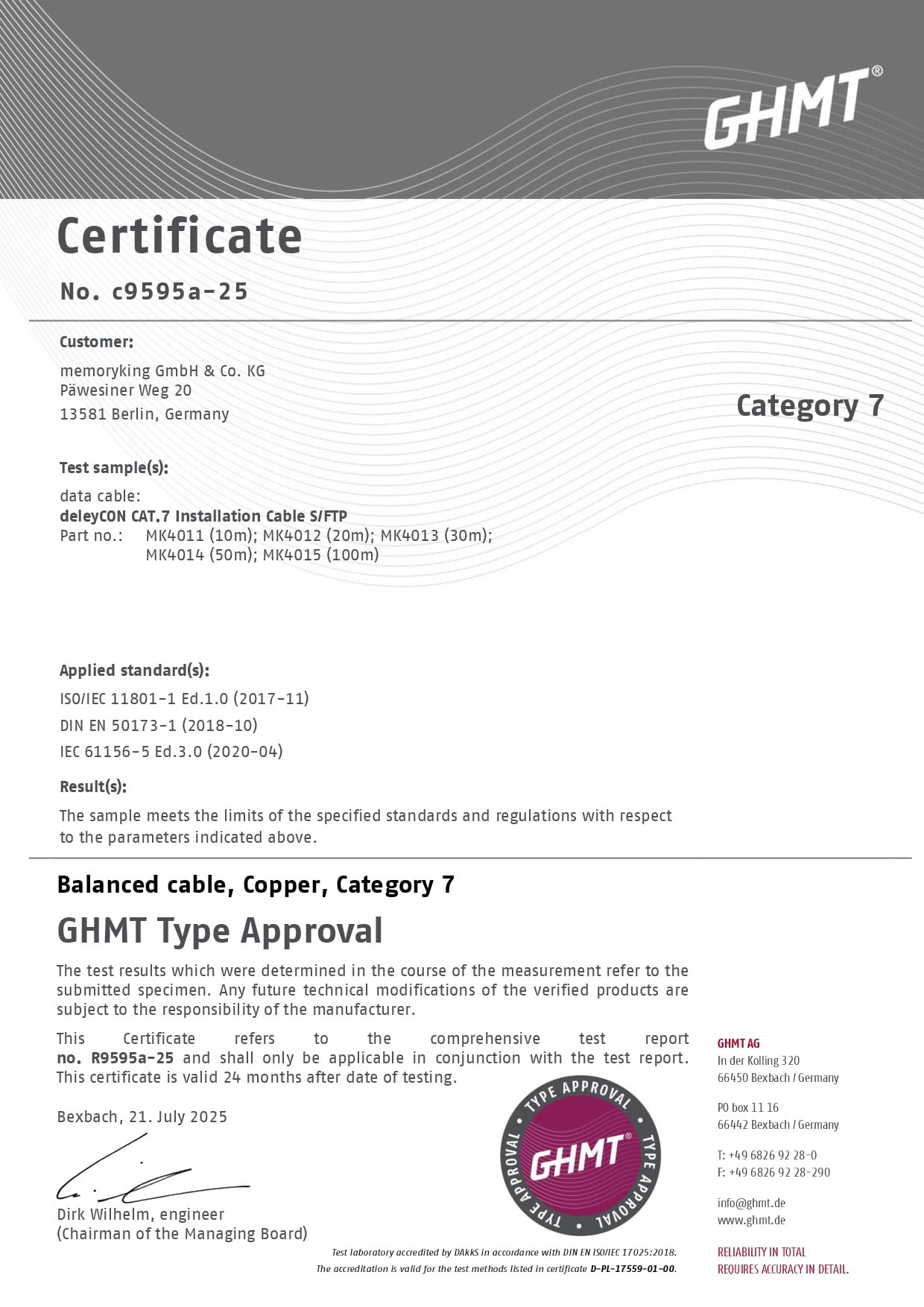

deleyCON CAT 7 Network Cable Rigid Installation Cable S/FTP Shielding PIMF Optimized for high transfer speeds up to 10 Gigabit and numerous applications in the home and industrial sector. Technical highlights: - Double shielded. - Foil pair umbrella + braid total shield. - Designed up to max. 1000 MHz. - Euro fire class: Cca S1 d1 a1. - Complies with Building Products Regulation (BauPVo) EN 50575:2014. - Copper wiring according to ISO IEC 11801-1, ISO IEC 61156-5. Attention: - Rigid installation cable for LSA connections. (Not for crimping) - Cca is the fire class of the BauPVO not the conductor made of CCA GHMT certified: ISO/IEC 11801-1 Ed.1.0 (2017-11) / IEC 61156-5 Ed.3.0 (2020-04) deleyCON Cat7 (MK4011-MK4015) has been tested and certified by GHMT AG (testing centre Bexbach) for the limit values for Cat7 cables. Certificate see last image and under "Product Guides and Documents" as download "Safety Information (PDF)". Areas of application: - Universal CAT 7 LAN network installation cable. - Ideal for network sockets, patch panels, server cabinets, keystone modules etc. - Suitable for private and commercial use (home, office, warehouse, etc.) - Optimised for data signals and image and sound signals Specifications - CAT specification: CAT 7. - Shielding: S/FTP PIMF (double shielded). - Halogen-free, low-smoke cable (LSZH). - Connection A: Network raw cable (without plug). - Connection B: Network raw cable (without plug). - AWG cross section 4 x 2 x 23/1. - Conductor material: CU copper wire (rigid). - Fire class of BauPVO: Cca. - Inner conductor diameter: 0.55 mm. - Temperature range: -20 °C to +60 °C. - Compatible with IEEE 802.3, 10/100/1000Base-T, 10GBase-T - Compatible with PoE, PoE+
