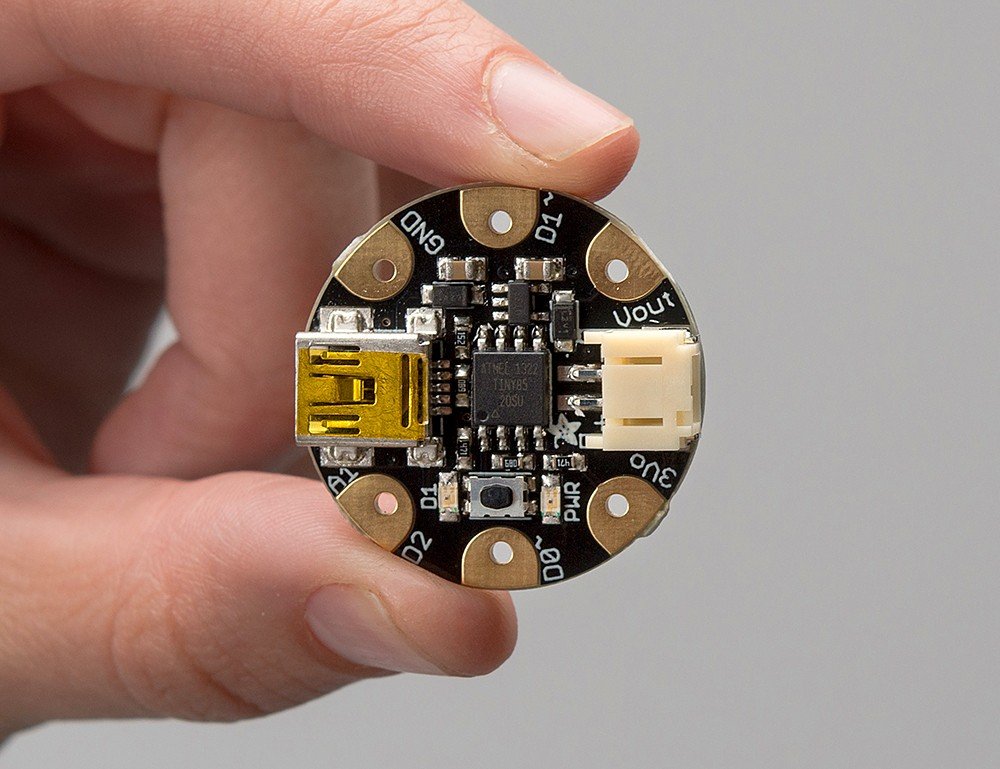

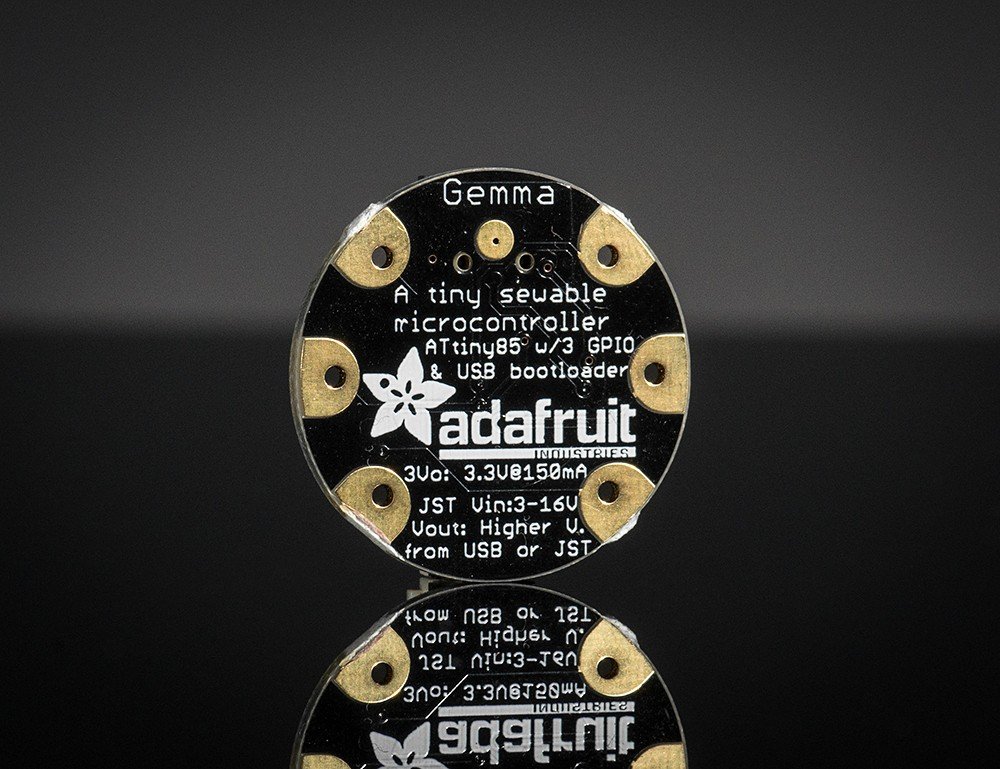

Gemma 1222 V2 Microcontroller Board - Black

• Super small, only 1.1" / 28mm diameter and 0.28" / 7mm thick.
• Easy-to-sew or solder pads for embedding in your wearable project
• Low cost enough, you can use one for every weekend project
• ATtiny85 on-board, 8K of flash, 512 byte of SRAM, 512 bytes of EEPROM
• Ultra low power, draws only 9 mA while running

Description Product Description GEMMA is a tiny wearable platform board with a lot of might in a 1" diameter package. Powered by a Attiny85 and programmable with an Arduino IDE over USB, you'll be able to realize any wearable project! The Attiny85 is a fun processor because despite being so small, it has 8K of flash, and 5 I/O pins, including analog inputs and PWM 'analog' outputs. We designed a USB bootloader so you can plug it into any computer and reprogram it over a USB port just like an Arduino (it uses 2 of the 5 I/O pins, leaving you with 3). In fact we even made some simple modifications to the Arduino IDE so that it works like a mini-Flora. Perfect for small & simple projects the GEMMA will be your go-to wearable electronics platform. Even though you can program GEMMA using the Arduino IDE, it's not a fully 100% Arduino-compatible. There are some things you trade off for such a small and low cost microcontroller! GEMMA does not have a Serial port connection for debugging so the serial port monitor will not be able to send/receive data Some computers' USB v3 ports don't recognize the GEMMAs bootloader. Simply use a USB v2 port or a USB hub in between We do not have full Windows 8 driver compatibility tested. At this time we only have it working with Mac, Linux or Windows 7/XP Box Contains 1 x Adafruit Gemma V2 microcontroller
