Gebildet DC Motor Controller Assembly 12V 24V 36V 48V High Power Drive Module Adjustable Speed PWM Electronic Governor Controller Regulation Switch 20A Ultra small LED dimmer

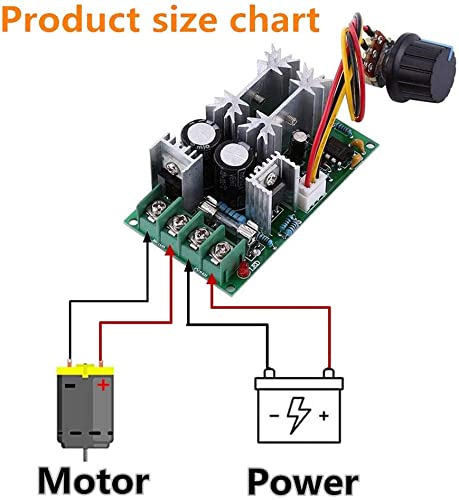

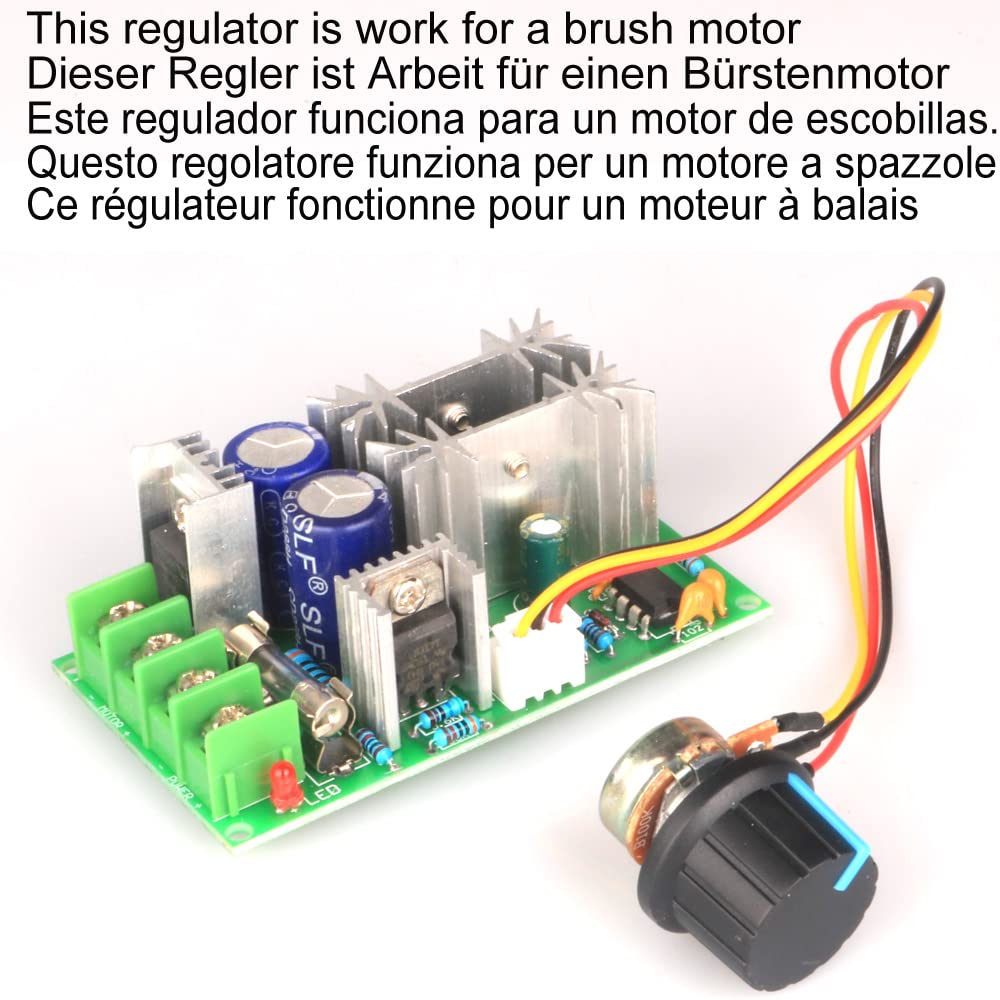

• Package includes: 1pc PWM DC motor speed controller module Material: made of electronic components, internal conductor: pure copper. This controller can continuous change device working current and completely cut off.

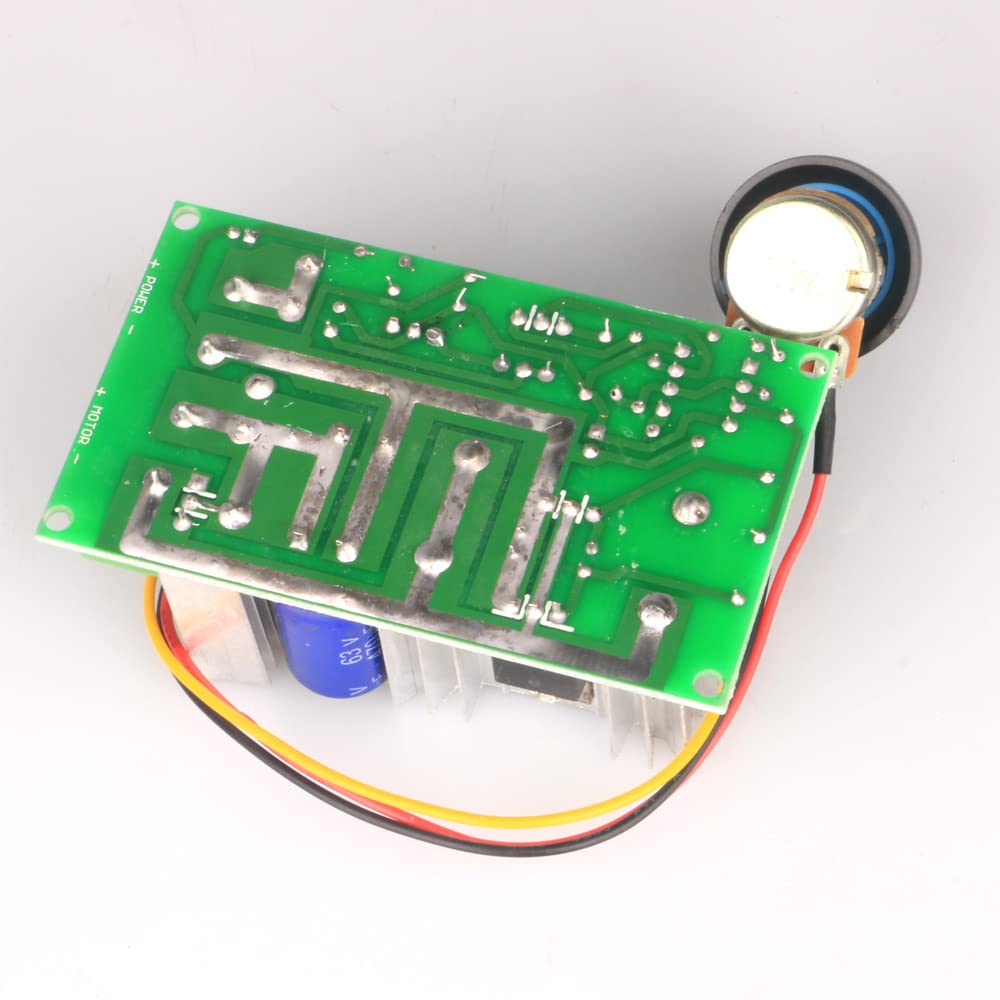

• Design: Made of high-quality circuit board, DC 9V-60V motor speed controller. Ultra-low voltage DC motor speed controller with switch function. If the current is too large, the fuse will automatically disconnect, and the fuse will automatically recover after cooling.
• Features: Input voltage: DC10-60V. Output voltage: linear under load. Output current: 0-20A. Continuous power: 1200W.
• Speed regulation type: flow regulation. Speed regulation mode: potentiometer (linear) speed regulation range: 0——. Control frequency: 25KHZ.

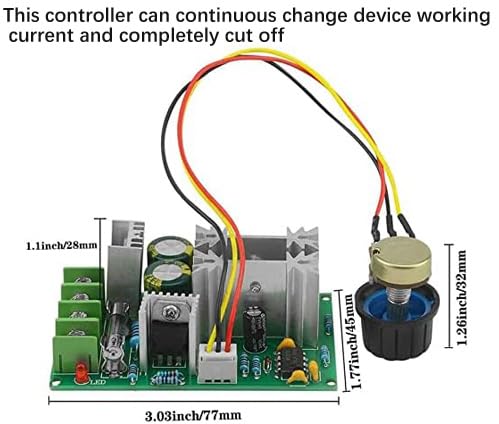

• Size: length * width * height 77mm*45mm*28mm. Product net weight: 73 grams. The size of the motherboard according to the installation: length * width 73mm * 40mm. Potentiometer mounting hole diameter: 7mm.

Specifications: Operating voltage: DC 10V-60V Output Current: 0 to 20A. Frequency:25KHz. Continuous power: Max 1200W Speed range: Motor zero speed to maximum motor speed The maximum current up to 20A radiator or heat required to increase the fan Material: Plastic, metal Size (L*W*H):77mm*45mm*28mm
