Gebildet 3pcs DC 5V-35V 5A Mini DC Motor PWM Speed Controller, 6V 12V 24V Variable Voltage Regulator Dimmer Governor Switching Build with LED Indicator

• The motor speed controller can easily provide a continuous current of 5A to your DC motor or other DC load; Default disconnection of short circuit point ,it is Applicable to 5-35V input voltage. This controller can continuous change device working current and completely cut off.
• The mini style DC motor speed regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM), with the latest low voltage technology.
• Voltage range: DC 5~35V, Current range: Within 5A, Adjustable Speed range: 0~100%, PWM frequency: 20khz.
• It is not only to use for dc motor controls of the speed,but also to use for adjust the LED light.
• Note: DO NOT directly connected to AC, otherwise the device will be burn out.

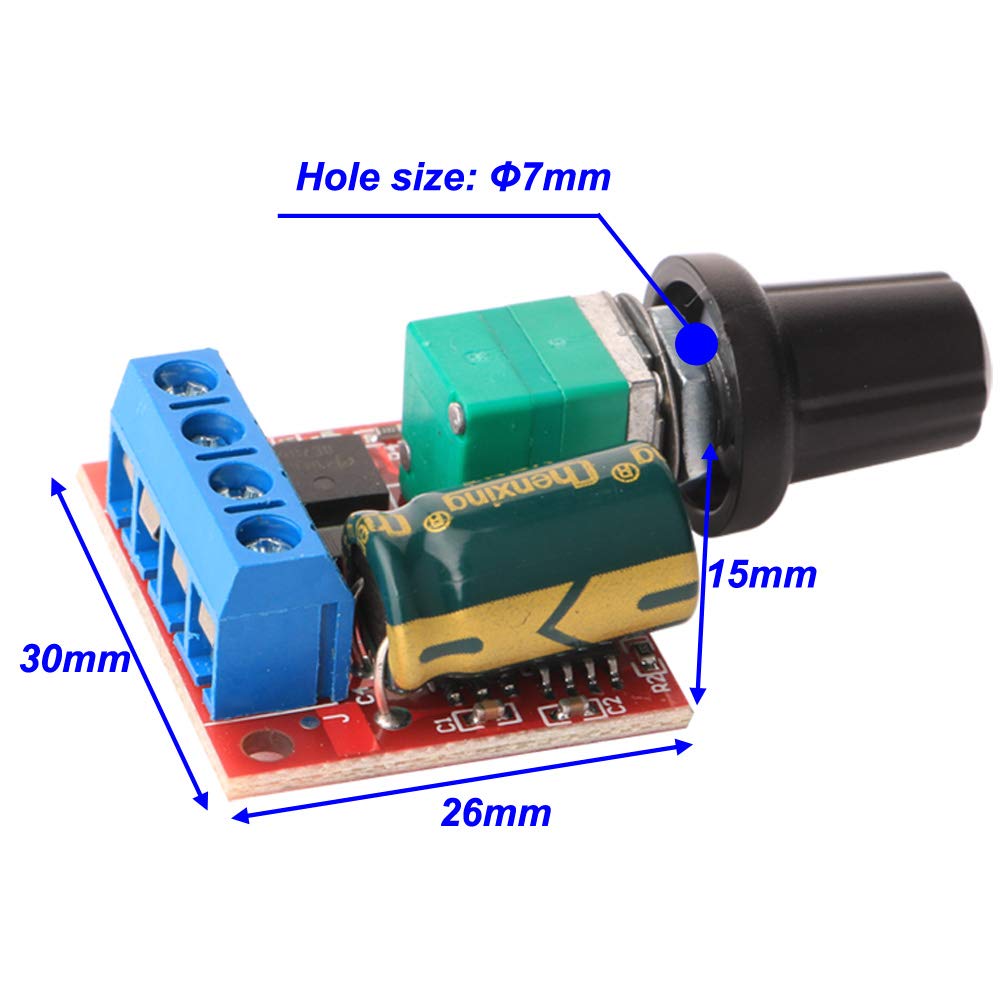

Package Contains: 3×DC Motor Speed Control Switch 1×1m Red Electrical Wire 1×1m Black Electrical Wire 1×Screwdriver Specifications: Operating voltage: DC 5V-35V Control power: Maximum 90W Quiescent current: 7u A(Standby) PWM duty cycle: 1%-100% PWM frequency: 20khz Shell size: 30mm*26mm(Without handle) total height is 14mm Net weight: 13g Note: DO NOT directly connected to AC, otherwise the device will be burn out. This DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%.The motor speed controller can easily provide a continuous current of 5A to your DC motor or other DC load.
