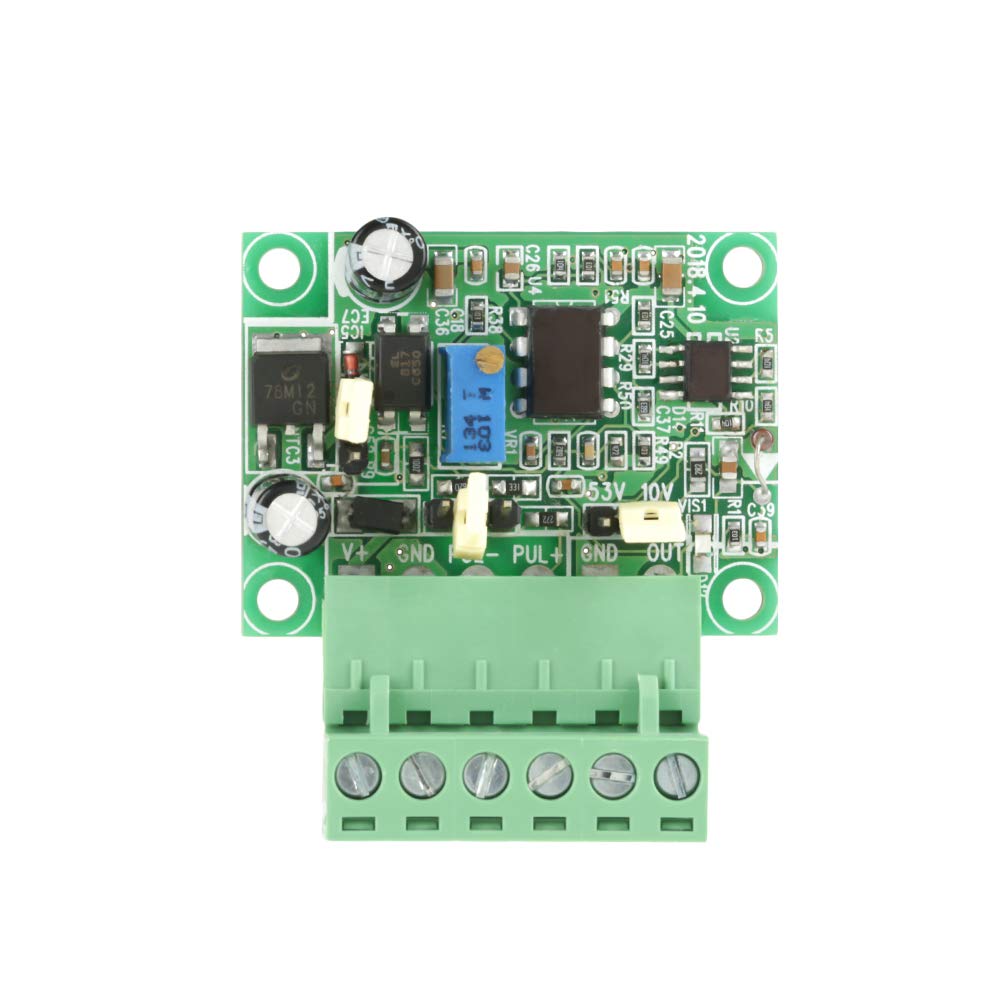

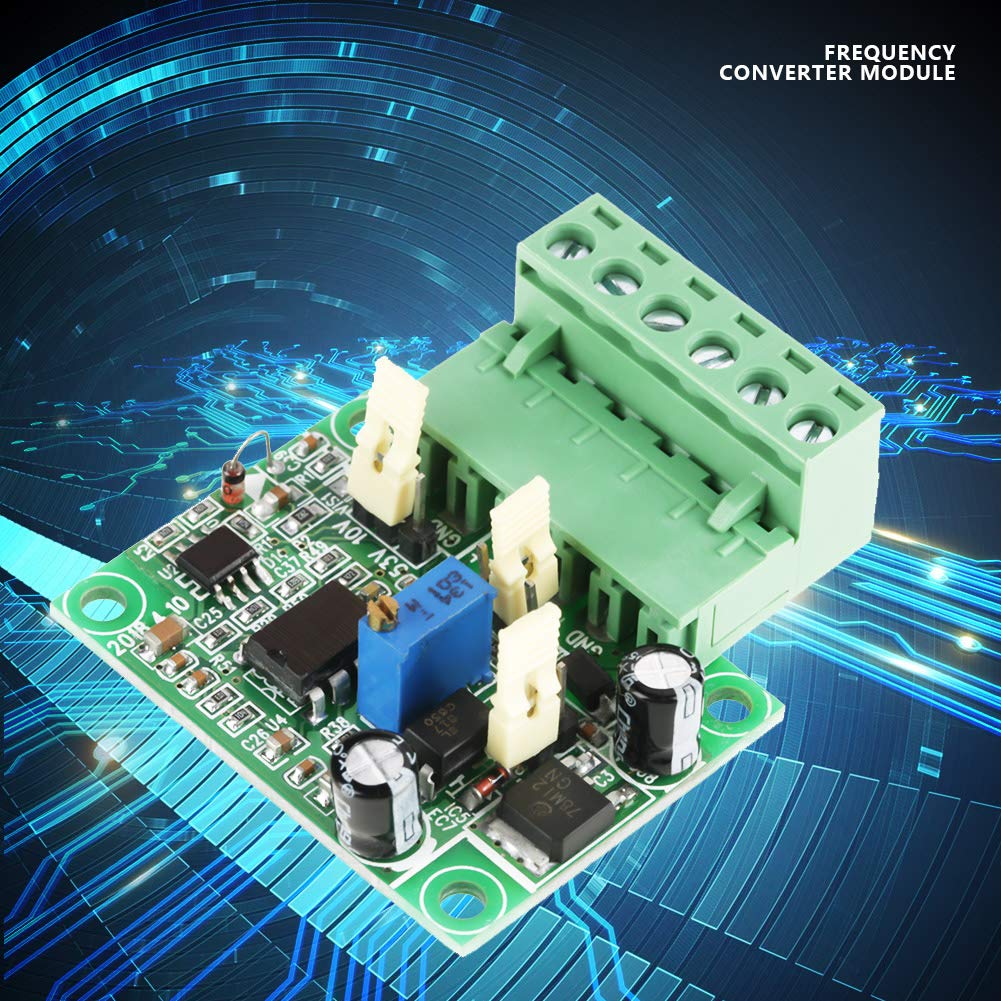

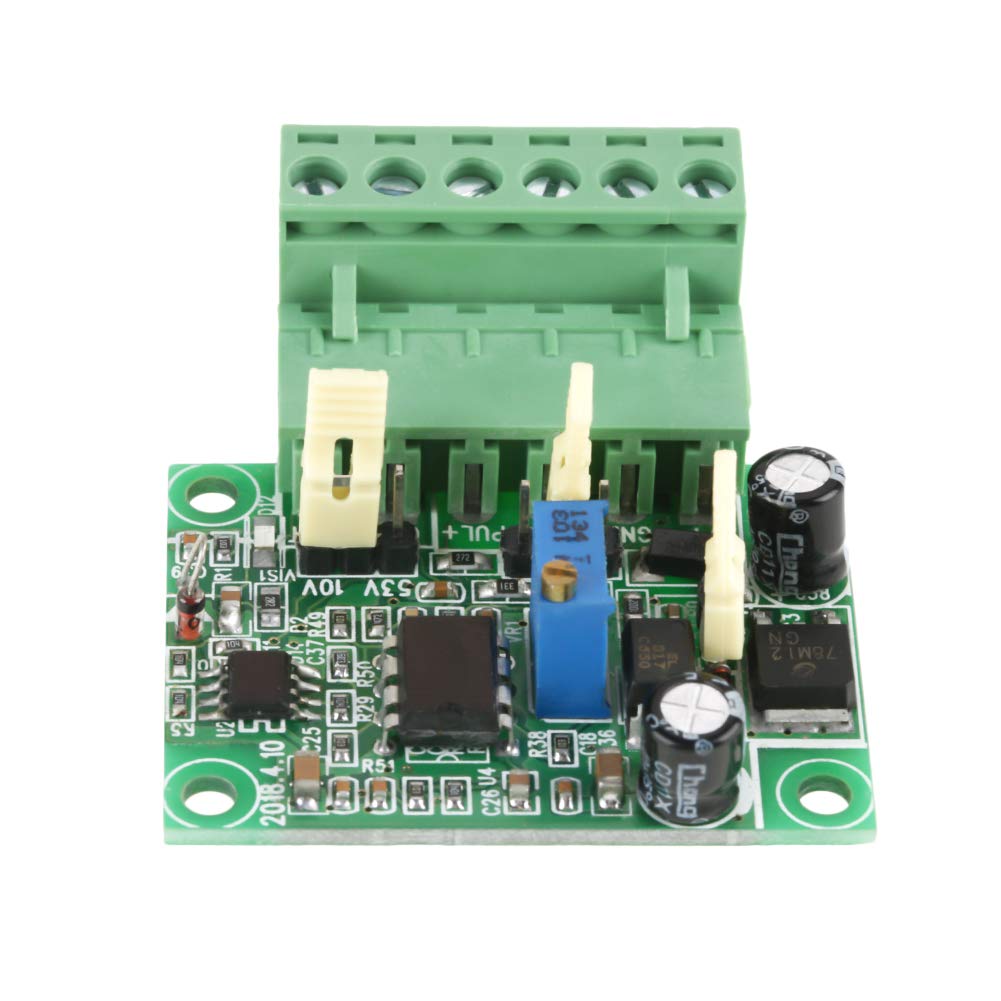

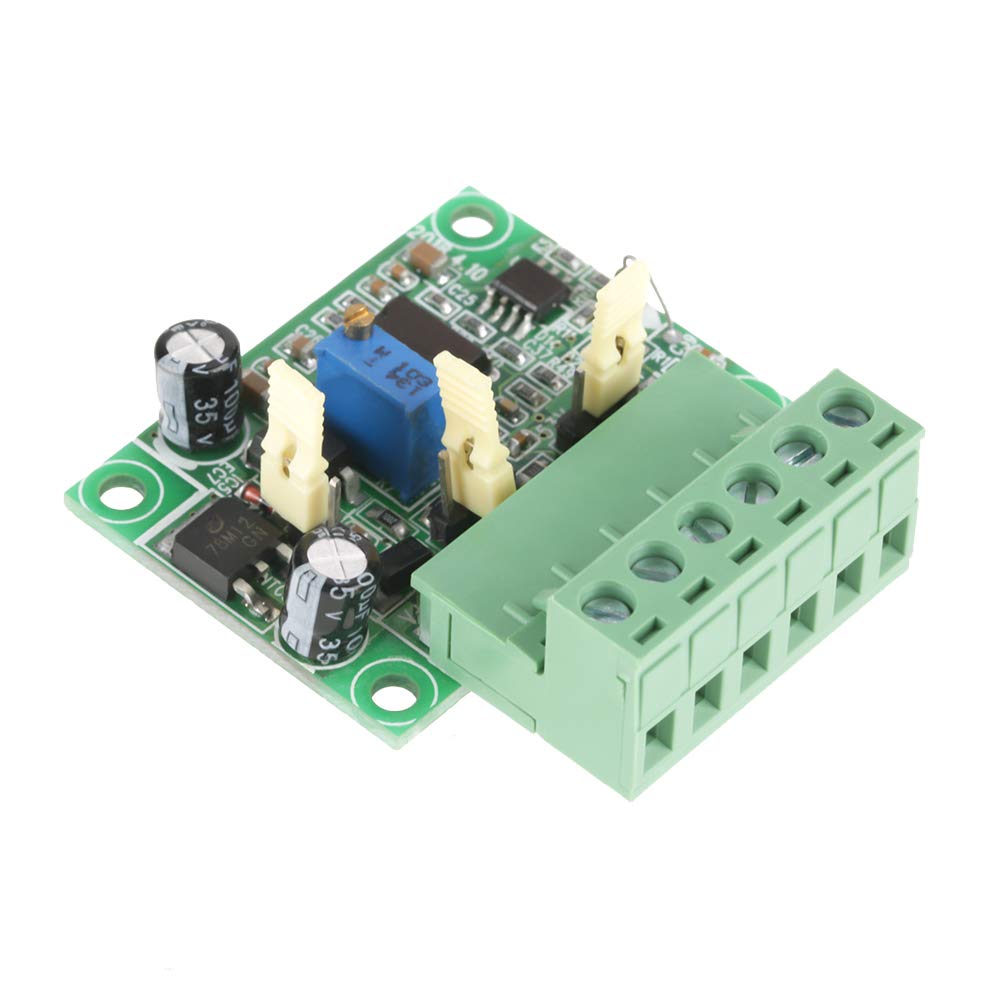

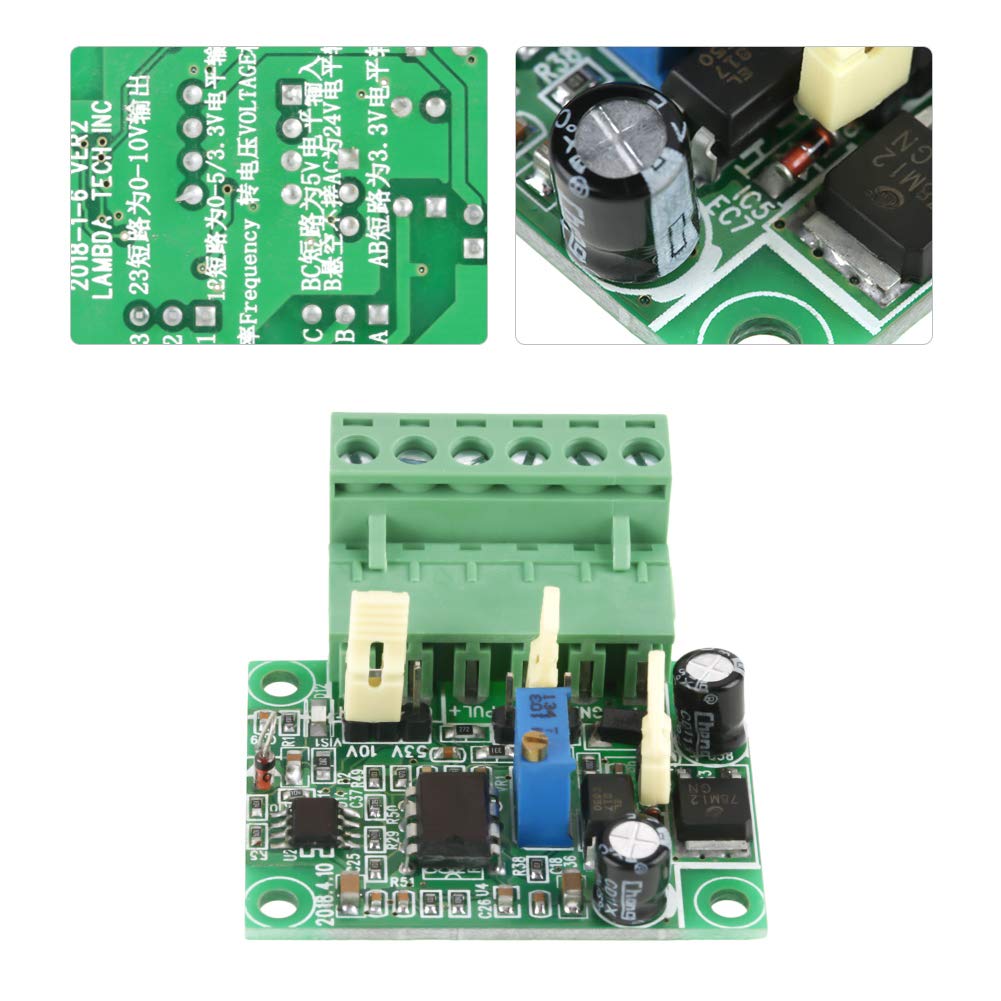

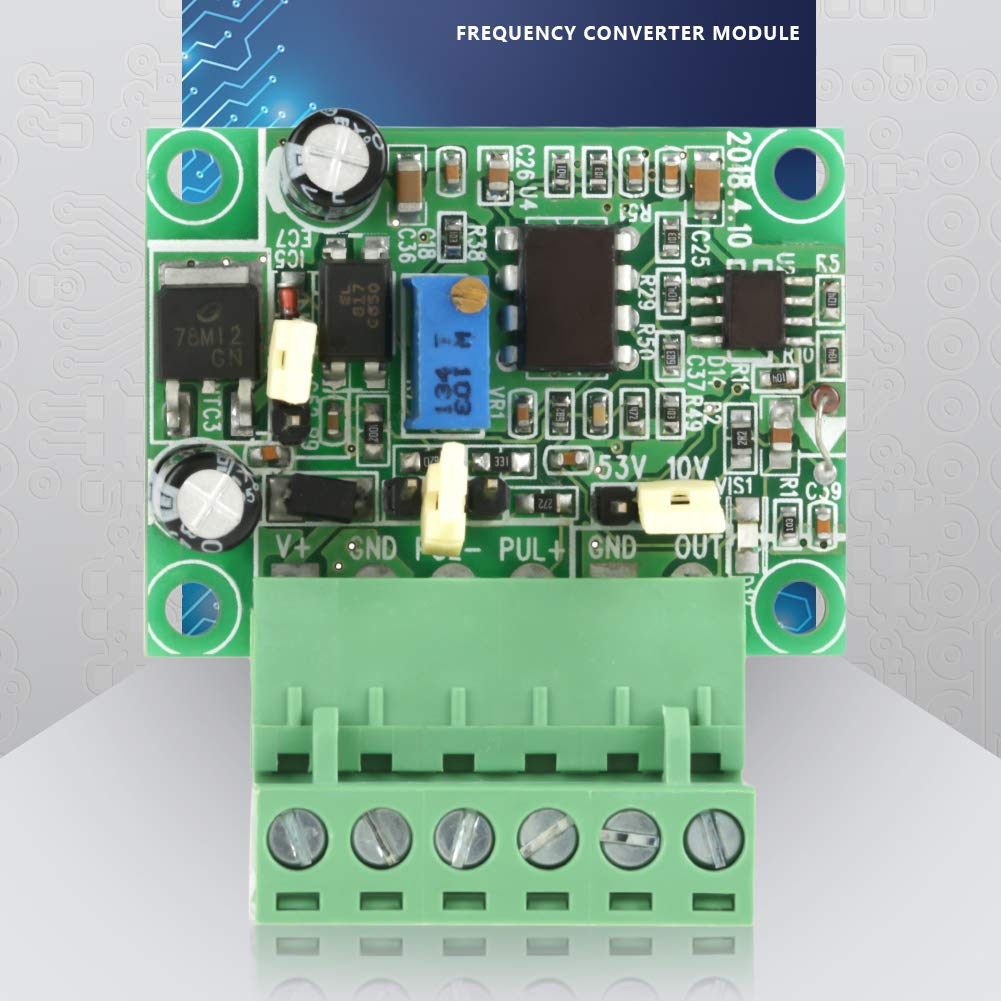

Frequency to Voltage Converter Module, 0-10Khz to 0-10V Signal Converter Module 3.3V 5V 24V Input DC 0-10V Adjustable Output with Isolation Function

• 【Feature】 This F / V Module Can put 0-10Khz frequency pulse signal into 0-10V Analog voltage signal, power input has anti-reverse connect function, safe to use
• 【Note】 lf matched with the encoder, the encoder constant speed continues to turn more than 0.5 seconds. Lf you need matched with PLC, support of NPN. It must be ground.
• 【Adjustable】 Output voltage can be minute adjustment, can adjust the potentiometer to calibration the frequency and voltage linear relationship, signal input with optical coupling isolation, to ensure anti-jamming capability.

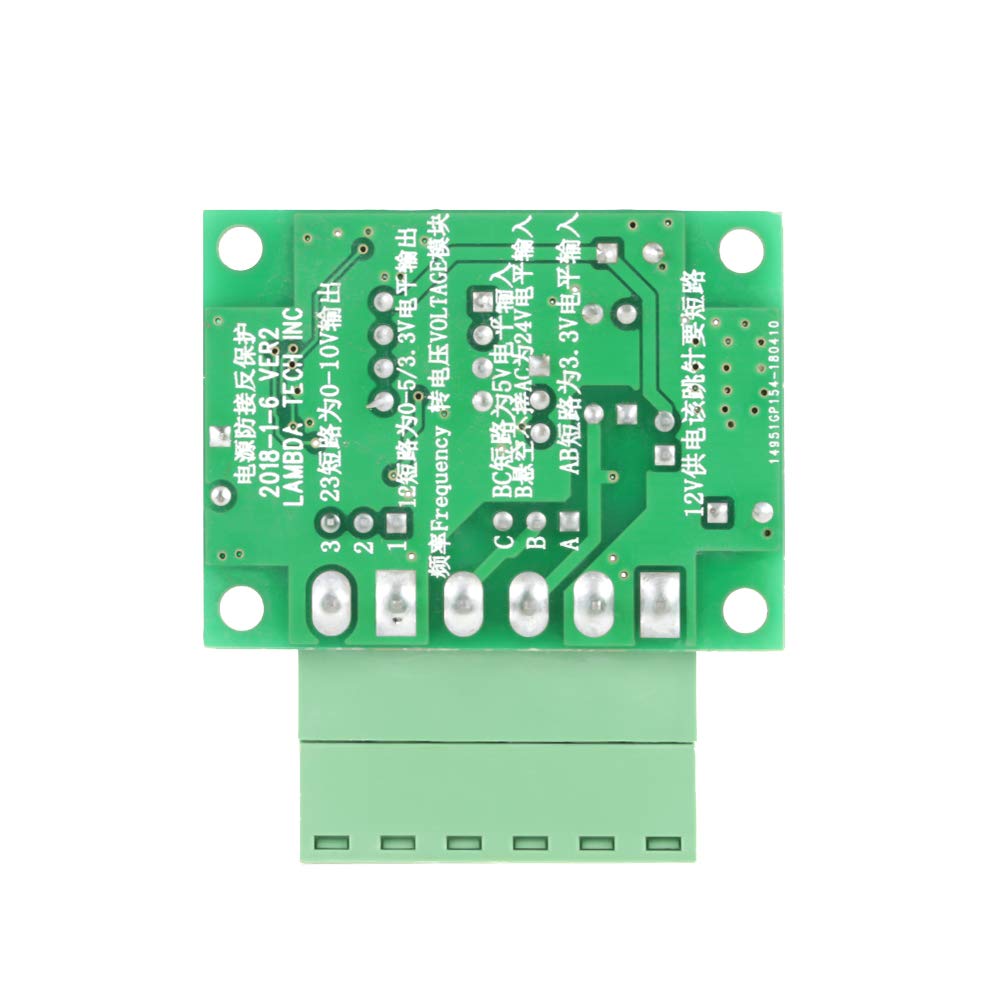

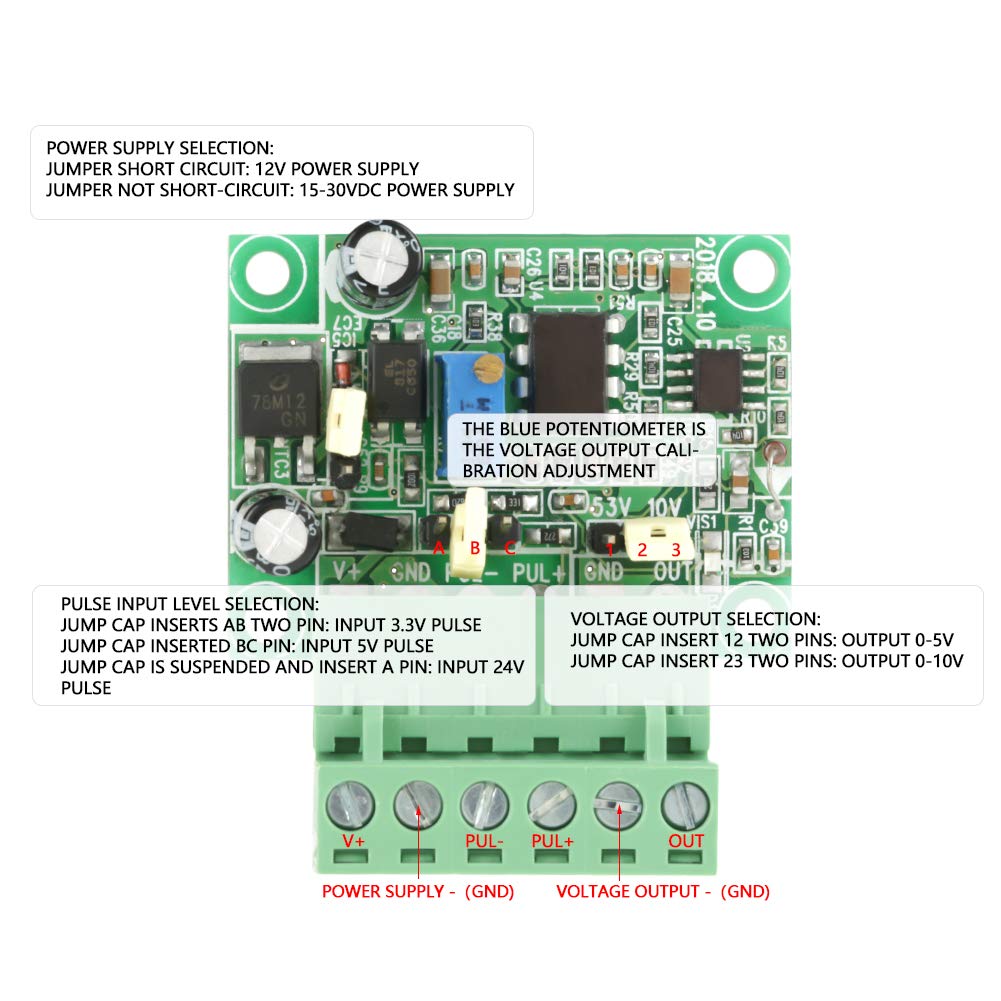

• 【Easy to Use】 Input pulse level is 3.3v, 5V, 24V. There are jump pin on the board for selection, without any resistance. Frequency-to-voltage module, response time is about 0.3-0.5 seconds.
• 【Wide Application】 Can be used to convert interface between PLC and frequency, or movement control card and converter interface matching control occasions.

Specifications: Power supply: 12-30VDC Input frequency: 0-10Khz Output voltage: 0-10V / 0-5VDC Response time: 0.3-0.5 seconds Output current: 5MA Weight: 18g Package includes: 1 x Frequency to voltage converter
