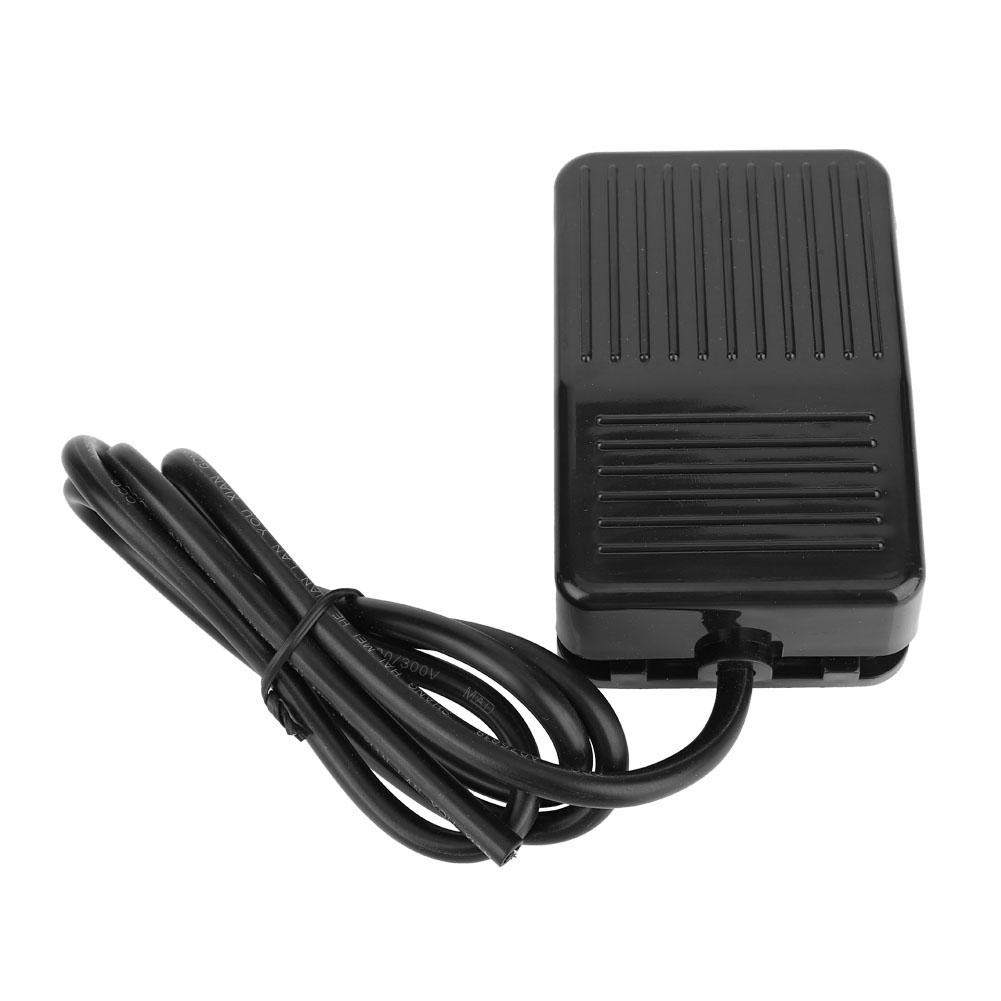

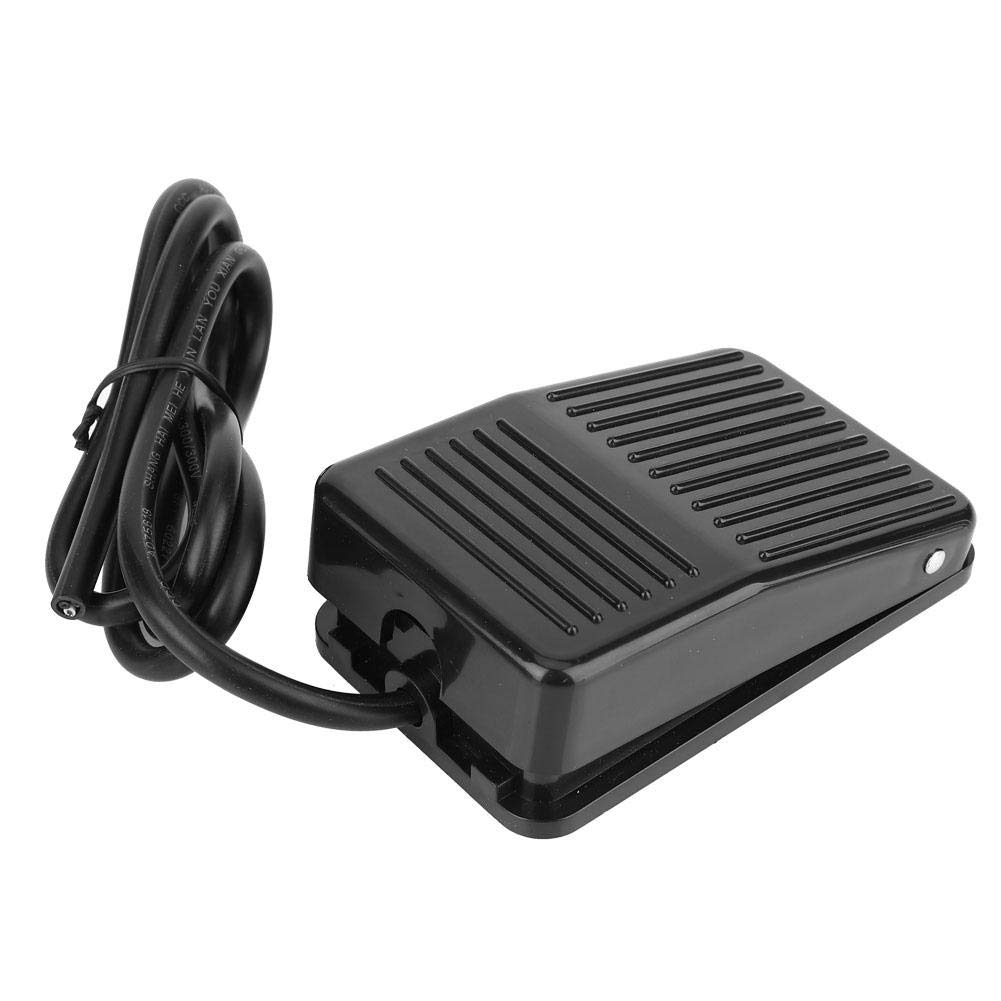

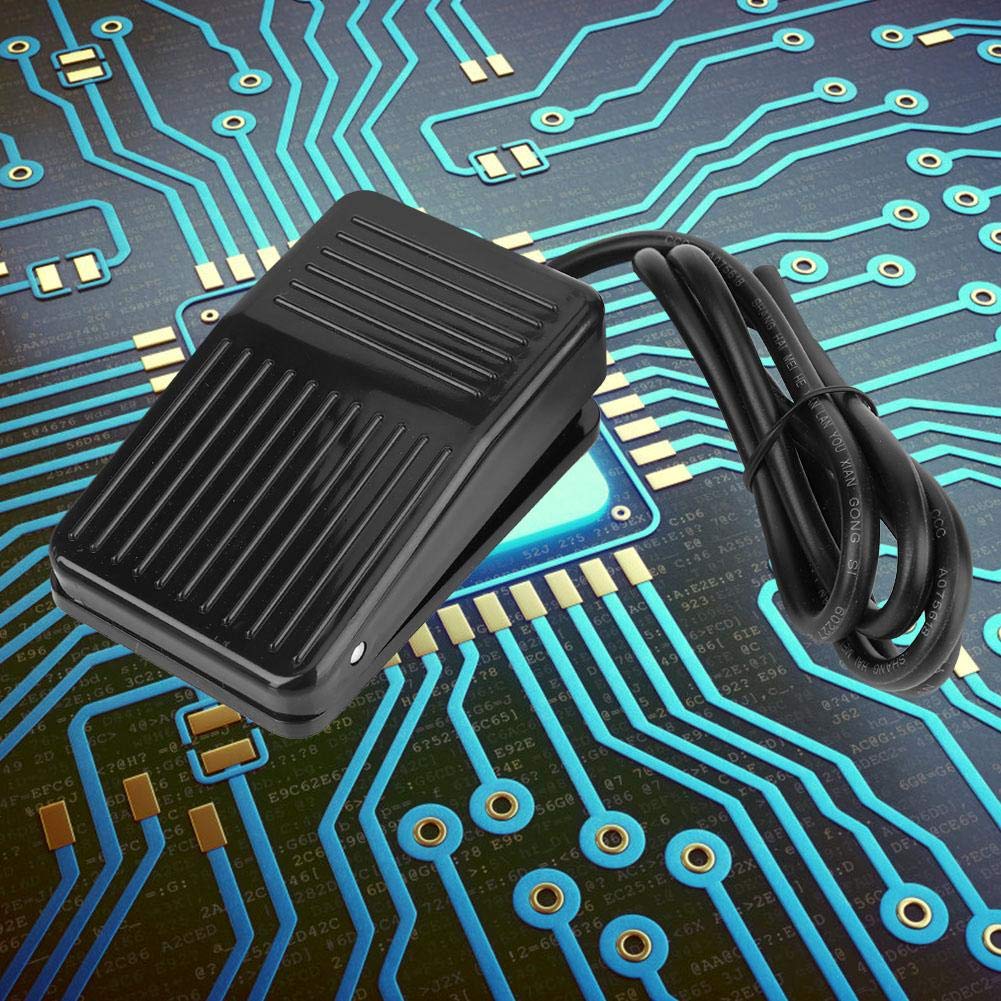

Foot Pedal Switch,250V AC 10A Anti-slip Momentary Foot Controller,for Table Drill,Instrument Machine Tool,Power Machine,Shearing Machine etc(3.3ft)

• Used to frequently switch on and off on-load circuits.
• According to the equipped trip switch, it can be customized with contact self-locking function, the contact is locked by operating pedal, and the contact is unlocked by the second operating pedal to achieve the alternating or start/ stop operation mode
• The anti-slip design of the pedal makes the operation more effective, convenient and safe.
• Adopt double silicon rubber gasket, make waterproof grade can reach IP67, thus guarantee high reliability and safety, adopt limit switch action way to realize high reliability.
• The limiter adopts adjustable mechanical memory structure with performance and high sensitivity.

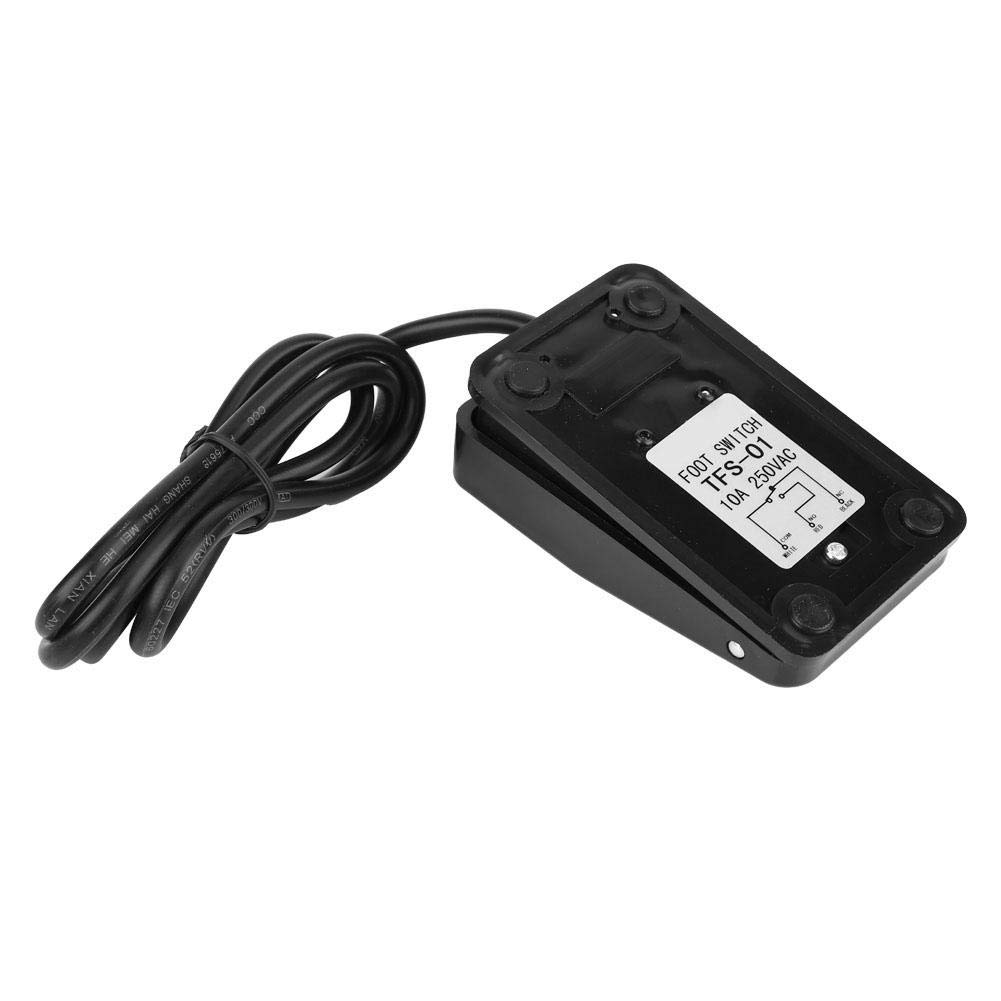

Specification: Model: TFS - 01 Color: black Wiring length: 1m / 3.3ft, 2m / 6.6ft (Optional) Working voltage: 250VAC Rated voltage:250 (VAC) Rated current:10 (A) Contact form: one ON and one OFF Shell material: plastic shell Scope of application: control Foot switch pedal size: 100 * 60 * 33mm / 3.9 * 2.4 * 1.3in Contact resistance: below 50m¦¸ (first time) Insulation resistance: 100M¦¸ above, 500 VDC test Medium withstand voltage: 2000V AC, 1 minute time Mechanical life: 100,0000 times Electrical life: 100,000 times Environment temperature: -250 ~ + 700 (no condensation dew, no icing) Environmental humidity: 45% ~ 85% RH Package List: 1 x Foot Control Switch Note: 1. Pay attention to the rated load of the product according to the nature of the load and the current value. 2. When handling and moving, pay attention to internal wiring short-circuit, break and so on. 3. Use in a large number of water, oil, dust and other places should pay attention to the protecting level. 4. Heavy pressure and impact are the direct causes of damage, please be careful. 5. When modified for direct control of a small motor in the main loop, the front end of the power feed must be equipped with a and an isolation switch.Because this switch has a phase power supply directly into the motor, the overhaul must be cut off the isolation switch to guarantee personal safety.
