G1/4 2 Position 5 Way Pneumatic Foot Pedal,Foot Press Switch Pneumatic Pedal Switch Controller Pneumatic Valve 1/4 of Aluminum Alloy of Controling the Medium And Changes its Direction

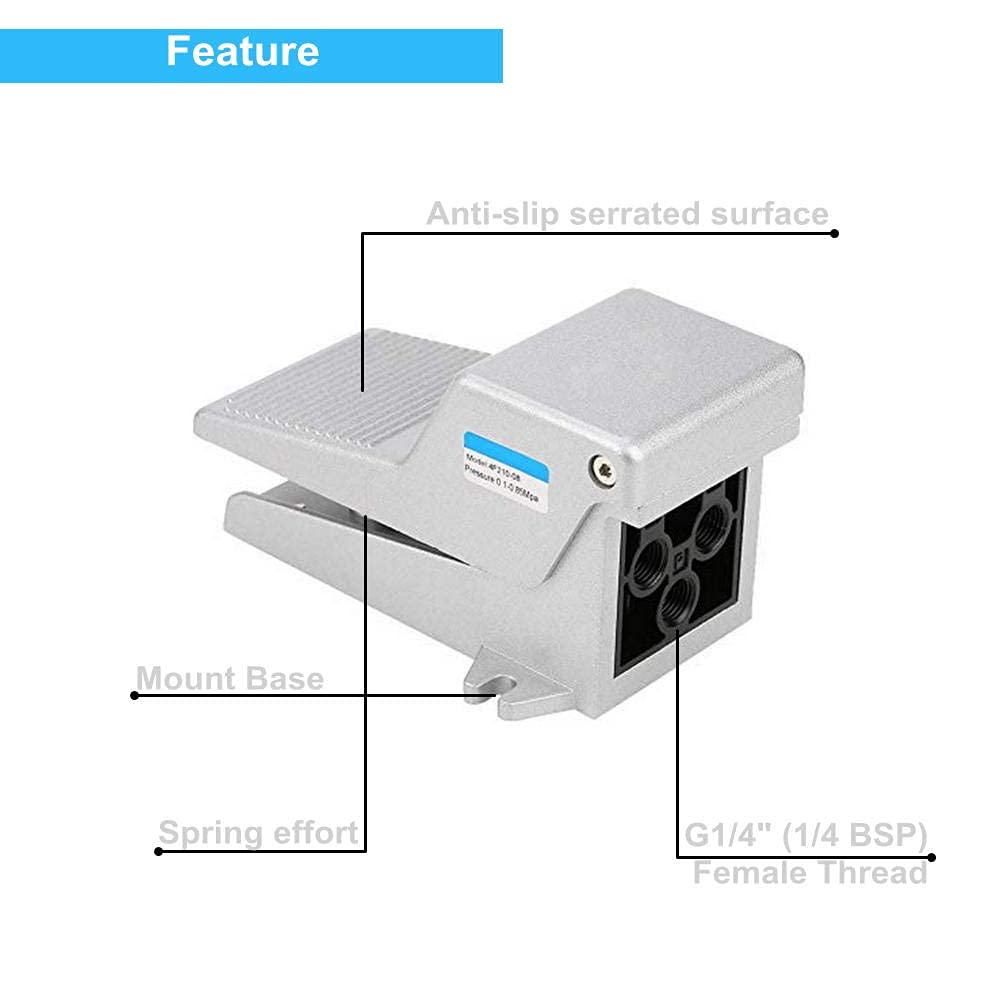

• PNEUMATIC FOOT SWITCH -- Pneumatically controlled foot switch, two-position five-way cylinder controller, hands and convenient control.

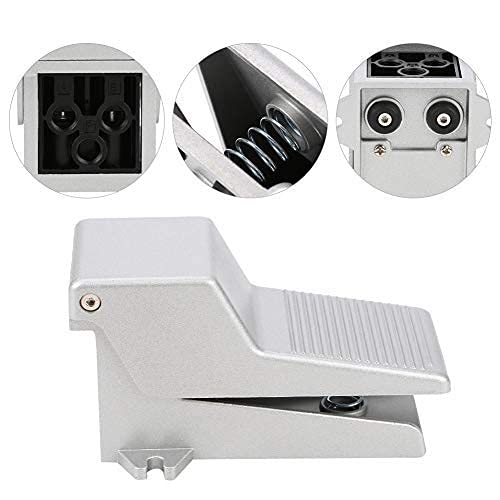

• ANTI-SLIP PEDAL -- The foot valve adopts an anti-slip pedal, which saves effort and has better use effect. There are 4 anti-skid pads at the bottom, which is safe and stable.
• RETURN SPRING -- high-strength fatigue life test, no rust, stable performance, and the integrated aluminum alloy cylinder body is durable and corrosion-resistant.
• INTERFACE -- G1/4 Inch interface, where A and B are the air outlets, P is the air inlet, high-quality sealing ring, self-lubricating sealing rubber to reduce friction, increase service life, and work stably at 0-50 degrees Celsius.
• WIDELY USED -- factory workshop, auto repair, woodworking, logistics, electronic DIY, pneumatic tools, vacuum operation and other environments.

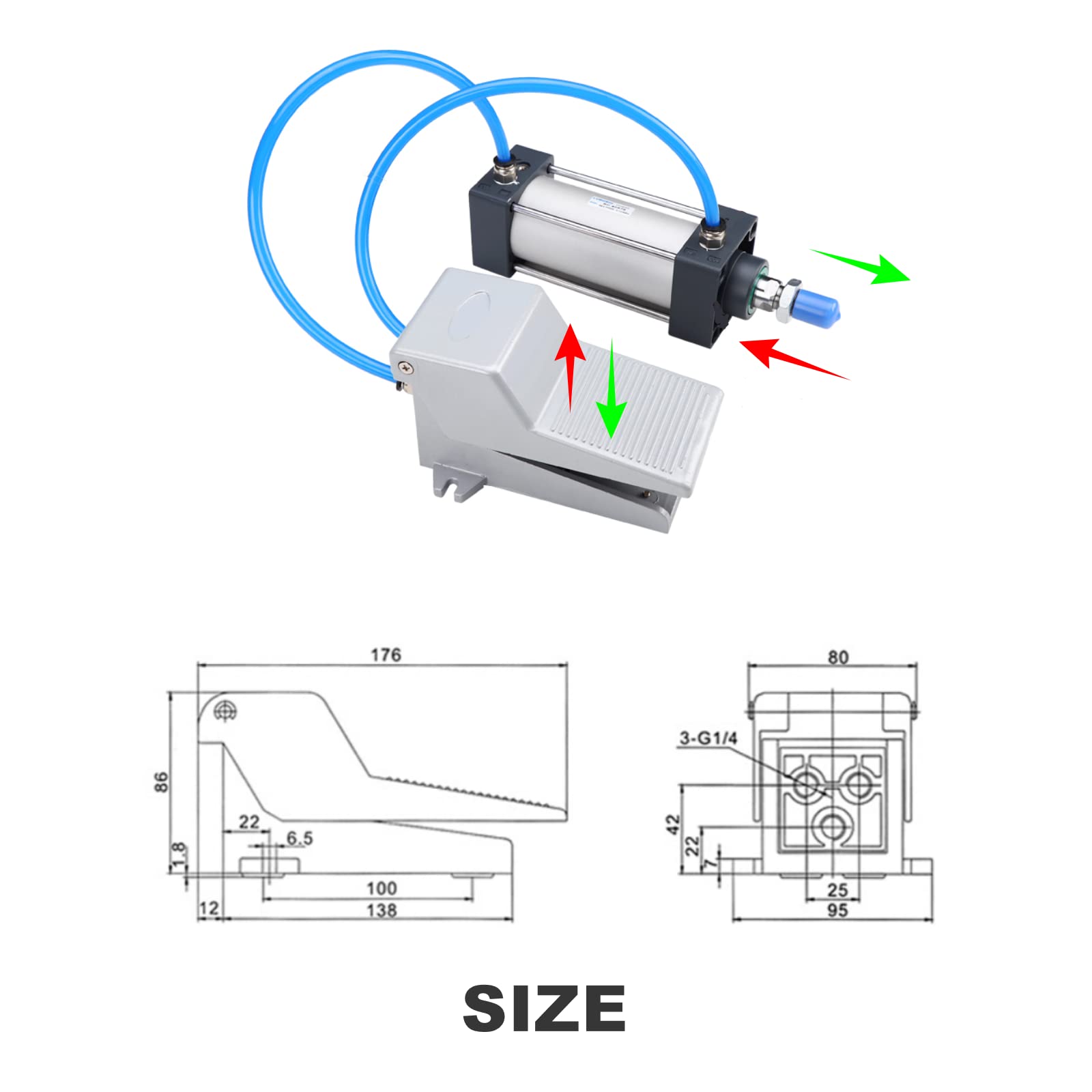

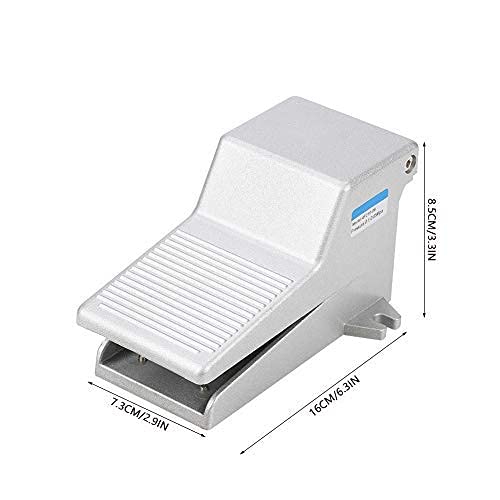

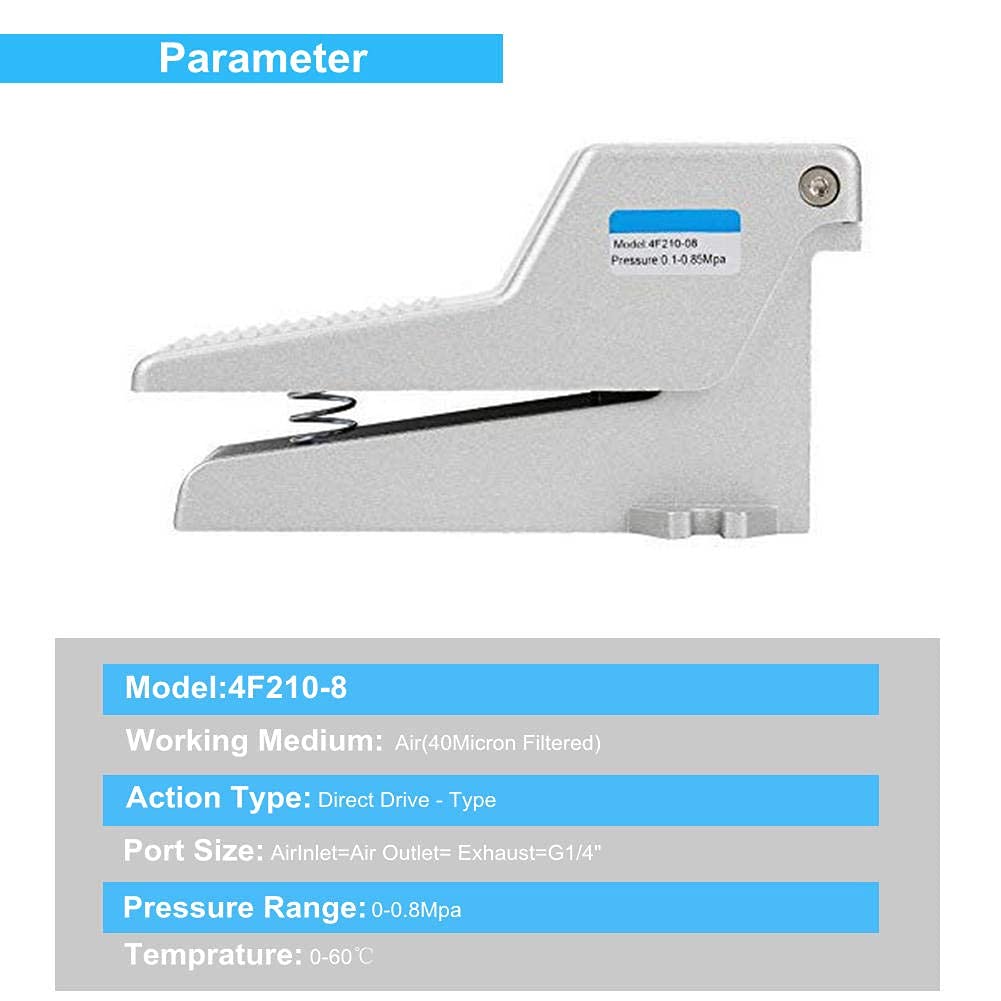

Specification: Condition: Brand New Model: 4F210-08 Material: Aluminum Alloy Connection Mode: Female Type (channel position): 5/2 Way Pressure Environment: High Pressure Form: Plunger Type Standard: British Standard Flow Direction: Reversing Action Mode: Straight-through Using Pressure: 0-0.08Mpa Operating Temperature: 0-60 Port Size: G1/4 Weight: Approx. 590g / 20.8oz Size: Approx. 16 * 7.3 * 8.5cm / 6.3 * 2.9 * 3.3in Package List: 1 * Pneumatic Foot Valve
