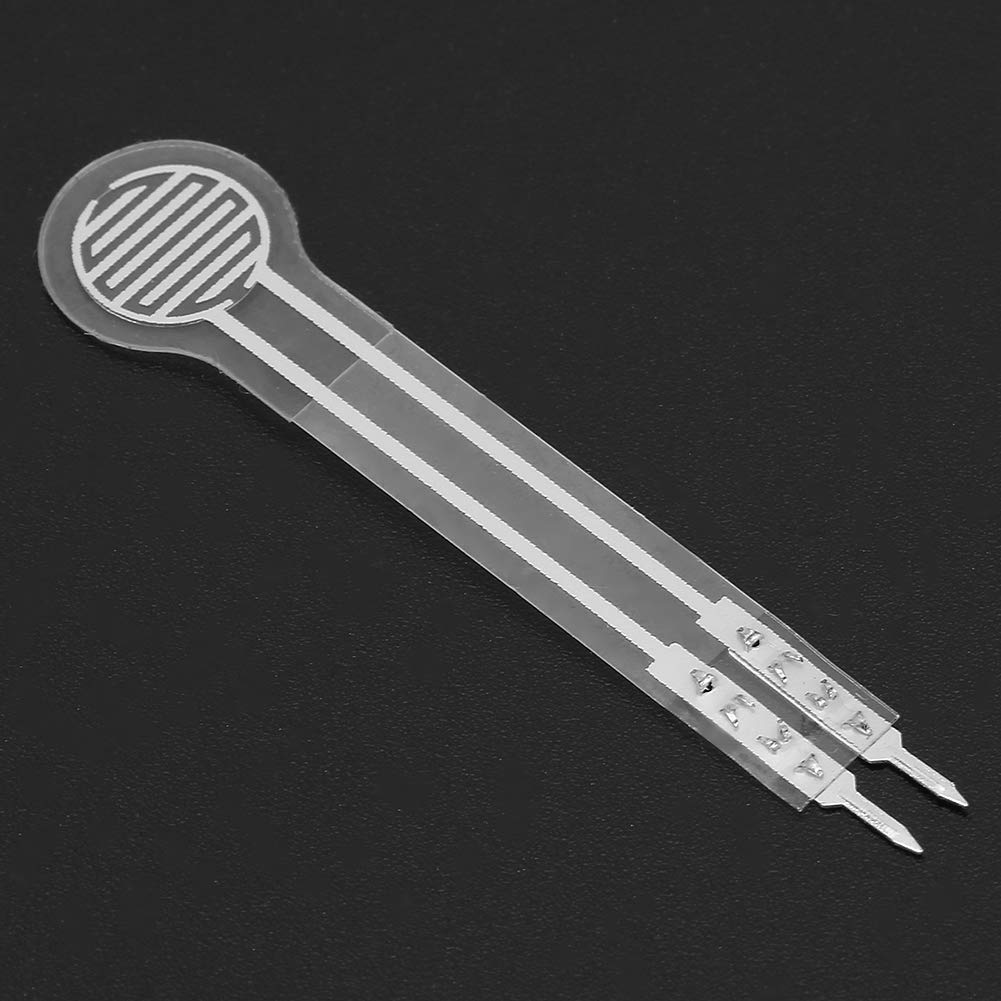

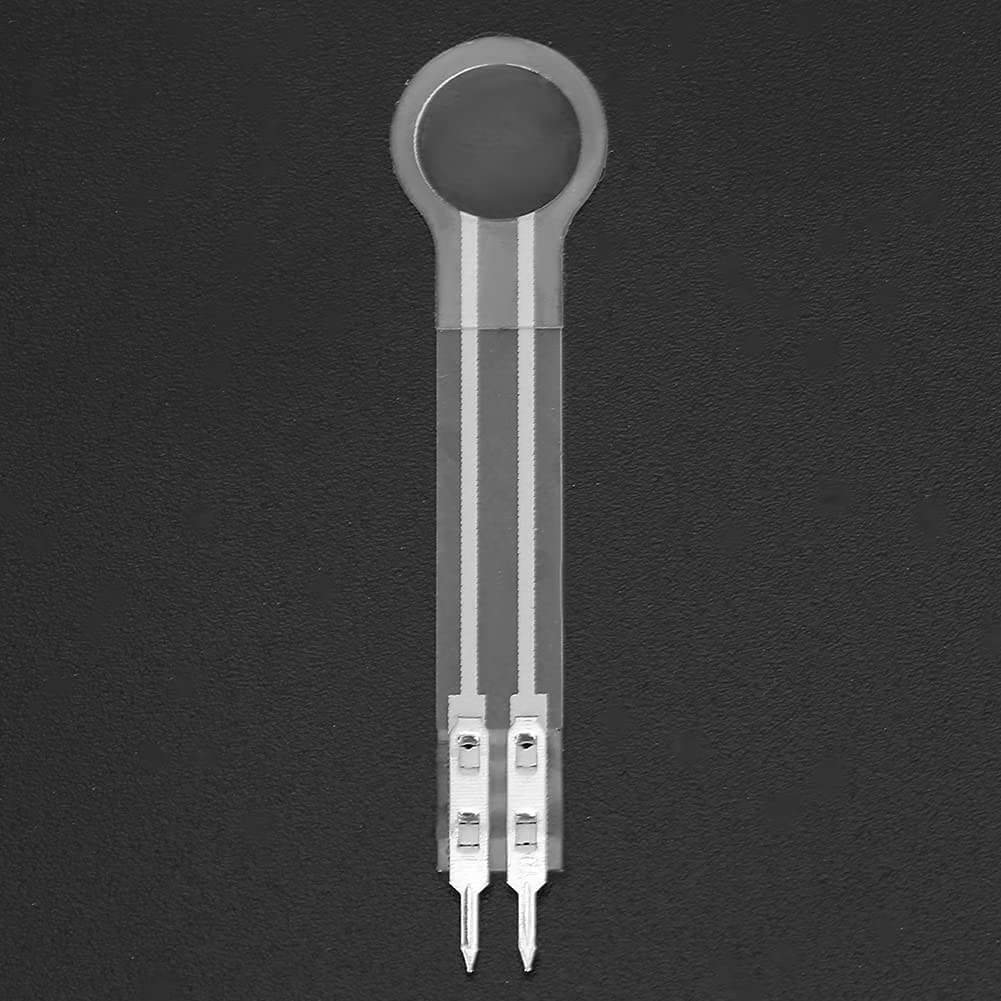

Flexible Thin Film Pressure Sensor, Akozon High Precise Resistance-Type Force Sensor Module 1pc (0-500g)

• 【Wide scope of application】Flexible thin film pressure sensor is an artificial flexible simulate sensor device for realizing the perception function of human skin. The flexible film pressure sensor supports different functional requirements, used in automotive electronics, medicine equipment, intelligent robots, intelligent shelves.
• 【High Sensitivity】This flexible pressure sensor is based on new nano pressure sensitive materials complemented by an ultra-thin film substrate, which can realize highly sensitive pressure detection. The force sensor module can perceive small pressure or tactile
• 【Working principle】When the sensor detects the external pressure, the resistance of the sensor will change.The pressure can be converted to a corresponding electrical output using a simple circuit.
• 【Extraordinary Performance】This force sensor has a pressure sensitive function and a water resistant function. high sensitivity and quick response. Small size, light weight, bending resistance, long service life, easy to install.
• 【Service】We are responsible for the product and believe in the quality of the product. Professional functions and high reliability give you a different experience and ensure every customer's satisfaction. If you have any questions about our products, we will answer them at any time.

Features: This flexible pressure sensor is based on new nanometer pressure-sensitive materials supplemented by ultra-thin film substrate. Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure. It has pressure sensitive function as well as water-resistant function. When sensor detects outside pressure, the resistance of sensor will change. Pressure can be converted into a corresponding electrical output using simple circuit. Specifications: Measuring Range: 0-500g, 0-2kg, 0-5kg, 0-10kg, 0-20kg (Optional) Thickness: <0.25mm Precision: ±2.5%(85% measuring range) Repeatability: <±5.8(50% load) Lifespan: >1million times Initial Resistance: >10MΩ(no load) Response Time: <1ms Restore Time: <15ms Test Voltage: DC 3.3V (typical) EMI: Not generate EDS: Not sensitive Sensing Area Outer Diameter: 9mm Sensing Area Inner Diameter: 7.5mm Pin Spacing: 2.54mm Quantity: 1 Package Includes: 1 x Pressure Sensor Note: Please allow small size error due to manual measurement. Thanks for your understanding.
