Fielect DC 6V 20N Push Pull Type Solenoid Electromagnet, 2A 12W 10mm Stroke Open Frame Solenoid Electromagnet Linear Motion, JF-0826B-6V

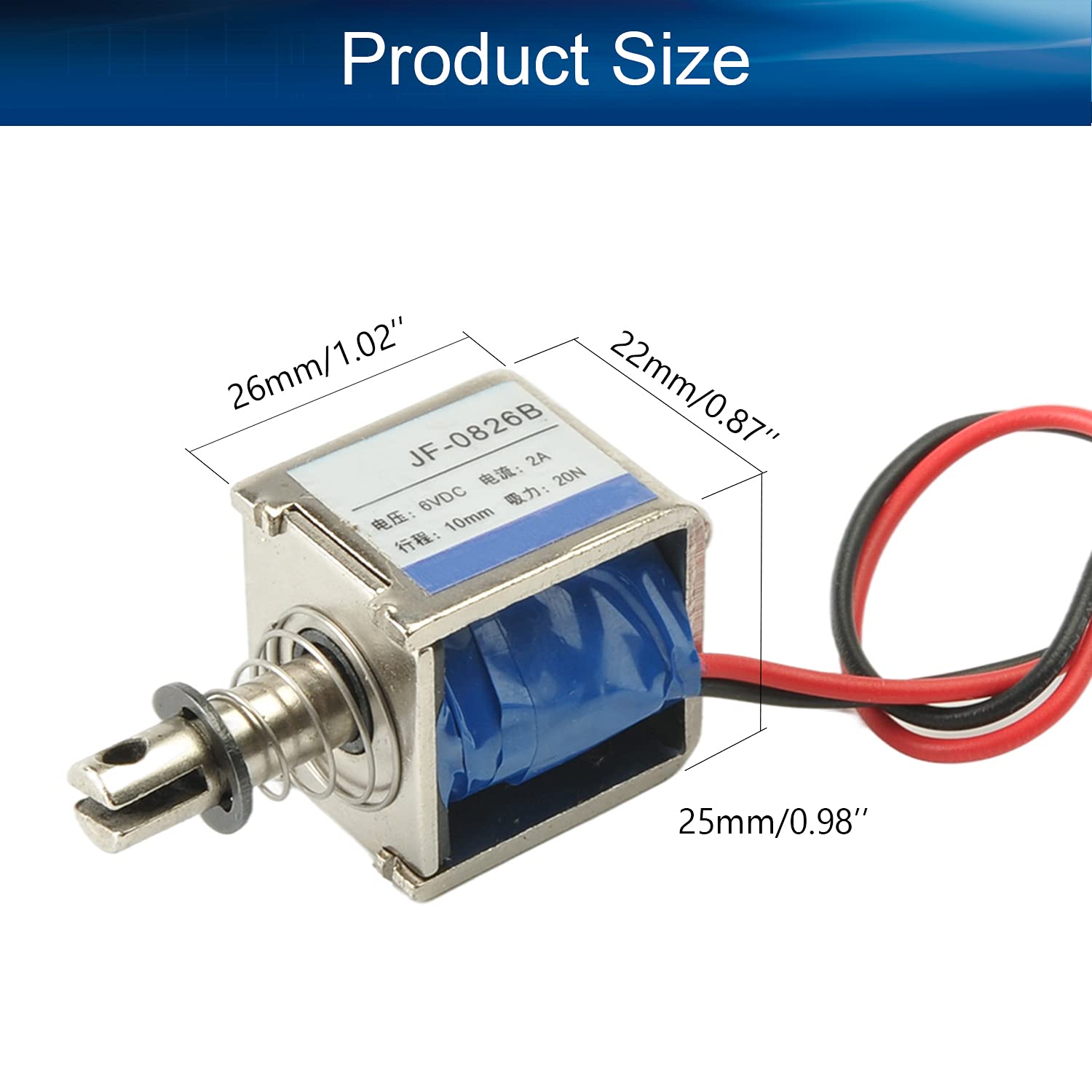

• 【Dimension】- 22 x 25 x 26mm/0.86" x 0.98" x 1.02"(L*W*H); Voltage: 6V ;Current : 2A ; Force: 20N; Stroke : 10mm / 0.39 inch; Model:JF-0826B-6V.
• 【Good design】- Push pull Type, linear motion, frame type, plunger spring return, Low friction to ensure high efficiency and prolong life, 6V DC solenoid electromagnet.
• 【Advantages】- Solenoid electromagnet has simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high electrical conductivity.
• 【Application】- DC 6V solenoid electromagnet widely used in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,auto door lock,etc.
• 【Noted】-As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time, best operate time is in 30 seconds.

Push Pull Solenoid Electromagnet Features: 1. Easy to fix and connect the load 2. The temperature rise is stable, which can extend the life of the product and ensure good performance 3. The E buckle and rubber gasket make the solenoid valve operate silently 4. Low friction to ensure high efficiency and prolong life 5. Simple and reliable structure design Product Specifications: Material: Metal,soft magnetic material. Size: 22 x 25 x 26mm/0.86" x 0.98" x 1.02"(L*W*H) Voltage: 6V Force: 20N Current:2A Stroke:10mm/ 0.39 inch Range of application: 1. Swimming instruments A variety of coin pickers 2. Vending machines Various vending machines currency changer ticket machines. 3. Office equipment List machine computer equipment fax machine clocking machine. Photocopier typewriter cash register plotter drink machine. 4. Transportation equipment Automatic door lock safety belt lock car solenoid valve parking equipment. 5. Household appliances Recorder, video recorder, electronic organ, automatic knitting machine, singing machine. Notes: 1. Temperature rise: 65 or less (grade A) Life: under load, it can be used for more than one million cycles 2. Please pay attention to the actuator as an automation equipment. Because of the large current, a single cycle cannot be energized for a long time, so it is suitable for point-through work. The best working time for a single power-on within 1 minute! Long energization similar to an artificial short-circuited coil will cause the temperature of the electromagnet to rise sharply, and too high a temperature will affect the life of the electromagnet. Package Content: 1 x DC Solenoid Electromagnet
