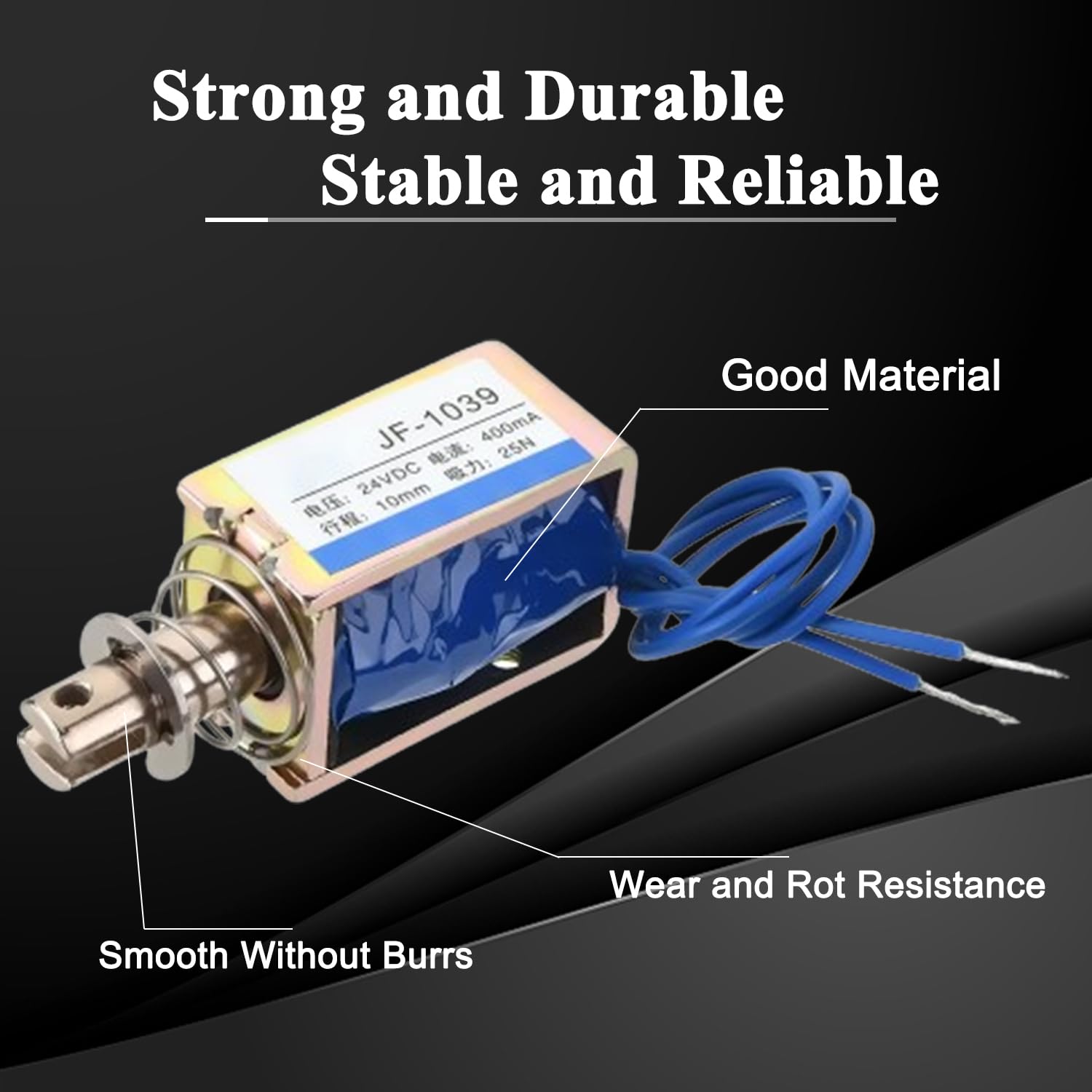

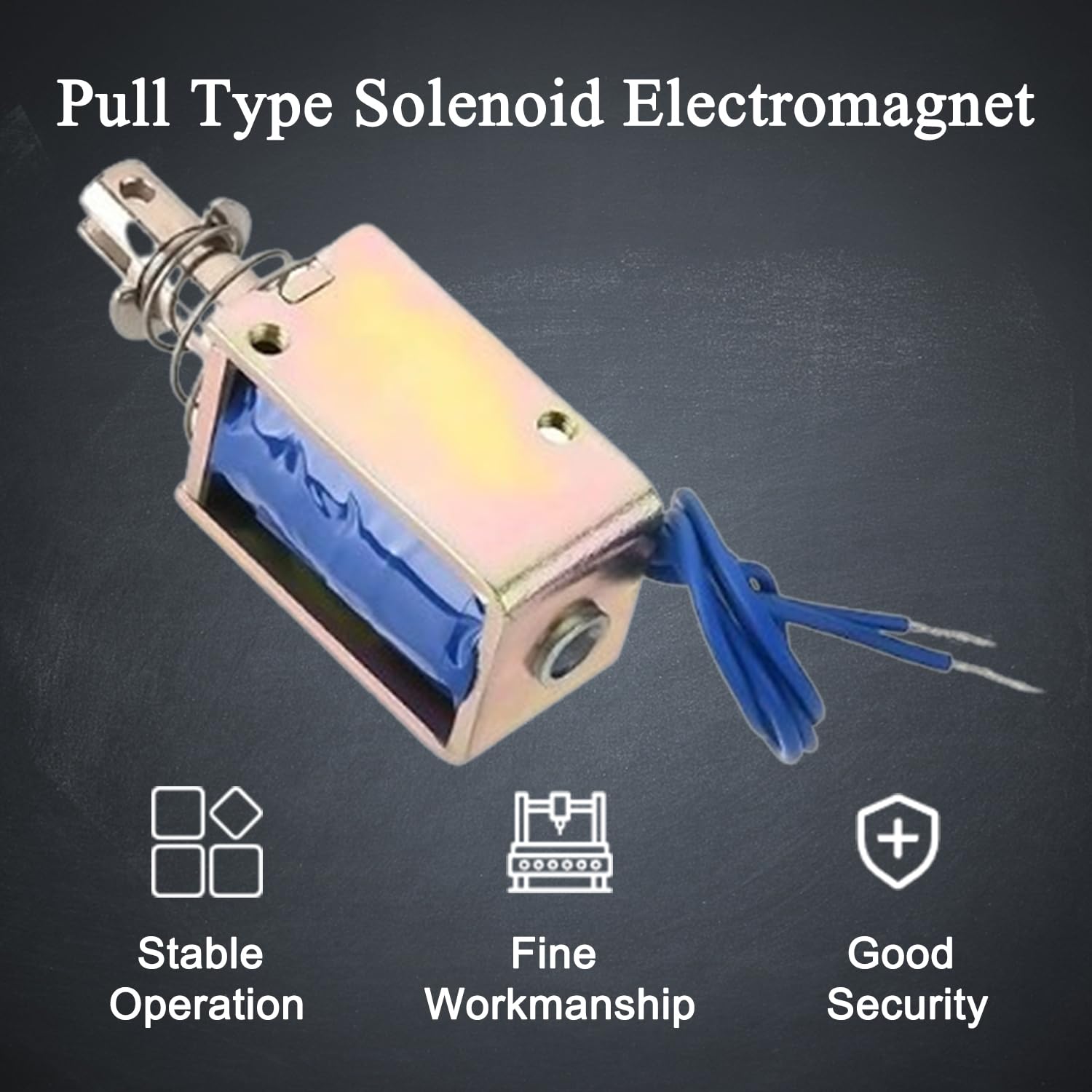

Fielect DC 24V 25N Pull Type Solenoid Electromagnet Open Frame Linear Motion Solenoid Electromagnet JF-1039-24V

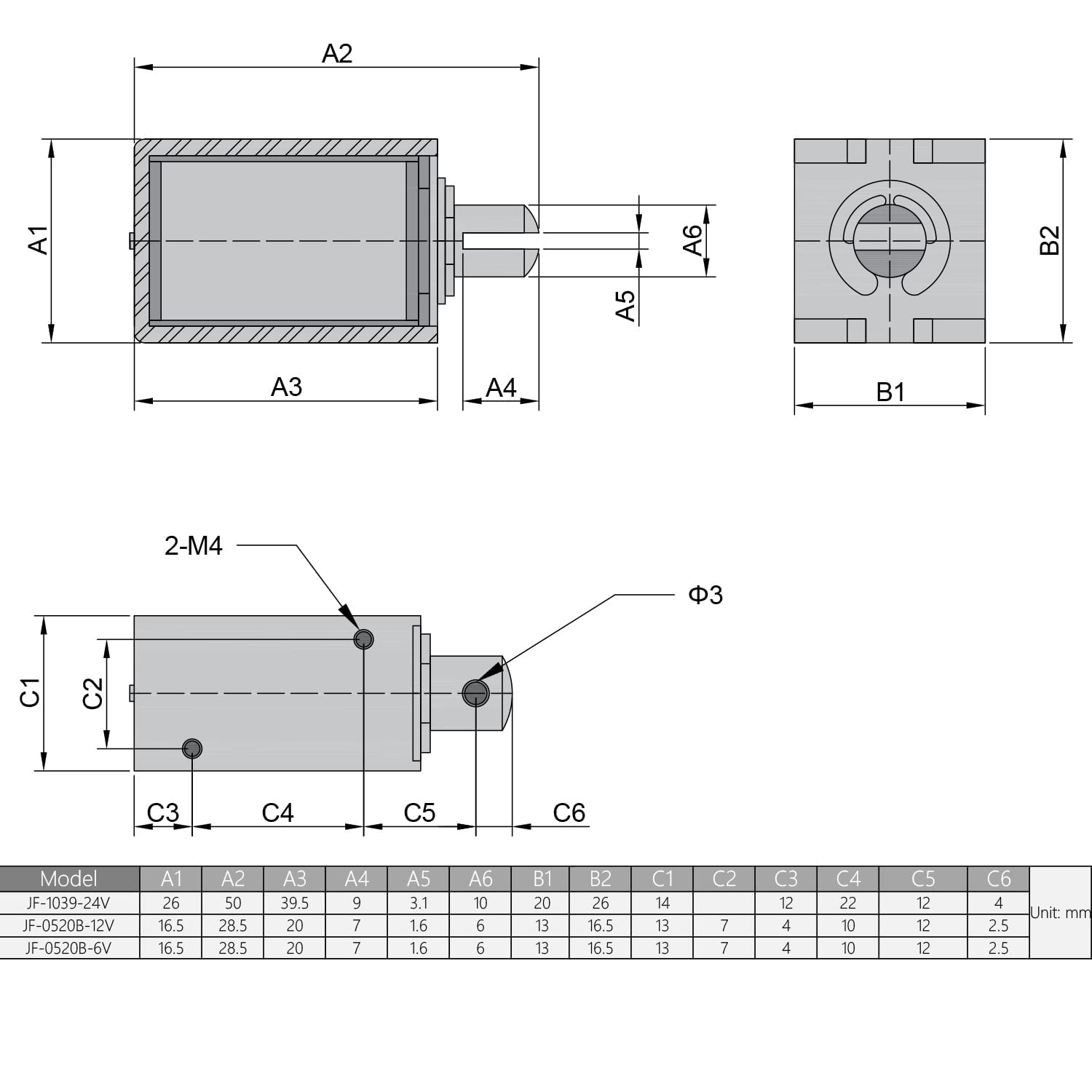

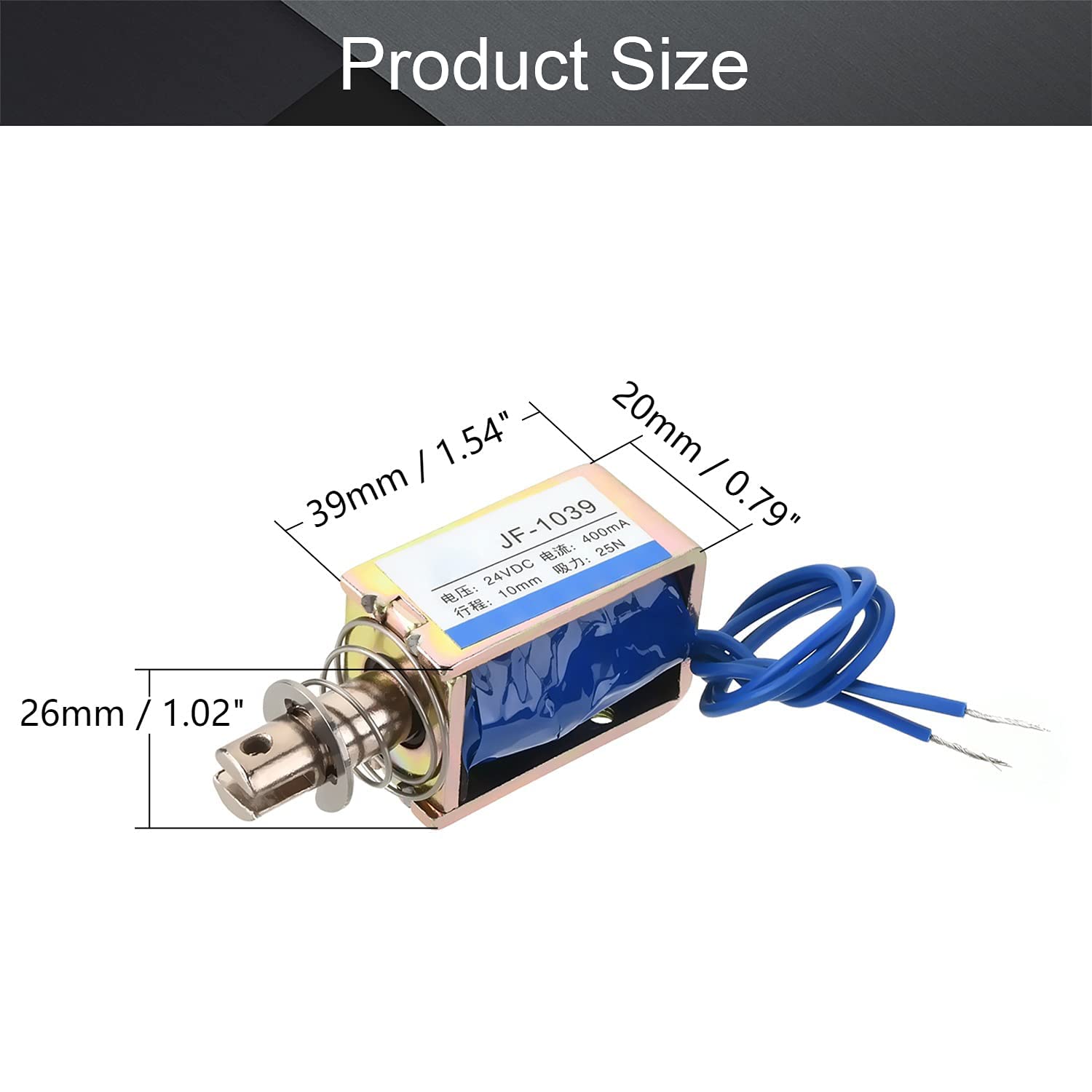

• 【Dimension】- 20x 26x 39mm/0.78" x 1.02" x 1.53"(L*W*H); Voltage: 24V ;Current : 0.4A; Force: 25N; Stroke : 10mm / 0.39 inch.
• 【Good design】- The push-pull frame type electromagnet is energized suction type, which is fixed when energized and automatically reset when the power is off.

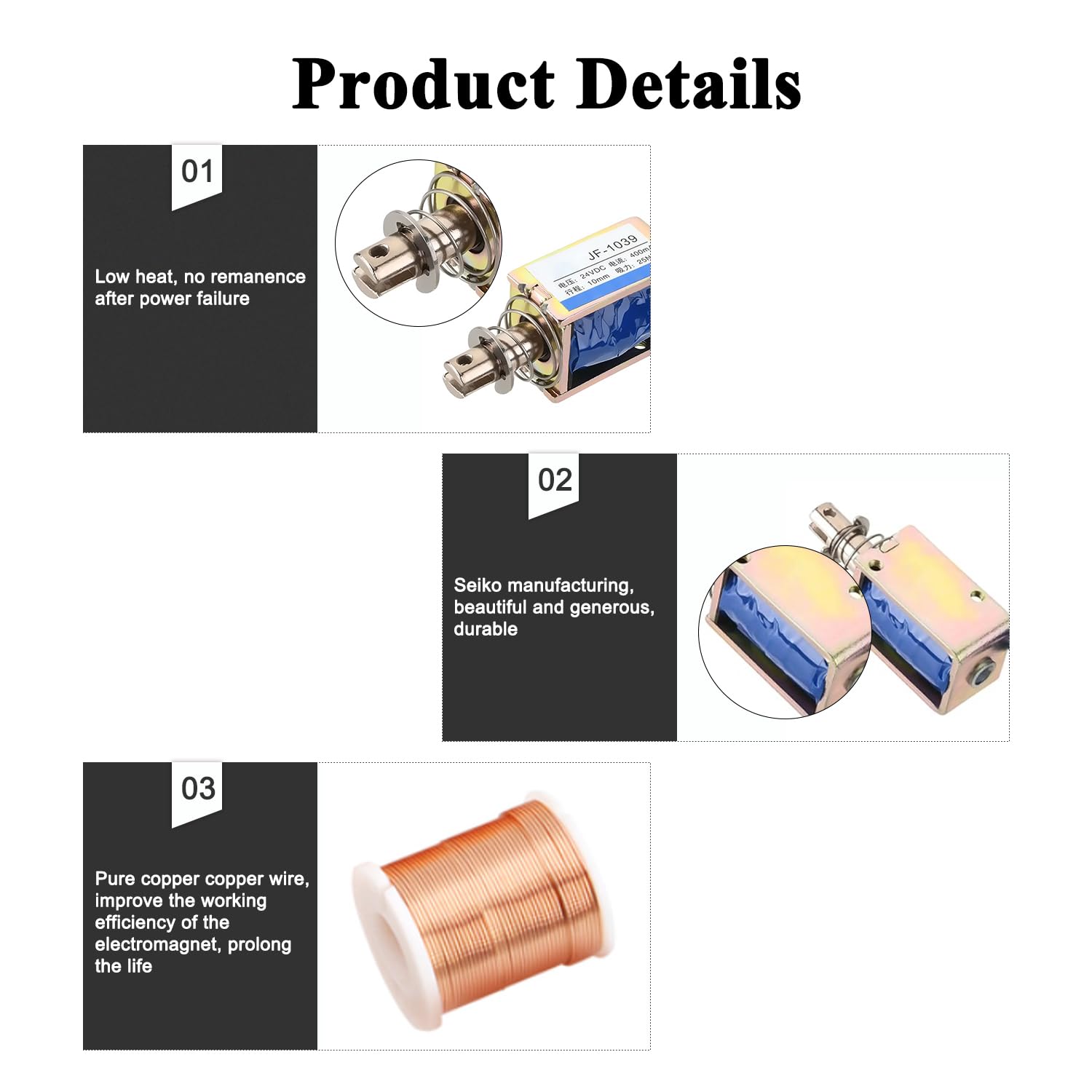

• 【Advantages】- This solenoid has simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high electrical conductivity, simple control, energy saving and reliable, support DC voltage.
• 【Application】- Solenoid electromagnet widely used in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,auto door lock,etc.
• 【Noted】- As an actuating element of an automation equipment, because the current is large, the single cycle can not be electrified for a long time, best operate time is in 5 seconds. The core of the electromagnet is not fixed on the coil bracket, and the core will fall out if tilted.
