Exact 05975 32 x 1.5m Special Tap for Cable Connections

• Special Tap for Cable Connections
• with guide pins for thread coreholes for precise alignment of threads
• Mf32x1,5
• in HSS

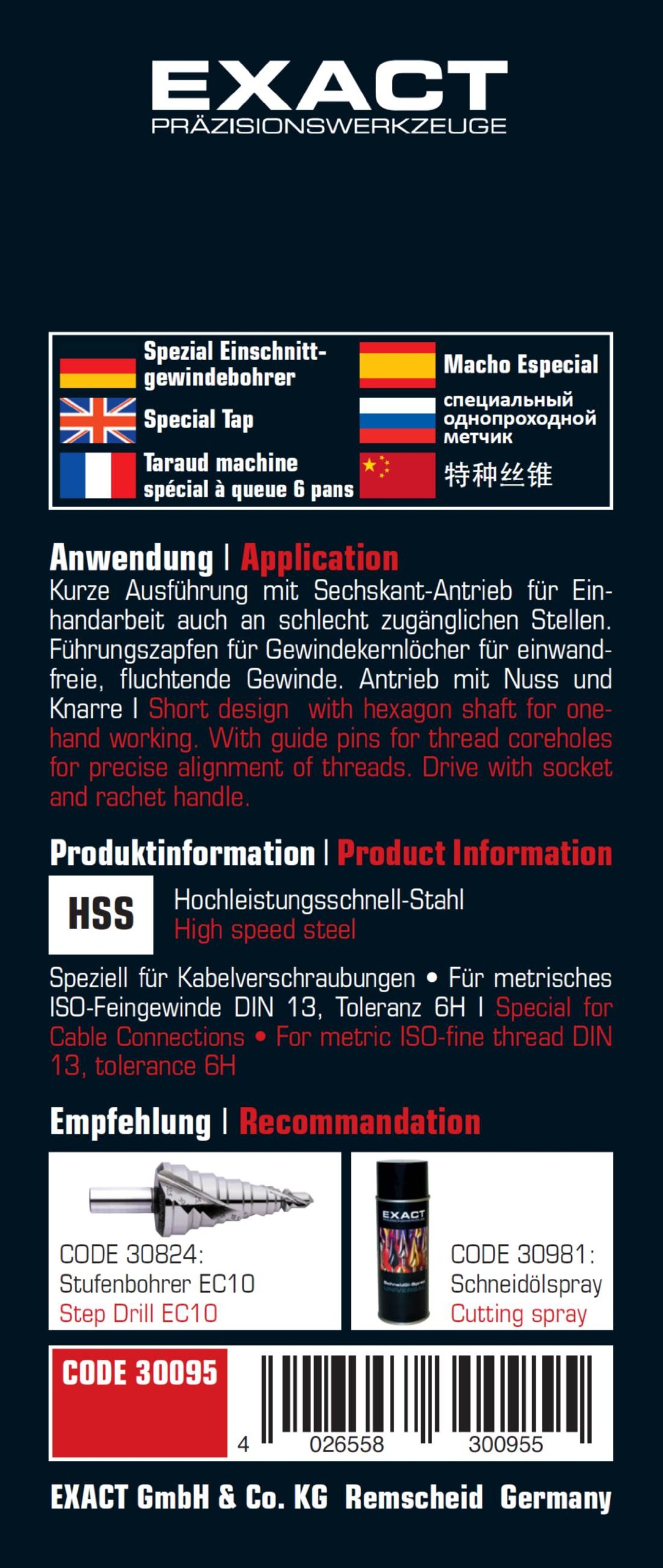

Product Description Short design with hexagon shaft for one-hand working. With guide pins for thread coreholes for precise alignment of threads. Drive with socket and ratchet handle. PRODUCTINFORMATION Articles for Cable Connections: The threads are metric ISO-fine threads, each with a 1.5 pitch for all sizes. Cable screw connections are screwed into the cabinets with wall depths up to max. 3 - 5.5 mm. The core hole is drilled, as described below, with one of our step drills. We have designed a special short Tap (M 12 - M 32) for the respective threads. Our special short Taps are designed with a long pilot guid which fixes the tool in the bore, thus enabling the generating of threads which are 100% aligned even with single-sided pressure. We have designed the tap's drive such that one can use it single-handedly with a commercially available hex-head insert (nut) and a ratchet. This type of drive is time and space-saving when compared to DIN hand taps and tap wrenches (tap wrench swings of up to 750 mm). EXACT HSS step drills with spiral flute and "Edge Breaker" zone (DBGM) cover the complete spectrum of electrician holes as per the new M12 to M32 (EC 10) specification, alternatively M 12 to M 40 (EC 20). The step drills have a short (3 mm) drill step for cable through-holes of thin-walled cabinets (max. 2 mm wall depth) as well as a long (6mm) drill step for tapping core holes in distributor cabinets (max. 3 - 5.5 mm wall depth) for every one of the individual metric diameters. We offer application-oriented step drills, e.g. without coating or as well as TIN (titanium-nitride) and TiAlN (titanium-aluminium-nitride) coated designs. Especial advantage of the EXACT-step drills: the spiral shaped flute (DBGM) enables an improved machining result due to optimal chip removal, smoother cutting characteristics, increased life-span due to increased cutting-edge lengths and scratches on the material due to controlled chip removal. Using the "Edge Breaker" (DBGM) capability it is possible to deburr the cabinet bores (up to 1.5 mm material thickness) from both sides in one machining step, thus eliminating the need for an extra deburring tool. Box Contains 1 special tap
