DONGKER ESP8266 Development Board, Programmer for ESP-12S/12F/12E/07S/07/01S/01 Modules, Black, Technical Users, Electronics Enthusiasts, Programmer

• It is a Downloader for ESP-12S/12F/12E/07S/07S/01S/01 WIFI Wireless Module.It has output all GPIO ports for user debugging.
• Use Steps:Install UART Driver Software on PC.Download FLASH tool 'ESP FLASH DOWN LOAD TOOL'.Insert ESP8266 module on Shiled.Connect module to PC by USB cable.
• Download automatically:Open FLASH download tool.Set software parameters as shown.Click START button on software to download firmware.
• Manual download:Open FLASH download tool.Set software parameters as shown.Keep press PROG button about 5second.Then short press Reset button.Click START button on software to download firmware.
• Chip clip fixing, Super simple operation, Repeatedly used . Suitable model:ESP-12S/ESP-12F/ESP-12E/ESP-07S/ESP-07S/ESP-01S/ESP-01

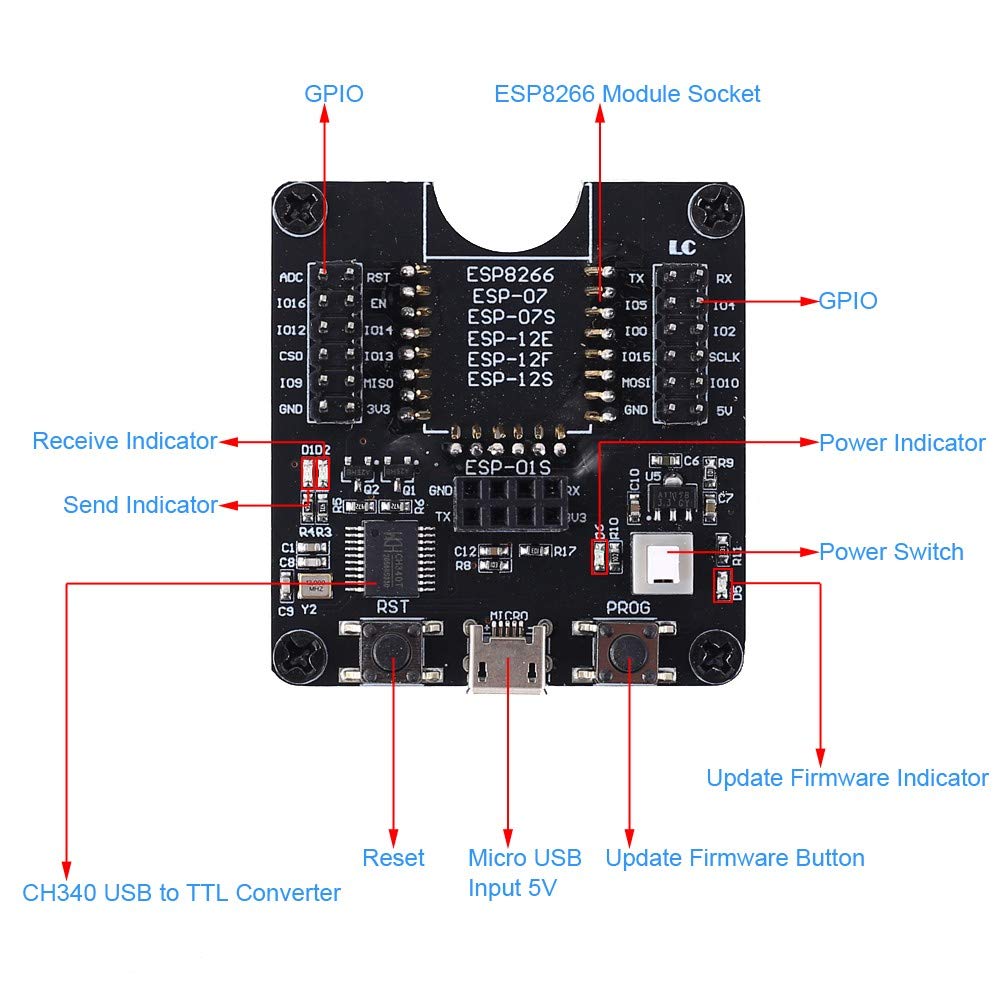

Welcome to my shop: Description: It is a Downloader for ESP-12S/12F/12E/07S/07S/01S/01 WIFI Wireless Module.It has output all GPIO ports for user debugging. Feature: 1>.Super simple operation 2>.Repeatedly used 3>.Chip clip fixing Parameter: Work Voltage:DC 5V Receiver Indicator:Yes Transmitter Indicator:Yes Power Indicator:Yes Downloading Indicator:Yes Suitable model:ESP-12S/ESP-12F/ESP-12E/ESP-07S/ESP-07S/ESP-01S/ESP-01 Work Temperature:-25?~85? Use Steps: 1>.Install UART Driver Software on PC. 2>.Download FLASH tool 'ESP FLASH DOWN LOAD TOOL'. 3>.Insert ESP8266 module on Shiled. 4>.Connect module to PC by USB cable. 5>.Download automatically: 5.1>.Open FLASH download tool. 5.2>.Set software parameters as shown. 5.3>.Click START button on software to download firmware. 6>.Manual download: 6.1>.Open FLASH download tool. 6.2>.Set software parameters as shown. 6.3>.Keep press PROG button about 5second. 6.4>.Then short press Reset button. 6.5>.Click START button on software to download firmware. Package: 1pcs Downloader Tester Shield for ESP-12S Note: 1>.Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. 2>.Please allow slight dimension difference due to different manual measurement.
