Driver Module, DC 12V 24V 48V 2 Channel PWM 4-Wire Fan Temperature Controller Speed Governor Display Module for PC Fan/Alarm

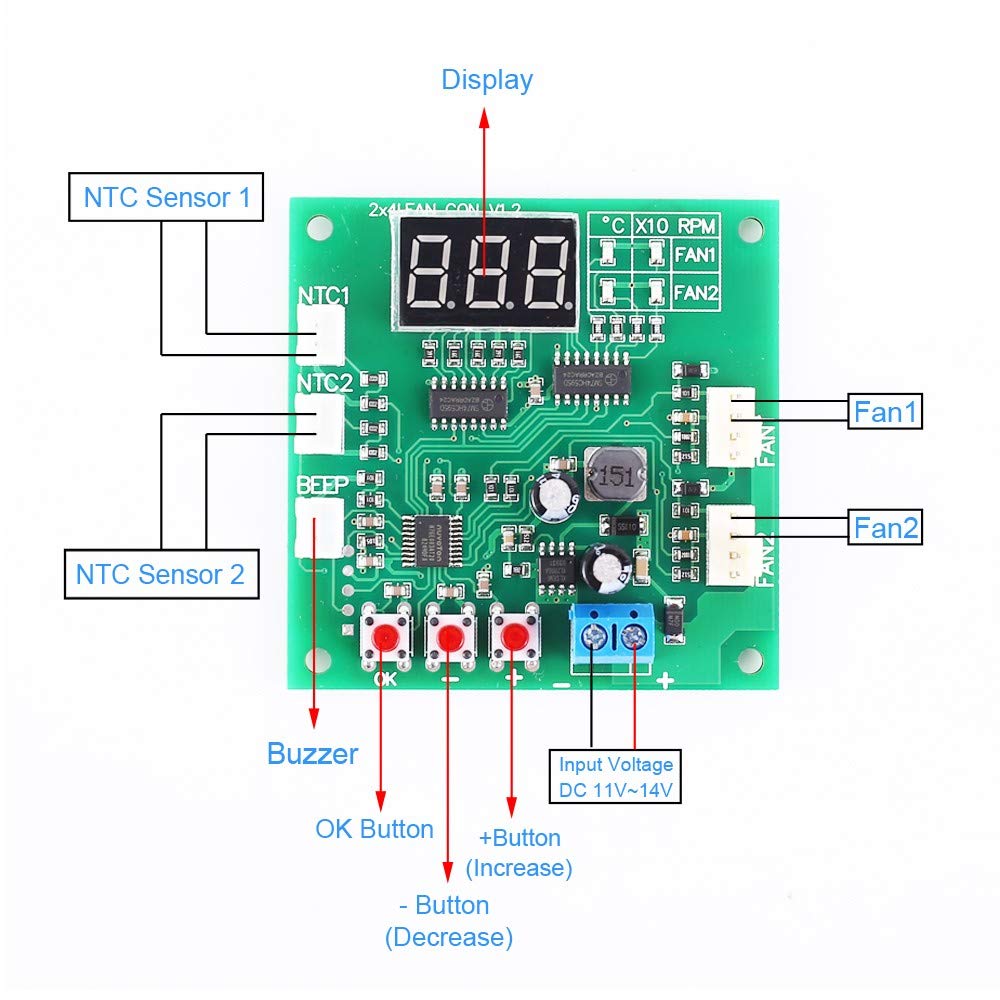

• It is a PWM 4-Wire Fan Temperature Controller.It has a temperature and speed display and a stall alarm.
• Digital display.Wide operating voltage.Dual independent temperature control.Support button setting.Stall alarm function
• Speed Resolution:10rpm at >9990rpm(the display show "999") .Speed measurement is designed according to common 2-pole signal fans, most fans are 2-pole signals.
• This product is not limited by the fan current,but the pin current of the fan interface on the board should not be greater than 3A.If you use a higher current fan,please connect the fan power cord directly to the main power.
• SHOP WITH CONFIDENCE: To provide you with the highest quality service, If you have any question, please contact us.We will provide after-sales service .

Description: It is a step up down power supply module. It can be used as a power source. Feature: 1>The working voltage must be equal to the fan voltage.If you use a 12V fan but supply 24V,it will burn the fan. 2>.Under normal working conditions,the four values will be displayed in turn.You can quickly switch the value manually by pressing the + Button and - Button at any time.After manual switching,you will stay at this value for a long time before entering the wheel display state.You can shield the display of channel 2 as needed. Parameter: 1>.Work Voltage:DC 8V~60V. 2>.Control Board Working Current:35mA(12V),22mA (24V). 3>.Control Output Range:10%~100% . 4>.Temperature Probe Specification:NTC 10KB=3950. 5>.Temperature Measurement:-9.9℃~99.9℃. 6>Acceleration Temperature:5℃~94℃. Package: 1 x PWM 4-Wire Fan Temperature Controller 1x Buzzer 1x NTC Temperature Sensor
