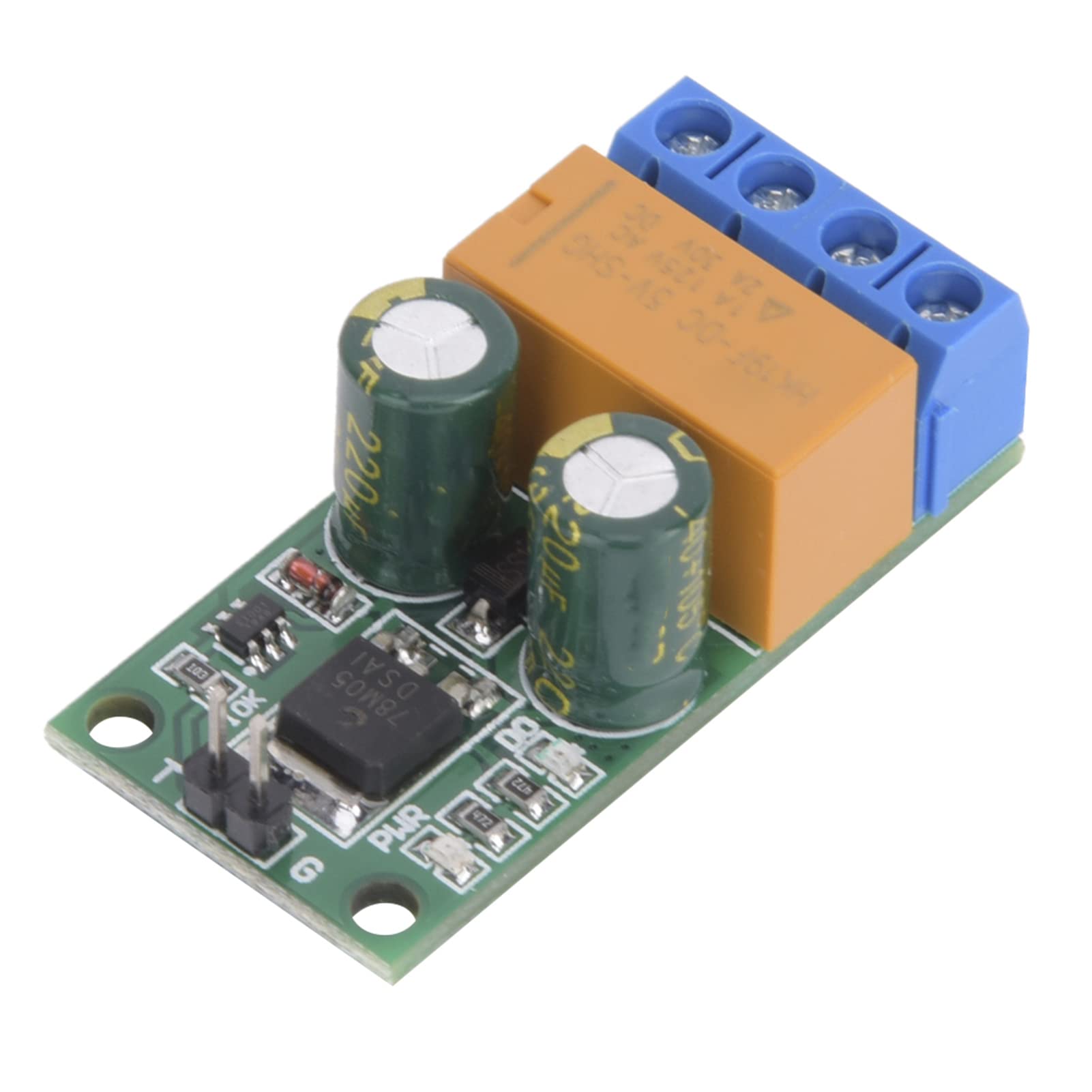

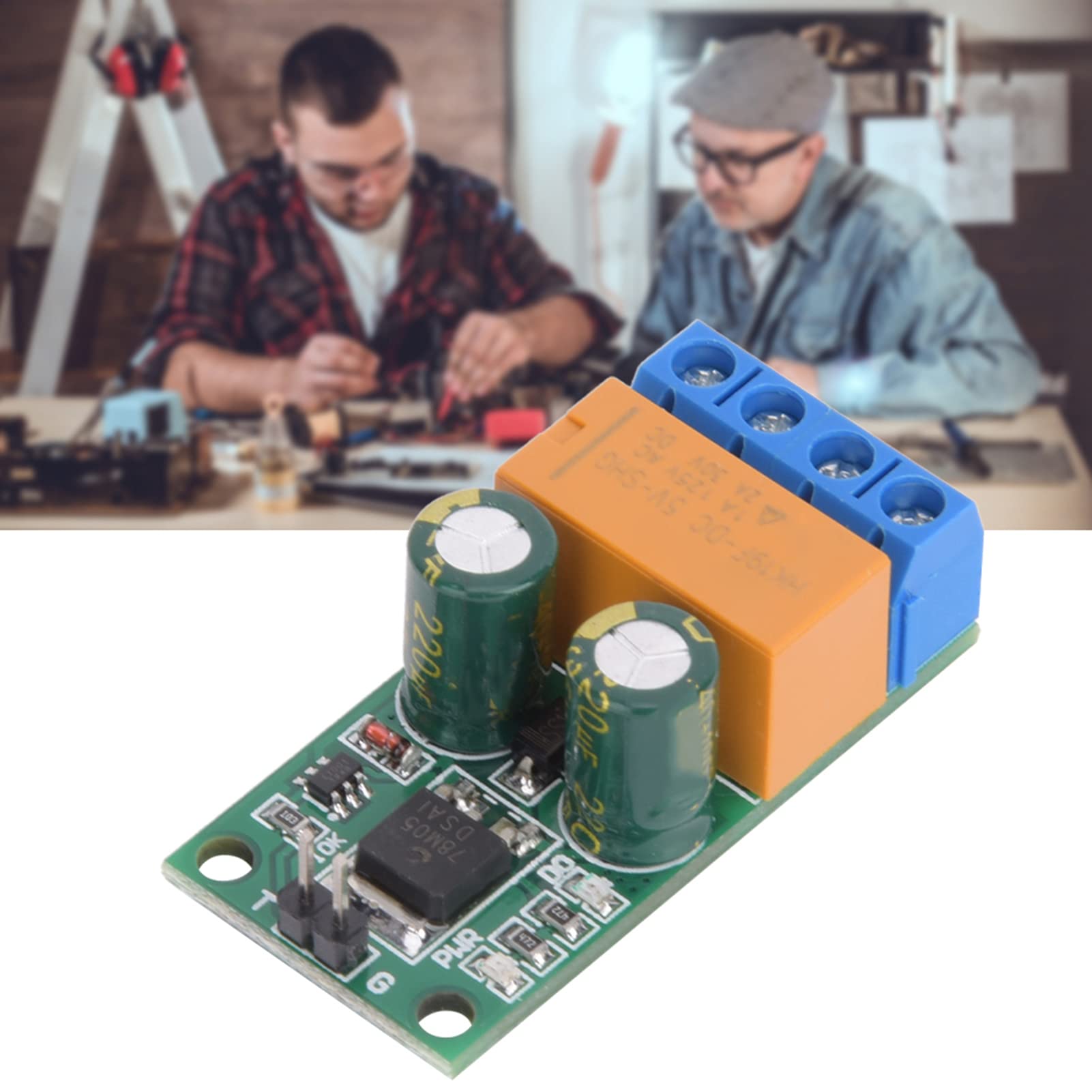

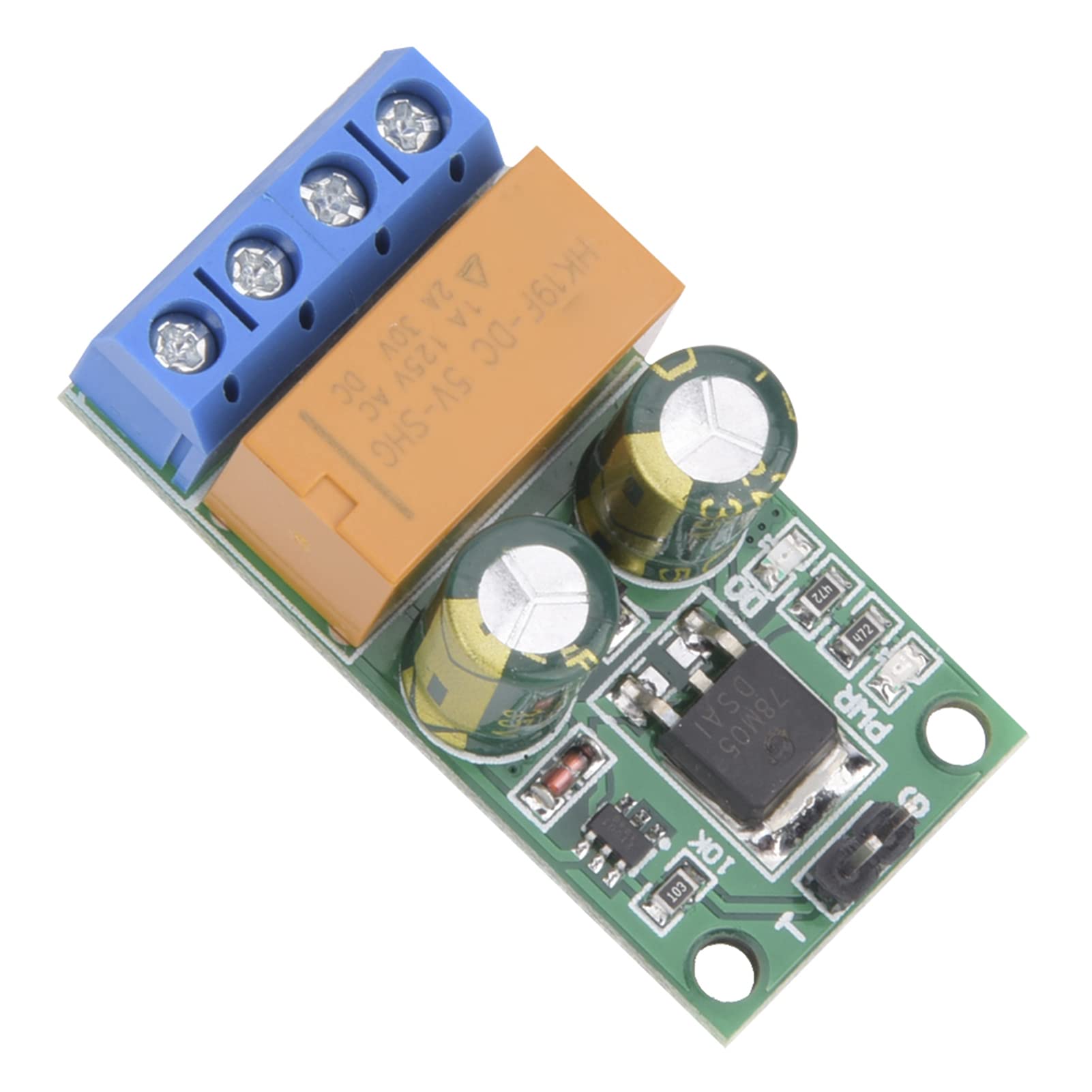

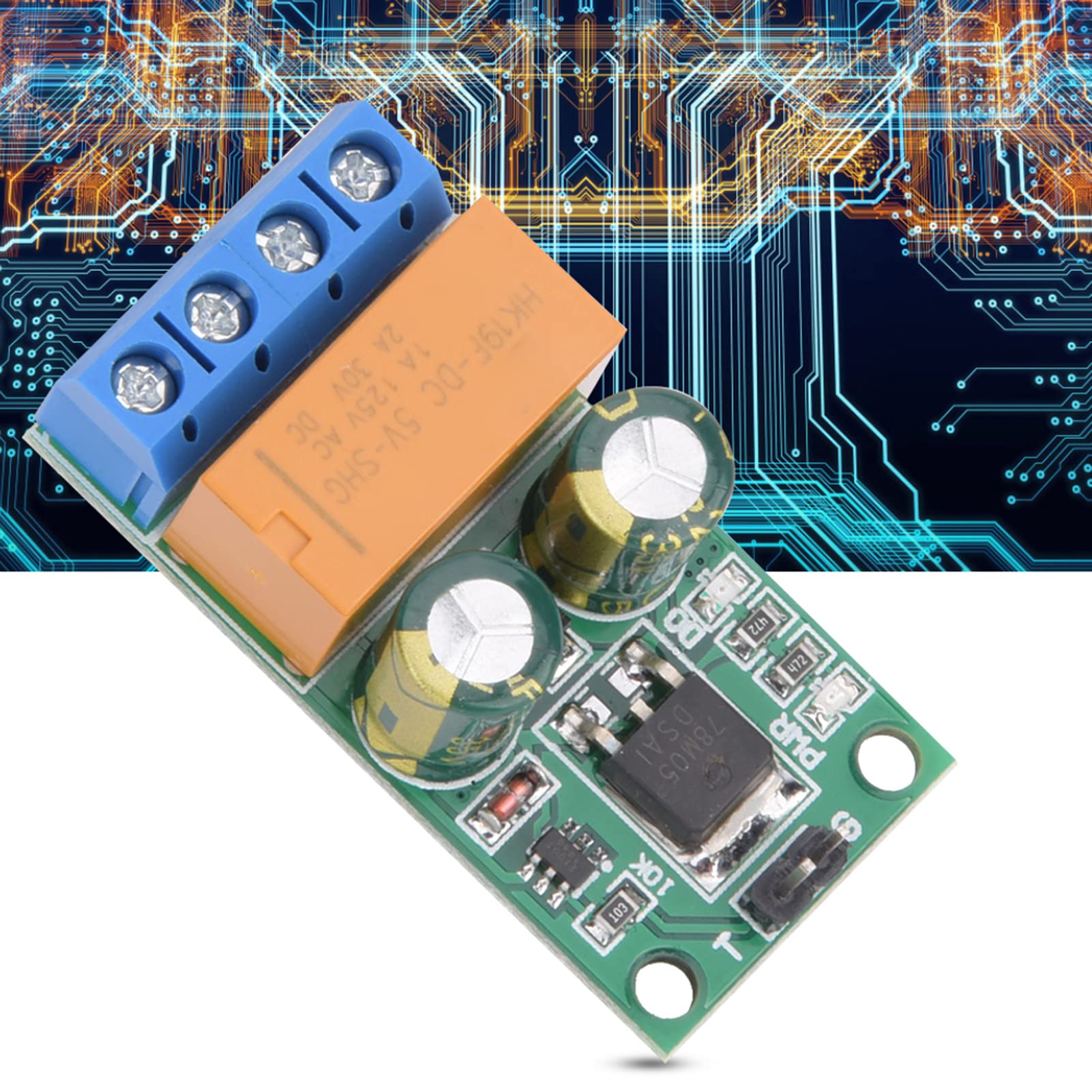

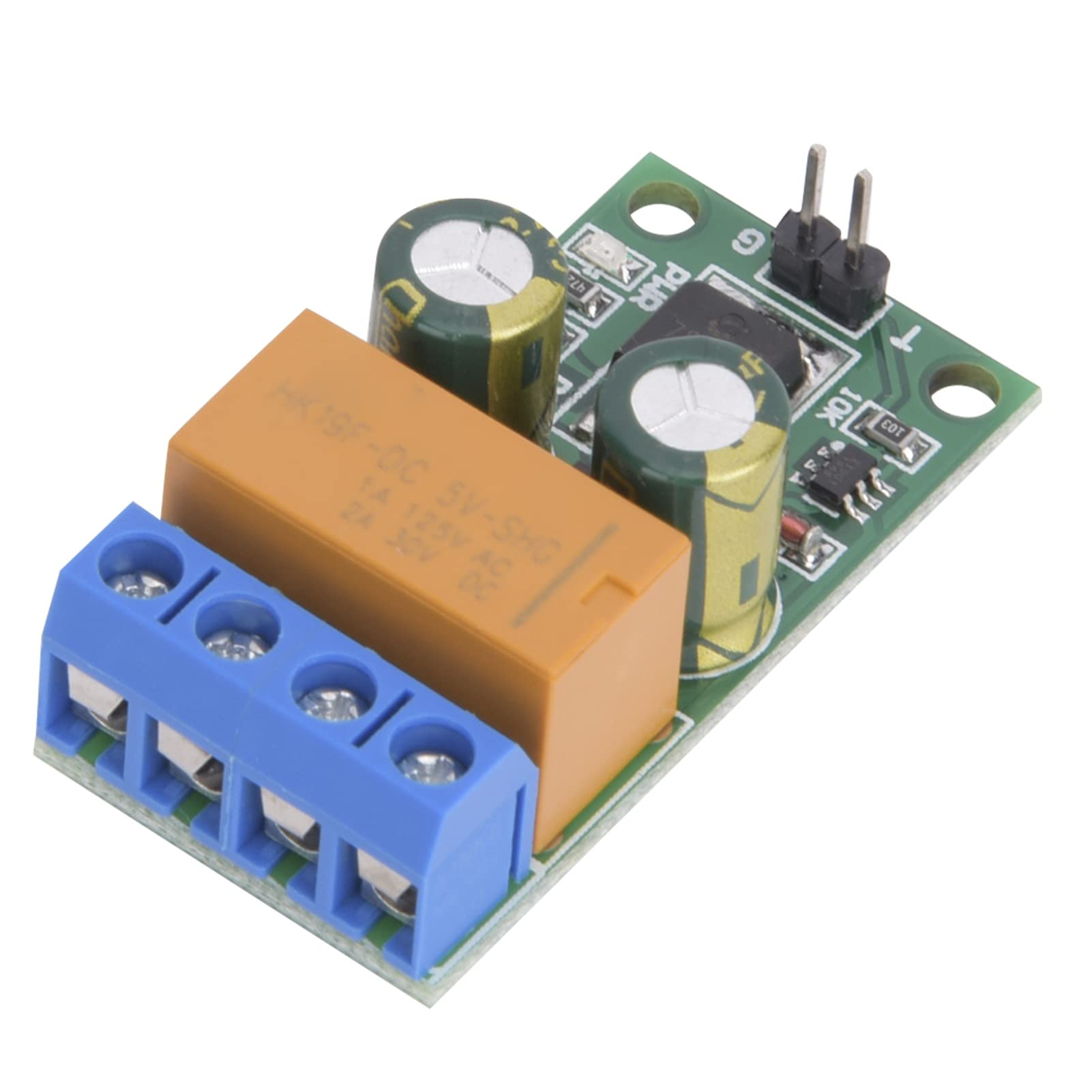

DR55B01 DC Motor Forward Reverse Controller 6-24V with Self-Locking Relay for Bidirectional Control

• Visual Indicators: With power indicator and reverse polarity indicator for easy monitoring of operation status
• Self-Locking Relay Function: This is a self-locking (bistable) reverse polarity relay that triggers once for output reverse polarity (and hold), triggers again for output equal to input (and hold)
• High-Quality Construction: Made of high-quality electronic components ensuring stable and reliable performance
• Low Pulse Control Mode: Features low pulse control mode for more convenient operation and user-friendly experience
• Bidirectional Motor Control: Supports DC 6-24V input voltage with maximum 2A load current, enabling forward and reverse control for motors up to 1A
• Compact Design: Measures approximately 43 x 21 x 16mm with lightweight construction at 13.5g, making it easy to integrate into various projects
• Trigger Control System: Features trigger input with 0.2-2 seconds low pulse control for alternating between forward and reverse polarity output modes
• Power Requirements: Requires power supply that is twice the load power, or three times the power when used with motor loads for stable operation

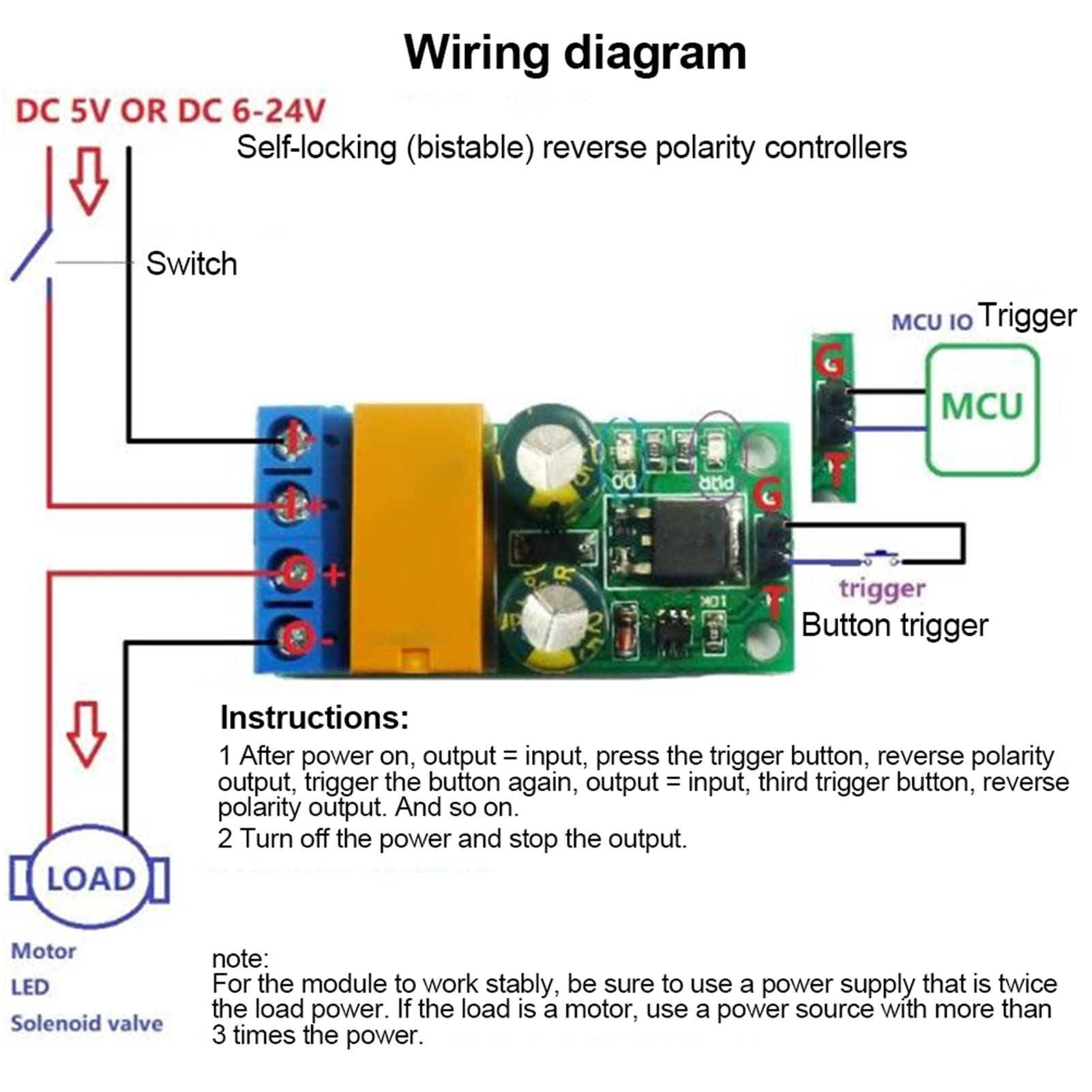

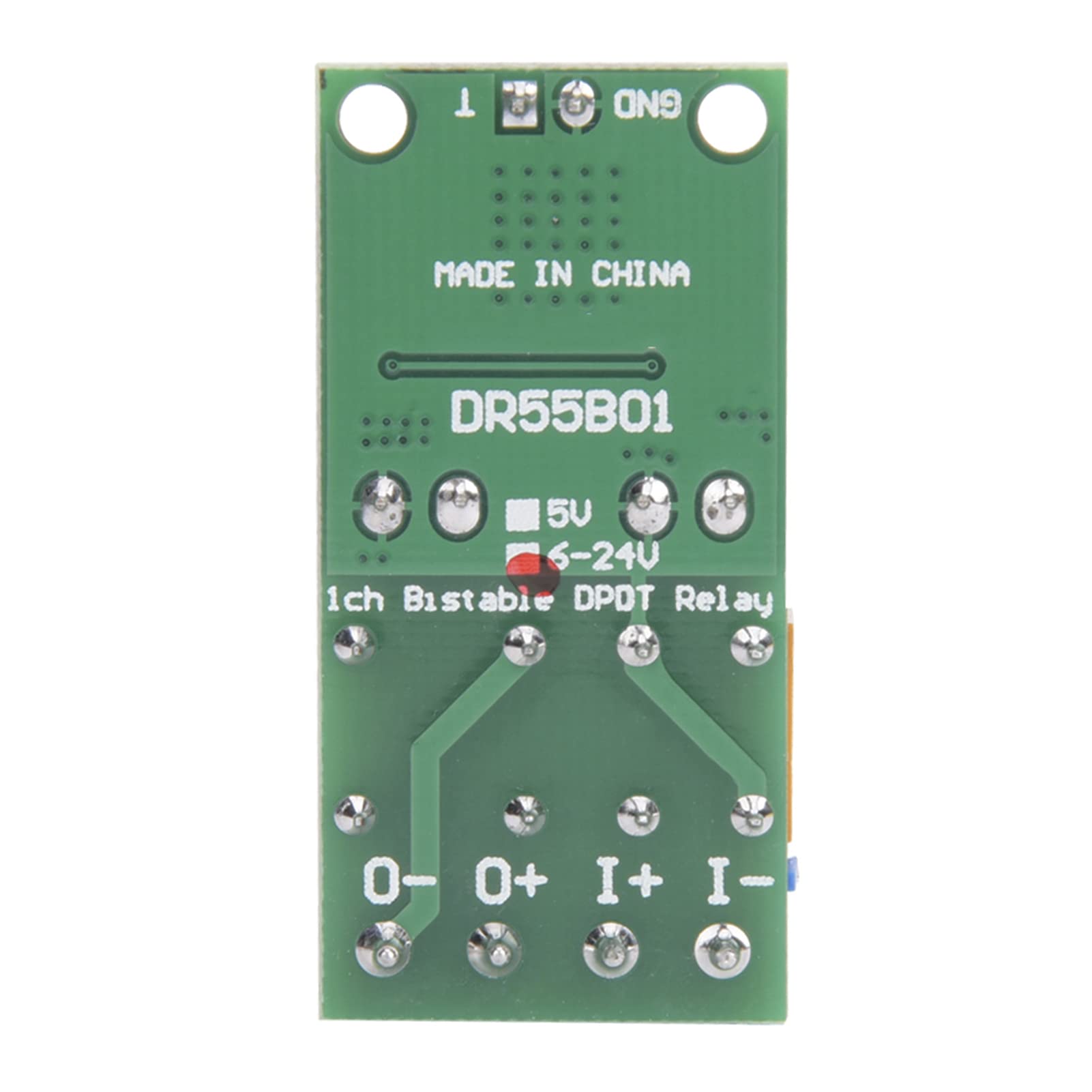

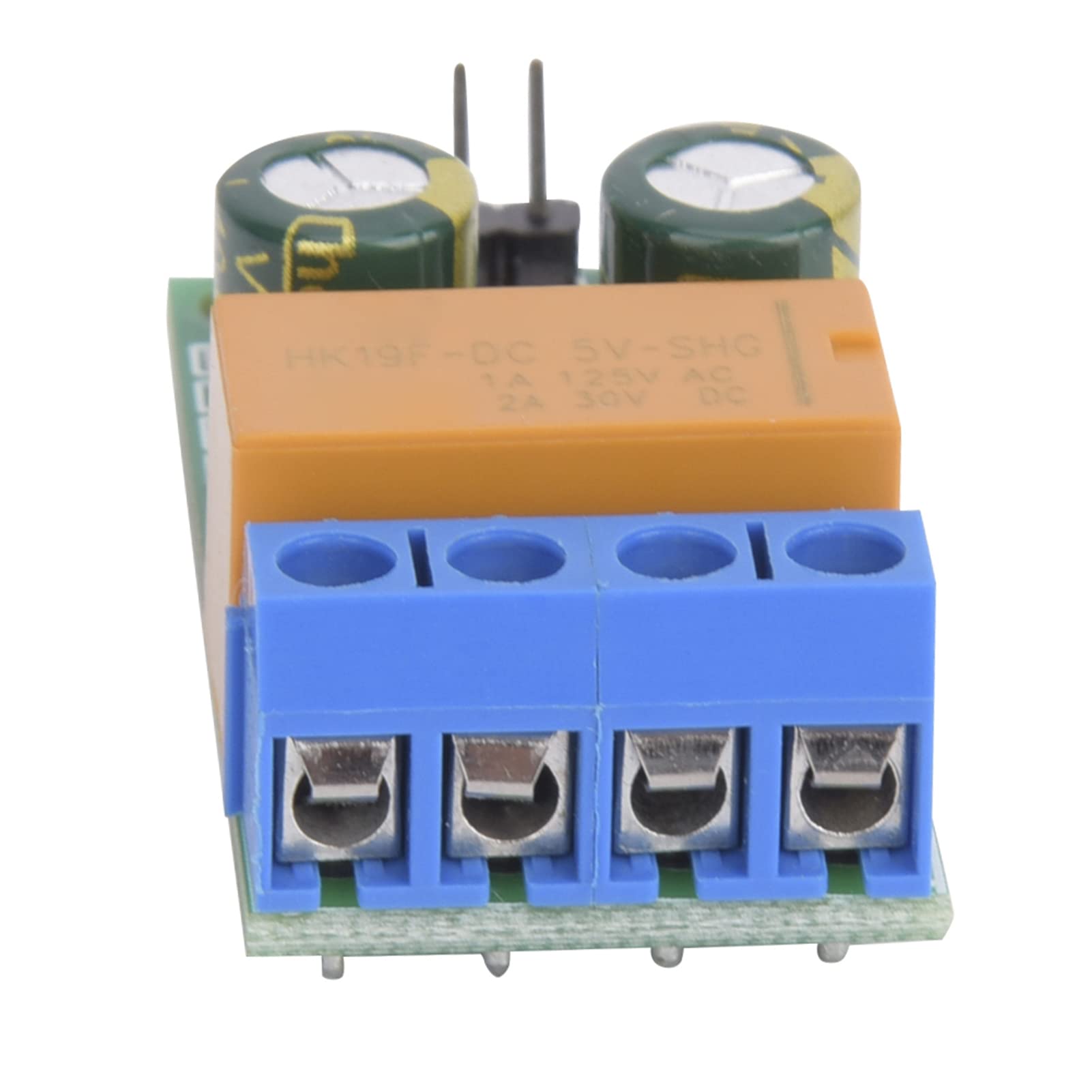

Specification: Item Type: CW/CCW Controller Module Optional Input voltage: DC 5V (5V version), DC 6-24V (12V version) Module working current: forward 2MA, reverse 35-40MA Load voltage: equal to output voltage Load current: maximum. 2A (motor <= 1A) With power indicator and reverse polarity indicator Control mode: low pulse control Size: Approx. 43 x 21 x 16mm / 1.7 x 0.8 x 0.6in Weight: 13.5 g / 0.5 oz(approx.) Pin description: I +: power input +; I-: voltage input-; O +: power output + (The output in reverse polarity is-); O-: power output-(The output in reverse polarity is +); G: trigger ground; T: trigger input (0.2-2 seconds low pulse). Instructions: 1 After power on, output = input, press the trigger button, reverse polarity output, trigger the button again, output = input, third trigger button, reverse polarity output. And so on. 2 Turn off the power and stop the output. Package List: 1 x CW/CCW Controller Module Note: 1. For the module to work stably, be sure to use a power supply that is twice the load power. If the load is a motor, use a power source with more than 3 times the power.2. The maximum load current is 2A. If it is a load motor, the maximum load current is 1A.3. The module can only control forward and reverse (start and stop are controlled by power on and power off)
