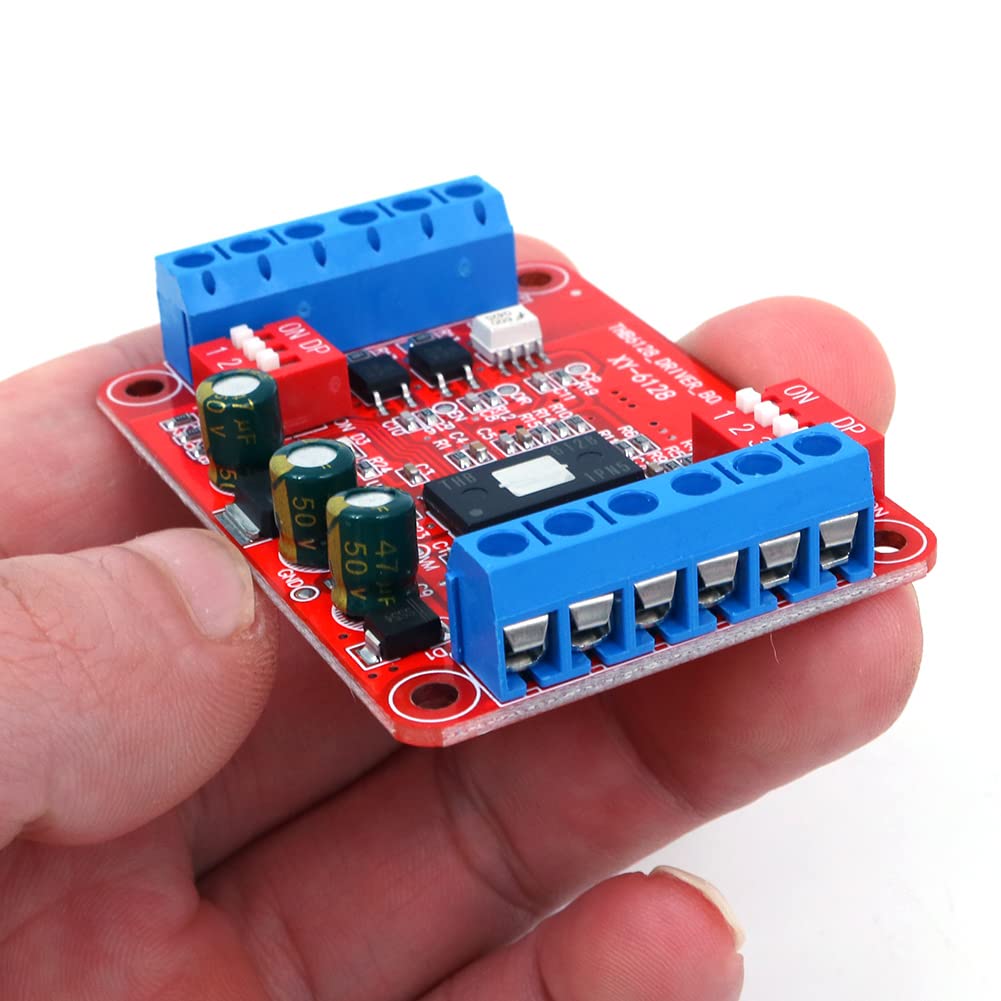

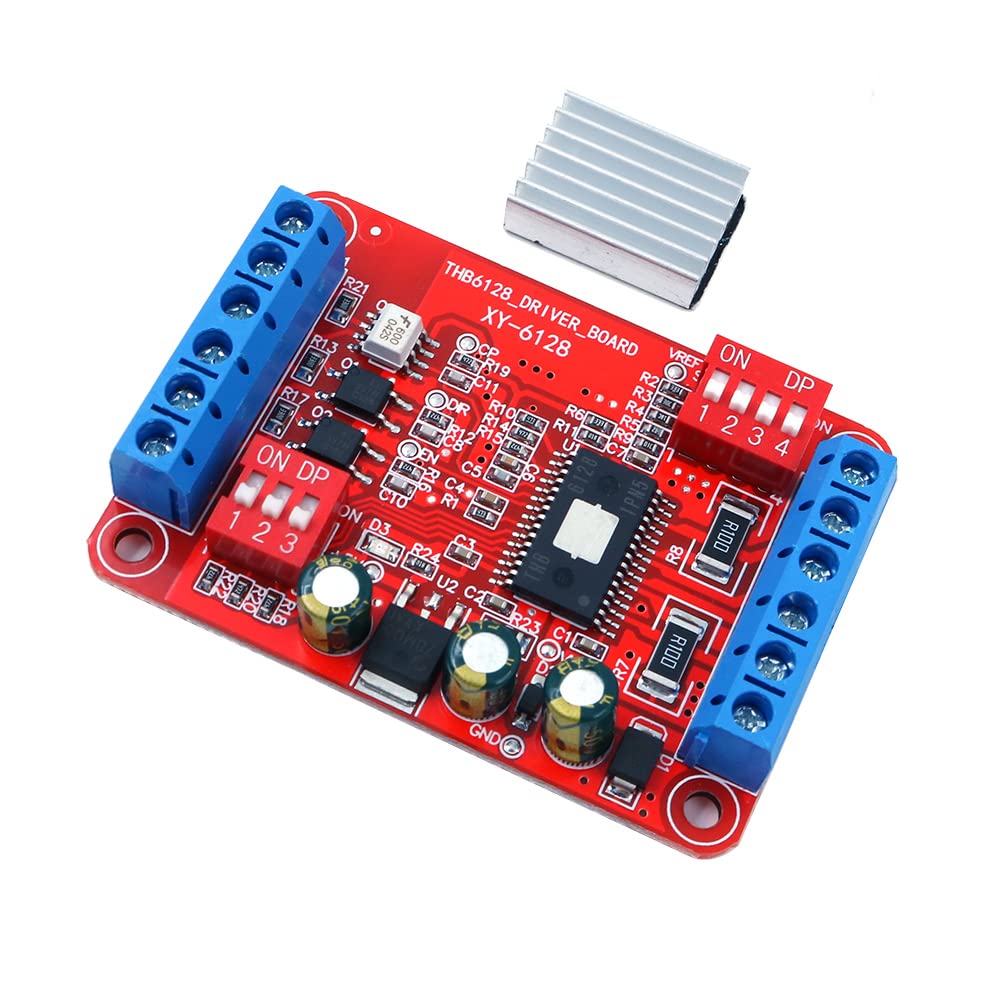

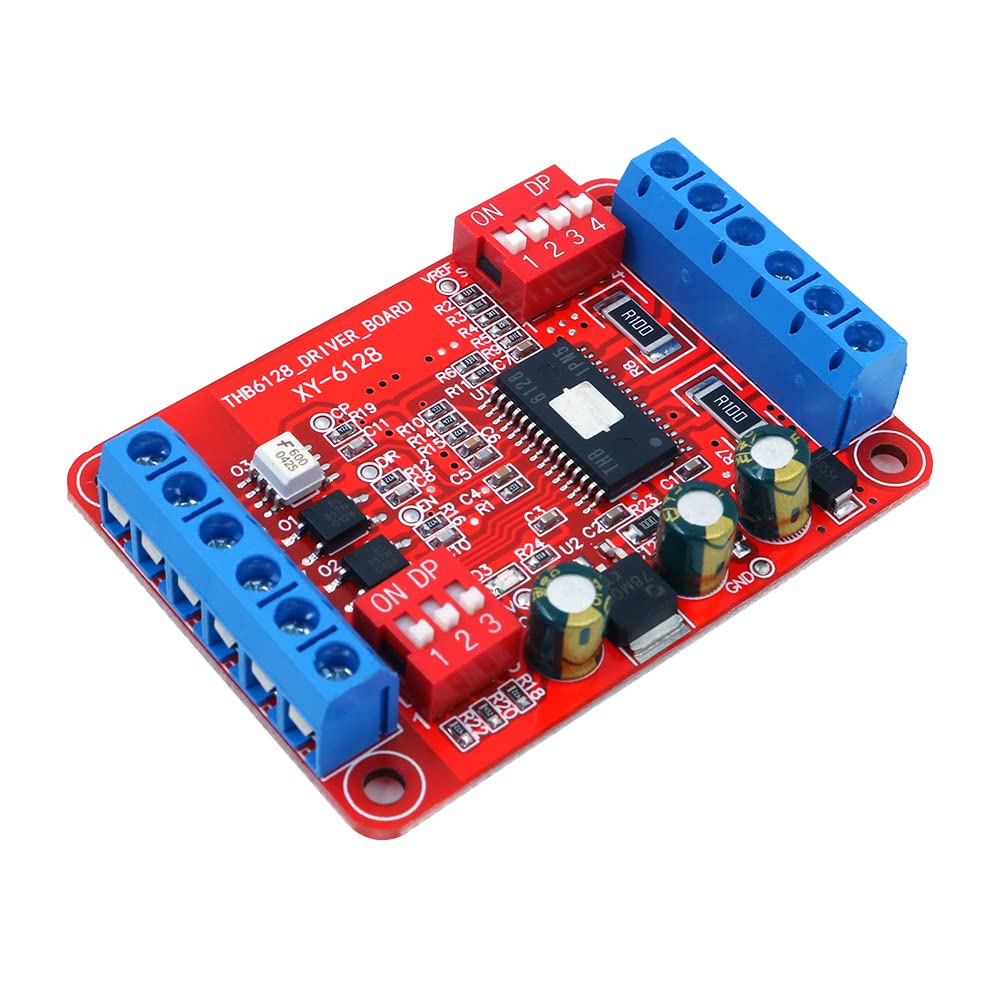

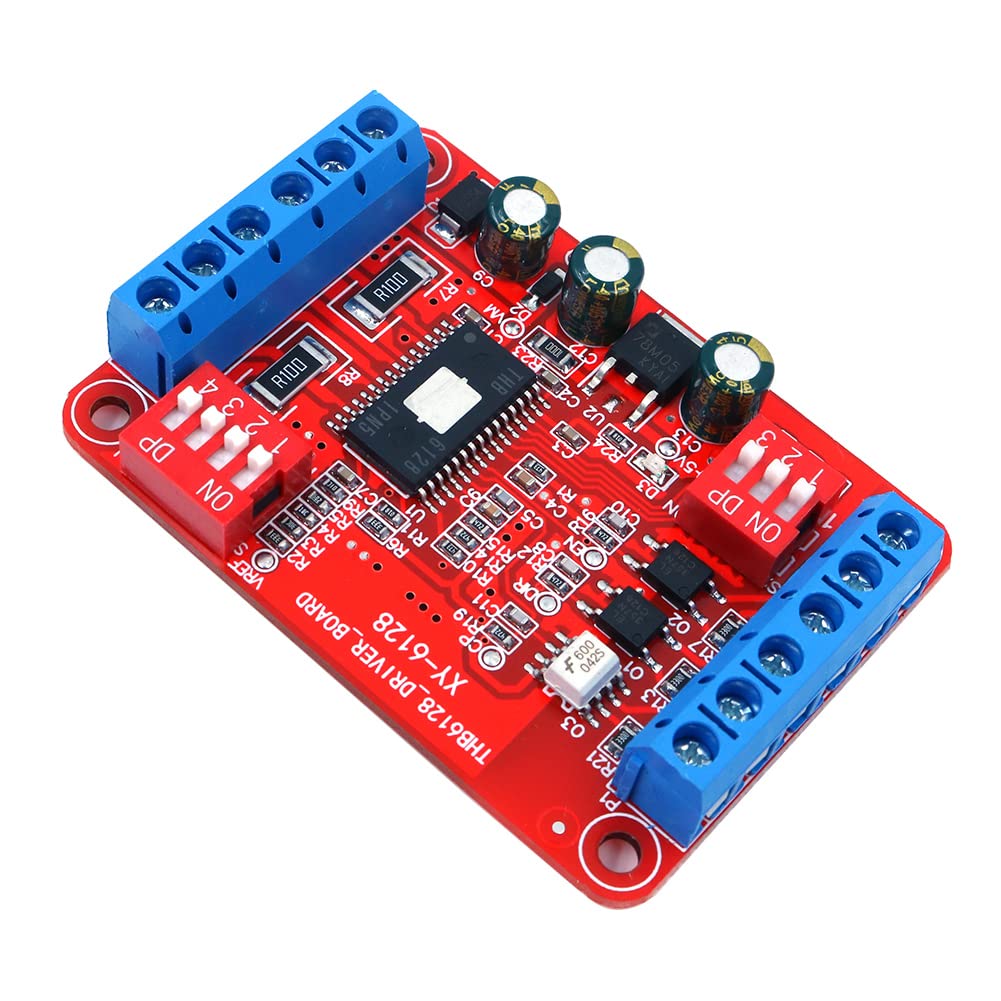

DollaTek THB6128 Stepper Motor Drive Control Module Two-phase Four-wire 30V 2A Drive Board

• Using THB6128 double full-bridge MOSFET driver, low on-resistance. Chip with automatic half-flow lock function, can reduce the lock motor heating. Chip built-in thermal protection, over-current protection.
• Maximum voltage 36V, peak current 2.2A, continuous current 2A.
• With 1,2,4,8,16,32,64,128 subdivided optional.
• Built-in 5V logic signal supply regulator chip, and add a current limiting resistor to reduce the high voltage input chip fever.
• Input reverse polarity protection.

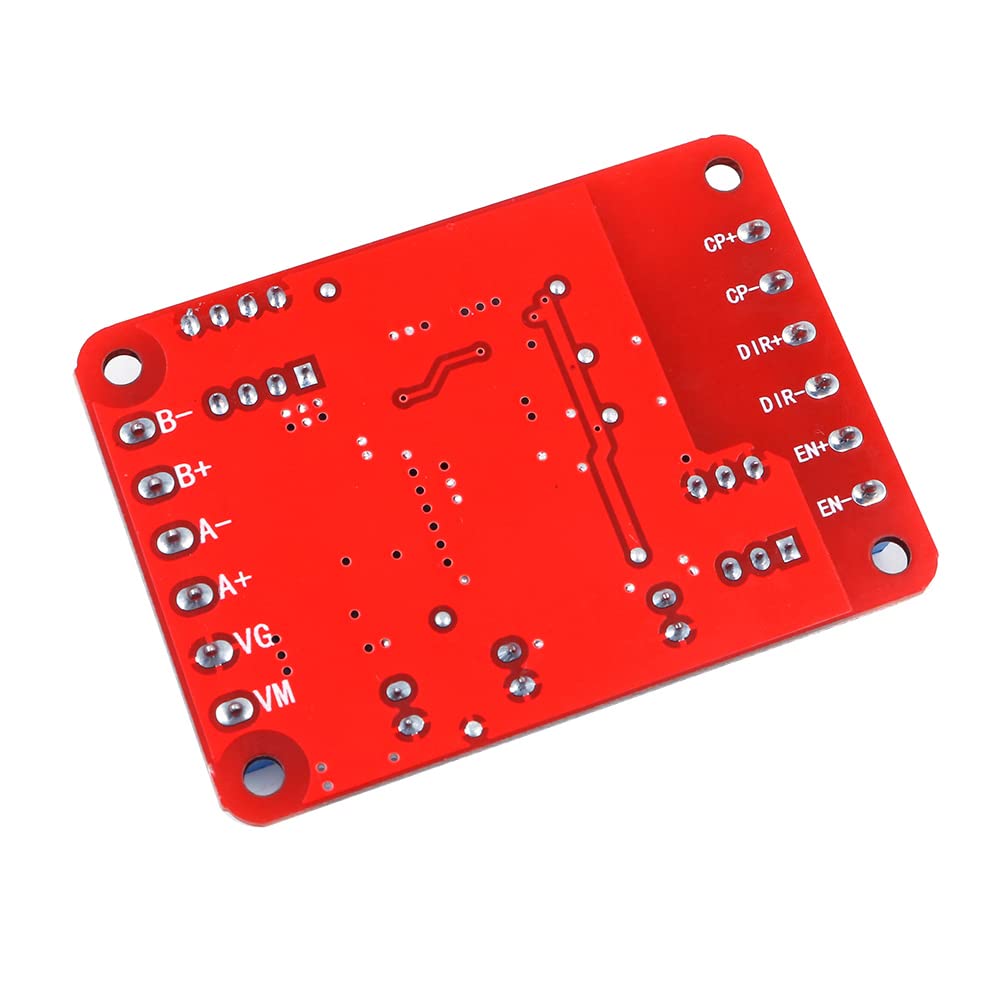

Features: Input voltage: DC 9V ~ 36V Input current: 0.01A ~ 2.2A Output current: 0A ~ 2.2A Operating humidity: no condensation, no water droplets Gas environment: Prohibition of combustible gases and conductive dust Module weight: 27g/0.95(oz) The module size: 6.24 x 4.50cm Pin Description: CP +: Pulse positive input CP-: Pulse negativeinput DIR +: Direction positive input DIR-: Direction negative input EN +: Enable positive input EN-: Enable negative input B-: Motor B-phase negative output B +: Motor B-phase positive output A-: Motor A-phase negative output A +: Motor A-phase positive output VG: power supply negative VM: power supply positive Package included: 1 x THB6128 Stepper Motor Driver
