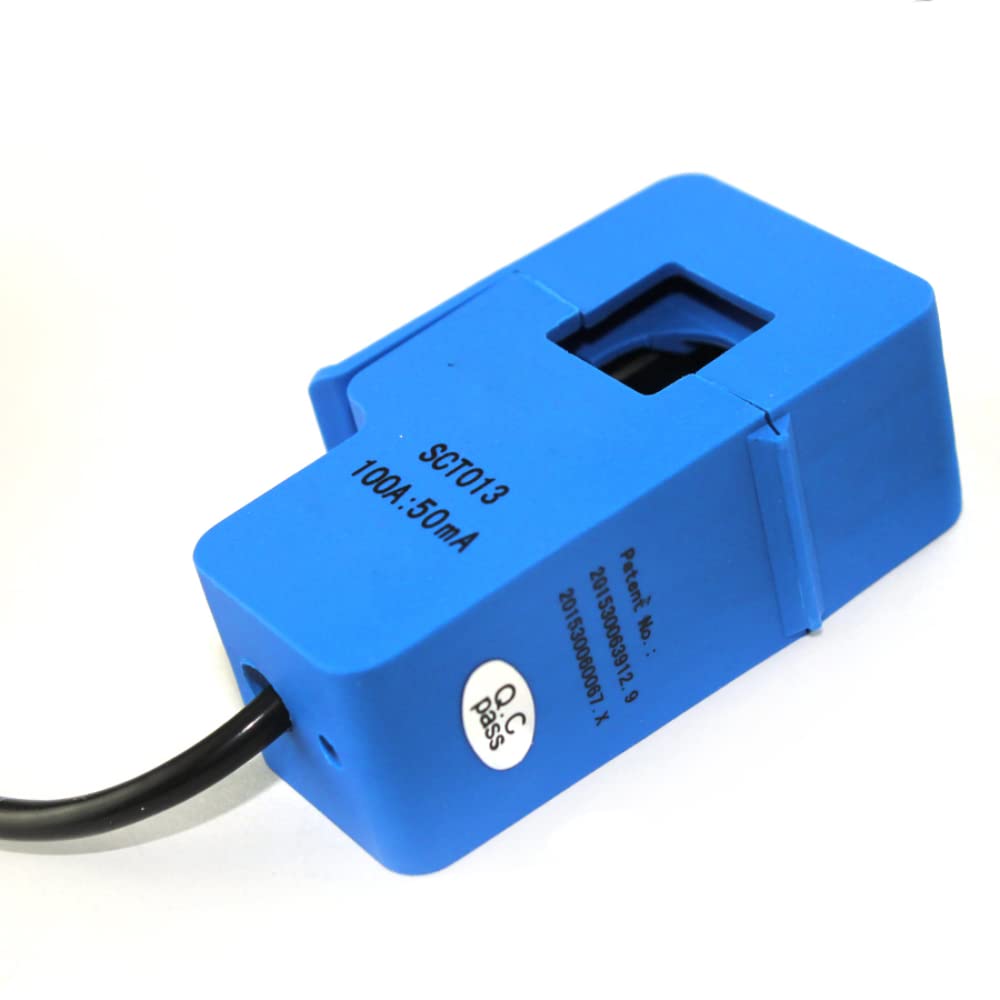

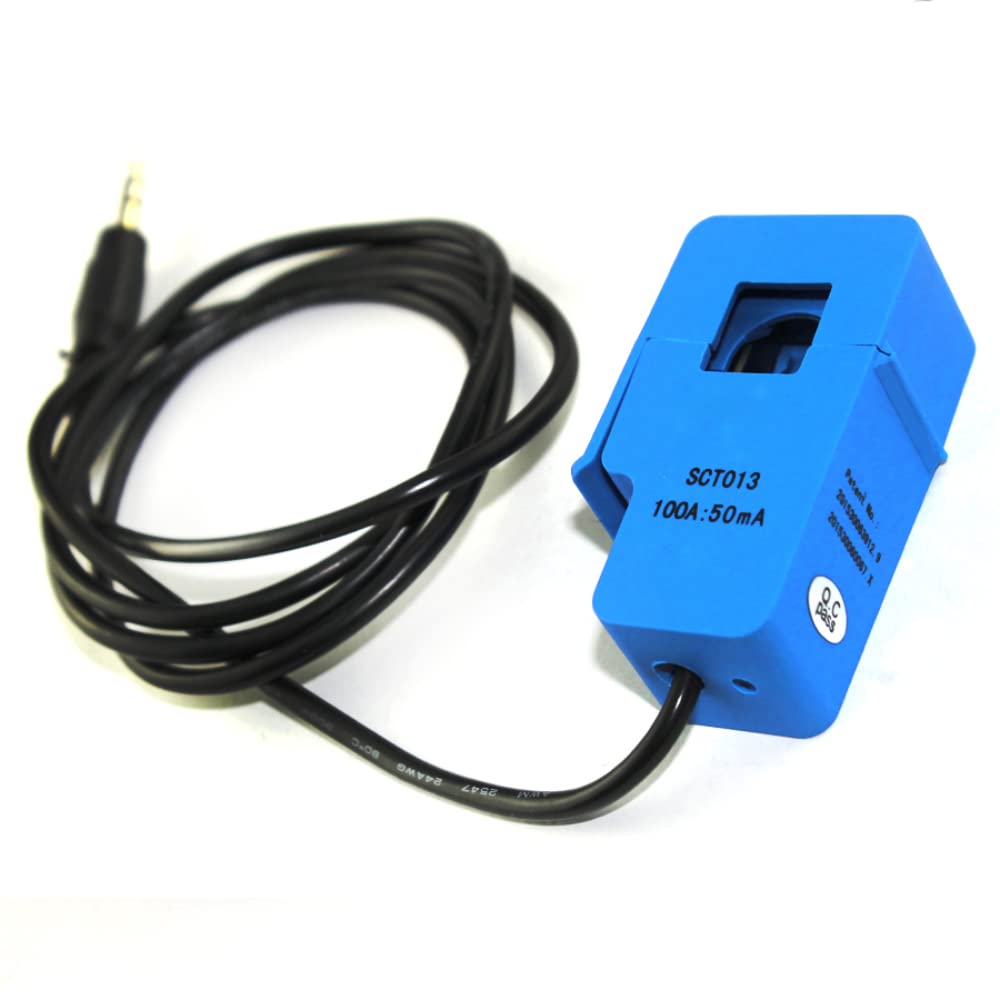

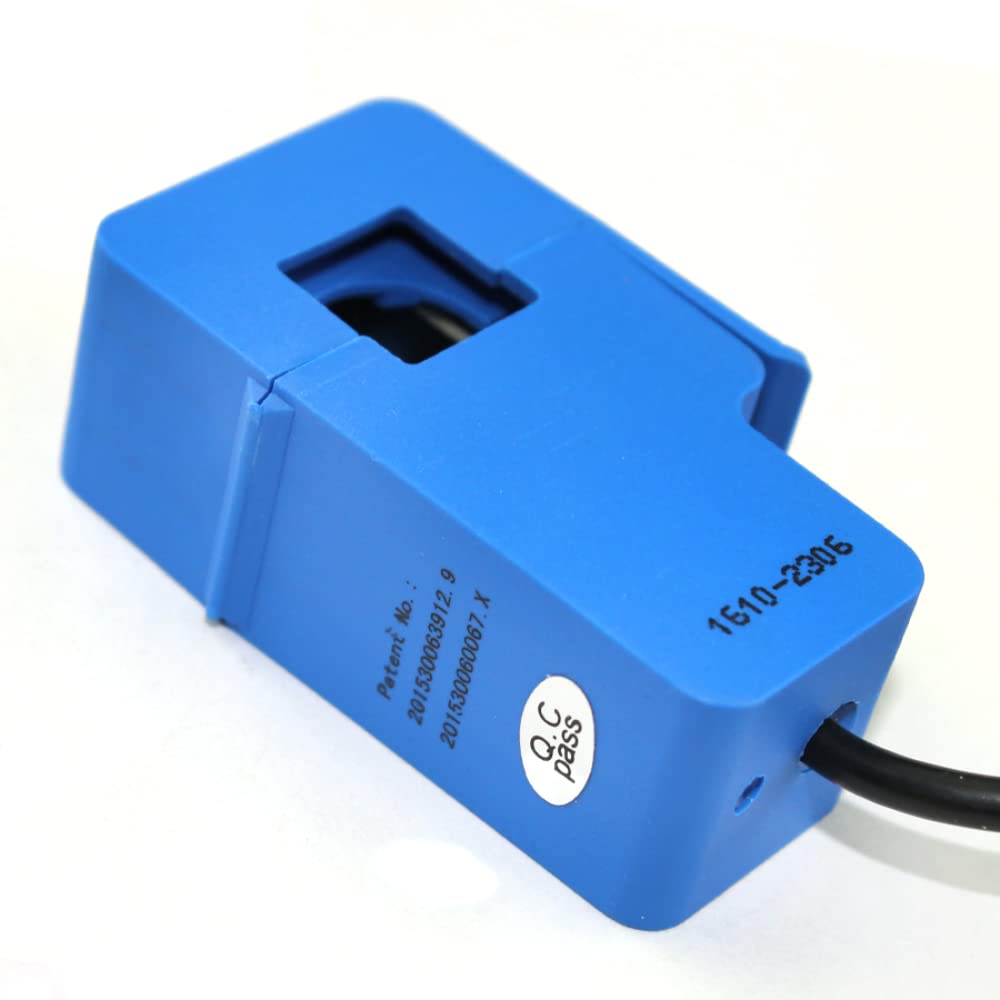

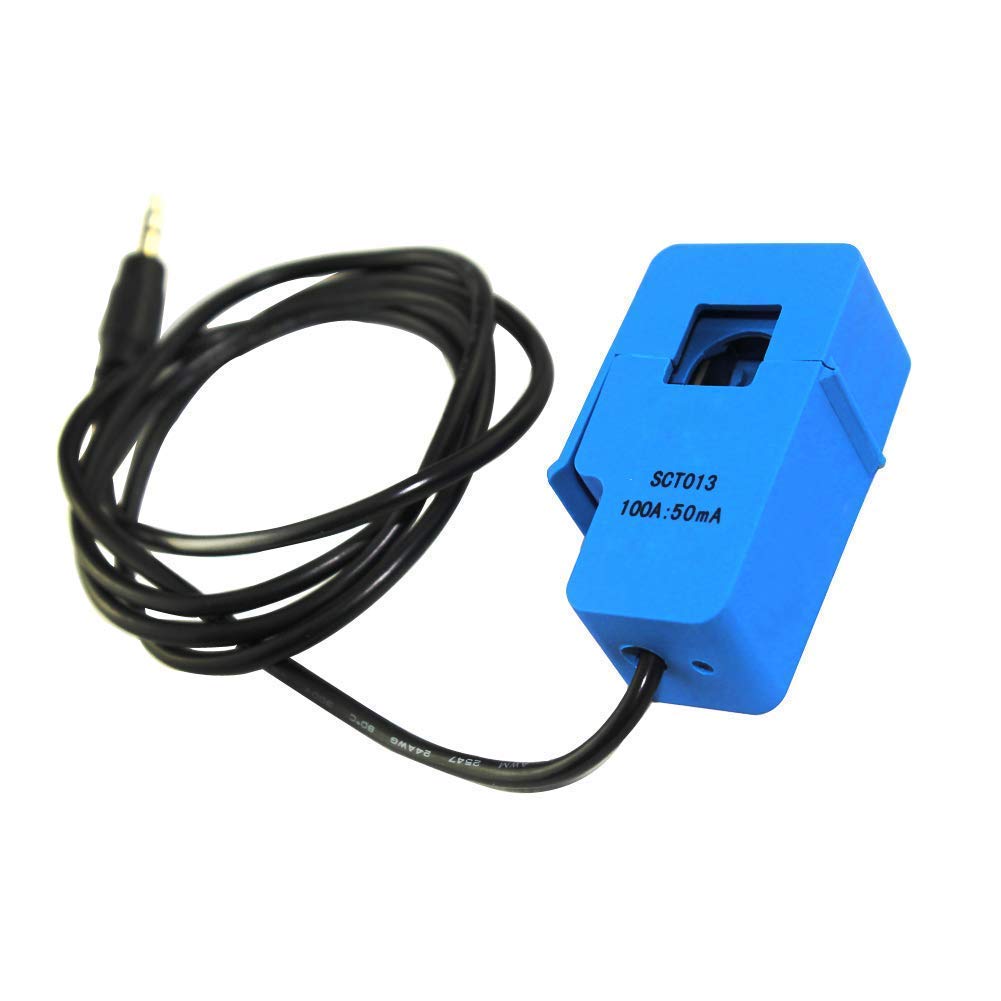

DollaTek SCT-013-000 Non-invasive AC Current Sensor Split Core Transformer 100A
About this item
- Opening size:13mmx13mm
- Non-linearity 3%(10%-120% rated input current)
- 1.5m leading wire,Φ3.5 3 core plug standard output.
- Two form of output current, voltage (voltage output built-in the sampling resistor).
- Operating Temperature: -25 C ~ +70 C
Product description
Description: SCT-013-000 100A non-invasive AC sensor split core transformer, used for current measurement, monitoring and protection of AC motors, lighting, air compressors, etc. not less than 1000 times (tested at 20℃) Features Model No.: SCT013 Frequency: 50HZ-150KHZ Opening and closing transformer SCT-013 Nominal input current: 100A Model No.: SCT-013 Nominal input current: 60A / 100A. 13mm x 13mm, fully compatible with similar foreign products; non-linearity ±3% (rated input current from 10% to 120%) The cable length is 1.5 m, the standard 3.5 pin pin plug output; the current and voltage output forms (built-in sampling resistor of output type voltage). Safety rating: anti-electricity (between the shell and the output) 6000V AC/1min. Fireproof characteristics conform to UL94-V0. Working temperature: -25°C ~ +70°C Package includes: 1 x SCT-013-000 non-invasive split core transformer for AC 100 sensor
Product details
