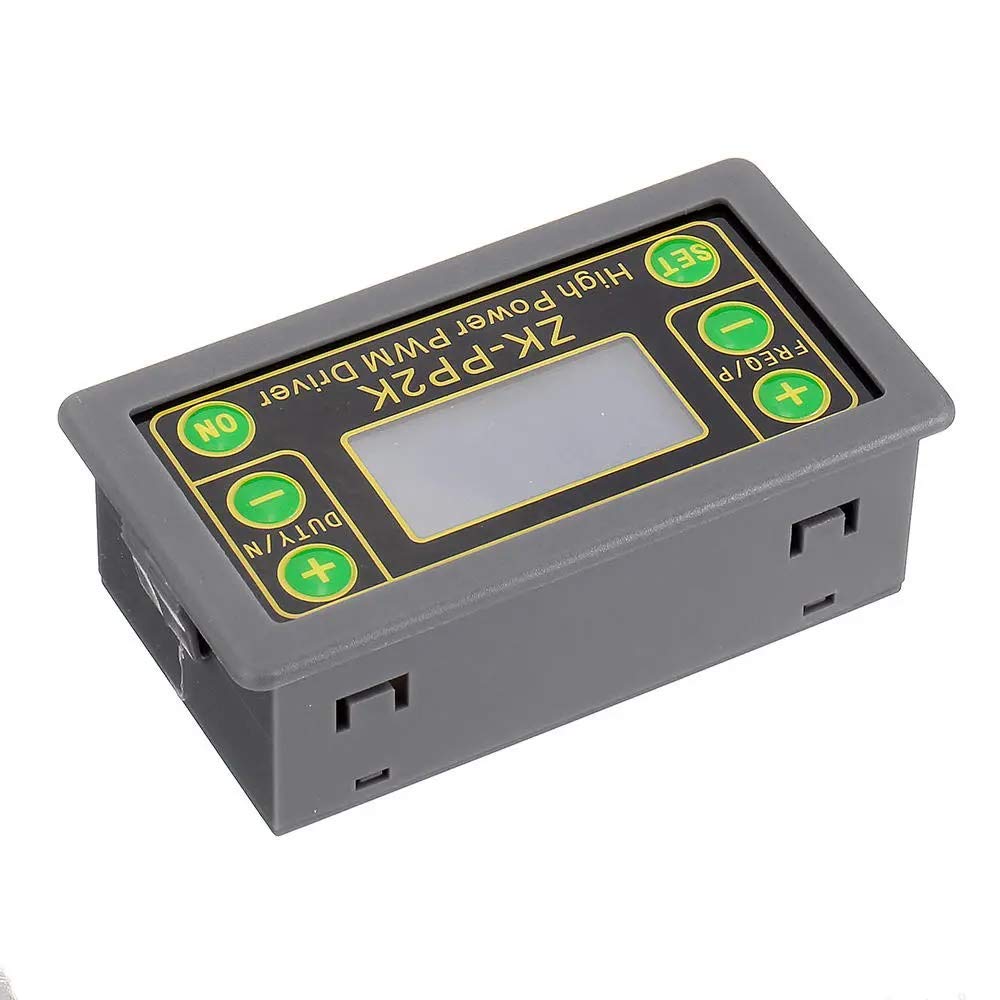

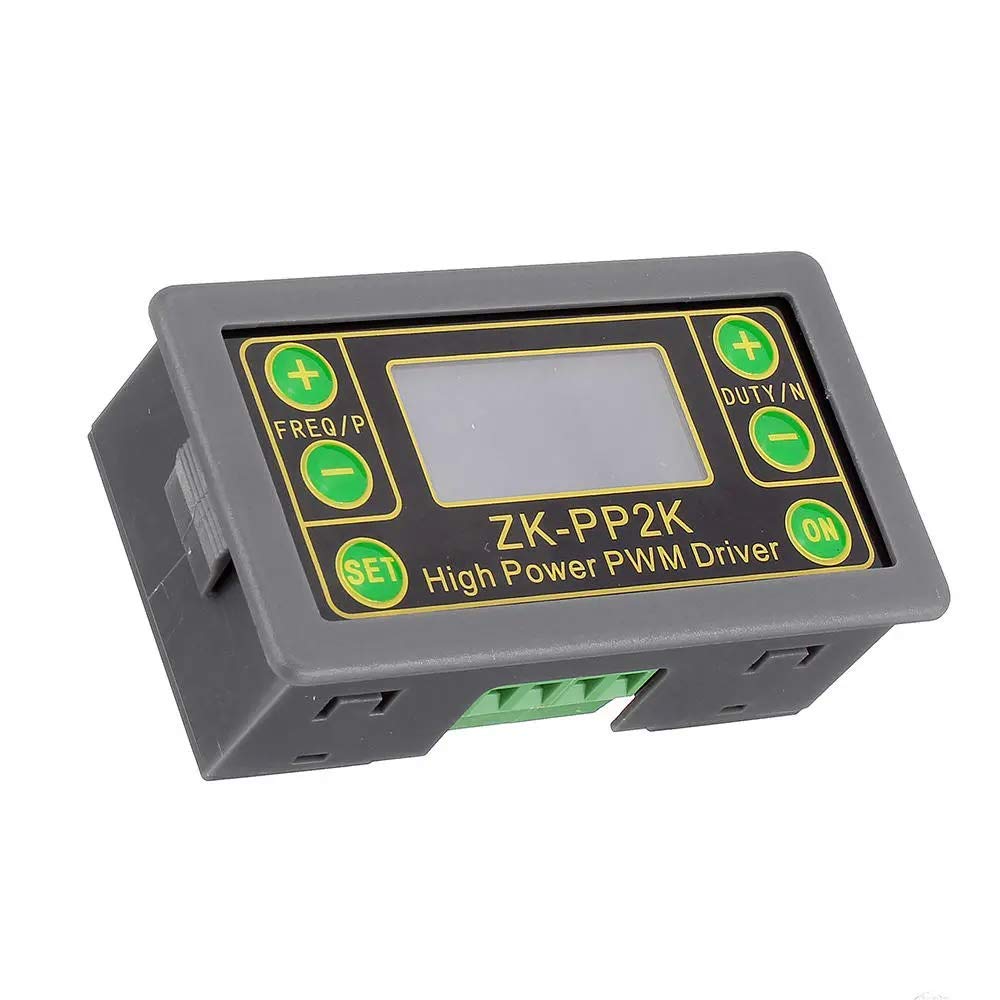

DollaTek PWM Signal Generator PWM Motor Speed Controller Light Control LCD PWM Pulse Rate Duty Ratio Adjustable Module PWM & PULSE Dual Mode Motor Drive Controller

• The signal generator is a device that provides electrical signals with different frequencies, rectangular waves, pulses and output levels and can directly control LED/motor/solenoid valves. It can also be used as a test signal source or stimulation source.

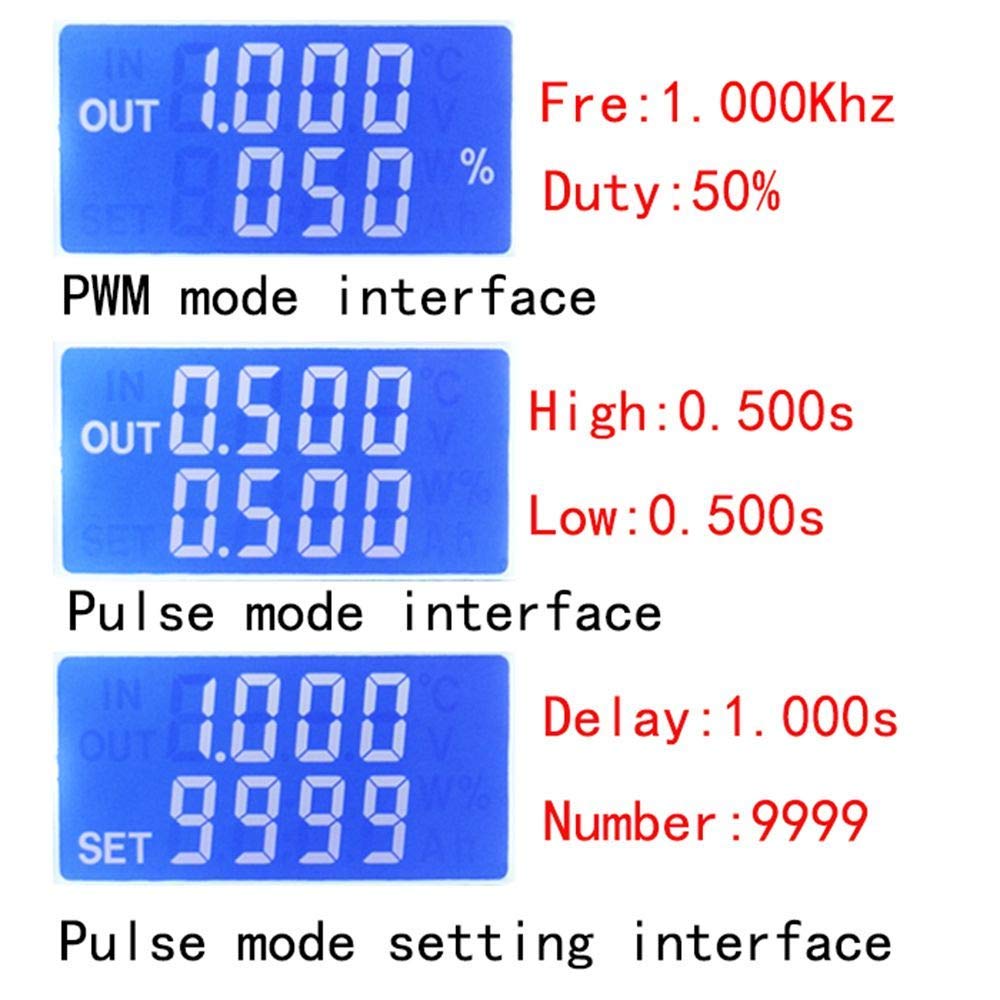

• PWM mode: adjust the frequency and the duty ratio. PULSE pulse mode: set the positive and negative pulse time, the number of pulses and the delay time.

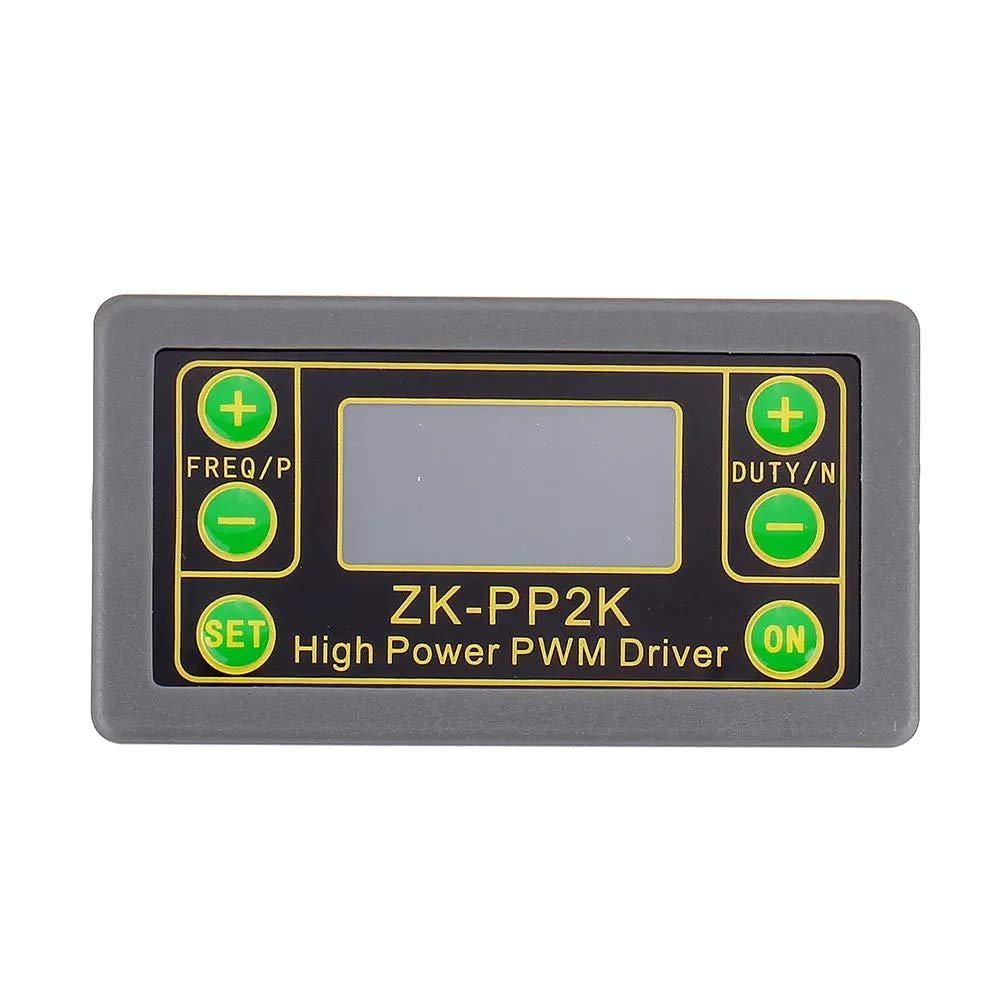

• Features: LCD HD display. 1 channel signal output. High precision detection Support activated/disabled output. With start-stop button.
• Parameter memory function: the PWM motor speed controller can automatically save the set parameters to avoid data loss after a power failure.

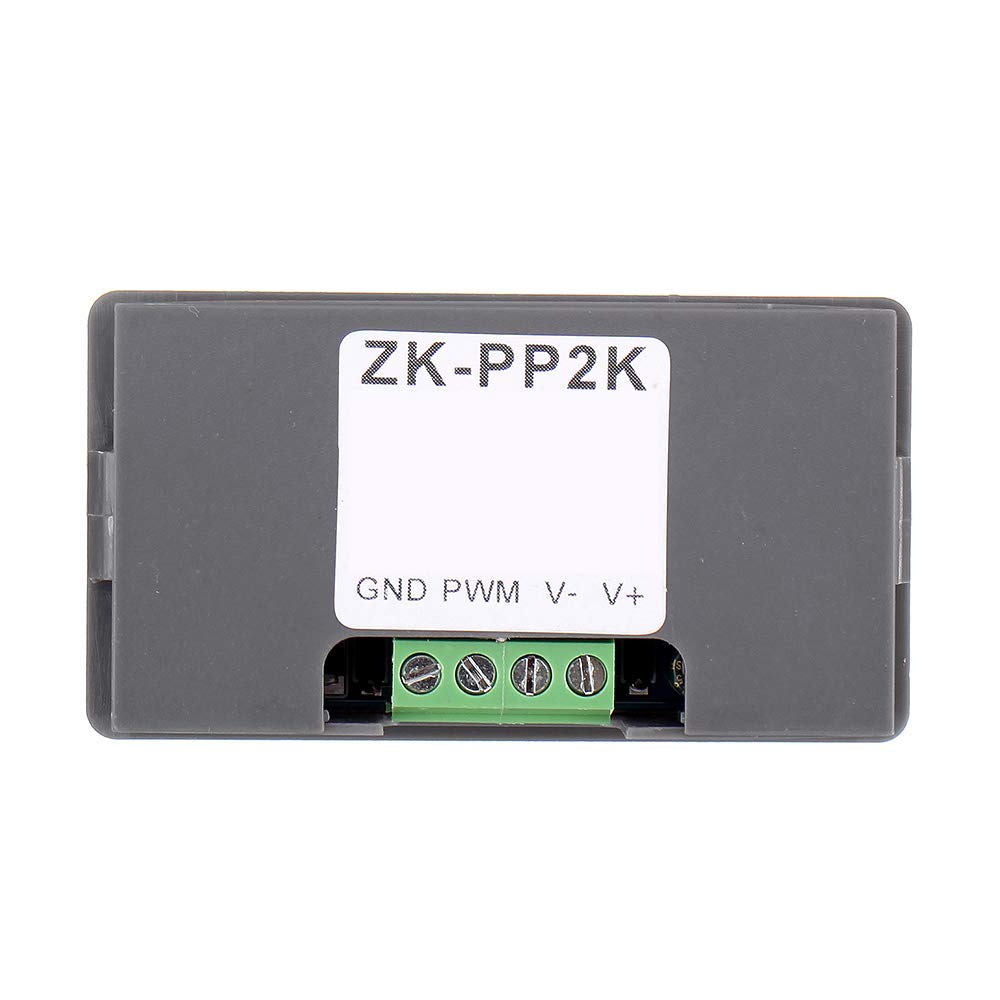

• Voltage Input:3.3-30V, Connector Cable: 5.08mm Our motor regulator supports reverse polarity protection.

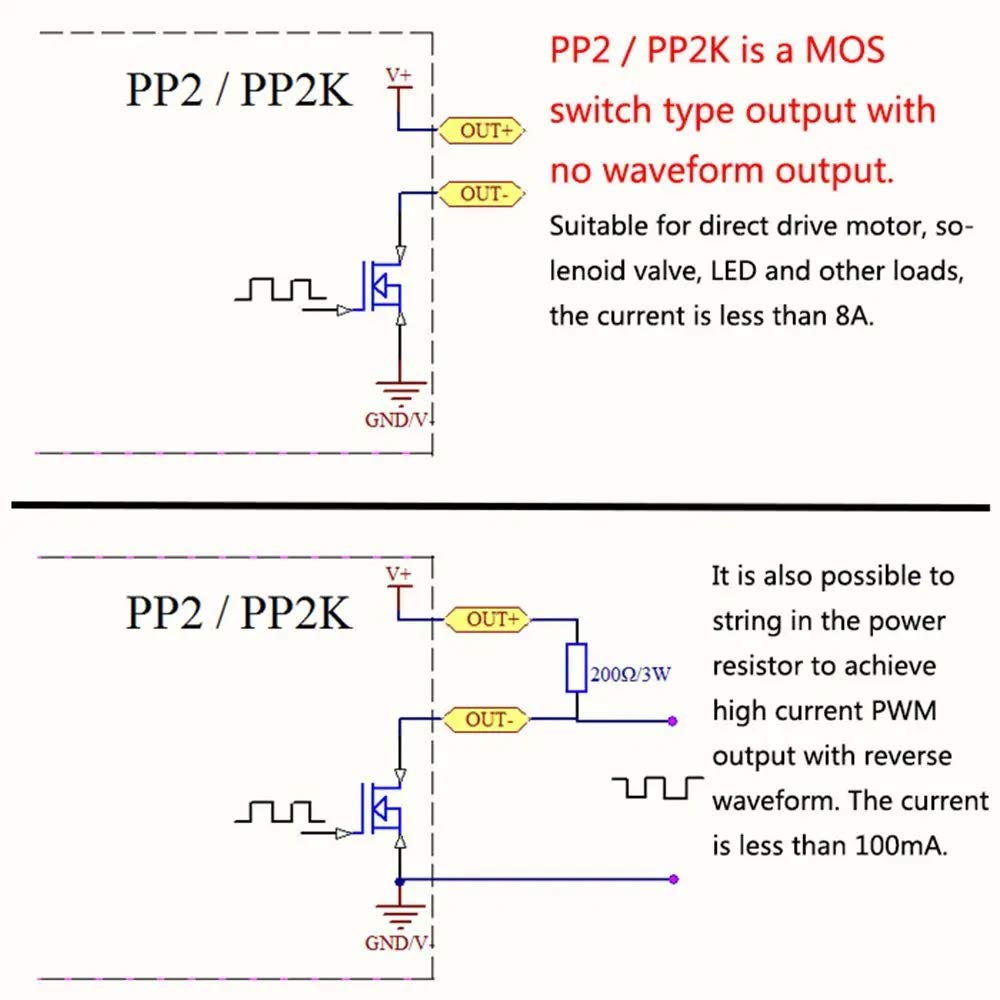

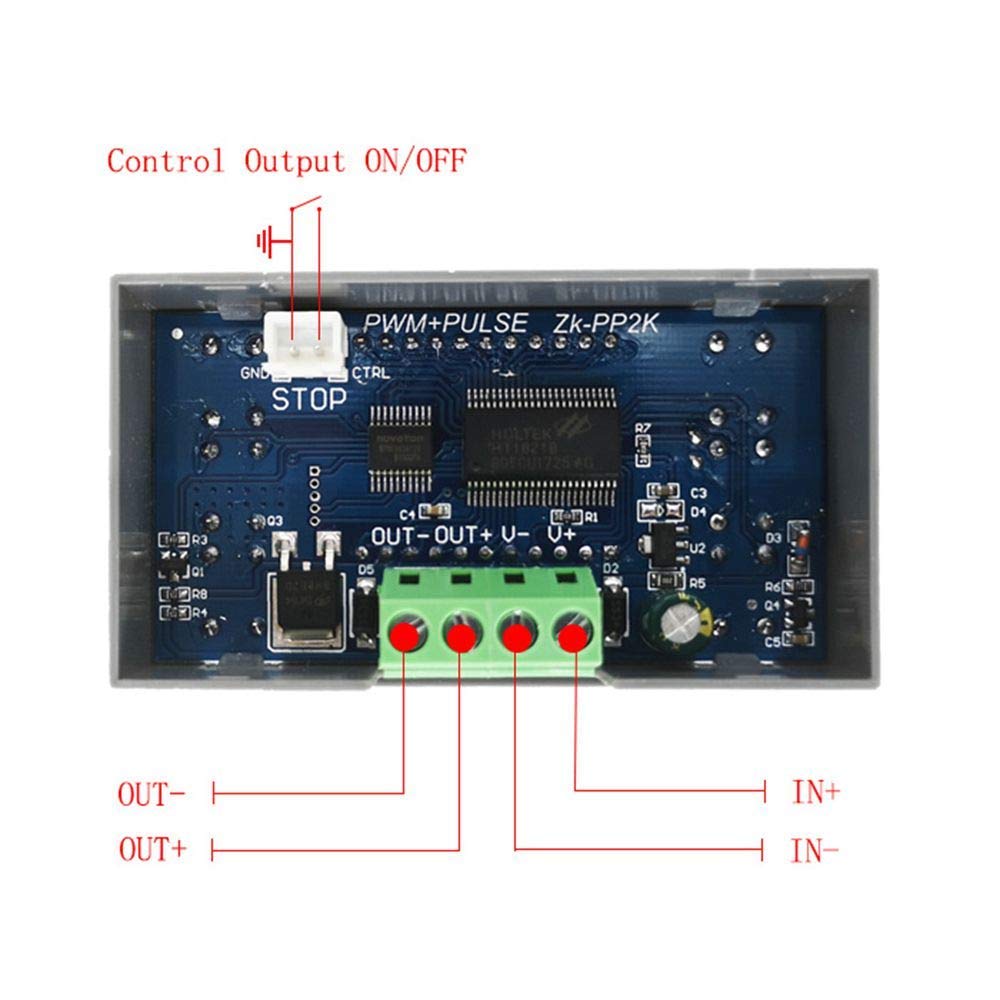

Features: Direct drive LED / motor / solenoid valve. PWM mode: support frequency adjustment and touch level adjustment. PULS mode: set the positive and negative pulse times, the number of pulses and the delay time. LCD high definition display. Highly precise detection. Support power-down memory function. 1-channel signal output. Support reverse polarity protection. Support activated/disabled output. With start-stop button. Note: The number of switches cannot be set in PWM mode and cannot be switched on and off constantly. Parameters: Working voltage: DC 3.3 V - 30 V. Frequency range: 1 Hz ~ 150 kHz. Frequency accuracy: 2%. Working cycle range: 0.00% -100%. Output current: 8A (max.) Number of pulses: 1 ~ 9999 or infinity. Delay time: 0.000s ~ 999s. Pulse width: 0.000s ~ 9999s. Time accuracy: 1ms. Output amplitude: corresponds to the input voltage Working humidity: 0% ~ 95% relative humidity. Size: 79 x 43 x 26 mm. Package contents: 1 x PWM signal generator motor speed controller
