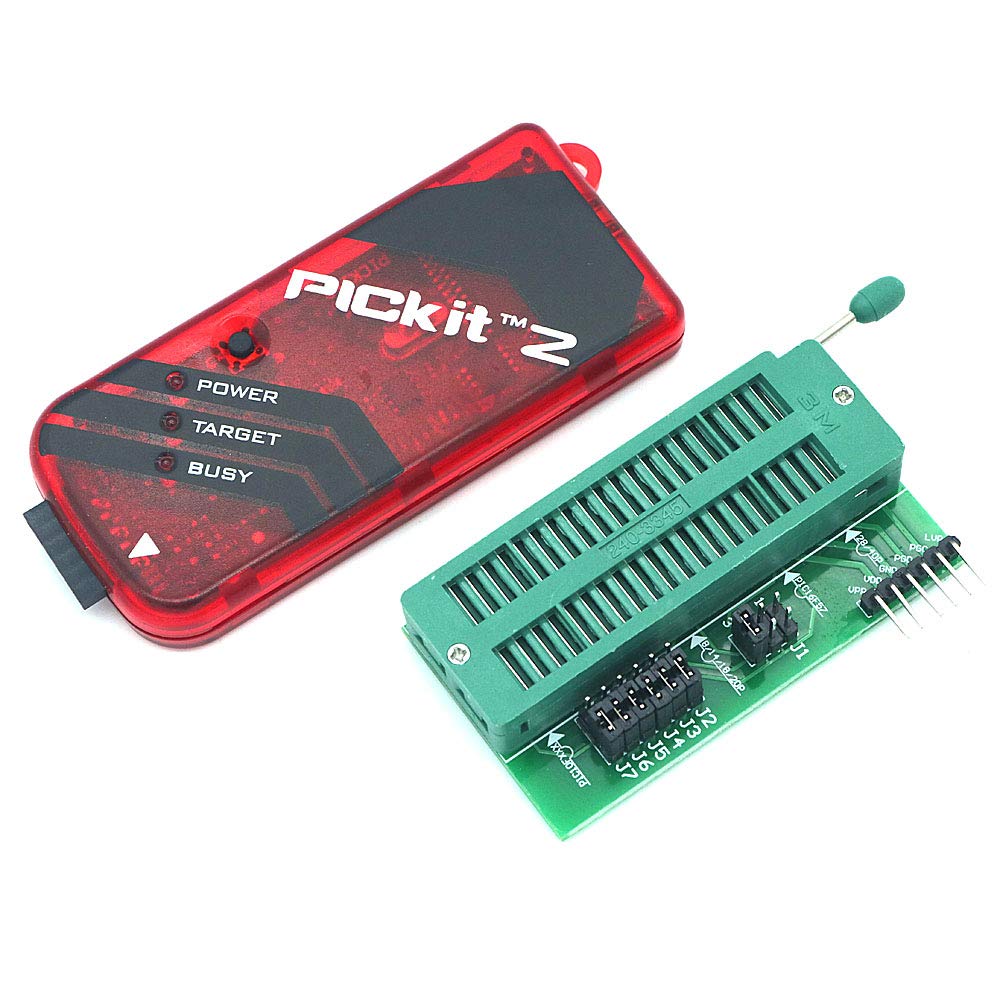

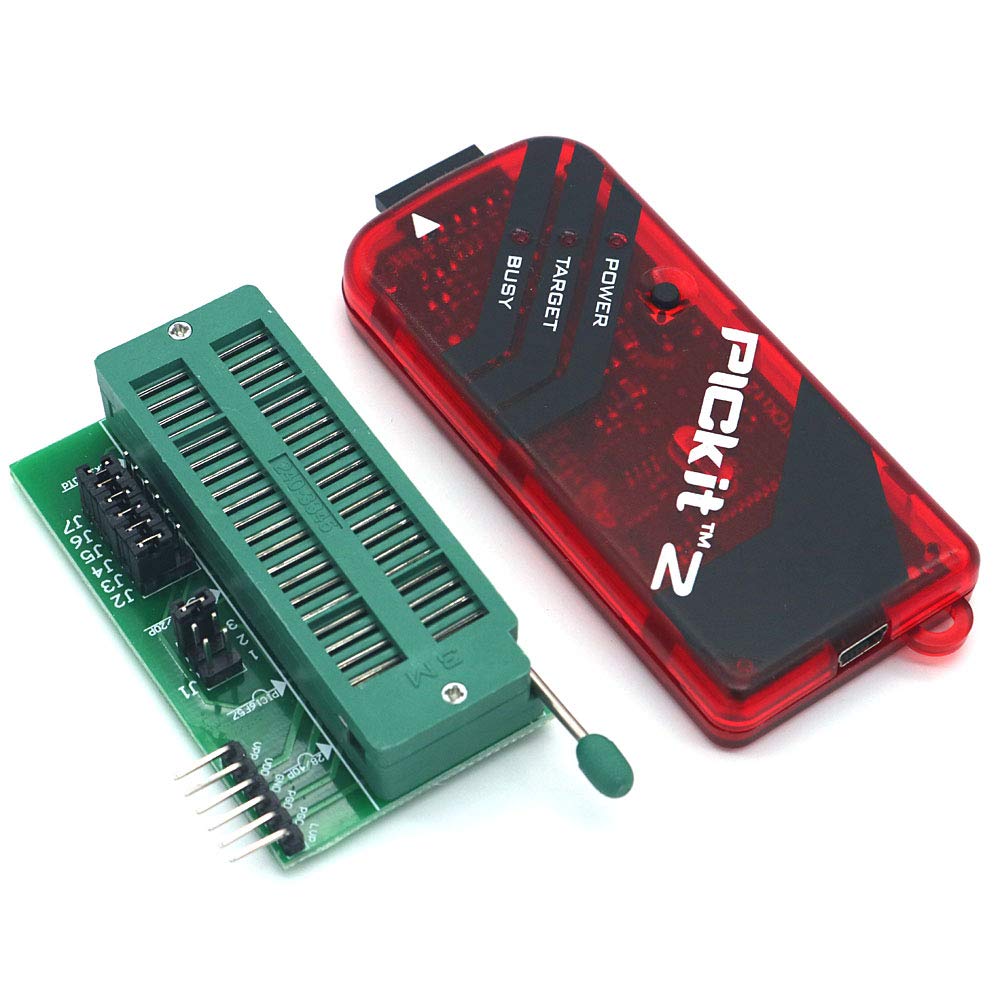

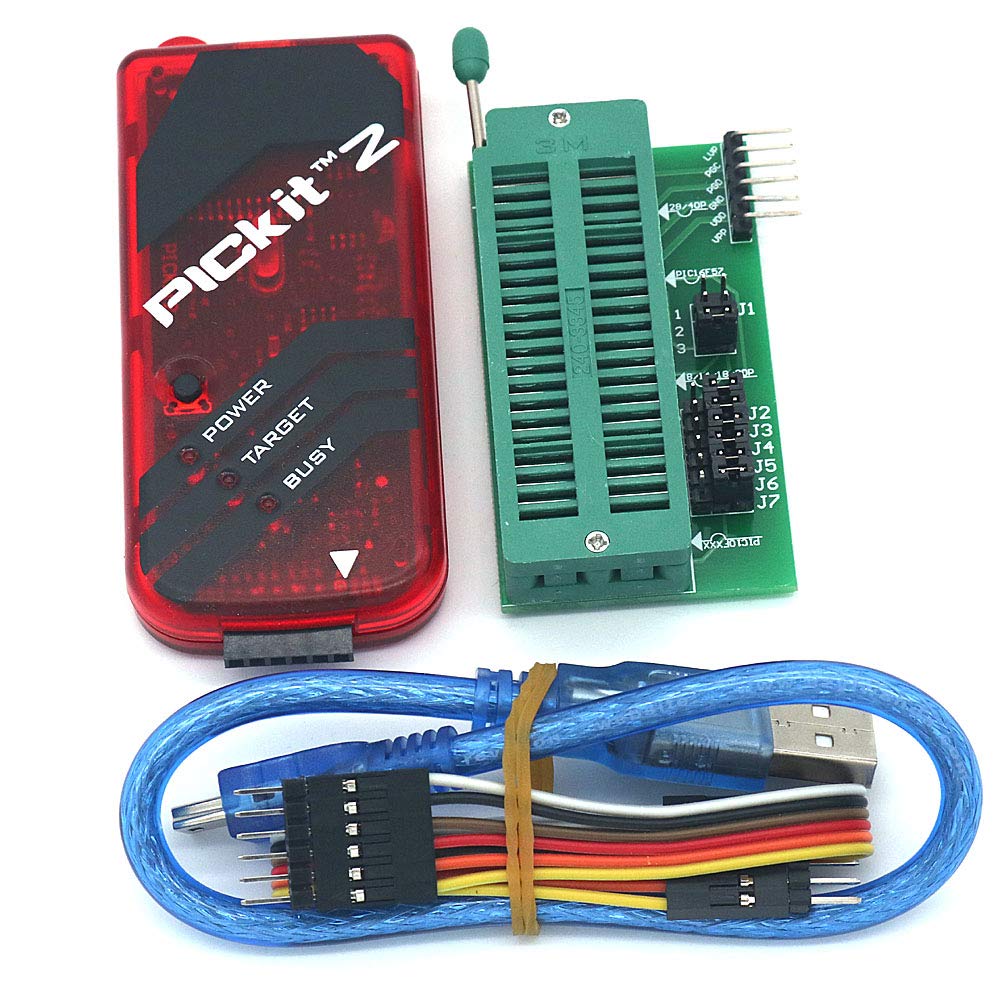

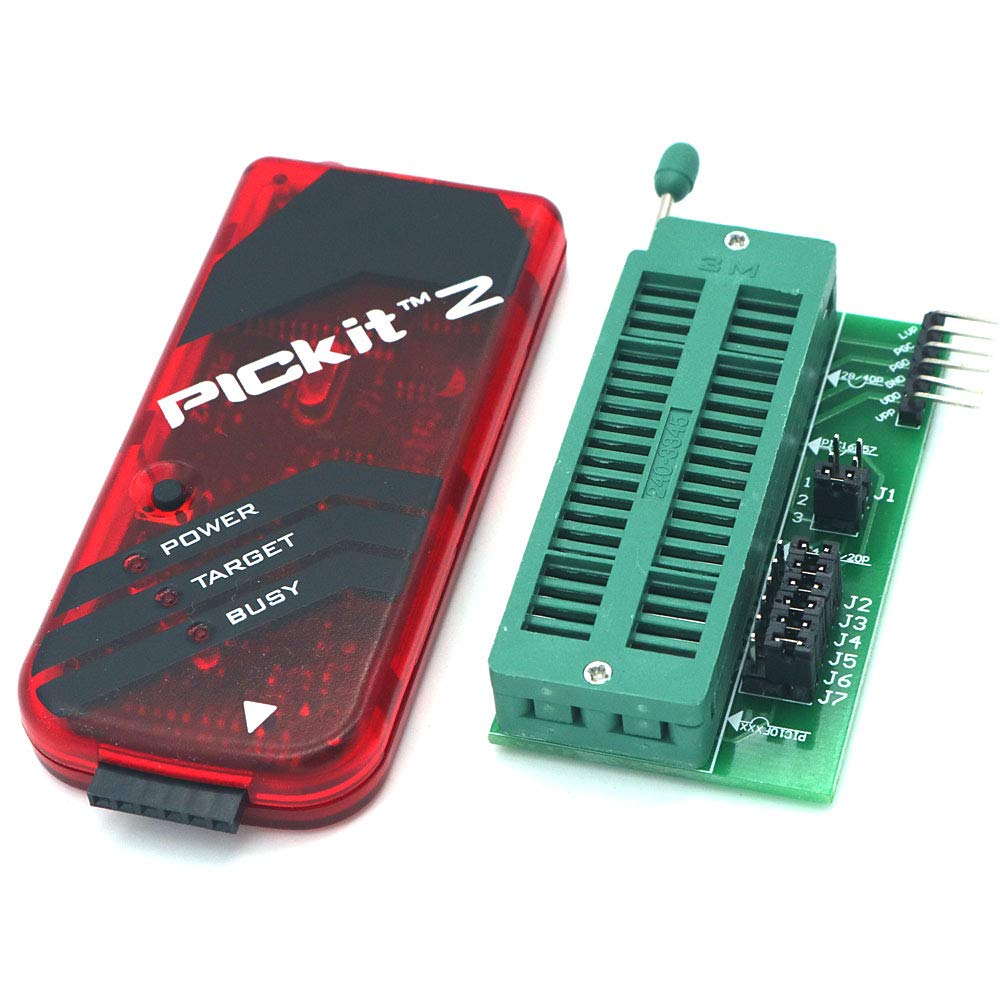

DollaTek PICKIT2 Programmer + PIC ICD2 PICKit 2 Programming Adapter Universal Programmer seat for Arduino

• Support the IC is less than KIT3/ICD2, stability is better than ICD2, also off-line batch programming. Support for PICKIT2 IC, can be viewed MPLAB IDE v8.56 software.
• PICKIT2 online programming and debugging Microchip's PIC10/12/16/18/24/32, dsPIC30/dsPIC33 almost the entire line of PIC FLASH microcontroller chip.
• PICKIT2 to programming the Microchip the KEELOQ of HCS series of chips, MCP250xx CAN chips EEPROM memory chip.
• Open the software, configure-> select device PICKIT2 support in front of the green light.
• The simulation programmer with a protective function on the basis of the original increase of self-recovery fuse with three lights so you can clearly understand the current state of the programmer many similar products online.

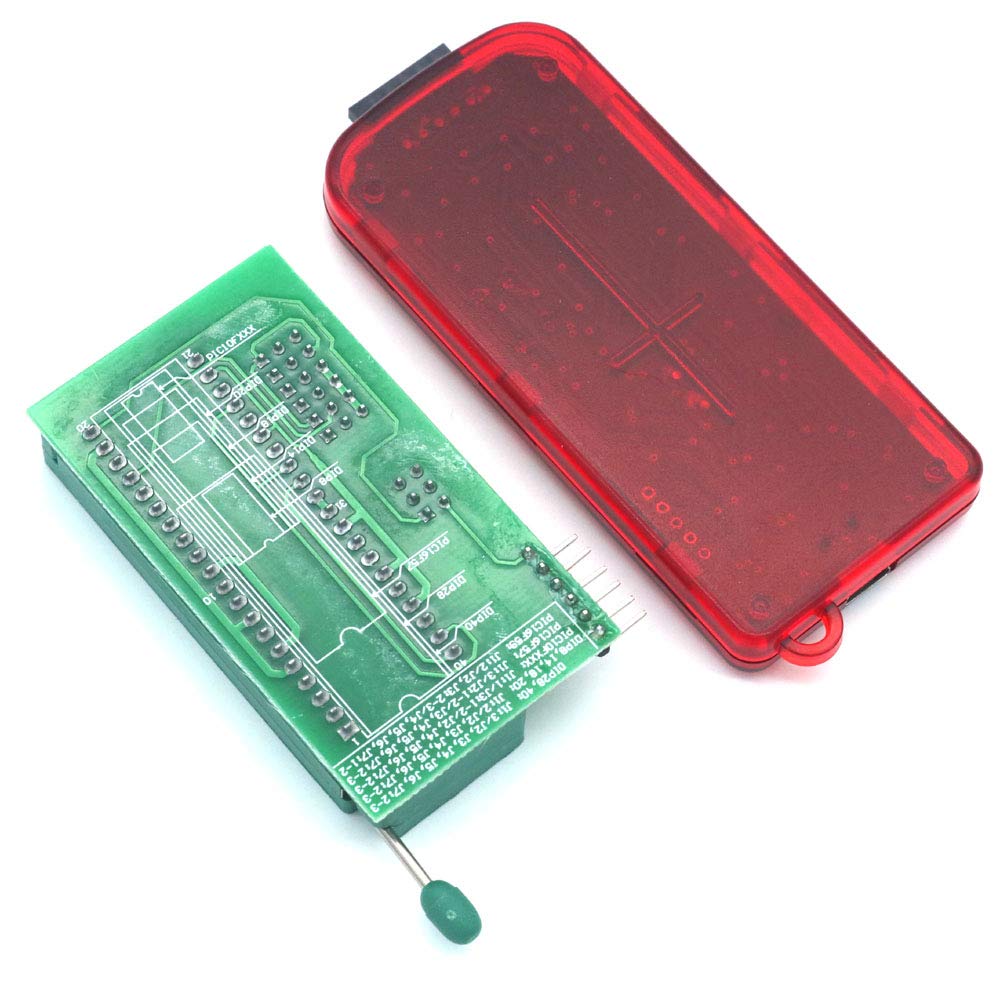

PICKIT2 online programming and debugging Microchip's PIC10/12/16/18/24/32, dsPIC30/dsPIC33 almost the entire line of PIC FLASH microcontroller chip. And PICKIT2 to programming the Microchip the KEELOQ of HCS series of chips, MCP250xx CAN chips EEPROM memory chip. The PICkit2 support device models table: Devices, the PIC10F the Series: The PIC10F200, PIC10F202, the PIC10F204, PIC10F206, the PIC10F220, PIC10F222 Devices, PIC12F the Series: PIC12F508, PIC12F509, PIC12F510, PIC12F519, PIC12F609, PIC12HV609, PIC12F615, PIC12FHV615 PIC12F629, the PIC12F635, on PIC12F675 and the PIC12F683's Universal Programmer Seat Description: Instructions for use: Installing the microcontroller, 28-pin, 40-pin microcontroller left aligned 28/40P (A) This flag line short-circuit cap on the A position. The 8,14,18,20-pin microcontroller aligned on the left 8P/14P/18P/20P flag line (B), shorting cap on the B position. The ICD2, KIT2, KIT3 crystal head or 6Pin Block programming connection for programming the programming operation. (Note: a separate program of the seat can not be programmed the chip is programmed functions) The seat supports the following programming microcontroller: PIC16/18XX 40PIN Series devices (except 16F59) PIC16/18XX 28PIN Series devices (except 16F57) PIC16/18XX 18PIN Series devices The PIC 8PIN/14PIN/20PIN family of devices (except 10FXX) Package Included: 1 x PICKIT2 Simulator 1 x USB cable 1 x 6pin cable 1 x Universal Programmer Seat
