DollaTek L298N DC Motor Driver Module Dual H Bridge DC Stepper Motor for Arduino PIC AVR

• Driver chip: L298N dual H-bridge driver chip.
• The power supply range of the driving part terminal VMS: +5V～＋35V
• Drive partial peak current Io: 2A/bridge
• The power supply range of the logic part terminal Vss: 4.5-5.5V.
• Logic part operating current range: 0～36mA.

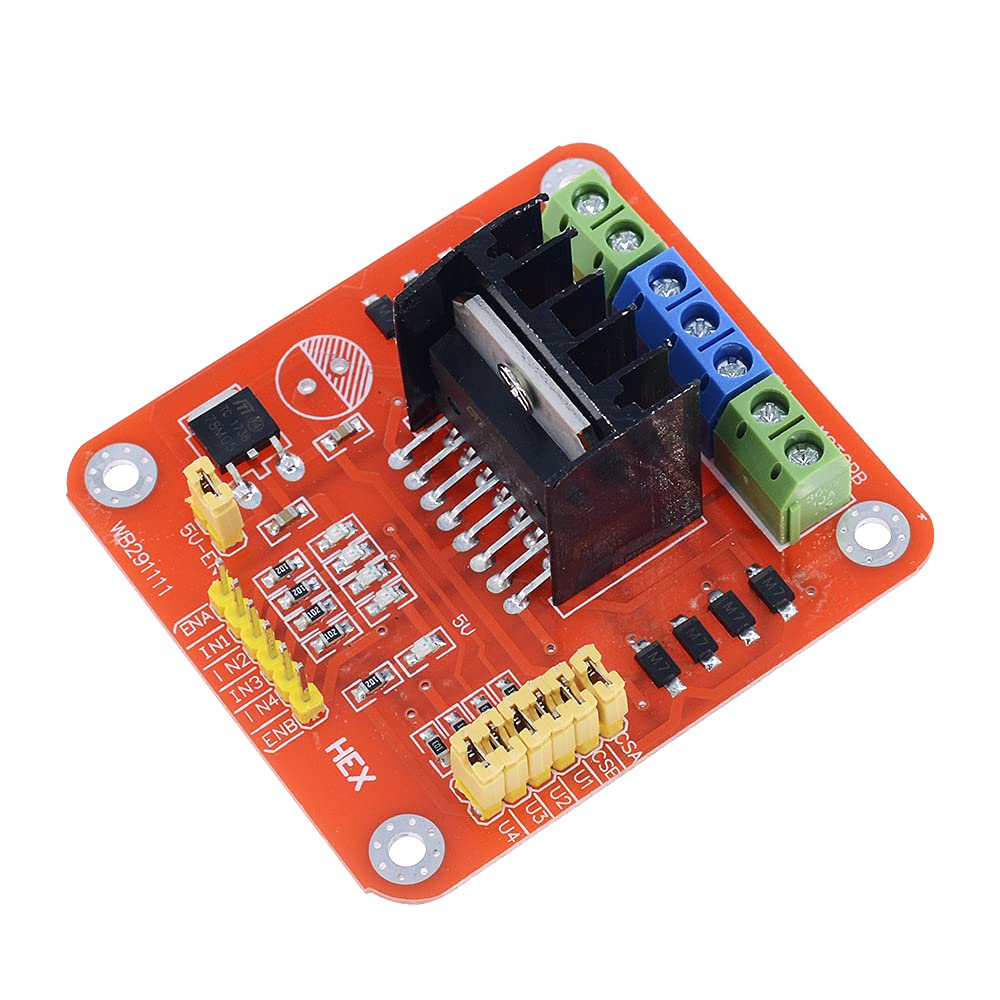

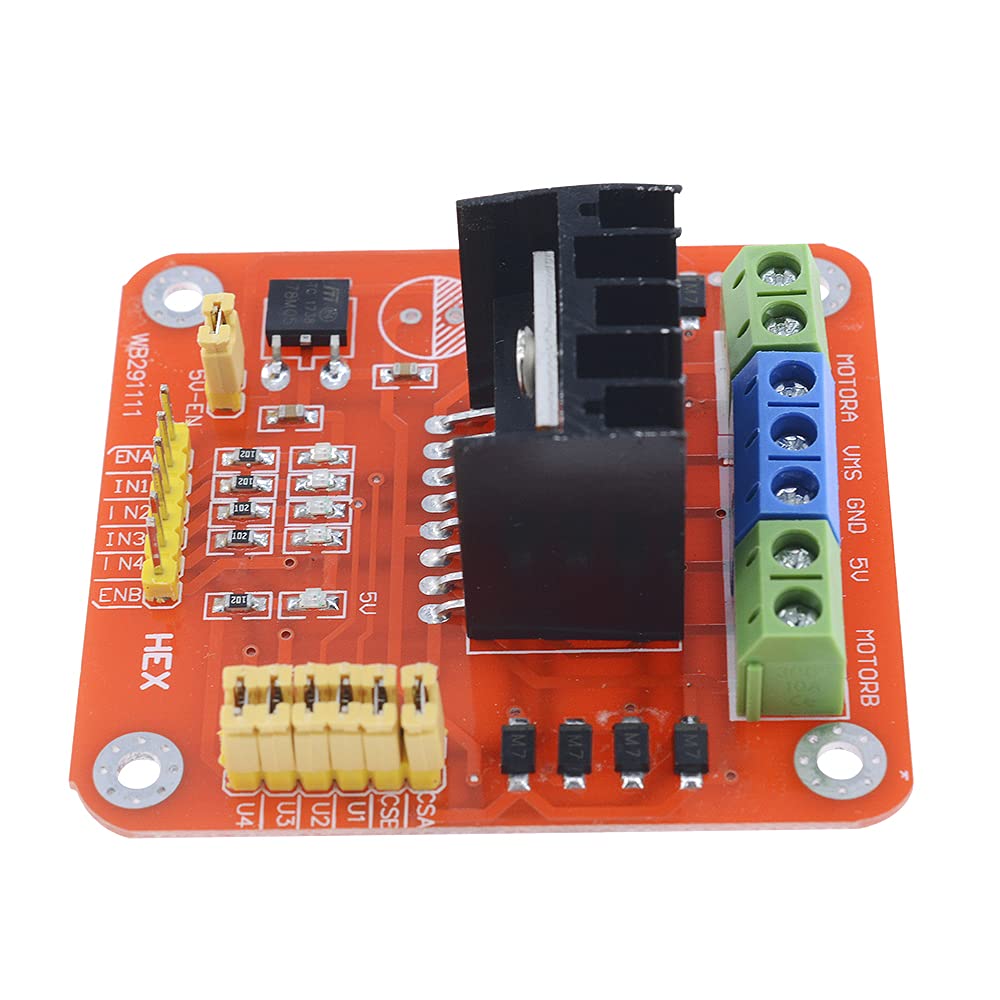

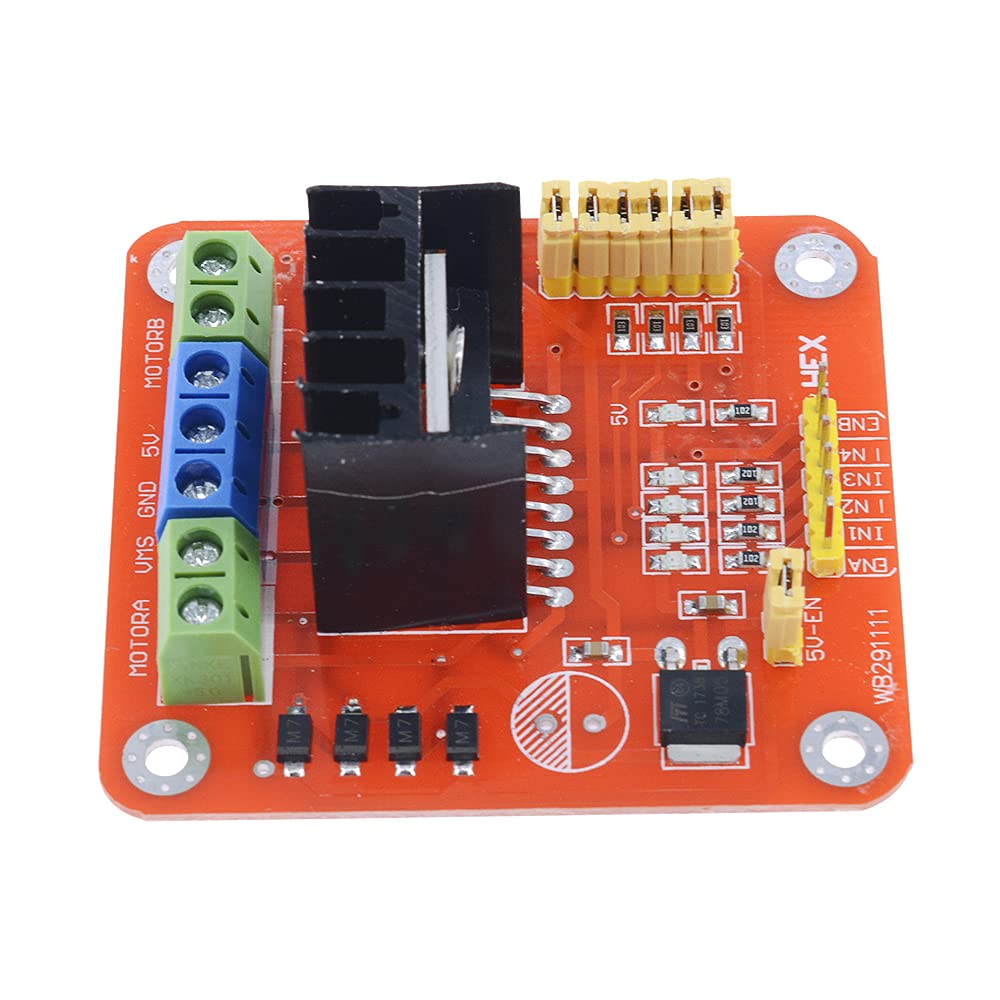

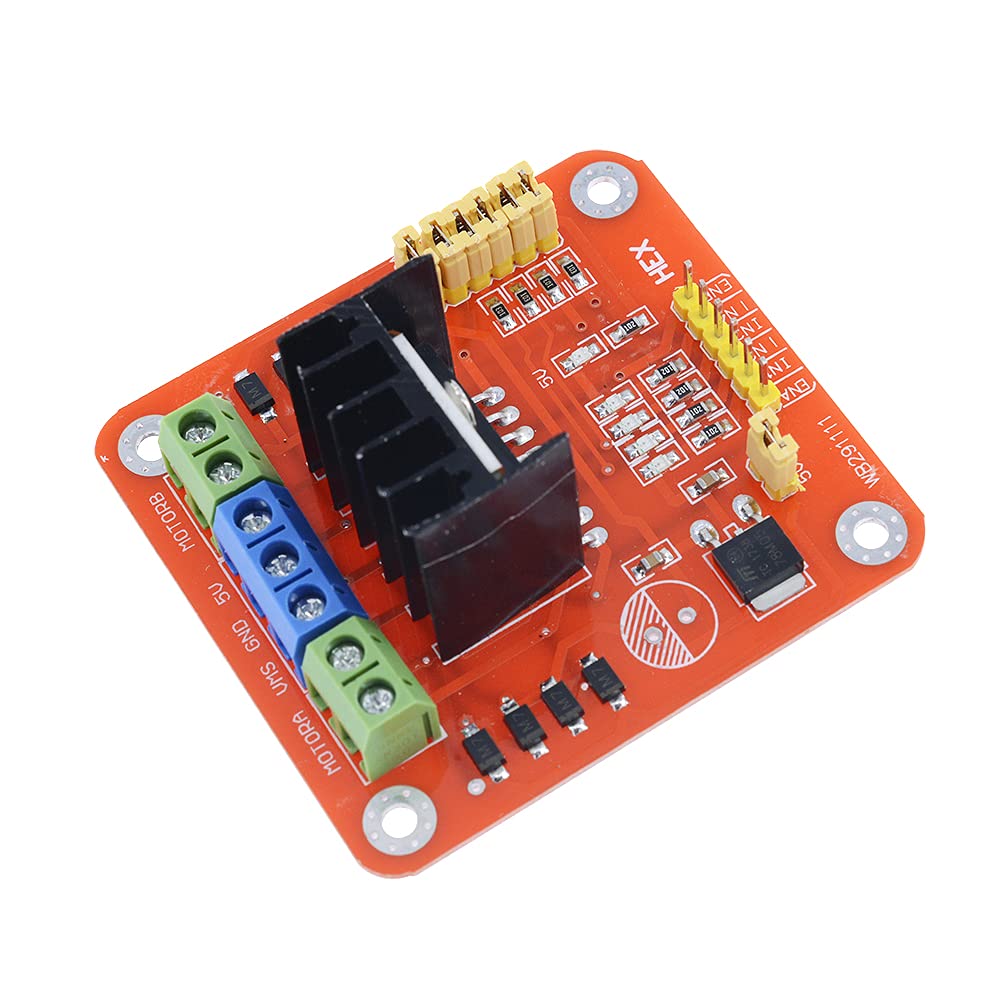

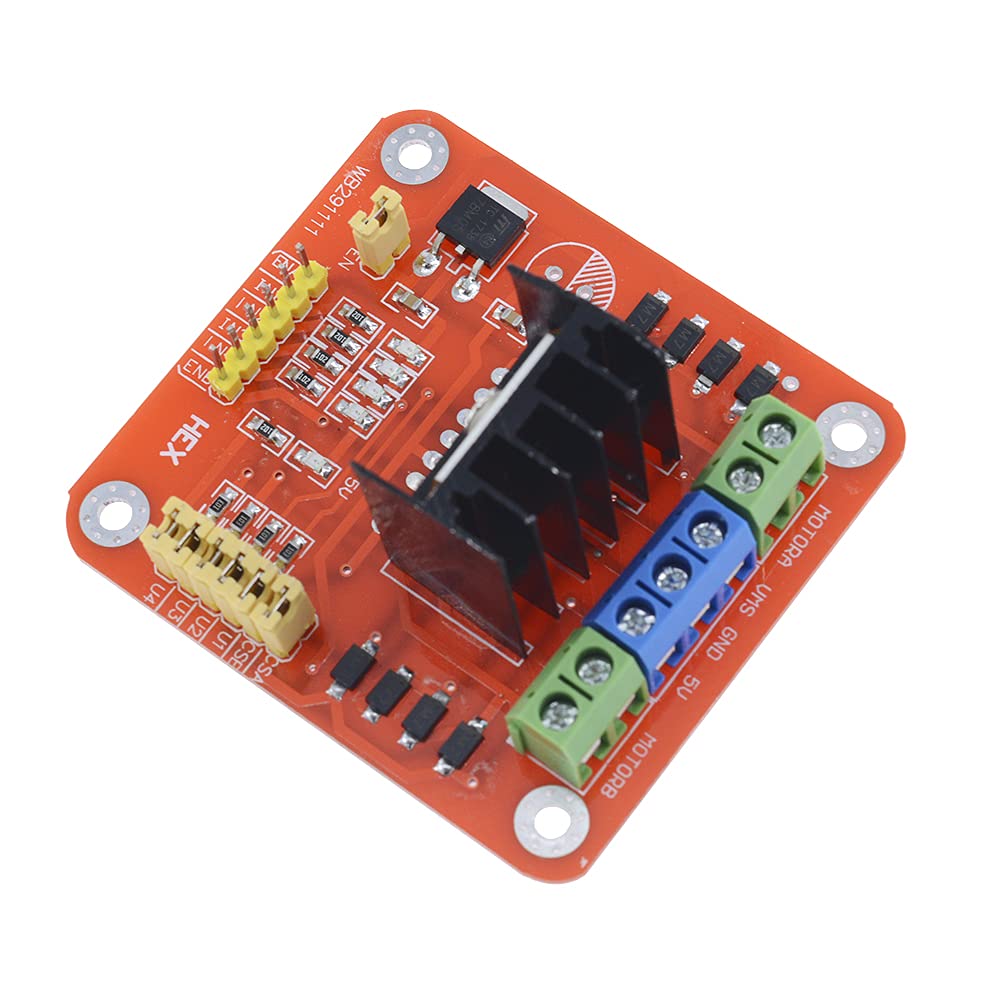

Description: The L298N driver module, using ST's L298N chip, can directly drive two 3-30V DC motors, and provides a 5V output interface, which can supply power to the 5V single-chip circuit system, supports 3.3VMCU control, and can conveniently control the speed of the DC motor And direction, can also control 2-phase stepper motor, it is necessary for smart car. Product parameters: 1. Driver chip: L298N dual H-bridge driver chip 2. The power supply range of the driving part terminal VMS: +5V～＋35V 3. Drive partial peak current Io: 2A/bridge 4. The power supply range of the logic part terminal Vss: 4.5-5.5V 5. Logic part operating current range: 0～36mA 6. Control signal input voltage range: high level 4.5-5.5V, low level 0V 7. Large power consumption: 20W 8. Storage temperature: -25℃～＋130℃ 9. Drive board size: 55mm*60mm*30mm 10. Drive board weight: 33g 11. Other functions: control direction indicator light, power supply indication, current detection,and power interface in the logic part of the board. Package include: 1 x module
