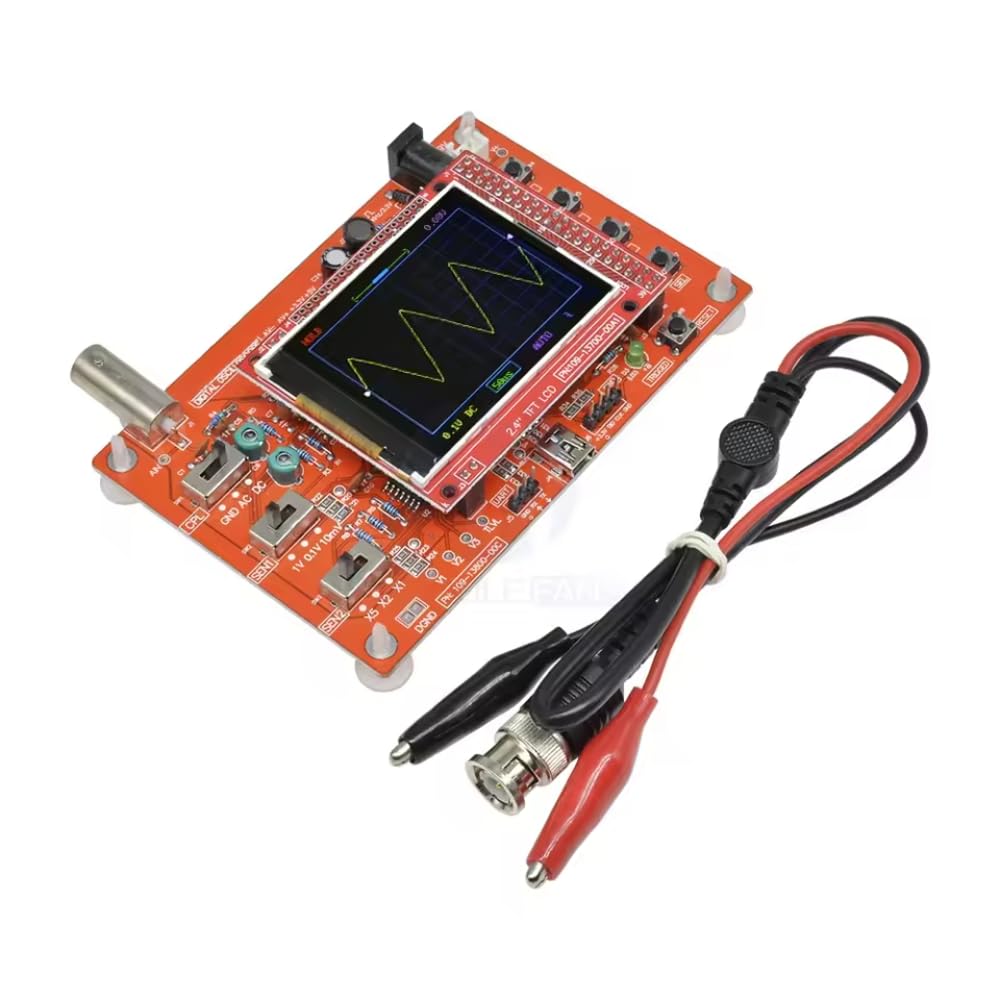

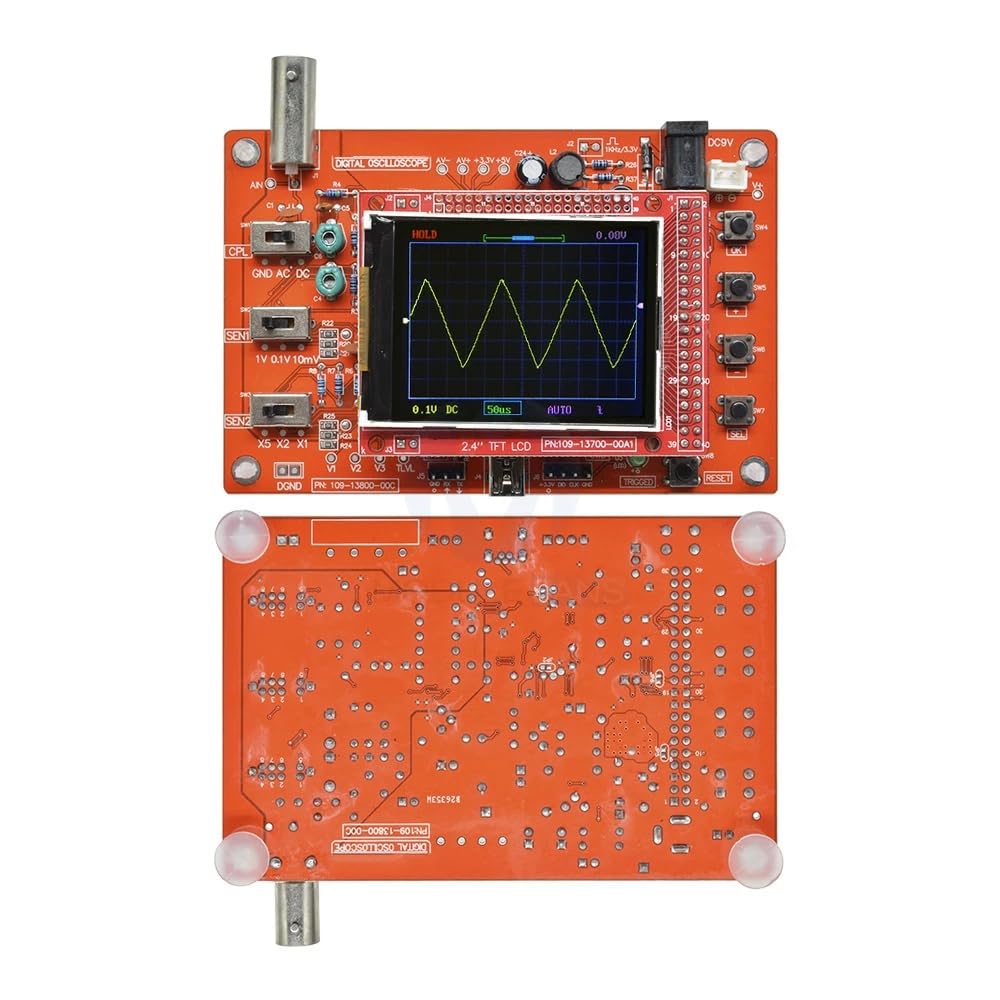

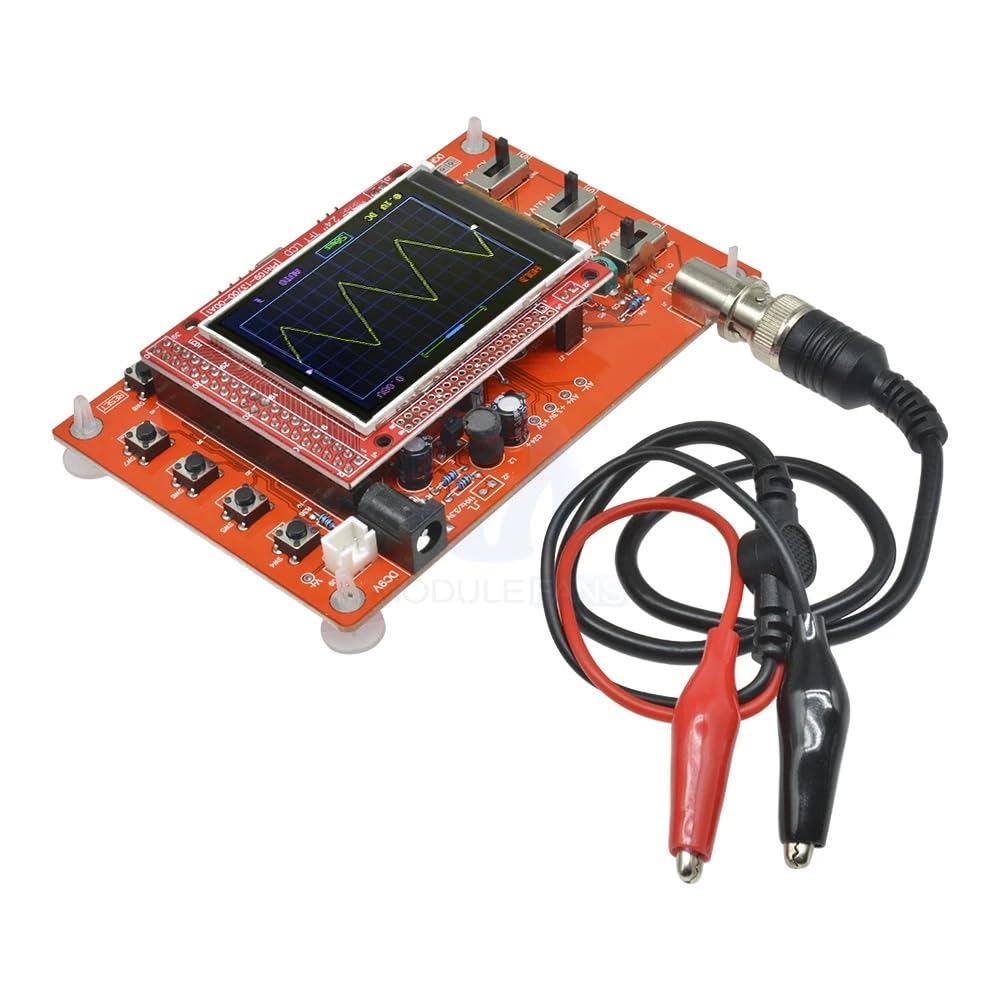

DollaTek DSO138 DIY KIT Open Source 2.4" TFT 1Msps Digital Oscilloscope Kit with DIY parts + Probe 13803K（SMD pre-soldered）

• DSO138 2.4" TFT 1Msps Digital oscilloscope kit for DIYIt's easy to solder.
• Oscilloscope functions with no fancy features. Simplicity in structure and easiness in assembly
• It uses 2.4-inch TFT LCD (320 X 240 dotmatrix, 262K colors) as its display element and displays nice
• Detailed assembly instructions are provided in combination with troubleshooting guide and schematc.
• Analog bandwidth: 0 - 200KHz. Sampling rate: 1Msps max Sensitivity: 10mV/Div - 5V/Div Vertical resolution: 12-bit Timebase: 10us/Div - 500s/Div Record length: 1024 points

DollaTek DSO138 is partially open-sourced. This opens the possibility for users to add different features or develop new applications on the hardware. This DSO138 kit has all SMD parts pre-soldered. The MCU has been pre-programmed and no reprogramming is required. DSO138 oscilloscope DIY kit Main features: Analog bandwidth: 0 - 200KHz Sampling rate: 1Msps max Sensitivity: 10 mV/Div - 5 V/Div. Sensitivity error: <5% Vertical resolution: 12 bits Time Base: 10us / Div - 500s / Div Document Length: 1024 points Integrated test signal 1 KHz / 3.3 V. Frozen waveform function (HOLD) available 9V DC (8 - 12V acceptable) Current, power supply: 120mA NOTE: 9V DC power supply required. Not included. Dimensions: 117 mm x 76 mm x 15 mm. Weight: 70g (not including cables) Package includes: 1x DollaTek DSO138 Digital Oscilloscope Kit POWER SUPPLY NOT INCLUDED
