Hanmatek DOS1102 Digital oscilloscope with 2 Channels and Screen 7 inch / 18 cm, TFT-LCD Display, Portable Professional Oscilloscope Kit with 110mhz Bandwidth 1GS/s Sampling Rate
★★★★★
$237.66
Quantity
1
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item

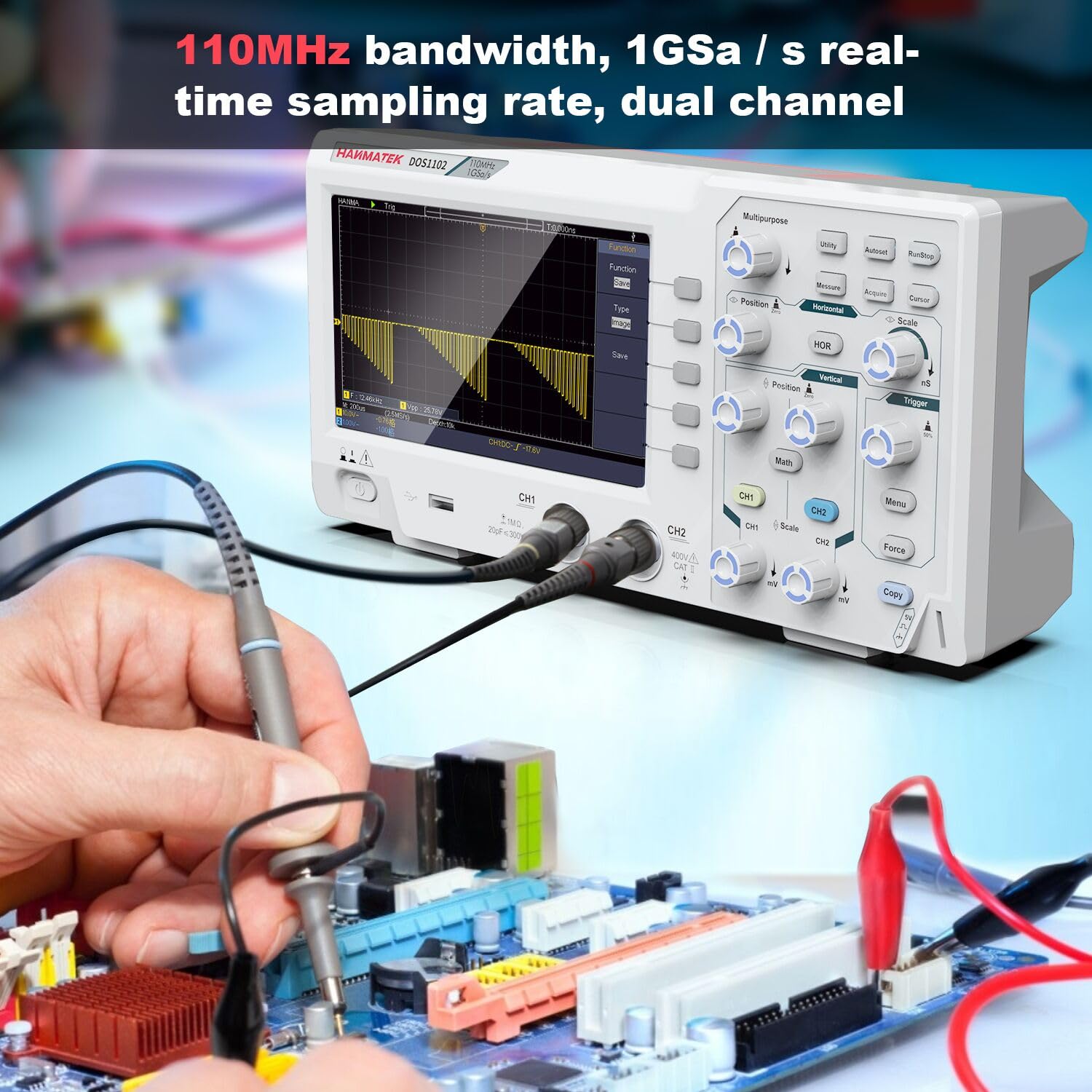

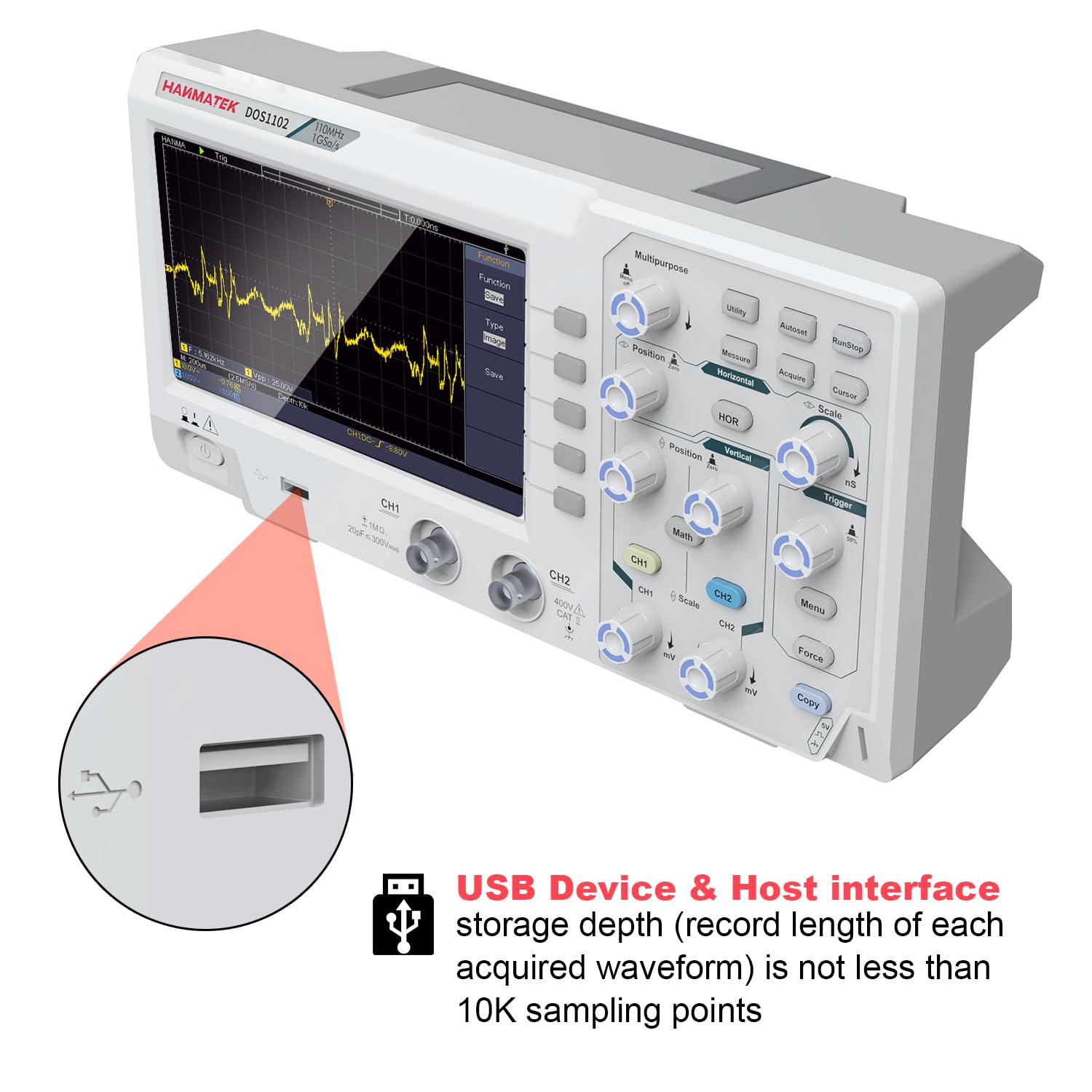

- ★ 1: 110 MHz bandwidth, 500 MS/s *2 real-time sampling rate, dual channels, 2 ns / Div ~ 1000s / Div time base range; 20 mV/div ~ 5 V/div vertical scale, storage depth (each acquisition The recording length of the waveform) is not less than 10K sampling points; it can store not less than 16 groups of waveforms, and has U disk storage function, USB device and host interface;

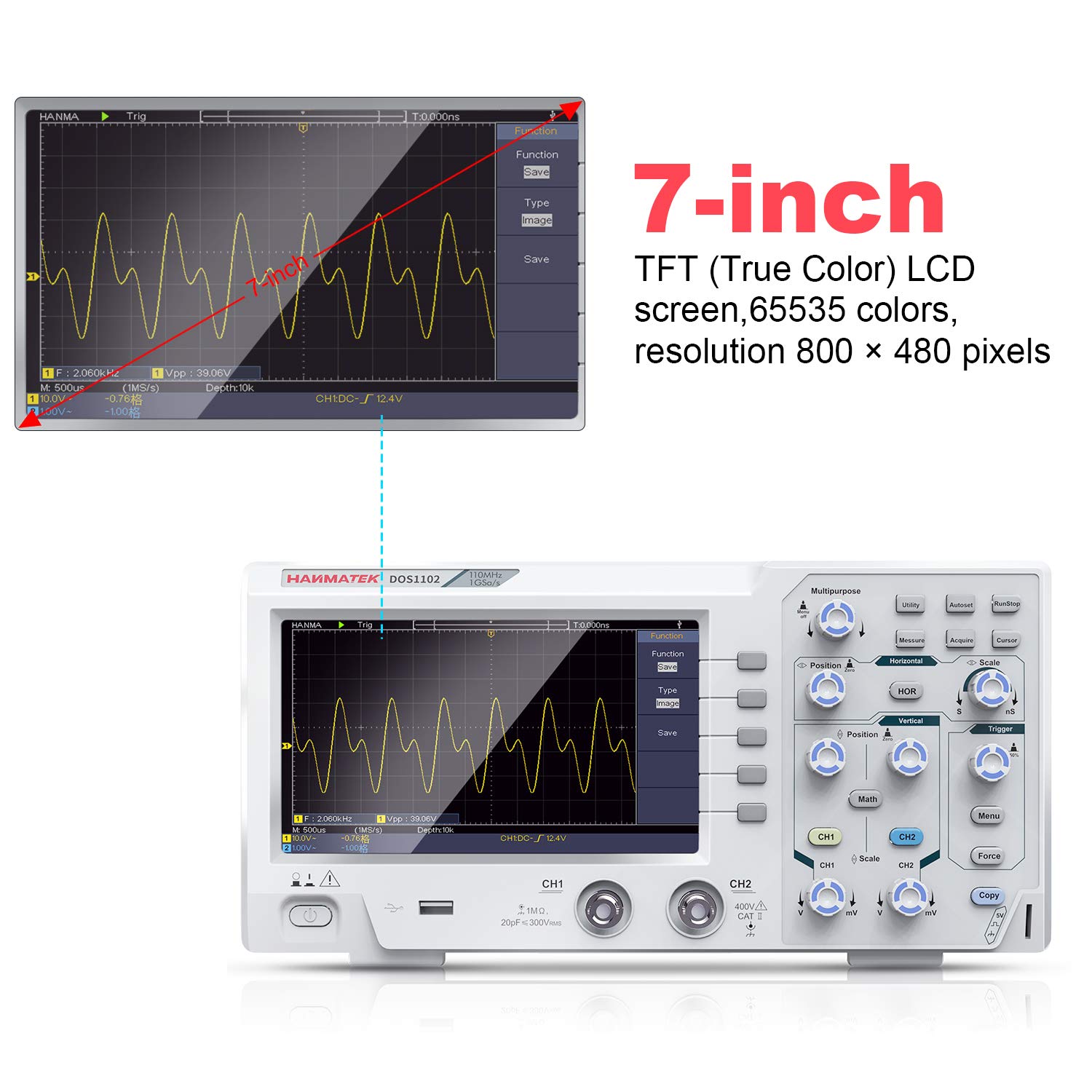

- ★ 2: 7-inch TFT LCD screen (true color), 65535 colors, resolution 800×480 pixels; supports cursor measurement, the cursor mode is no less than voltage difference (△V), time difference (△T), time difference and voltage difference (△ V) Four modes of automatic cursor;
- ★ 3: It has automatic range function and supports horizontal, vertical, single waveform/multiple waveform tracking; there are four probe attenuation multiples: 1X, 10X, 100X, and 1000X;
- ★ 4: Built-in 6-digit hardware frequency meter, capable of measuring 2 Hz ~ 20 MHz; with current measurement function, measurement range: 100.0 mA/V ~ 1 kA/V; with U disk storage function; USB device and host interface; host software download Address: tinyurl dot com/2peldgne;

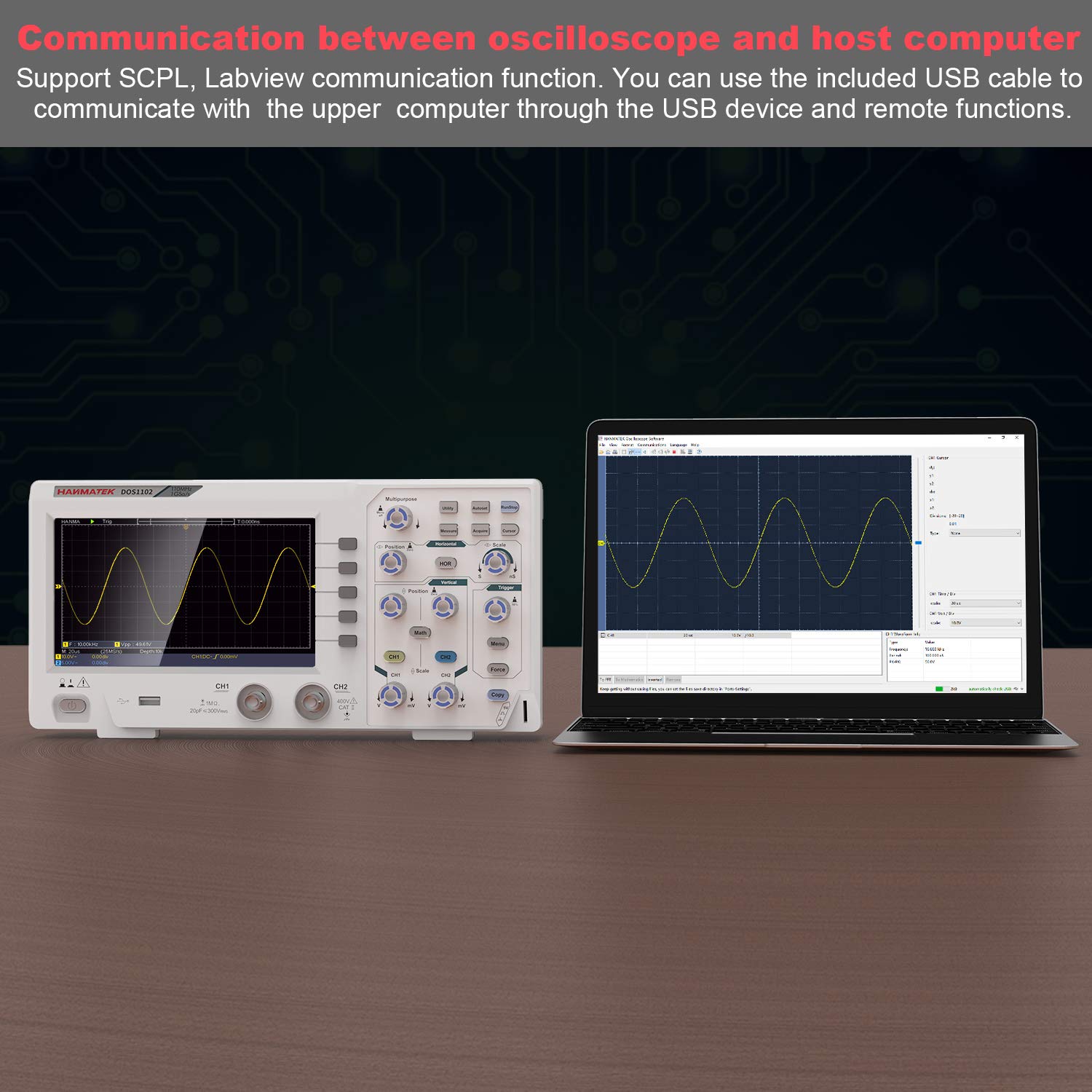

- ★ 5: It has 30 automatic measurement functions and can customize the measurement menu; it has a waveform capture function, supports LABVIEW communication, supports secondary development, and complies with SCPI specifications; powered by DC.
