DollaTek DC 12V-80V 30A digital speed controller PWM High Power Speed Regulator Slow Start Slow Stop
About this item

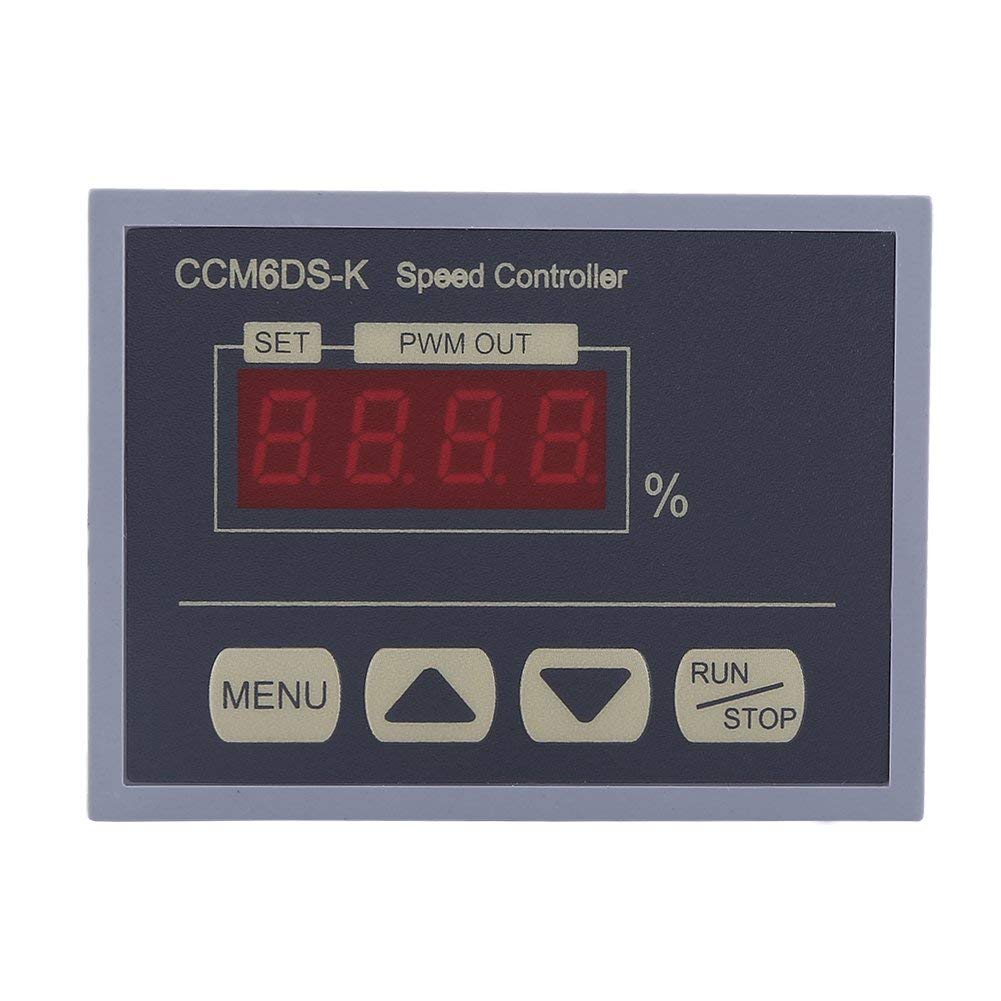

- New product, designed with a digital display panel for easy reading and convenient setting of speed adjustment
- Both speed regulation range and speed value can be set freely through the screen
- Slow start, slow stop, moreover, the time to slow start and slow stop can also be set as you like
- Rated current 30 amp, it's large power speed controller
- Multi-functional and much easier to use
Product description

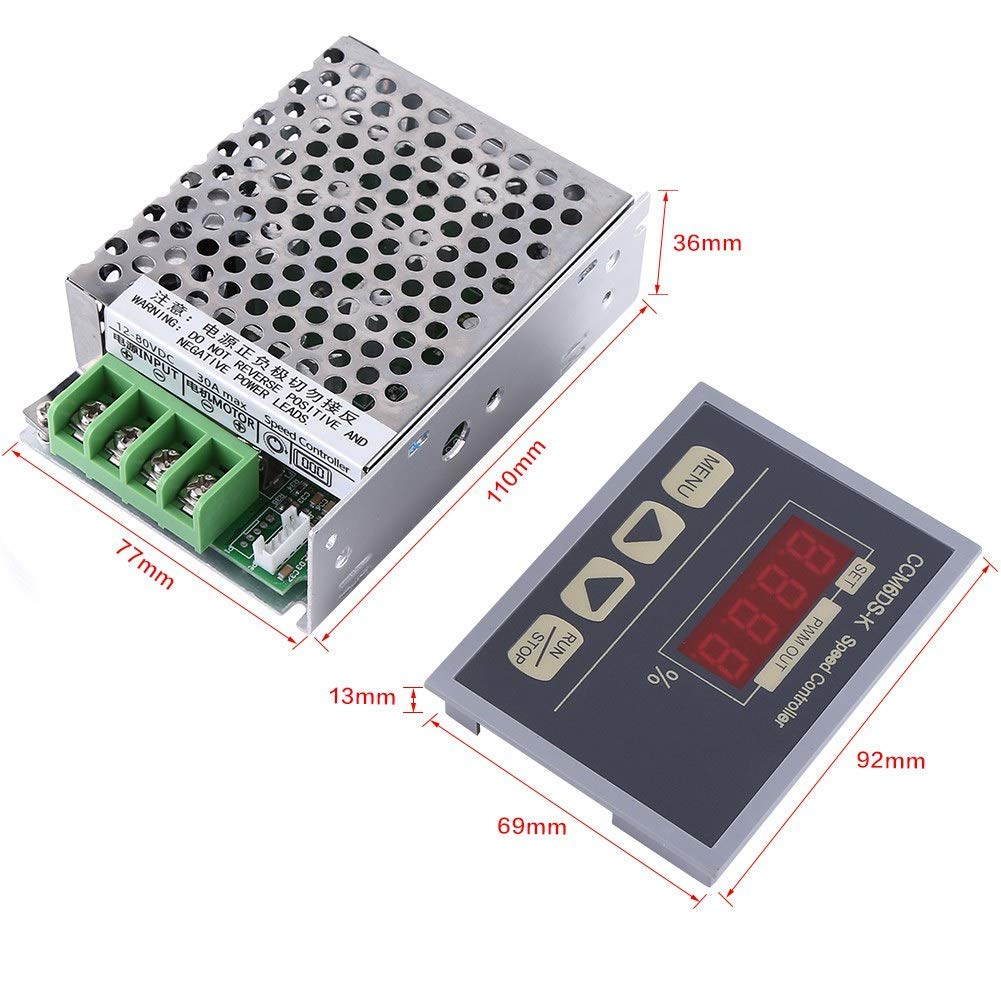

Specifications: Input Voltage: DC 12V-80V Output Voltage: 0-100% of the input voltage Maximum Current: 30A Control Power: 12V 250W or less, 24V 350W or less, 48V 500W or less Speed range: 0~100% PWM frequency: 21 kHz Controller Size: 110 mmx 77 mm x 36 mm / 4.37 x 3.03 x 1.41" Panel Size: 92 mm x 69 mm x 13 mm / 3.62 x 2.71 x 0.51" Instruction: Set 1: "000"-"100", Slow start to 100% speed time is adjustable between 0-10.0 seconds, the default is 1 second. Set 2: "000"-"100", Slow stop time is adjustable between 0-10.0 seconds, the default is 1 second. Set 3: "000"-"080", The minimum speed is adjustable from 0 to 80%, and is less than the maximum speed setting value, the default is 0. Set 4: "000"-"100", The maximum speed is adjustable between 0-100%, and is greater than the minimum speed setting value, the default is 100%. Set 5: "000", "002" , "005" , "010" , "015", "020" , "025", The speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25% each time you press the up or down button. Package Includes: 1 x Speed Controller
