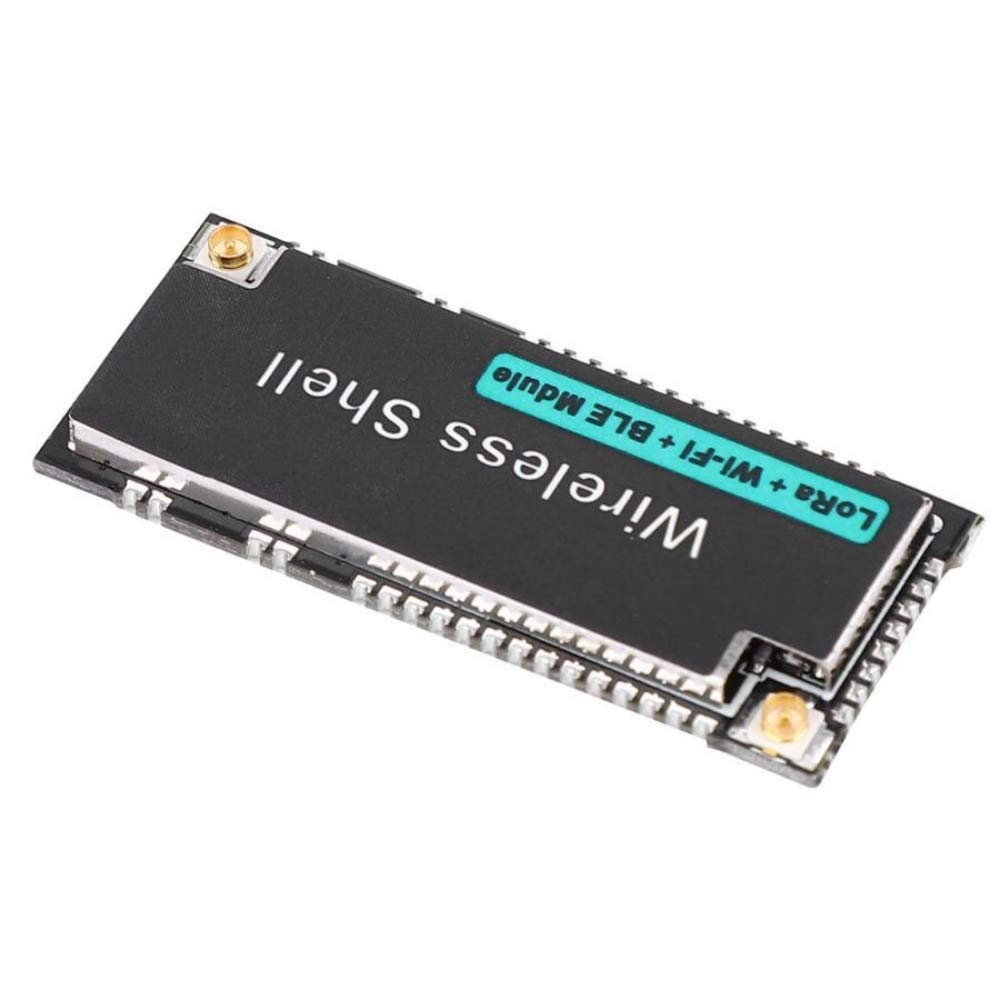

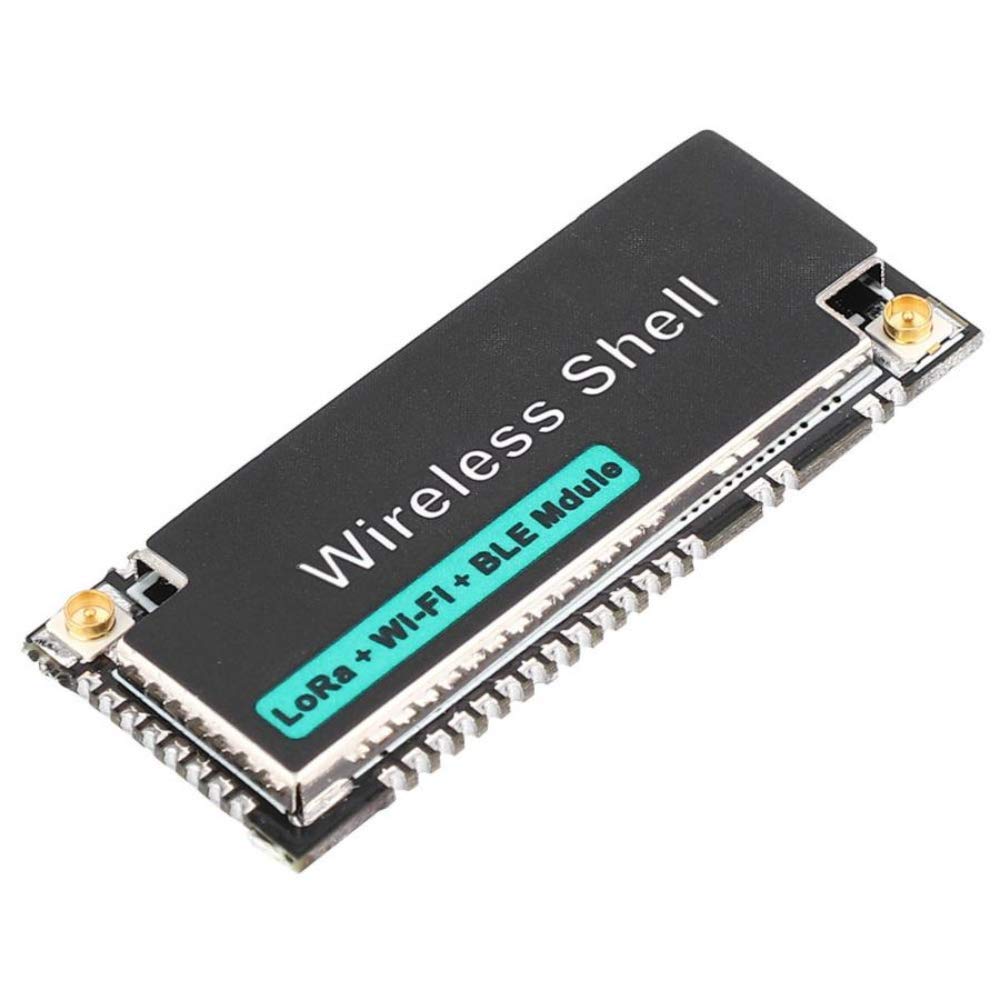

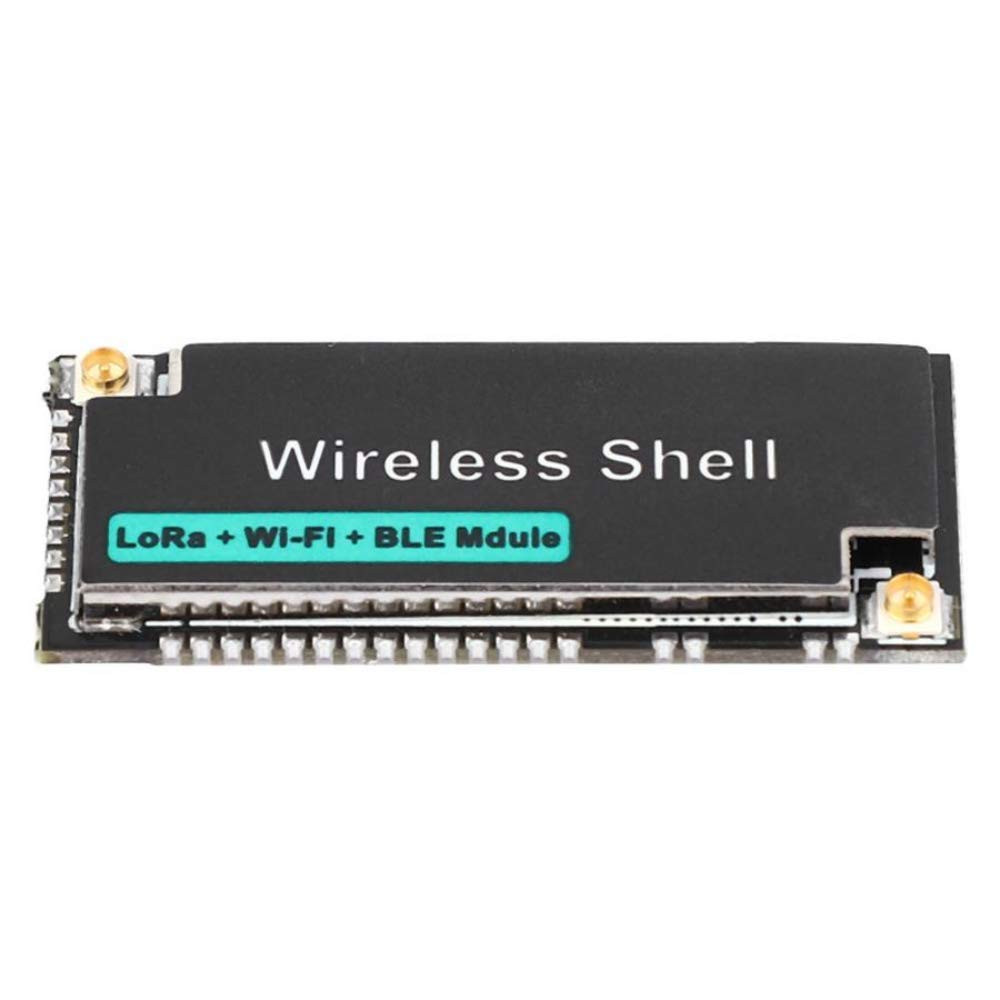

DollaTek 868/915MHZ ESP32 wireless shell SX1276 LoRaWAN WIFI BLE module with 868MHZ anntenna for Arduino

• The main control chip uses ESP32-based ESP32-PICO-D4 module (dual-core 32-bit MCU + ULP core), with LoRa node chip SX1276/SX1278;

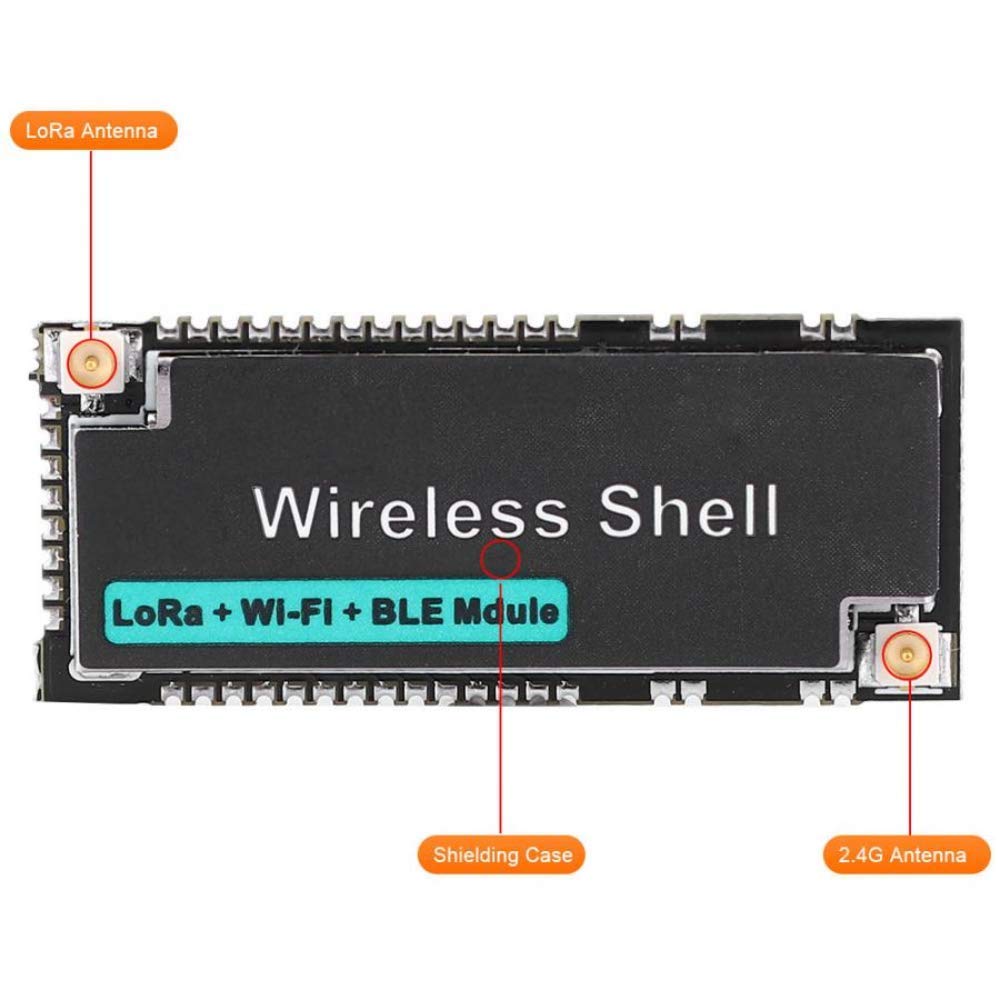

• Integrate WiFi, LoRa, and Bluetooth network connections, and reserve two IPEX (U.FL) interfaces for LoRa and 2.4GHz RF signals.
• Support the Arduino development environment;
• The module has good RF circuit design and low power consumption design (sleep current ≤ 30uA), which is convenient for IoT application vendors to quickly verify solutions and deploy applications;

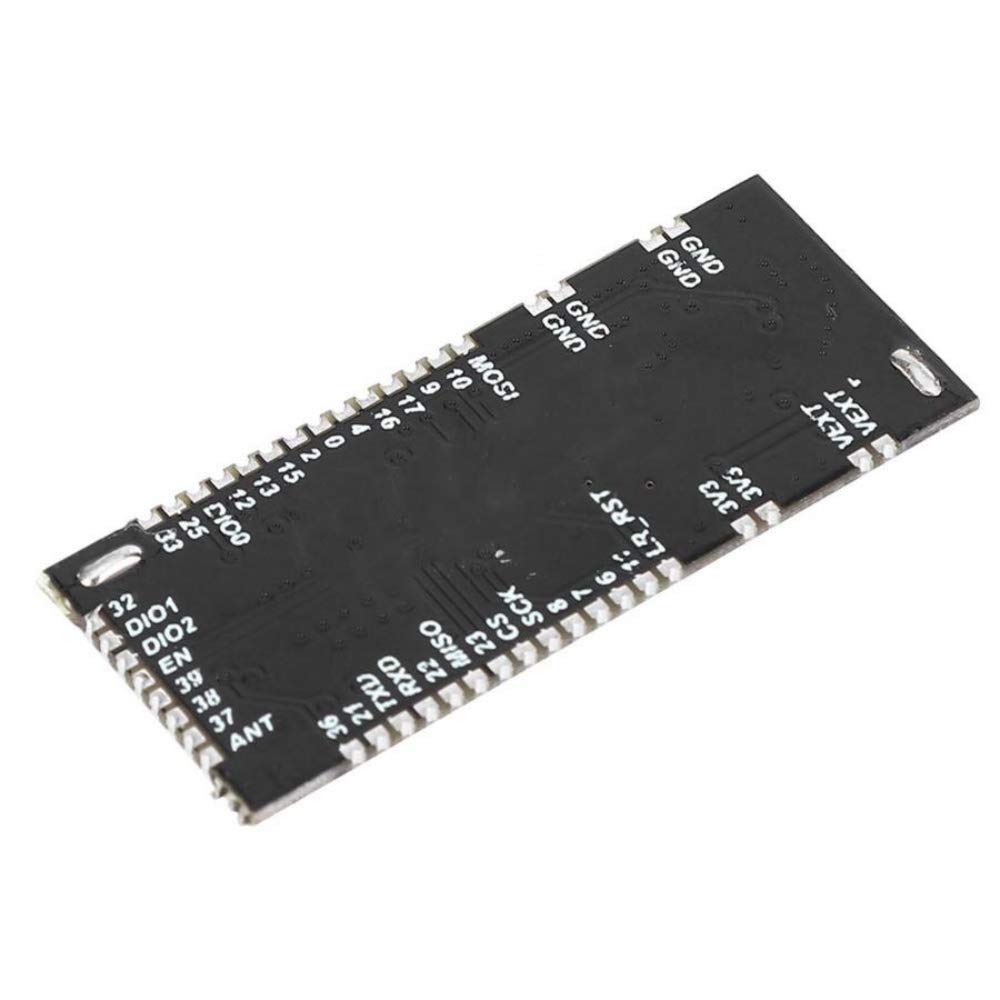

• Pin: 1.27mm pitch stamp hole

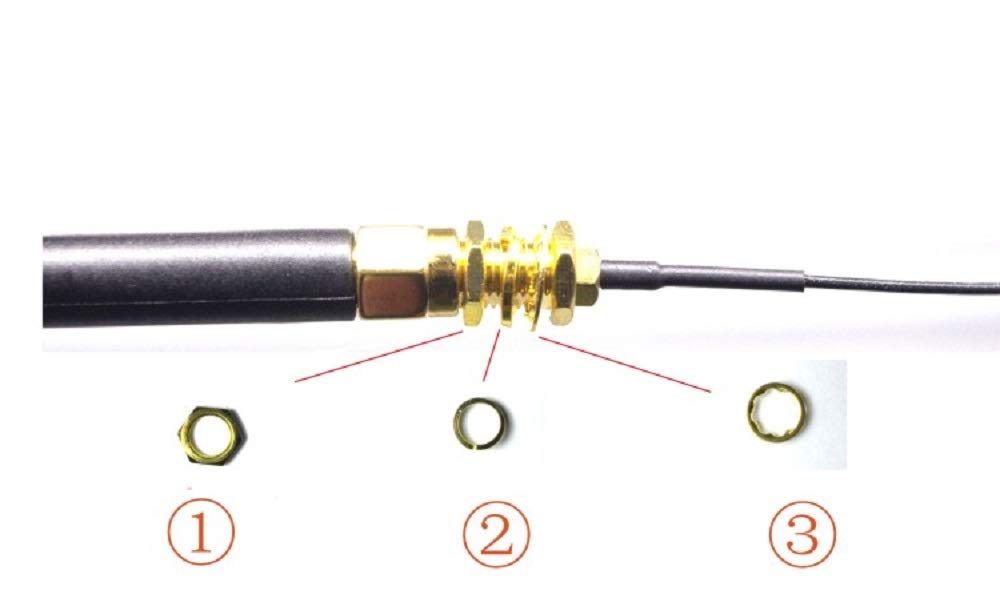

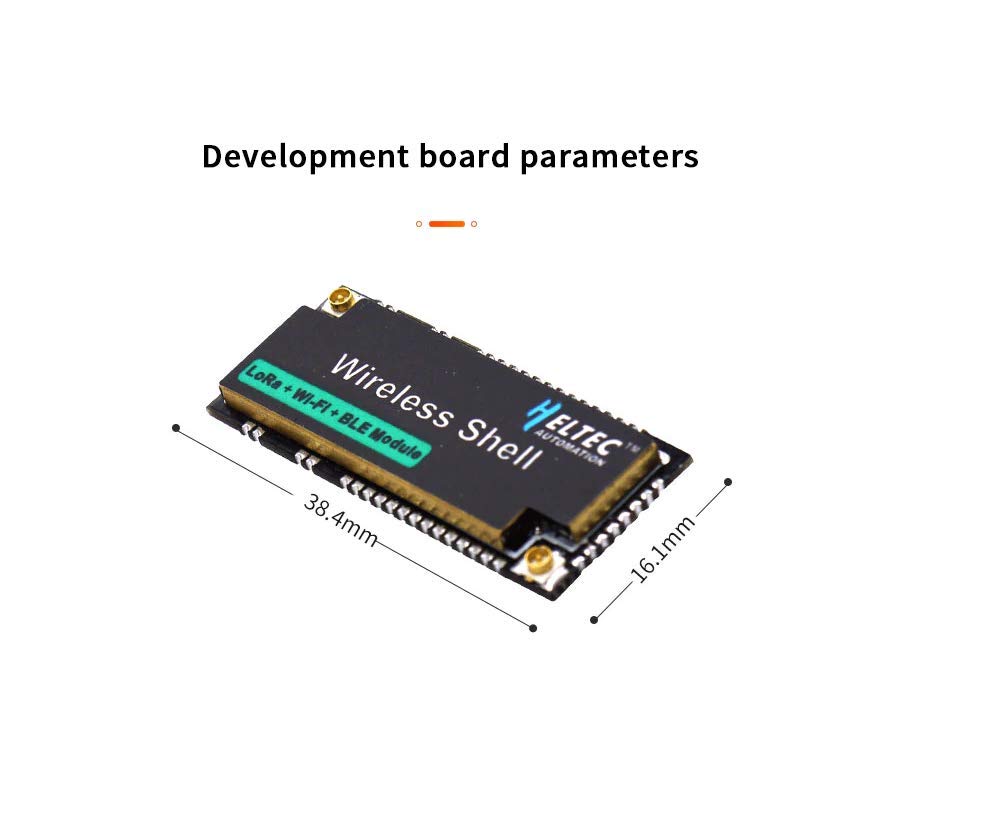

Features: MCU：ESP32-PICO-D4( 240MHz Tensilica LX6 dual-core + 1 ULP, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth) LoRa chip：SX1276 LoRa maximum output power：18 ± 2dB LoRa frequency: EU_433, CN_470_510, EU_863_870, US_902_928 Quad-band optional LoRa maximum output power: 19dB ± 1dB Hardware resources: UART x 3; SPI x 2; I2C x 2; I2S x 1; 12 - bits ADC; 8 - bits DAC; 44 general GPIO FLASH: Built-in 4MB (32M-bits) SPI FLASH interface: LoRa antenna (IPEX) x 1; Wi-Fi / BLE antenna (IPEX) x 1 size: 38.4 x16.1mm USB to serial chip Low power design: Deep sleep 10uA Note: ``Wireless Shell`` is a module, must work with other PCB boards Package include: 1 x wireless shell module 1 x antenna
