Yizhet 5 Pack Buck Converter, DC to DC, High Efficiency Voltage Regulator, 3.0-40V to 1.5-35V, Adjustable Power Supply Module

• Input Voltage range: The Input voltage range is DC 3 V to 40 V. Note: Input voltage must be 1.5 V higher than output voltage, no boost.
• Output Voltage range: The output voltage range is DC 1.5 V to 35 V and is continuously adjustable, with a maximum output current of 3A.

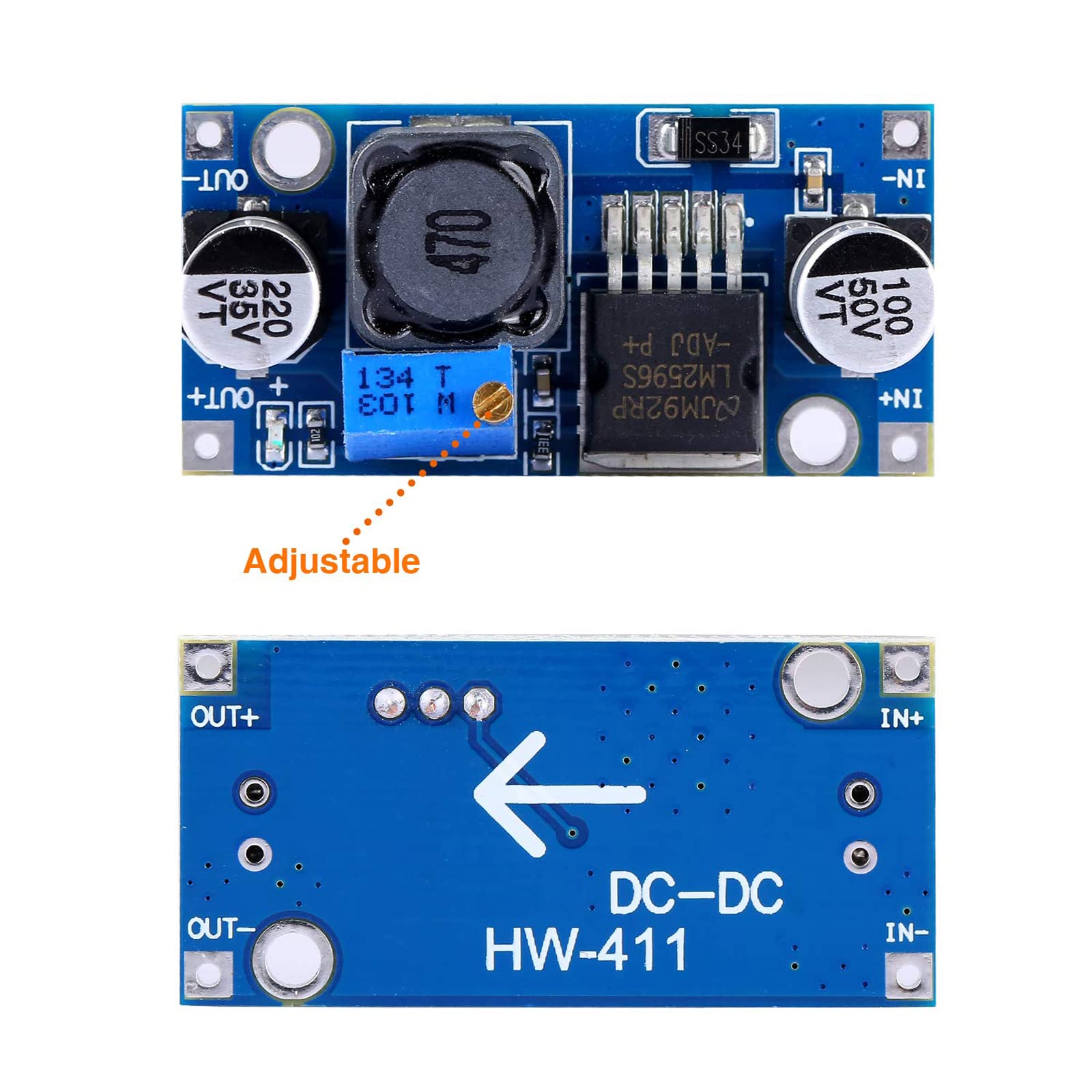

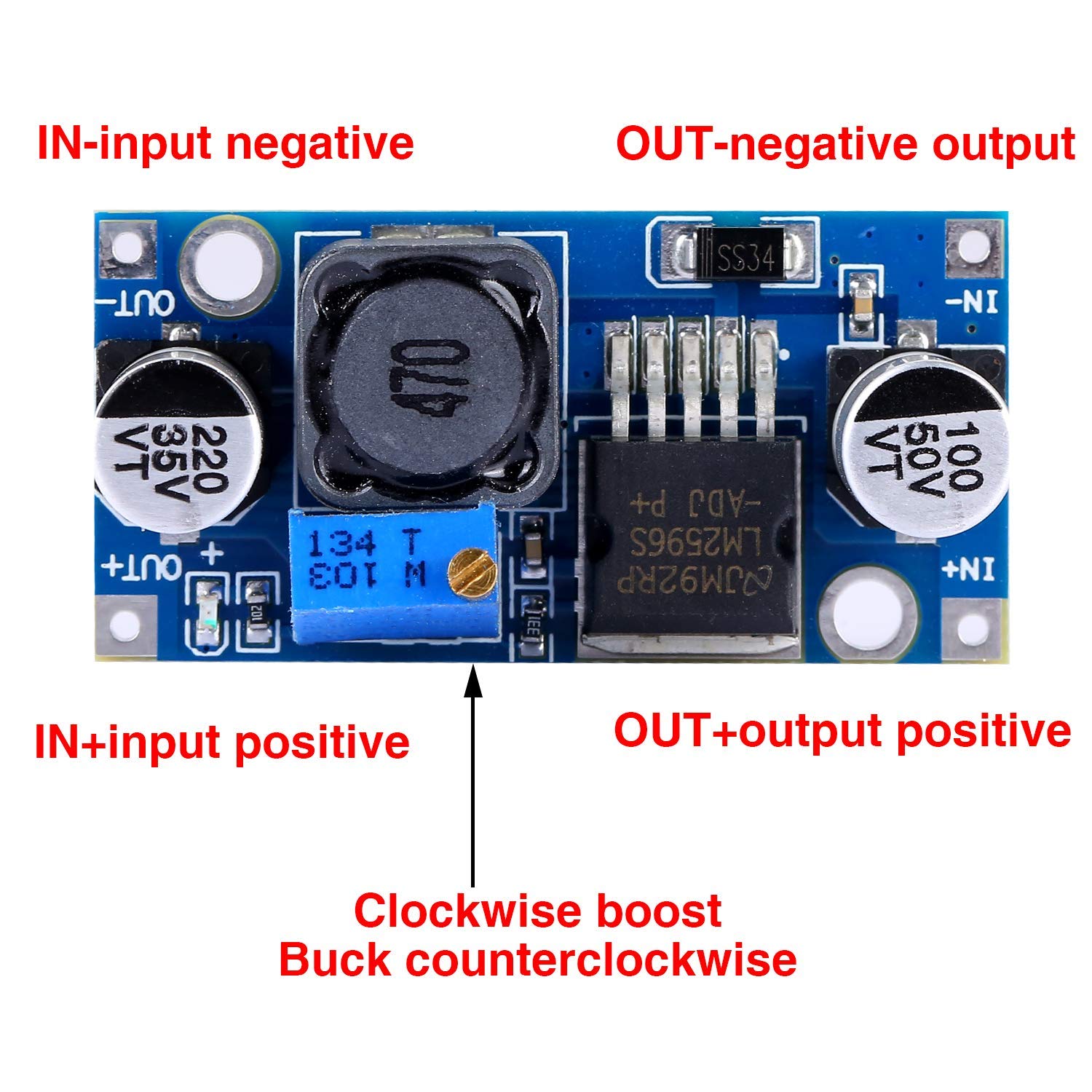

• Easy to DIY Manually: Connect the power supply, monitor the voltage with a multimeter, adjust the swirl button on the blue potentiometer to obtain the required voltage, boost clockwise and boost counterclockwise. Note: The factory default setting is 18V. Before the voltage starts to drop, you need to rotate in the reverse direction for about 7-8 revolutions, 1 revolution means +/- 1V
• High Precision and Quality: The buck converter consists of a 36u thick circuit board with high Q inductors with high power output LED indicators, suitable for various electronic projects.

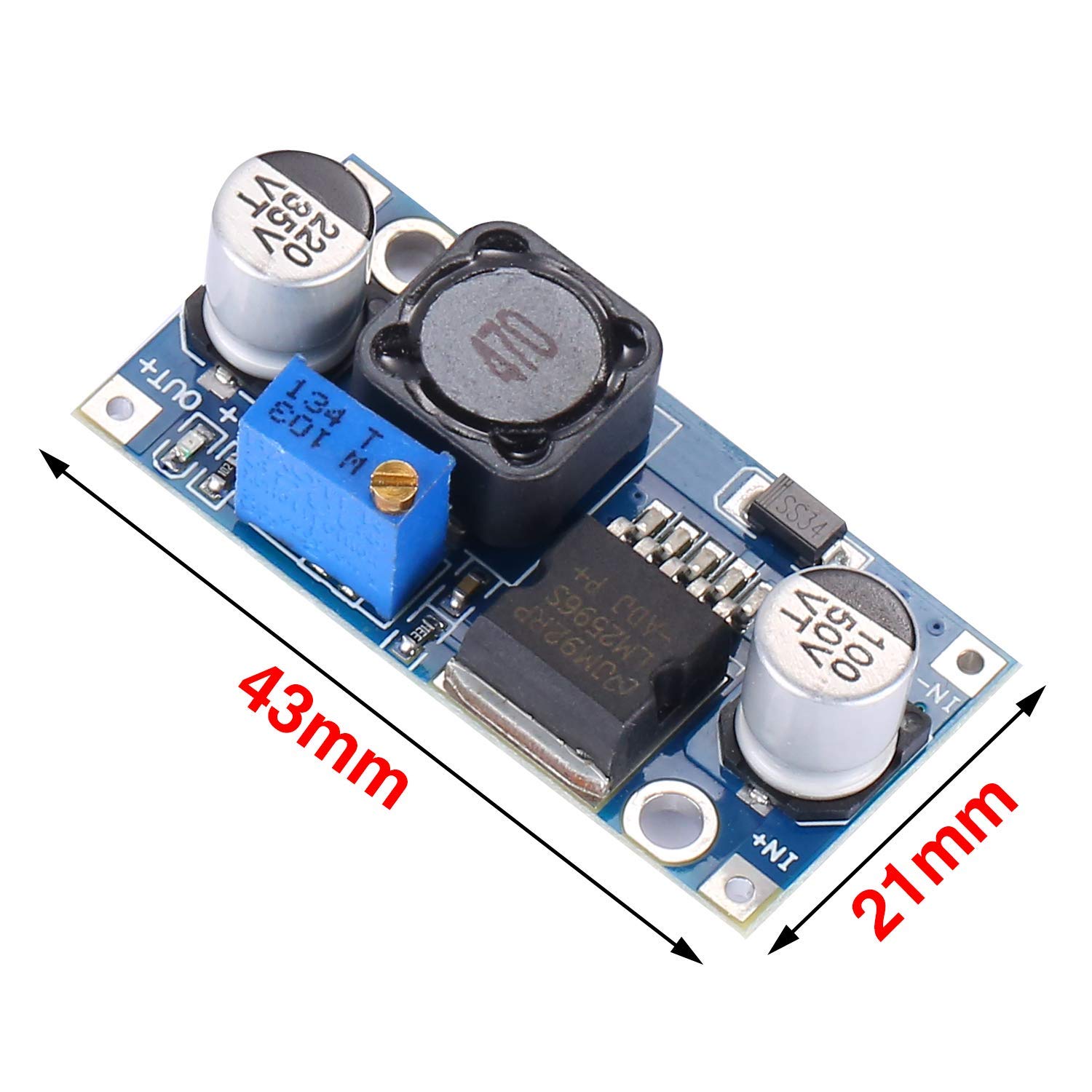

• Quantity: 5 piecess; Size: 43 * 21 * 14 mm (with potentiometer).Hurry up to add a shopping cart and click to buy!

Buck Converter DC to DC Converter, input voltage range: DC 3 V to 40 V, in addition, the input voltage must be 1.5 V higher than the output voltage, no boost. Output voltage range: DC 1.5 V to 35 V can be continuously adjusted, and the maximum output current is 3 A. Specification introduction: - Model: - Input voltage: DC 3V - 40V - Output Voltage: DC 1.5V - 35V (adjustable) - Output Current: 3A (max.) - Rectification: non-synchronous rectification - Module property: non-isolated buck module - Conversion Efficiency: 92% (max.) - Switching Frequency : 65KHz - Operating Temperature: -45℃to +85℃ - Load Regulation: ±0.5% - Voltage Regulation: ±2.5% - Size(L x W x H): 1.69*8.27*0.55in Notes: 1. The voltage standard is that the input voltage must be 1.5 V higher than the output voltage without boosting. Do not deserialize input and output interfaces. 2. The input current needs to be kept below 2.5A. If you work for a long time, please equip a radiator. The package includes: 5x DC-DC Module Add to the shopping cart as soon as possible.
