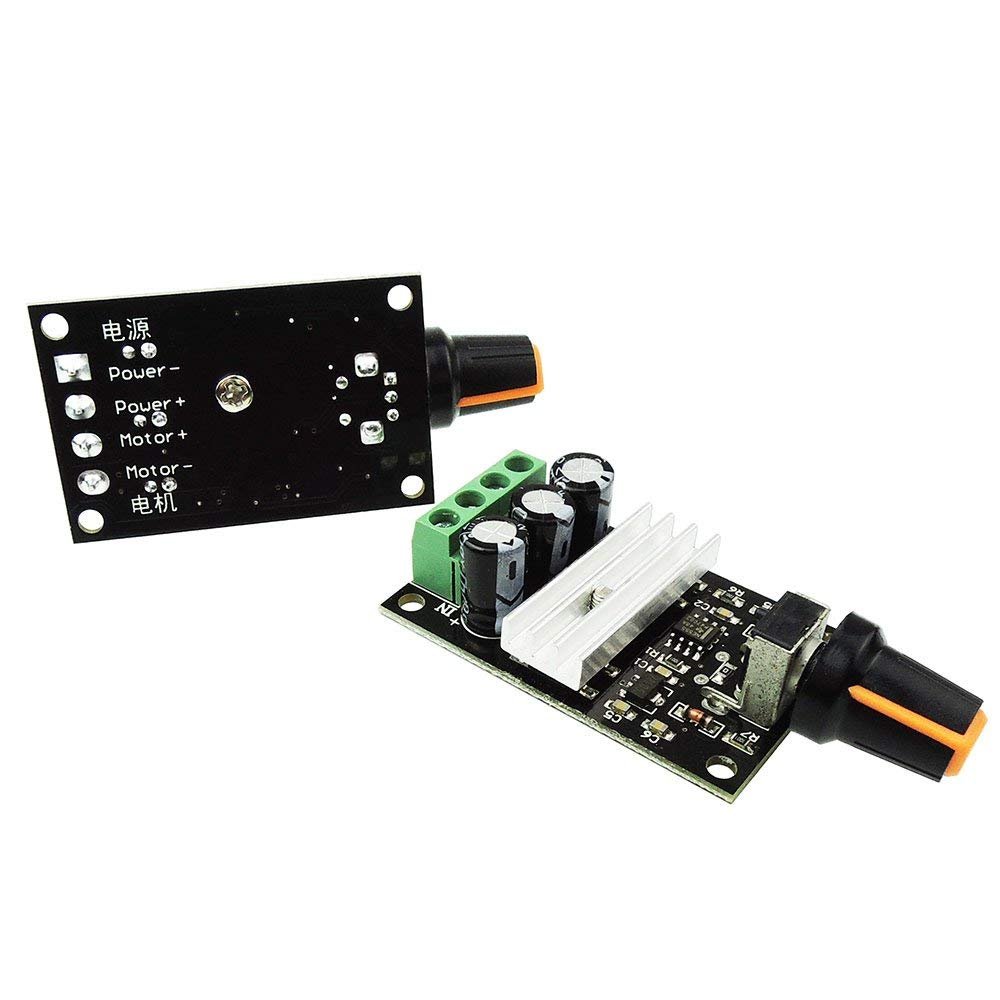

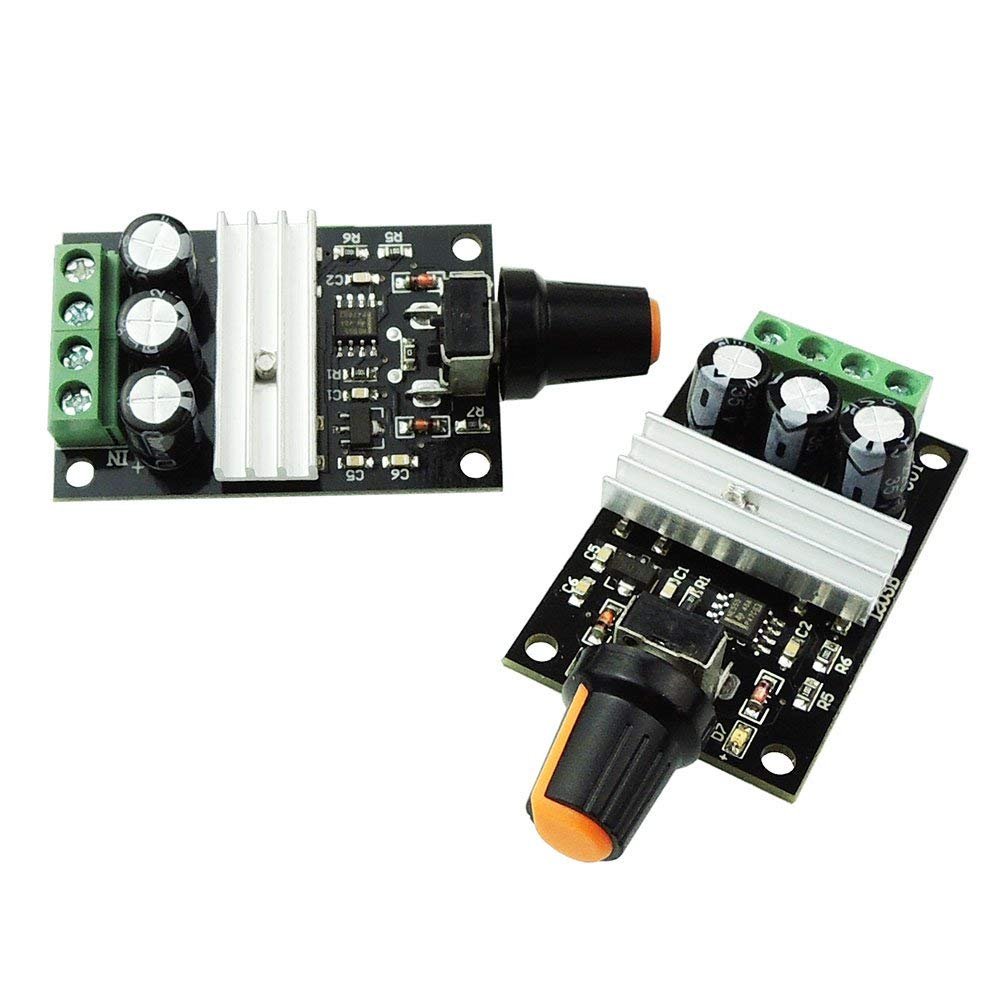

DollaTek 6V 12V 24V 28V 3A 80W DC Motor Speed Controller (PWM) Adjustable Variable Speed Switch DC Motor Driver 1203B

• Input supply voltage: 6V-28VDC,The maximum output power: 80w,The maximum continuous output current: 3A,Duty Cycle adjustable: 5%-100%
• This DC Motor Speed Controller allows controlling the direction of a DC motor usinga Pulse--Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%.
• The motor speed controller can easily provide a continuous current of 3A to your DCmotor or other DC load.

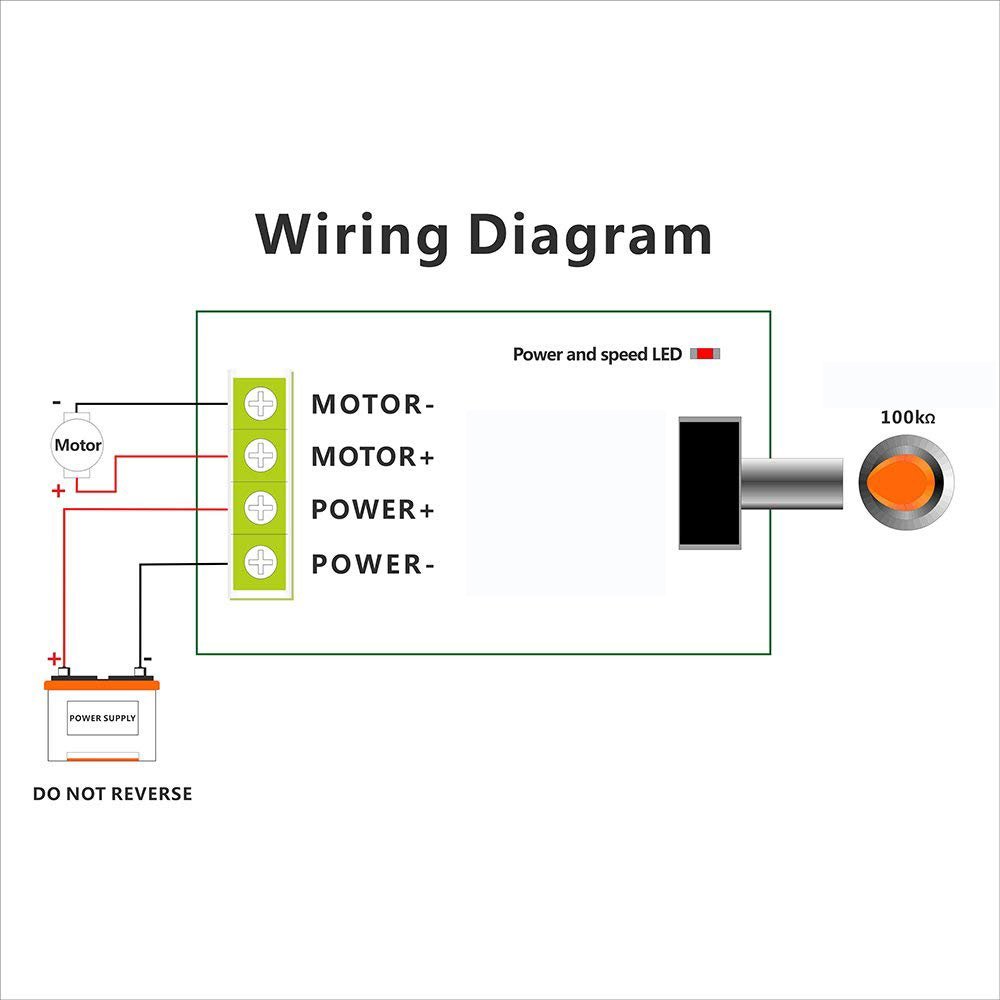

DollaTek 6V 12V 24V 28V 3A 80W DC Motor Speed Controller (PWM) Adjustable Variable Speed Switch DC Motor Driver 1203B Features: 1203B DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). The input power range is DC6-28V . Operating instruction: Before you attempting to wire the controller, make sure power is off. WARNING: DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER. TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR. 1. Connect wires refer to the “wiring diagram” (NO.5 picture). 2. Turn on the power, and adjust the potentiometer. 2. The LED indicates the power up and the speed of motor. Package Including: 1x DC Motor Speed Controller
