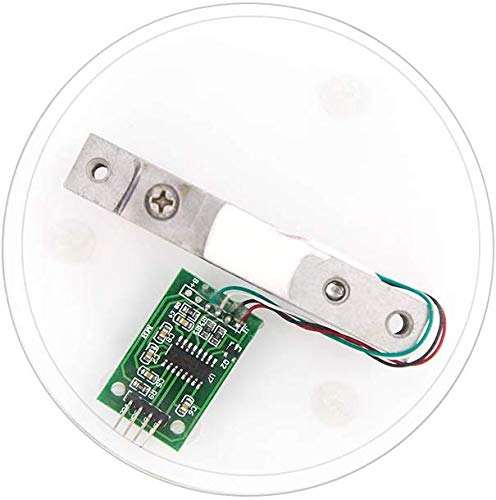

DollaTek 5kg Small Scale Load Cell Weighing Pressure Sensor With A/D HX711AD Adapter

• Small range weighing pressure sensor with HX711AD module Weighing module.
• Four leads, easy to use, plus 5-10V drive voltage, direct output as voltage signal due to force changes
• Wiring method: red: power +, black: power -, green: output signal +, white: output signal

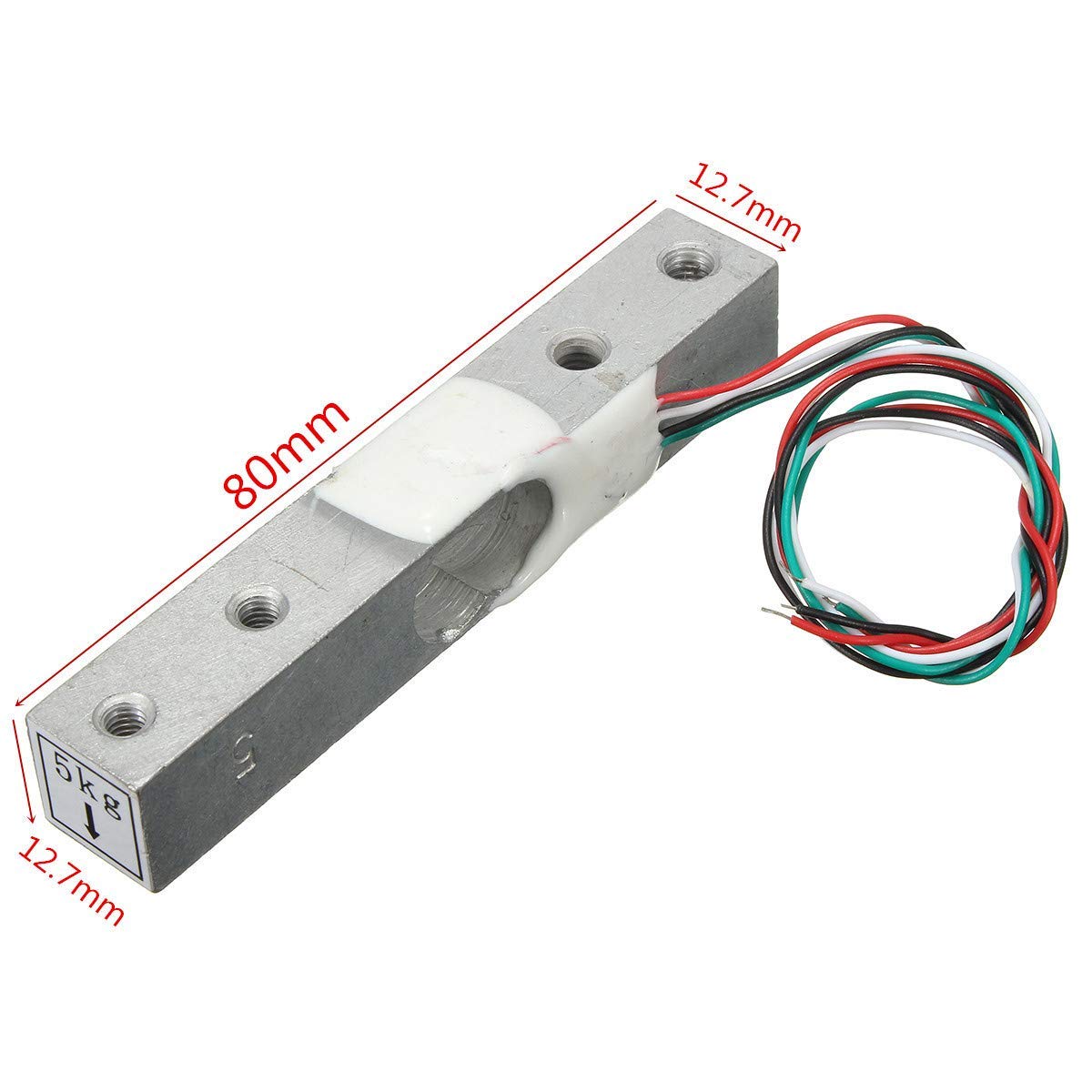

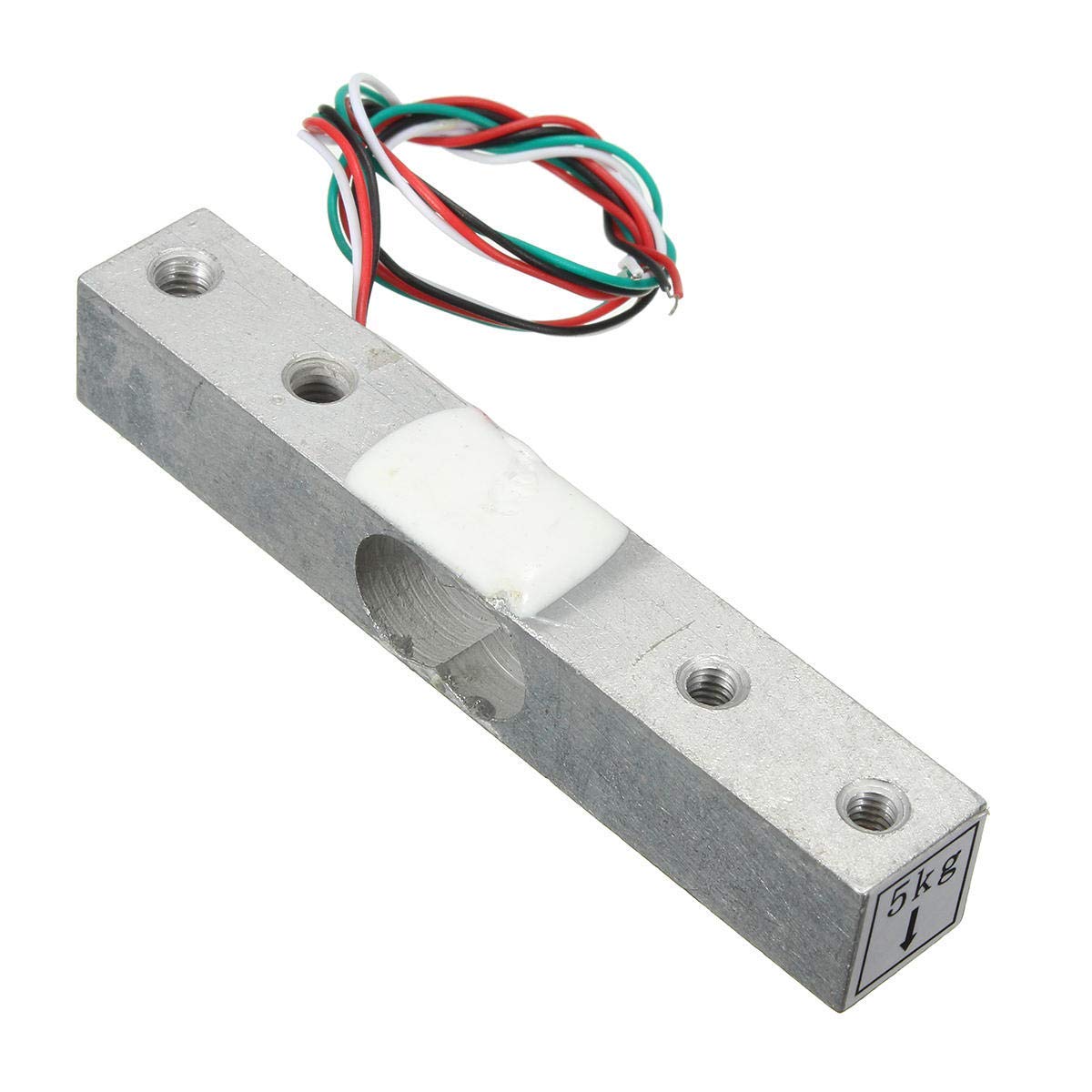

• One end of the sensor is fixed by a screw hole, and the other end is left floating, and gravity is applied in the direction indicated by the label.
• In particular, be sure not to directly press the white rubber part to avoid damage to the sensor.

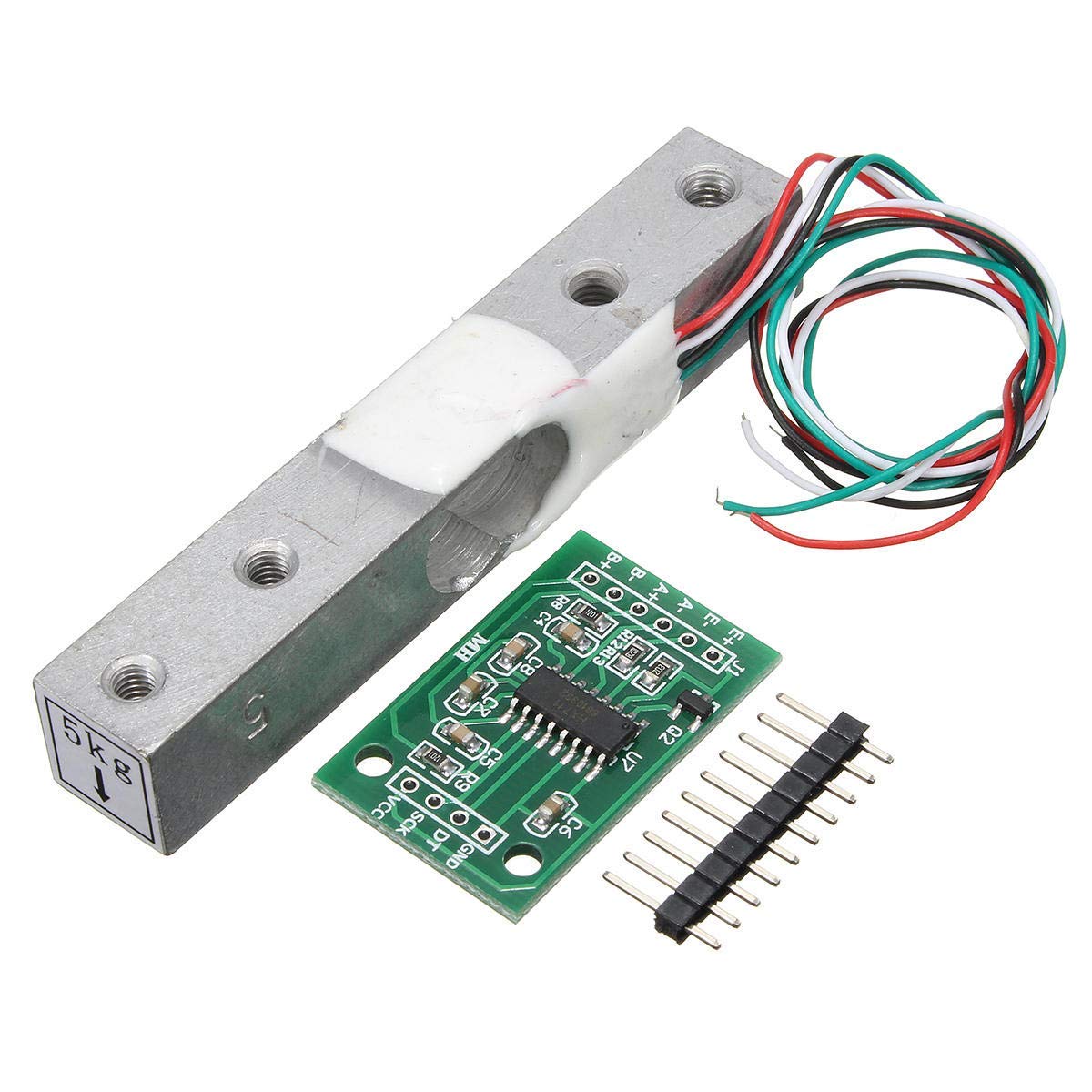

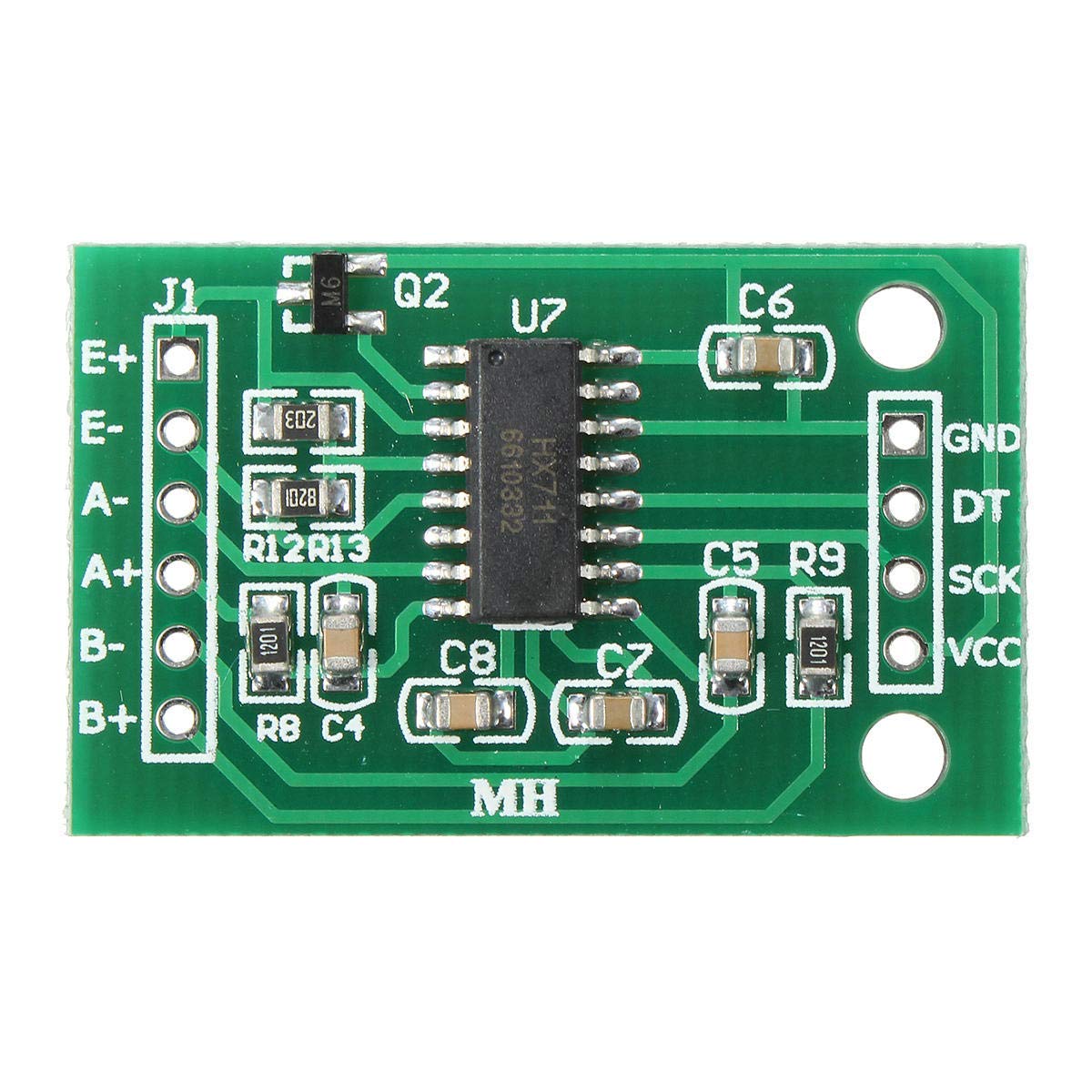

Specification: The module uses 24-bit A/D converter chip hx711 For high-precision electronic scale and design The module has two analog channel inputs, programmable gain of 128 integrated amplifier. The input circuit can be configured to provide an electrical bridge bridge voltage (e.g., pressure, load) Sensor Mode. All are controlled by input pins, the chip registers without programming that simple digital control and serial communication. Package includes: 1 x HX711 Weighing Sensor 24-bit A/D Conversion Adapter Load Module 1 x 5KG Weighing Sensor
