DollaTek 3D Printer Controller RAMPS 1.4 Mega Shield for Arduino Reprap Prusa Mendel

• Fully assembled & tested, no soldering required
• It is designed to fit the entire electronics needed for a RepRap in one small package for low The modular design includes plug in stepper drivers and extruder control electronics on an Arduino MEGA shield for easy service, part replacement, upgrade-ability and expansion
• A number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack
• It has Cartesian robots and requirements of the extruder
• 0

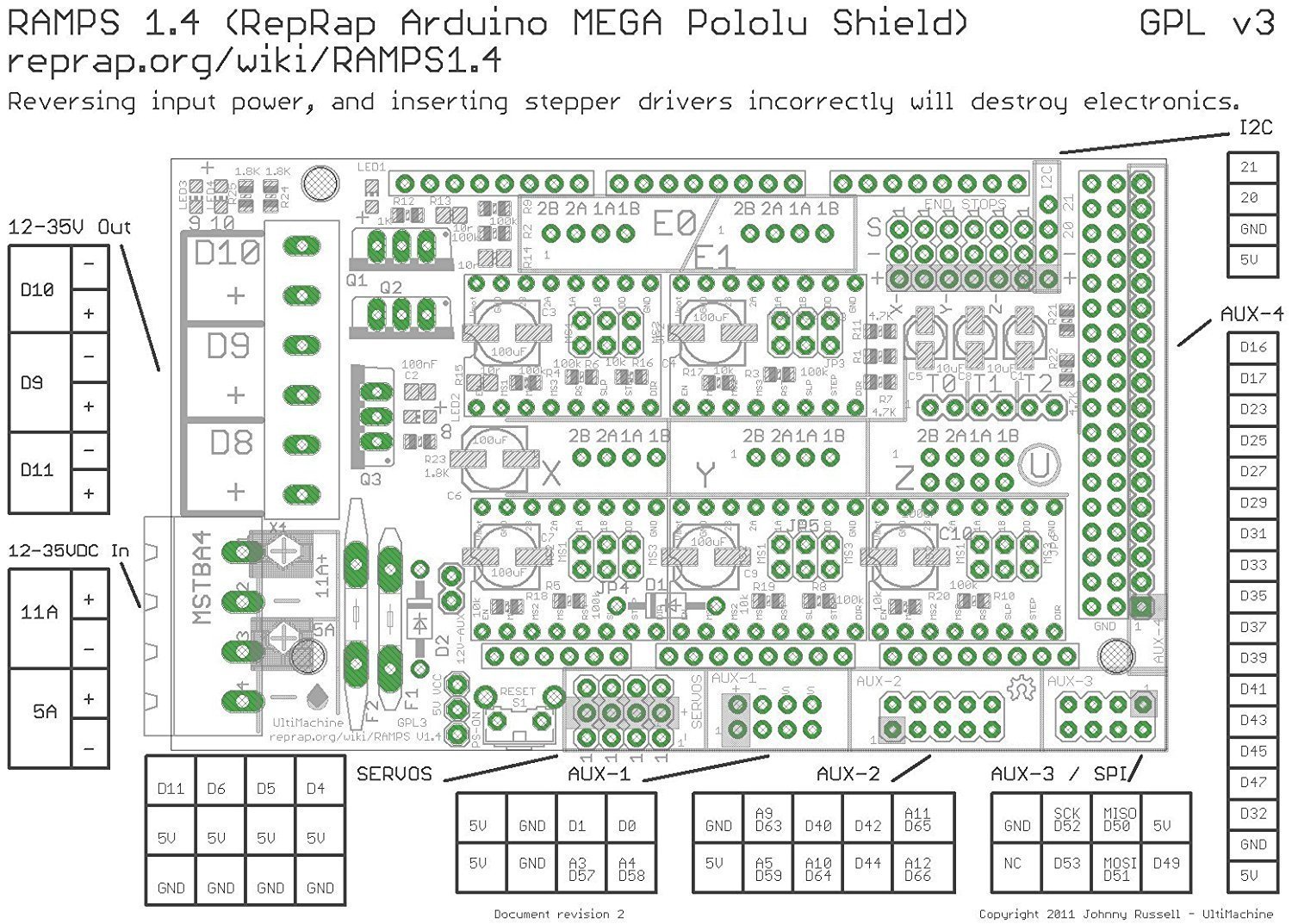

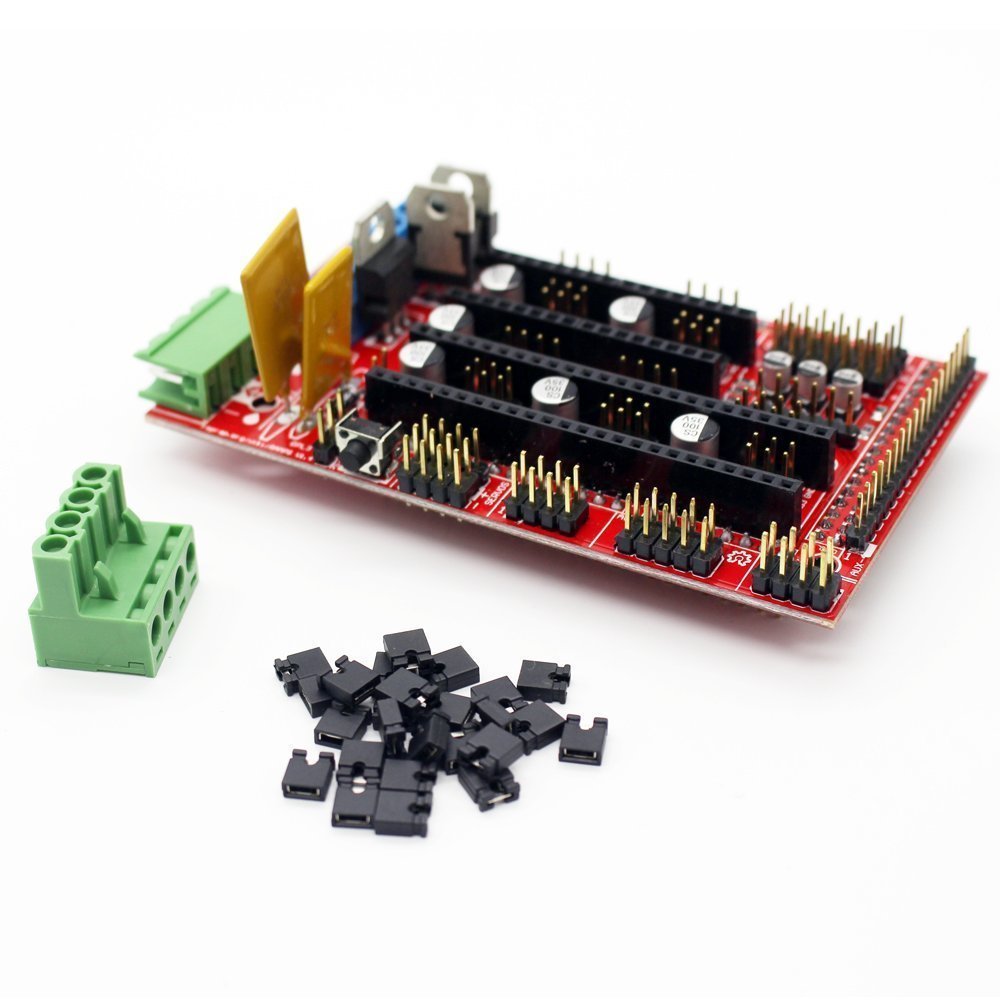

DollaTek trademark Reg.NO:013726393 Description: Heater / fan output and three thermistors MOSFET circuits; Fusion 5A additional safety and component protection; Extra bed heating control fuse 11A; Suitable for 5 Pololu stepper driver board; Pololu board pin socket, easy to be replaced and removed; I2C and SPI pin for extended use; All MOSFET into PWM pins for versatility; Rated current: 3A; LED indicates when the heater output; Option 2 motors connected to the Z Prusa Mendel Package Size: 12.2cm x 6.8cm x 3.2cm Package Weight:72g Package Includes: 1 x 3D Printer Controller for RAMPS 1.4
