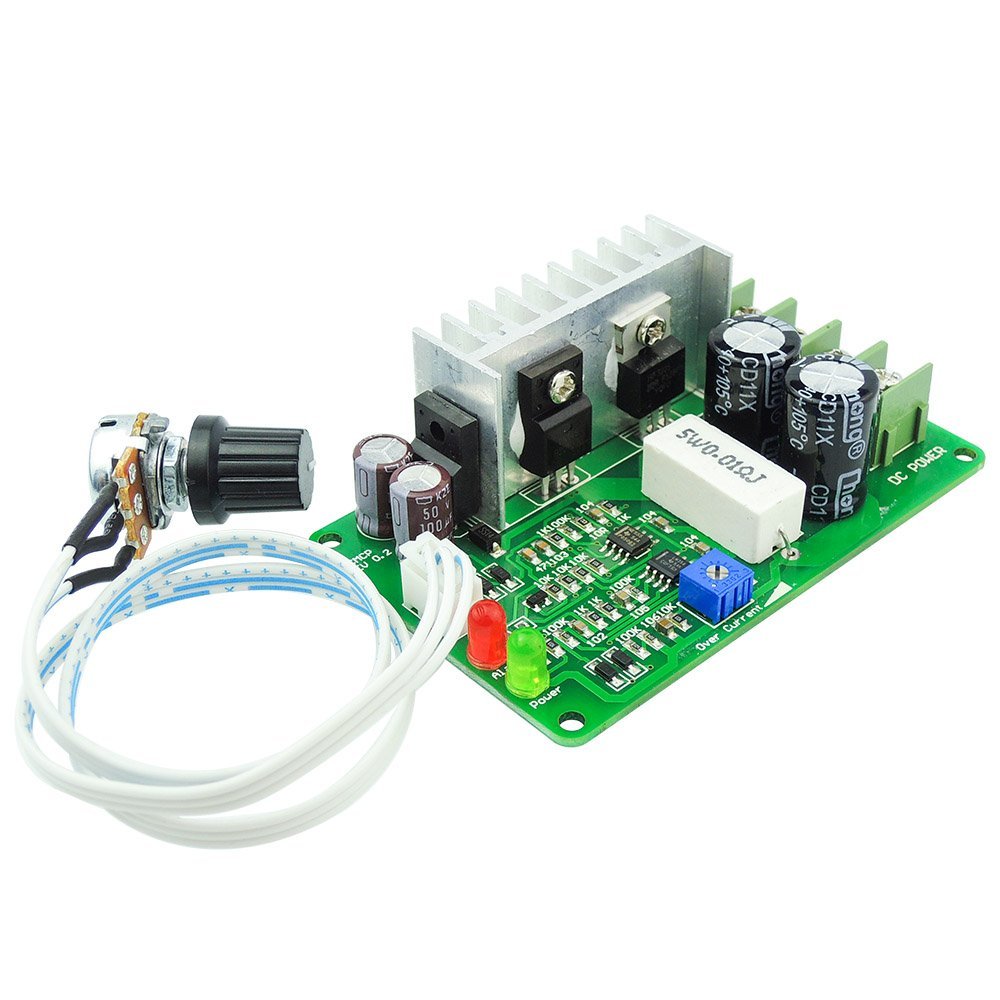

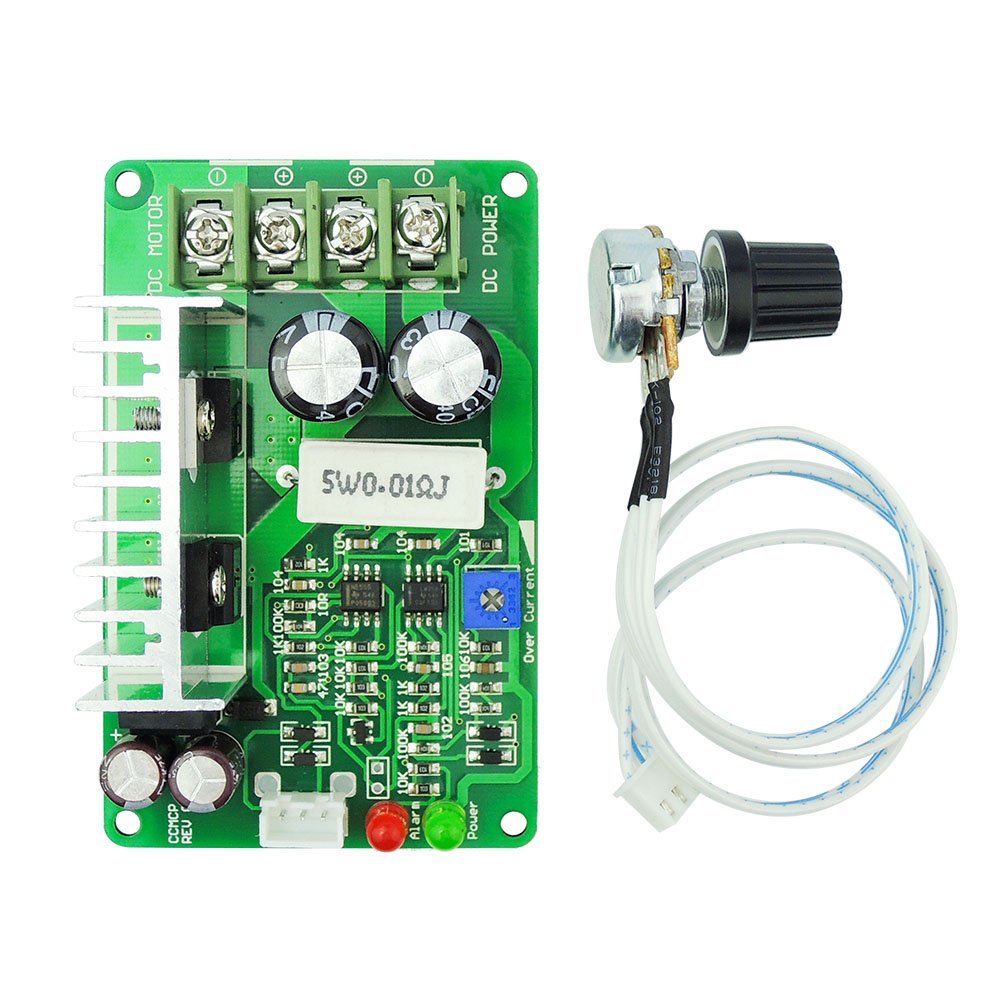

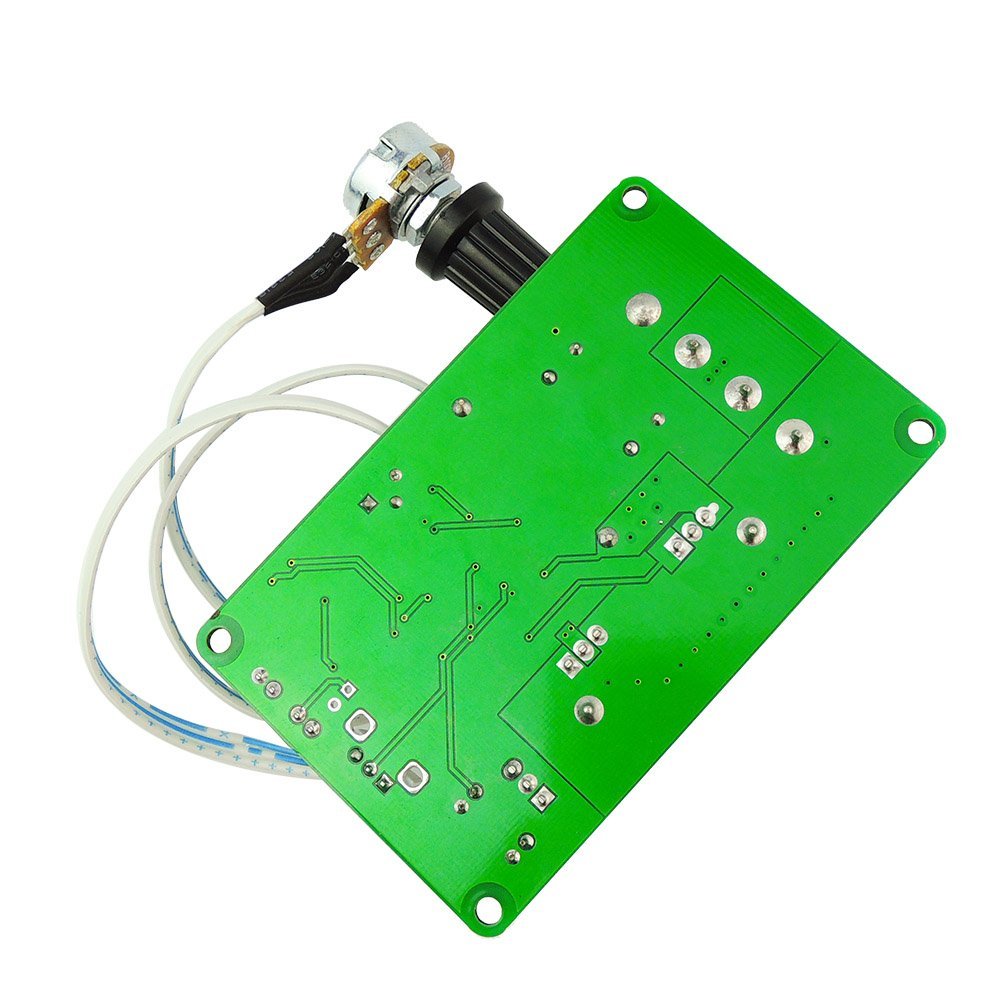

DollaTek 12V 24V 36V 10A DC Motor Speed Controller With Adjustable Over Current Protection Device PWM Motor Speed Control Module
About this item
- Input supply voltage: 12V-36V DC
- PWM frequency: 21kHz; Duty Cycle adjustable: 0%-100%
- Item size: 3.4x2.1x1.1 inches ; Net Weight:2.5 ounces
- Include Power-on LED and current-limit-protected alarm LED
- Adjustable current limit. Current limit can be adjustable 1A to 10A.
Product description

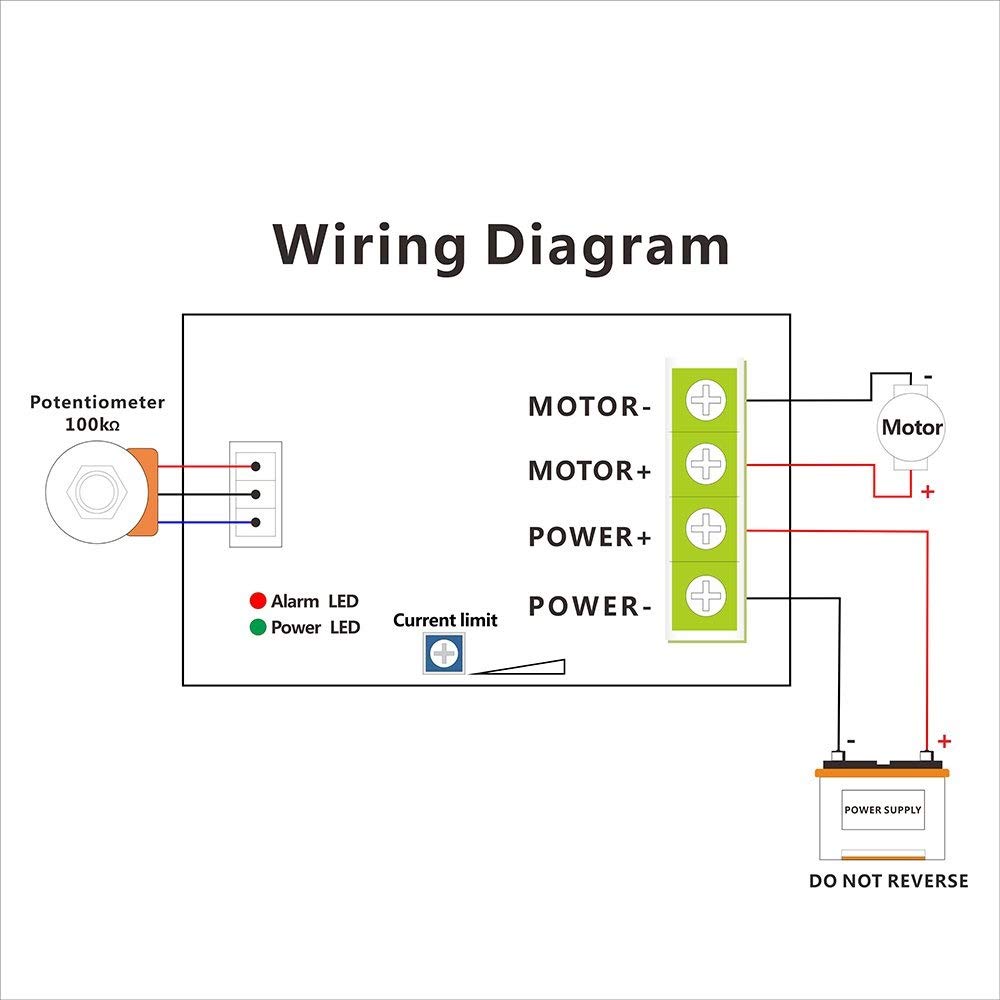

Features: CCMCP DC Motor Speed Regulator provides variable speed capability for DC motor. Adjustable speed range is 0%-100%. The input voltage is DC 12V-36V. Adjustable current limit. Current limit can be adjustable 1A to 10A. Include Power-on LED and current-limit-protected alarm LED. Operating instruction: Before you attempting to wire the controller, make sure power is off. WARNING: DO NOT REVERSE POSITIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER. TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR. 1. Connect wires refer to the โwiring diagramโ (NO.5 picture). 2. Turn on the power. 3. Adjust the potentiometer. Current Limit Adjustment: When the red alarm LED is lighting, the trim pot should be reset as follow: 1.Turn off the power. 2. Adjust the trim pot until the desired maximum current is reached. 3.Wait for about 3 seconds, than reset the power . Package Including: 1 x DC Motor Speed Controller
