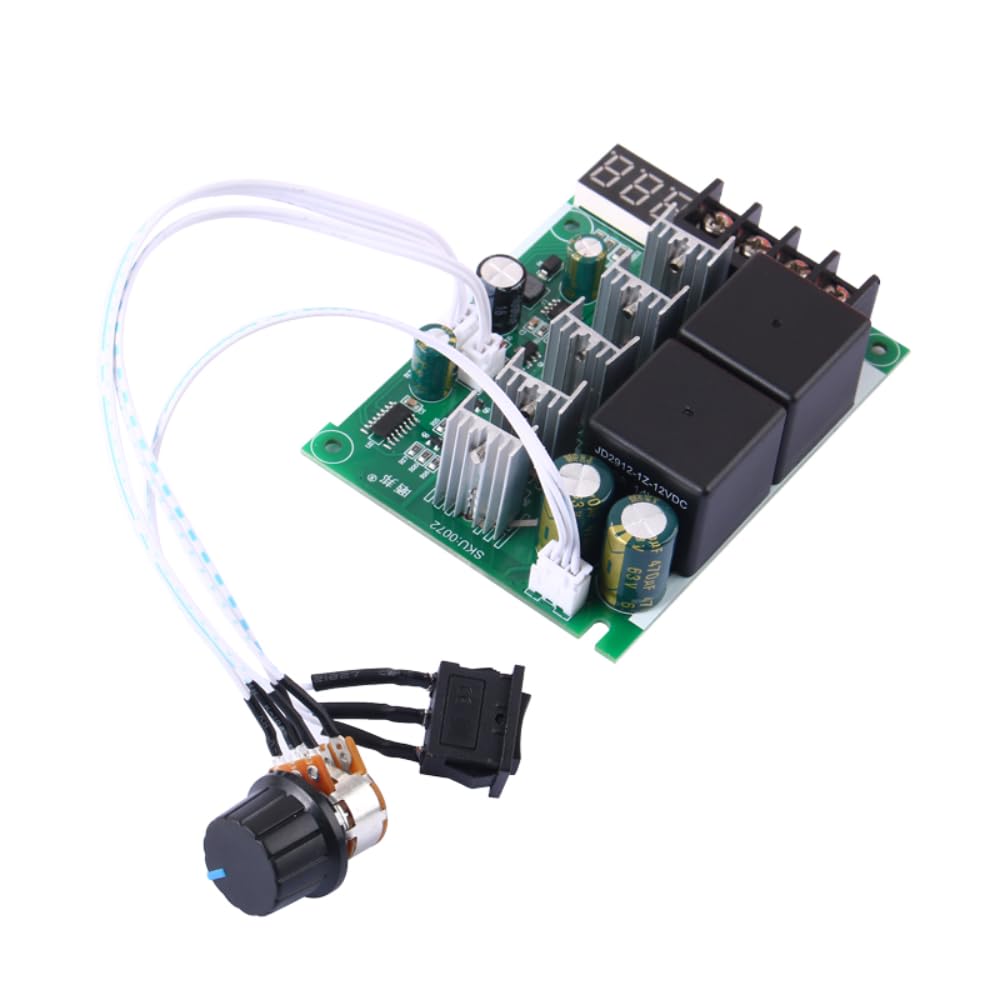

DollaTek 10V-55V 12V 24V 36V 40A DC Motor Speed Controller Forward Reverse Adjustable Knob Switch Plus Control Driver with Digital Display

• Input supply voltage: DC 10V-55V；Maximum current: 60A； Continuous current: 40A;Speed range: 0-100%
• Potentiometer with switch function,High power speed controller switch which is much more adaptable
• DC10V-55V PWM Brushed DC Motor Speed Controller Adjustable Driver CW CCW Reversible Switch With Digit Display
• Outer casing: it is designed to protect the controller board from damage as well as dissipate heat
• The input voltage must differentiate "+" ,"-",The input voltage should be equal to the rated voltage of the motor within 10-55V,or it will be burnt.

Description: 10V-55V 12V 24V 36V 40A DC Motor Speed Controller Front Adjustable Inverter Button and Control Driver with Digital Display Features: Motherboard size: 100 x 76 x 28 mm. Case size: 110 x 78 x 38 mm. High quality. Forward/Reverse: Support. Control method: Potentiometer with switch PWM frequency: 15KHZ Wiring type: Terminal button Rotary knob: 100K (with switch) Suitable for: Brushed DC Motor Two-way rotation: the direction of rotation is optional, which means that it is possible to reverse the direction of the motor Note: The digital display shows the maximum engine speed percentage, between 0 and 100, real speed non-motor. Package includes: 1 x 10V-55V 12V 24V 36V 40A DC Motor Speed Controller Front Adjustable Inverter Button and Control Driver with Digital Display
