MeanWell HDR-60-48 60W 48V 1.25A Power Supply DIN Rail DIN-Rail

• Din Rail power supply MeanWell HDR-60-48
• Performance: 60W, Output voltage: 48V (43.2...55.2VDC), Output current: 1.25A
• Input voltage: 85...370VAC, Efficiency: 91%

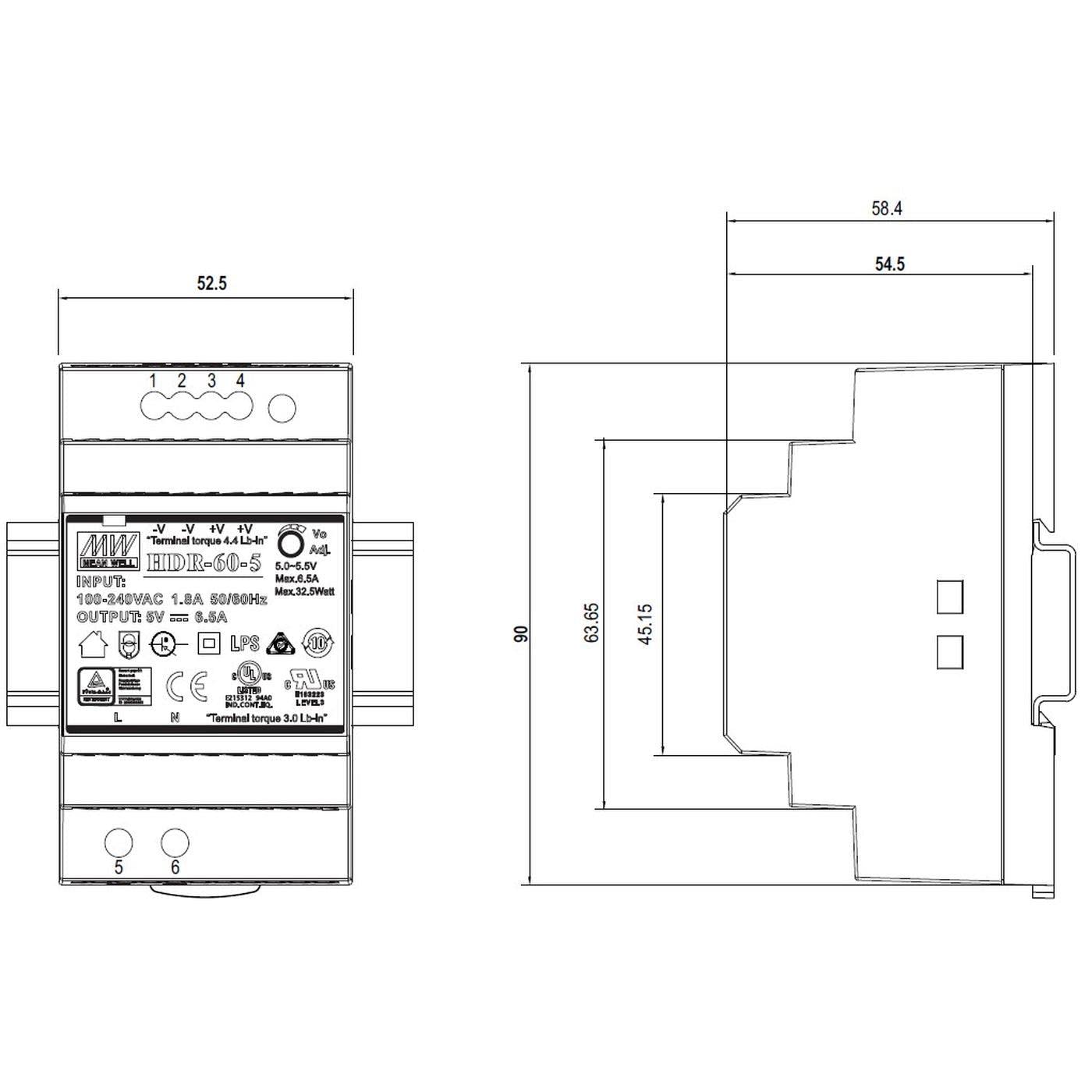

• Length: 90 mm, Width: 52.5 mm, Height: 54.5 mm

✔Can be mounted directly on the DIN rail ✔Slim design ✔Closed design, screw terminals protected against accidental contact ✔Universal input ✔Overload protection by current limitation, automatic recovery ✔Protected against short circuit, overload, over-voltage. ✔Low idle power ✔LED indicator for switching on ✔Insulation Class II Power Supply Type: Din Rail Power Supply Stabilization: Constant Voltage Topology: AC/DC Converter Input voltage: 115 V/230 V (universal). Output voltage: 48 V. Output current: 1.25A Power: 60 W. Input voltage (min...max): 85...370VAC Output voltage (min...max): 43,2...55,2VDC Efficiency: 91% Length: 90 mm Width: 52.5 mm Height: 54.5 mm Connection Input: Screw Terminals Connection Output: Screw Terminals
