Die M 5 x 0.8 - HSSE for Stainless Steel Thread Die | External Tap Die Vaporised

• Excellent quality with us you buy tested thread tools at a great price with outstanding quality for a clean thread
• External thread cutter die is used to create external threads with round external profile. Thread cutter in HSSE for stainless steel
• With our metric die you can achieve convincing cutting results. Lubrication with cutting L or emulsion is recommended.
• The metric regulated thread: the edge angle of this thread is 60. It is a globally standardised thread with metric dimensions.
• Areas of application: the geometry of this die is specially designed for the processing of rust-resistant steel (INOX, V2A, V4A etc.).

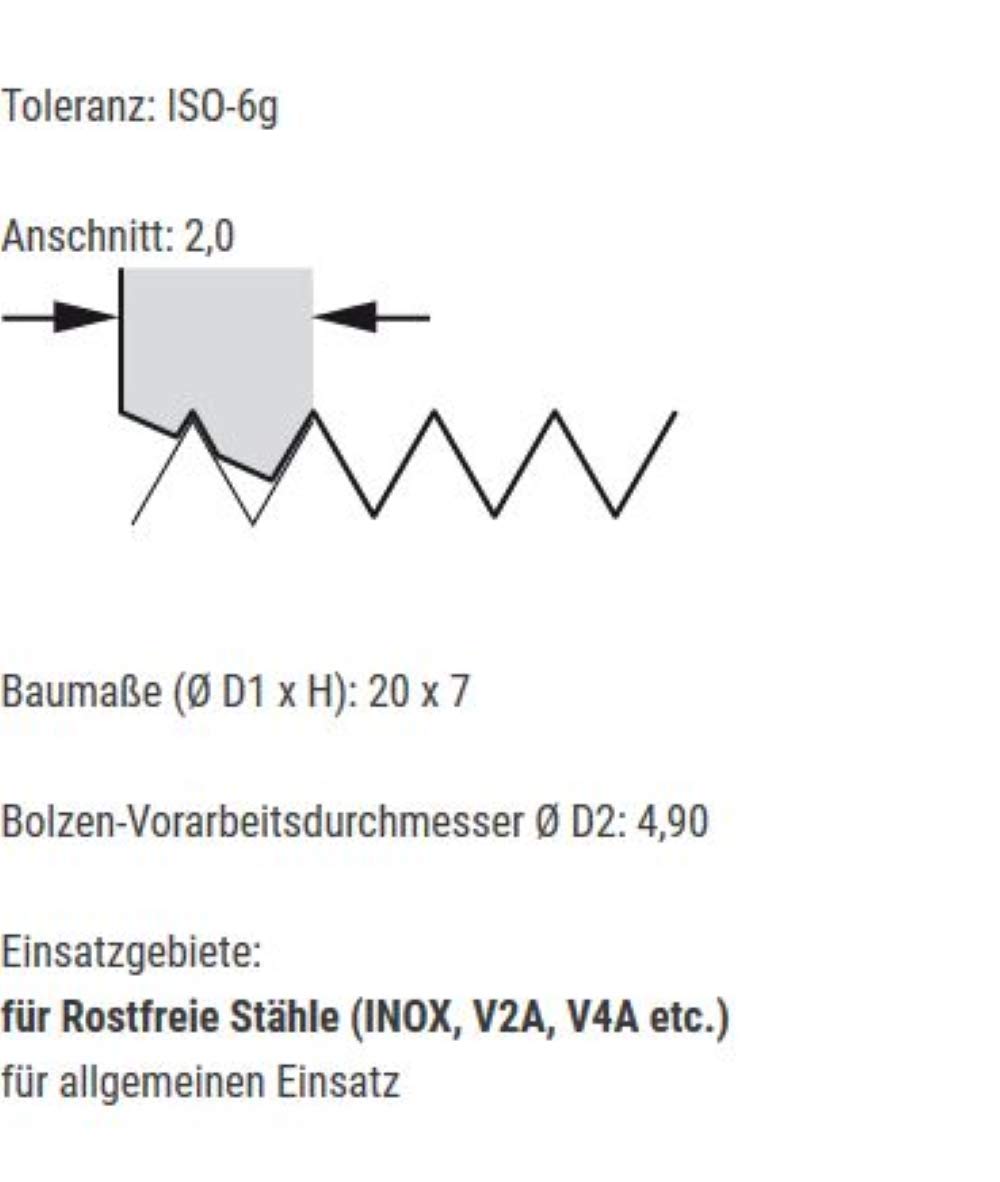

Description BAER die M 5 x 0.8 - HSSE for stainless steel with peeling cut, lapped. This die is designed primarily for the use of rust-resistant steels. Thanks to the vaporisation, the lubricating film is prevented when cutting the thread. The better base material combined with an ideal geometry make these stainless steel male thread cutters unbeatable. Dimensions (diameter x height): 20 x 7, bolt preparation diameter D2: 4.90. Tolerance: ISO 6h - Cut: 2.0 | Areas of application: for stainless steels (INOX, V2A, V4A, etc.); for general use | with peeling cut for improved chip removal - lapped for smoothing the cutting edges and reducing the thread friction - the surface hardness is additionally increased by the nitride (1100-1200 HV).
