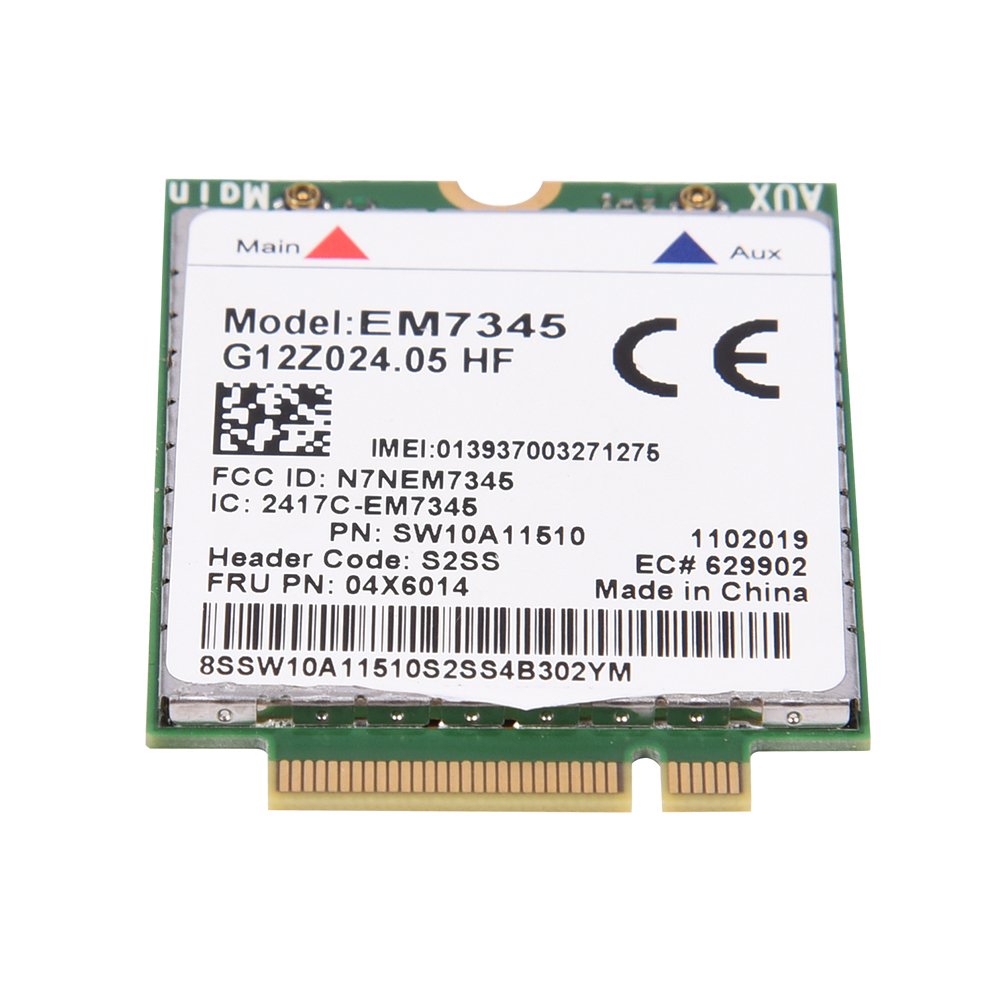

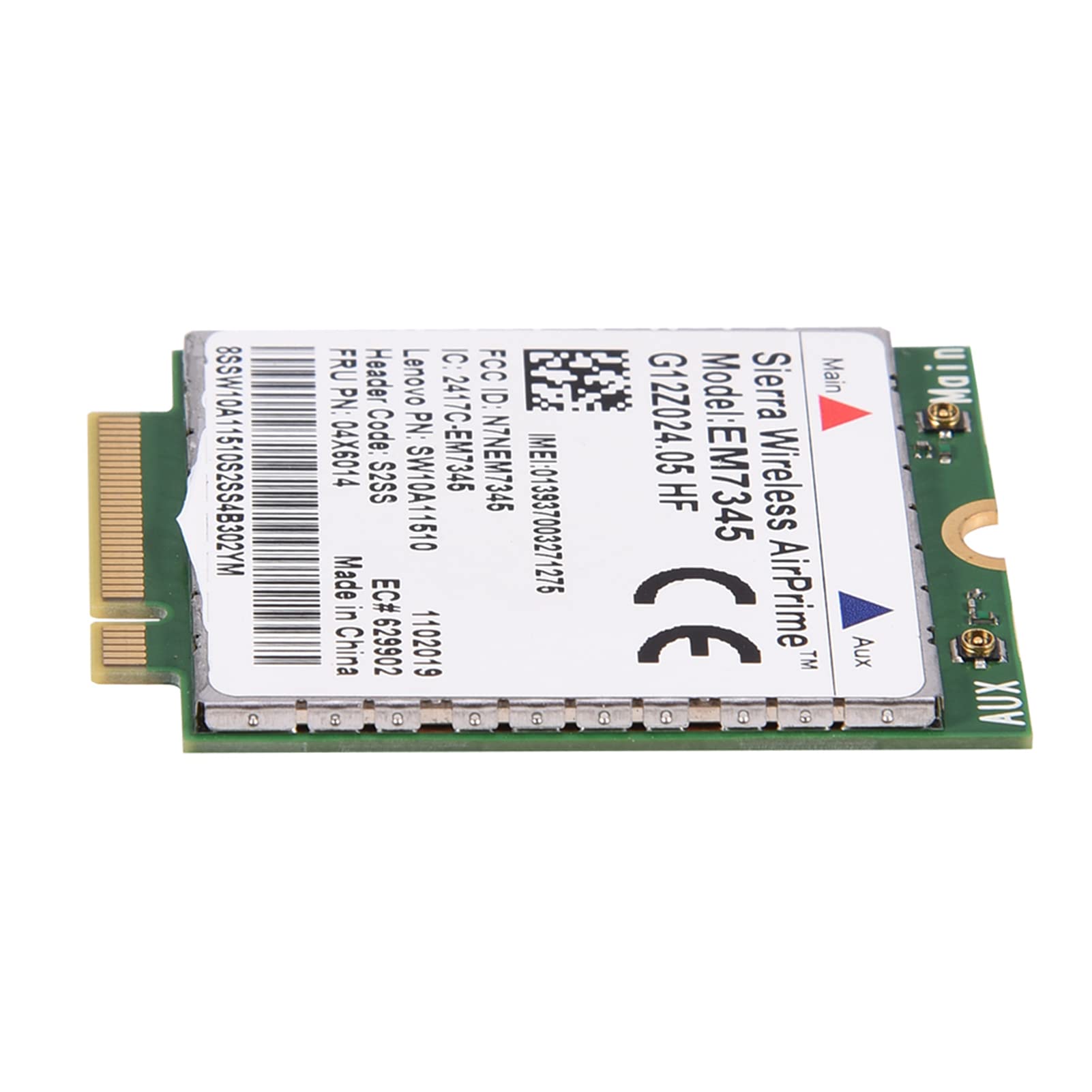

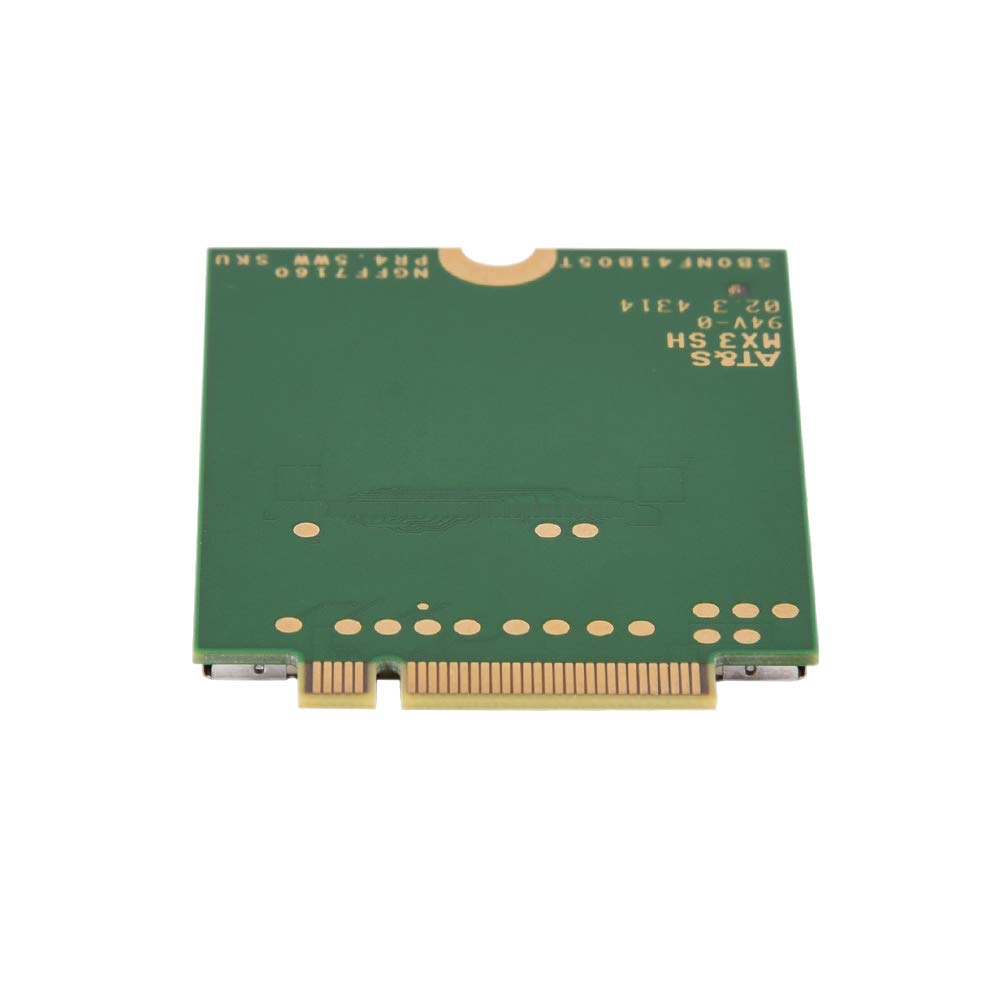

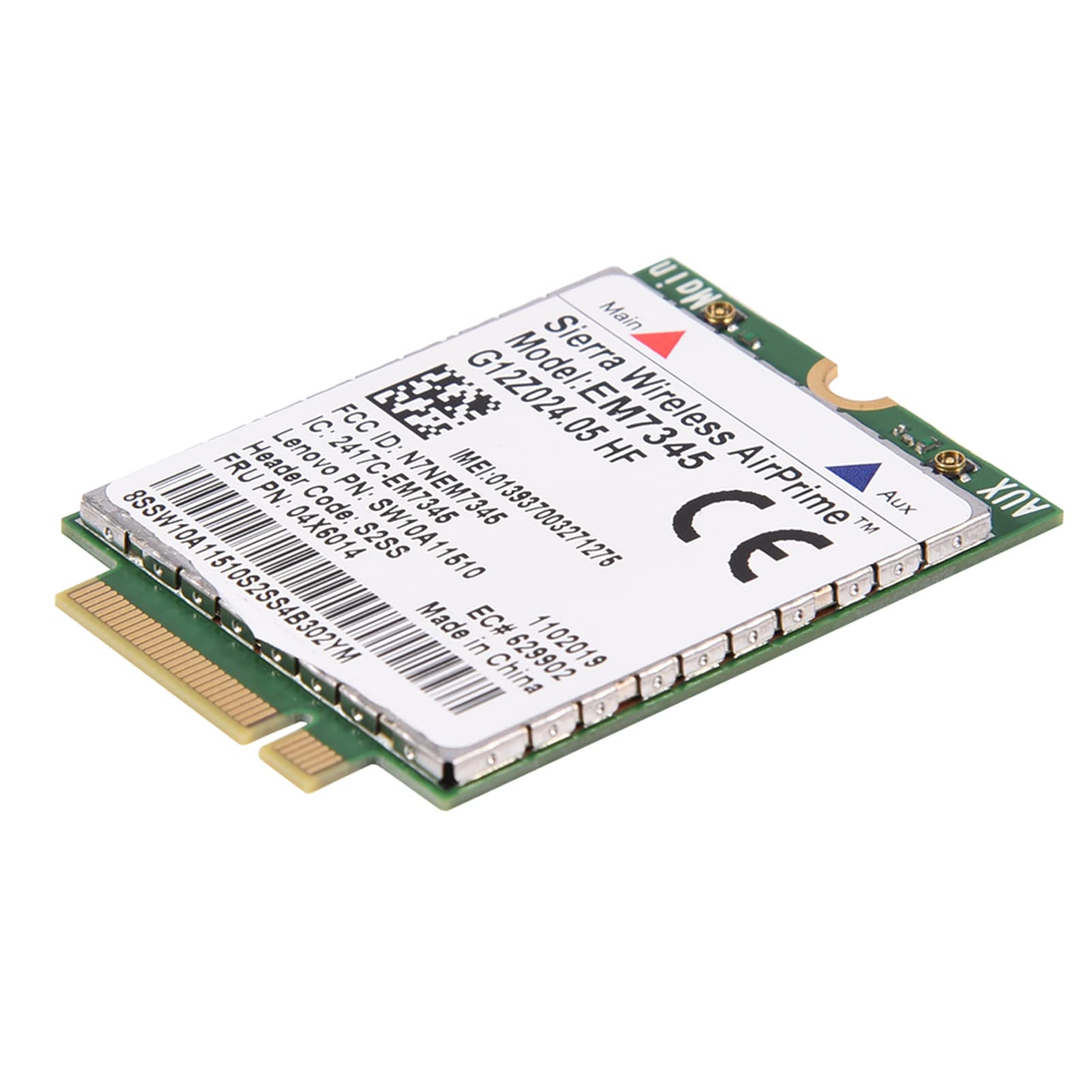

Denash Module Card, EM7345 04X6014 4G LTE WWAN Card Module for Thinkpad X250 X1C W550 T450 X240 T440

• LTE/HSPA+ Support.
• Open SIM.
• Supports EMEA countries, Australia and New Zealand.
• Delivers a true broadband experience to any device, anytime, anywhere.
• A wireless WAN-ready option that provides high speed on the go internet access.

Technical Information: UMTS(WCDMA)/HSPA+ supported bands: Band 1 (2100MHz) Band 2 (1900MHz) Band 4 (AWS 1700/2100 Mhz) Band 5 (850MHz) Band 8 (900MHz) LTE supported bands: Band 1 (2100MHz) Band 2 (1900MHz) Band 3 (1800MHz) Band 4 (AWS 1700/2100 Mhz) Band 5 (850MHz) Band 7 U:2500 MHz - 2570 MHz D:2620 MHz - 2690 MHz Band 8 U:880 MHz - 915 MHz D:925 MHz - 960 MHz Band 13 (700MHz) Band 17 (700Mhz) Band18 U:815 MHz - 830 MHz D:860 MHz - 875 MHz Band19 U:830 MHz - 845 MHz D:875 MHz - 890 MHz Band 20 U:832 MHz - 862 MHz D:791 MHz - 821 MHz GSM/GPRS/EDGE data at 850 MHz, 900 MHz, 1800 MHz, and 1900 MHz GPS data at 1575.42MHz and 1227.6MHz GLONASS data at 1602Mhz and 1246MHz Performance Specifications: Supported Voltage range: 3.135 V to 3.6 V Operating Voltage: 3.3V VBAT voltage range: 3.135V to 4.4V Average Standby Power (RF radio off) <10mW Selective Suspend support (connected to network) <4mW Data Transfer Peak current is 2.5 A HSPA+ data rates downlink up to 42 Mbps and Uplink up to 5.7Mbps GPRS class 33 EDGE class 33 WCDMA Operating environment: The module full operating temperature in compliance with 3GPP specification shall be -10 °C to +55 °C. Extreme operating condition: +55 °C to +70 °C Non operating environment: Temperature: -40 deg to 70 deg (B) (-40 deg to 158 deg (F) Relative humidity: 5% to 95% Package List: 1 * EM7345 4G LTE WWAN Card
