Dealikee ESP32 OLED WiFi Kit Development Board New Version 8MB Flash, ESP32 WiFi + Bluetooth 0.96 Inch OLED Display CP 2102 Internet for ESP8266 NodeMCU

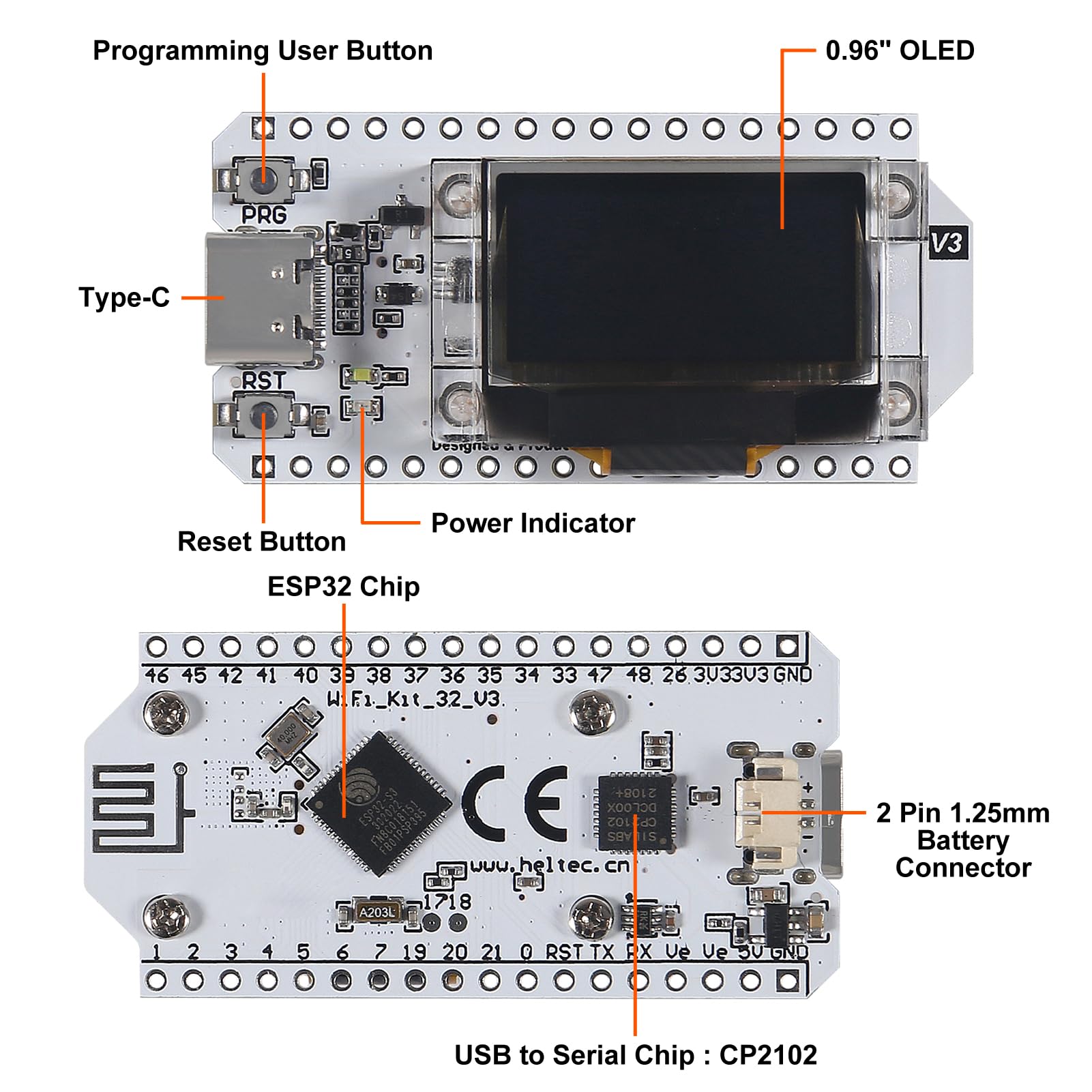

• Microprocessor: ESP32 (dual-core 32-bit MCU + ULP core), wprk for development environment;
• Onboard Wi-Fi, Bluetooth 2.4GHz PCB antenna;
• Onboard 0.96" 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information;
• Integrated CP 2102 USB to serial port chip, convenient for program downloading, debugging information printing;
• Micro USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures; Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).

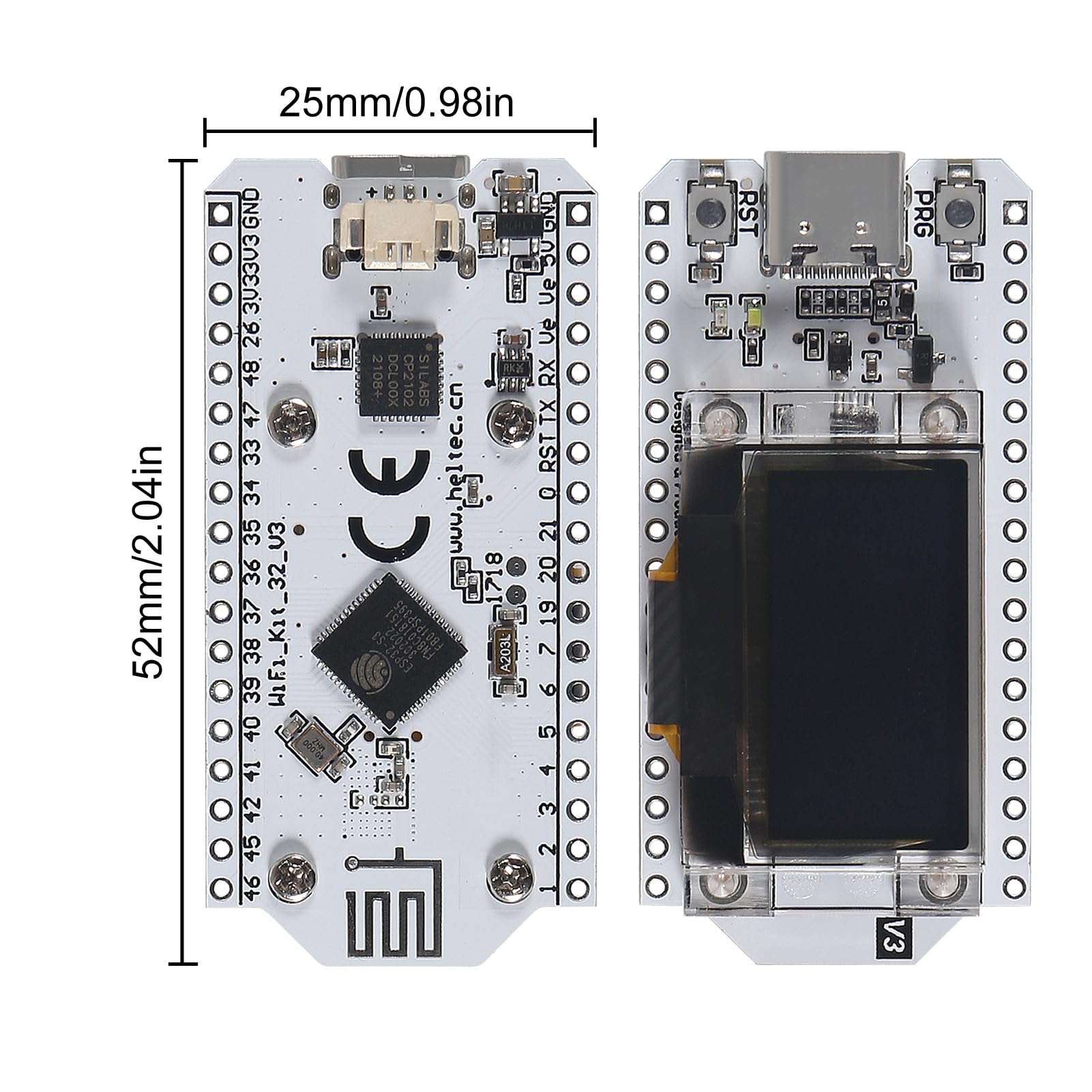

Description: WIFI Kit series is the new development of the cost-effective networking program, the main chip using Lexin ESP32, Tensilica LX6 dual-core processor, 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth). New WiFi Kit 32 Pinout Diagram: https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series/blob/master/PinoutDiagram/WIFI_Kit_32(New).pdf New WiFi Kit 32 Schematic Diagram: https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series/blob/master/SchematicDiagram/New_WIFI_Kit_32_Schematic_diagram.pdf Specification: Operating Voltage: 3.3V to 7V Operating Temperature range: -40°C to + 90°C Data Rate: 150 Mbps 11n HT40,72 Mbps 11n HT20,54 Mbps 11g, 11 Mbps 11b Transmit Power: 19.5 dBm 11b, 16.5 dBm 11g, 15.5 dBm 11n Flash Size: 8MByte(64M-bit) Module Size: 50*25.4*10.3 mm Lithium Battery Interface: 2Pin-1.25mm interface Receiver sensitivity up to - 98 dBm UDP continues to throughput by 135 Mbps Supports Sniffer, Station, softAP and Wi-Fi Direct modes Package Includes: 1 * ESP32 OLED Development Board 1 * Pin Headers Set
