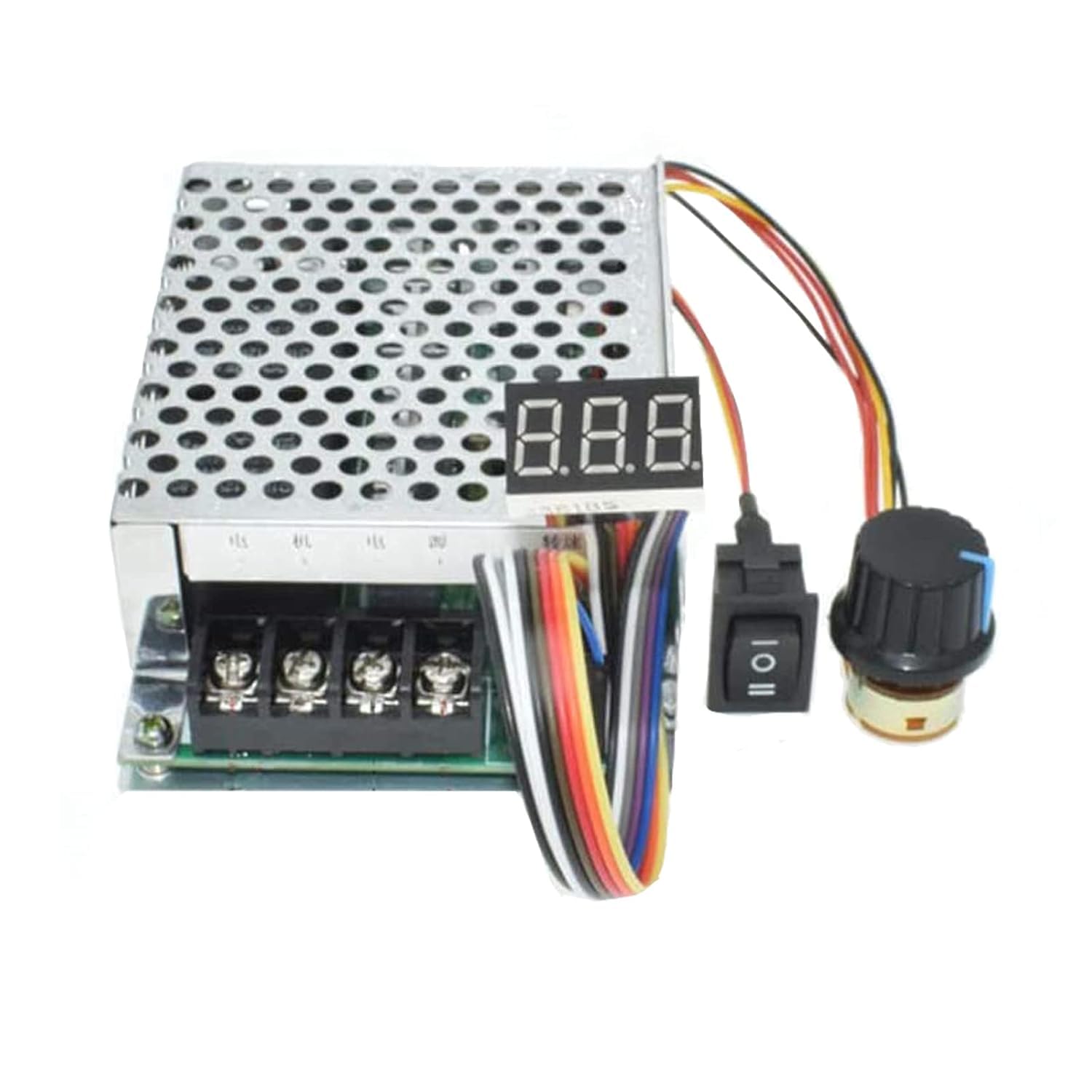

DC Motor Governor, PWM 10-55V 12V 24V 36V 48V 60A, Stepless DC Motor Governor with Switching Function and LED Display (1 PCS)

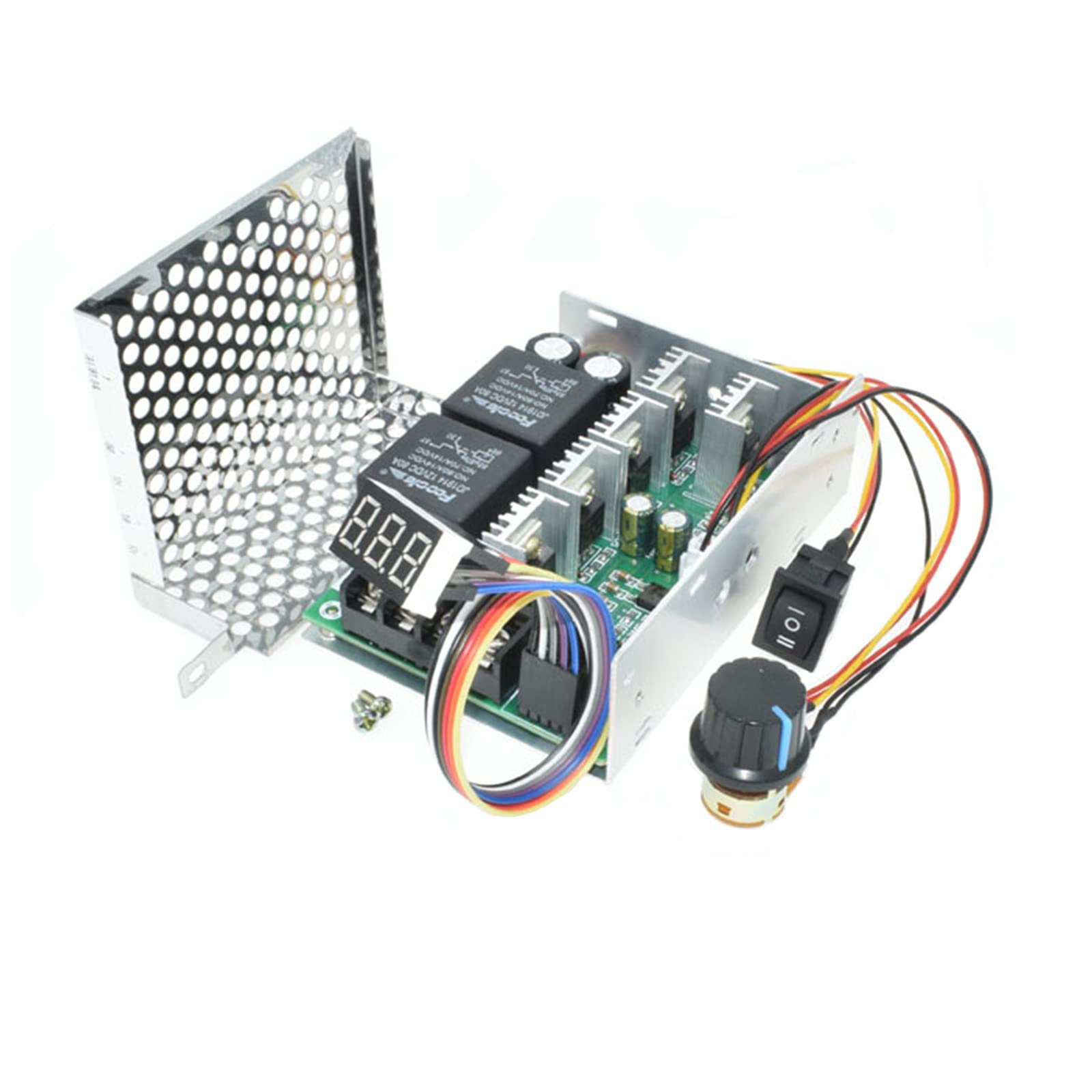

• Material: Stepless DC motor governor made of electronic components, The enclosure is an aluminum enclosure,which is strong and not easy to damage.

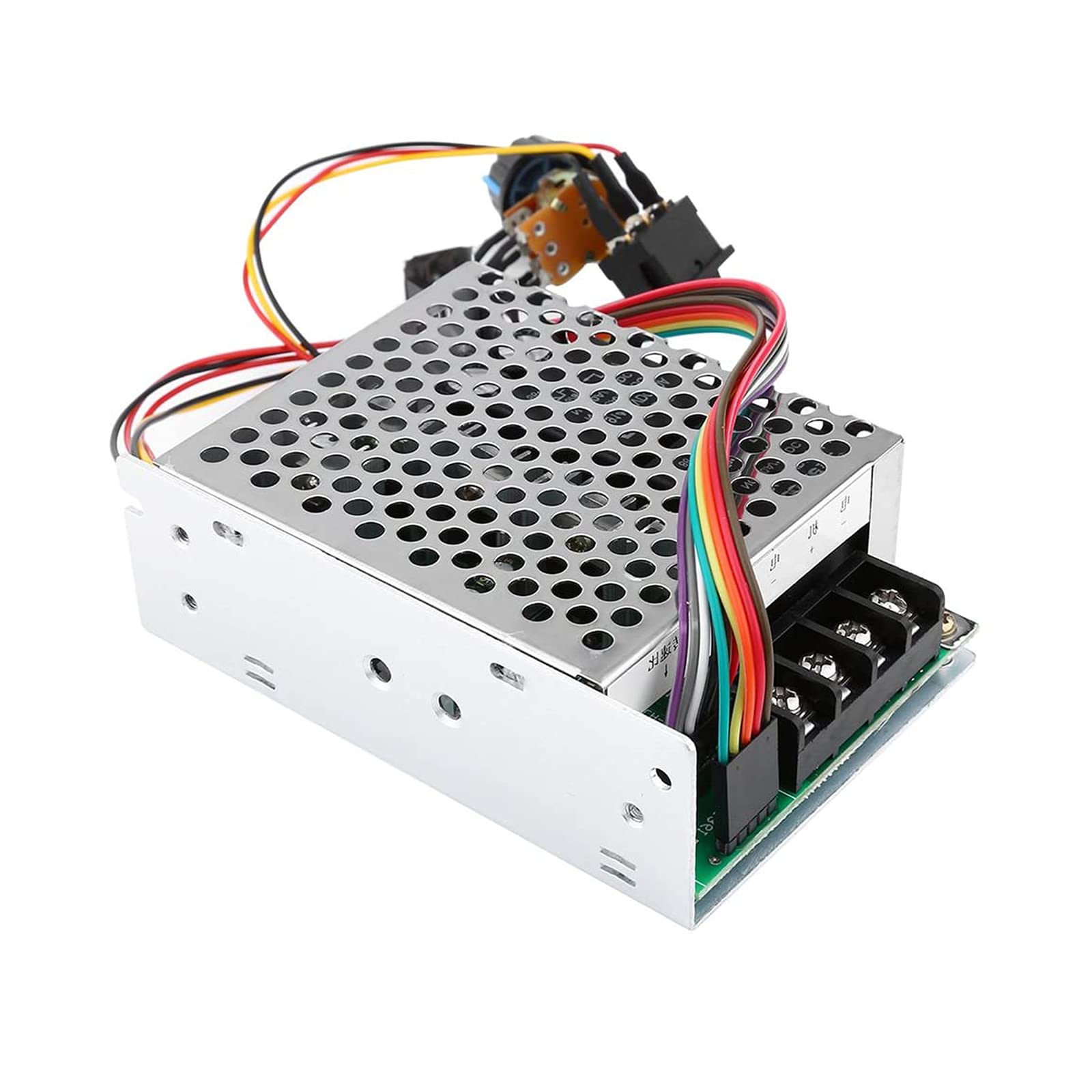

• Features: The aluminium housing has many round holes on the sides and top which help to dissipate the heat from the DC motor governor.

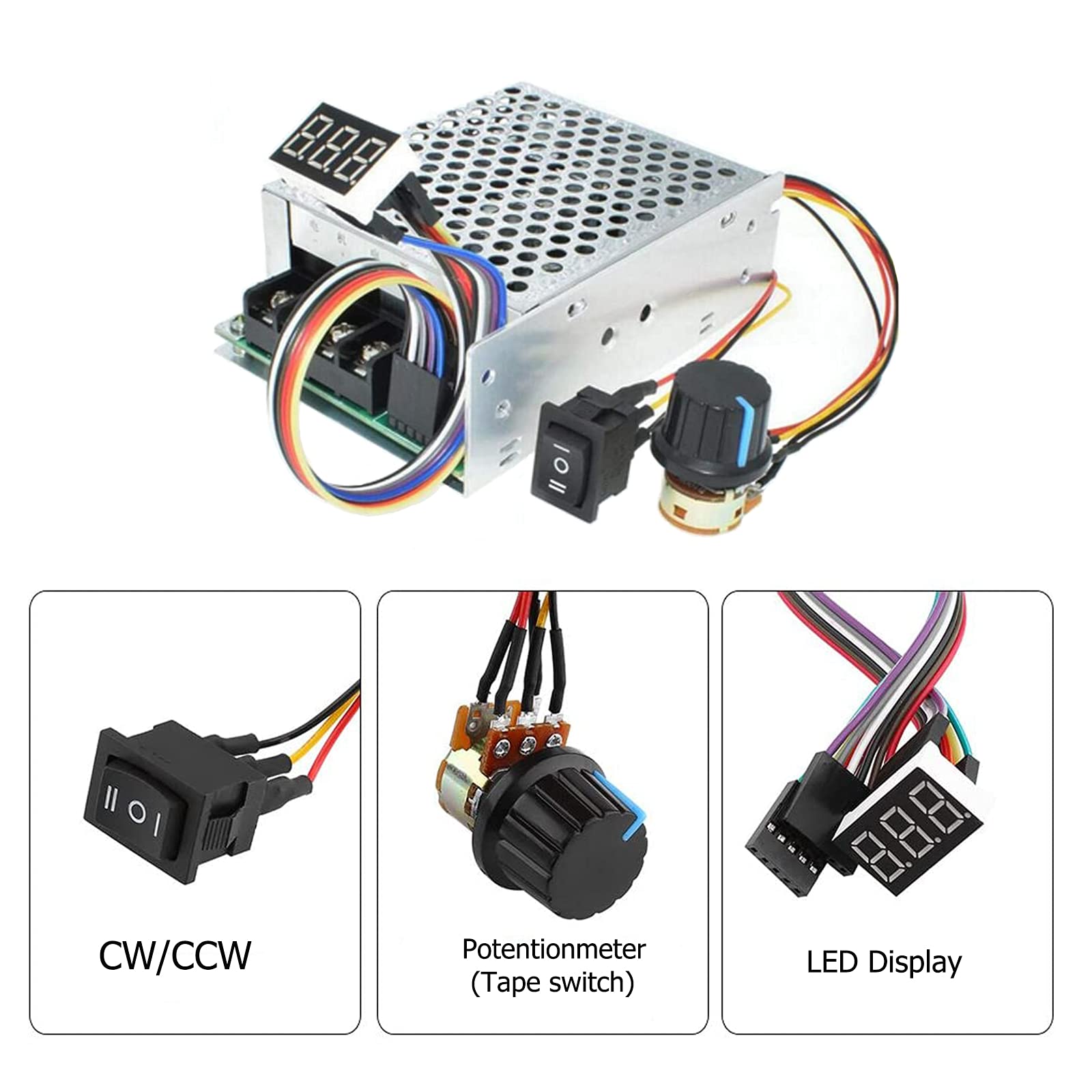

• Easy to use：Motor speed governor with a switch function and potentiometer knob to smoothly adjust motor speed from 0% ~ 100%.and with Digit Display, which is highly adaptable and makes it more convenient to change the direction of the motor.
• Note: This is not a power module. The speed can only be adjusted if the motor is connected. Without the motor connected, there is no change in the multimeter output.
• Package contains: 1 * Stepless DC Motor Speed Controller

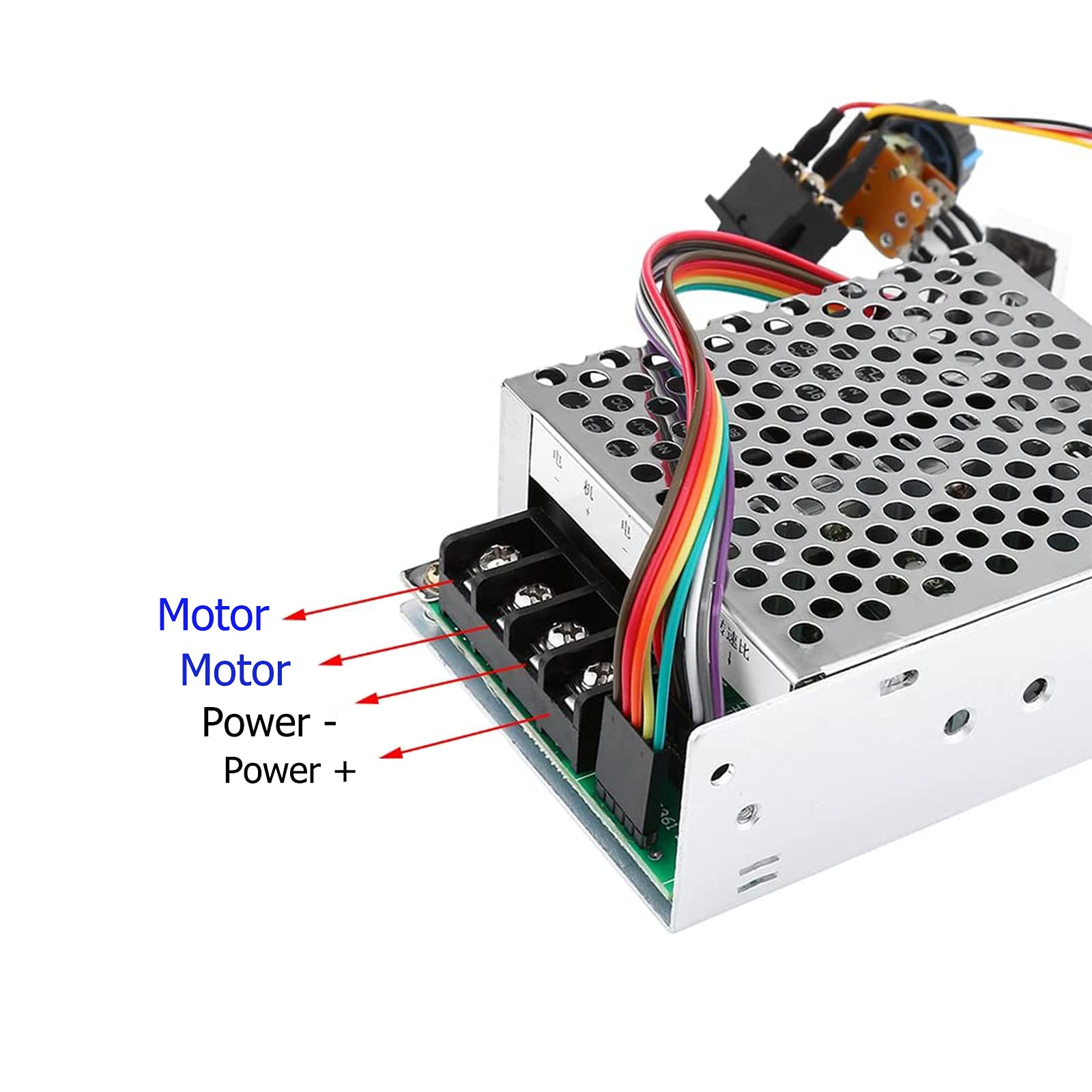

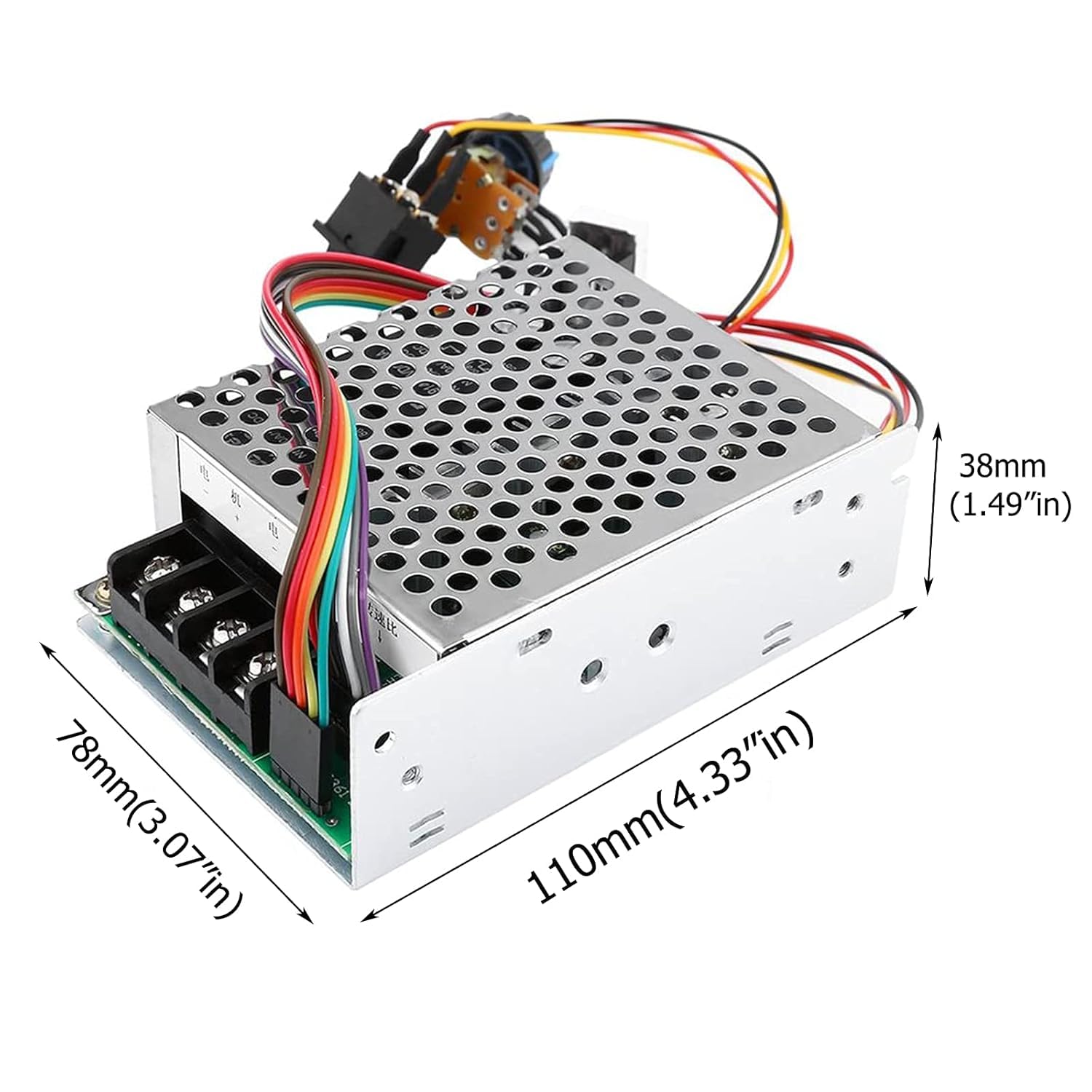

Technical specifications: Input voltage: DC10-55V (equal to the rated voltage of the motor) Output voltage: linear under load Current: 60A Continuous current: 40A (long time with attention to heat dissipation or reduce the current use) Type of speed regulation: current regulation Speed regulation mode: potentiometer (linear) Support motor: DC brush motor Forward and reverse: support Control frequency: 15KHZ Wiring type: terminal Knob specification: 100K (with switch) Wiring type: Barrier type terminals Specifications of PWM DC motor speed controller: Main board size: 3.93in*2.99in*1.10in/100MM*76MM*28MM Shell size: 4.33in*3.07in*1.49in/110MM*78MM*38MM Product net weight: 249g Note: Ensure that the positive and negative connections are correct before powering on, do not touch the heat sink with the wiring, touch may burn the circuit board.
