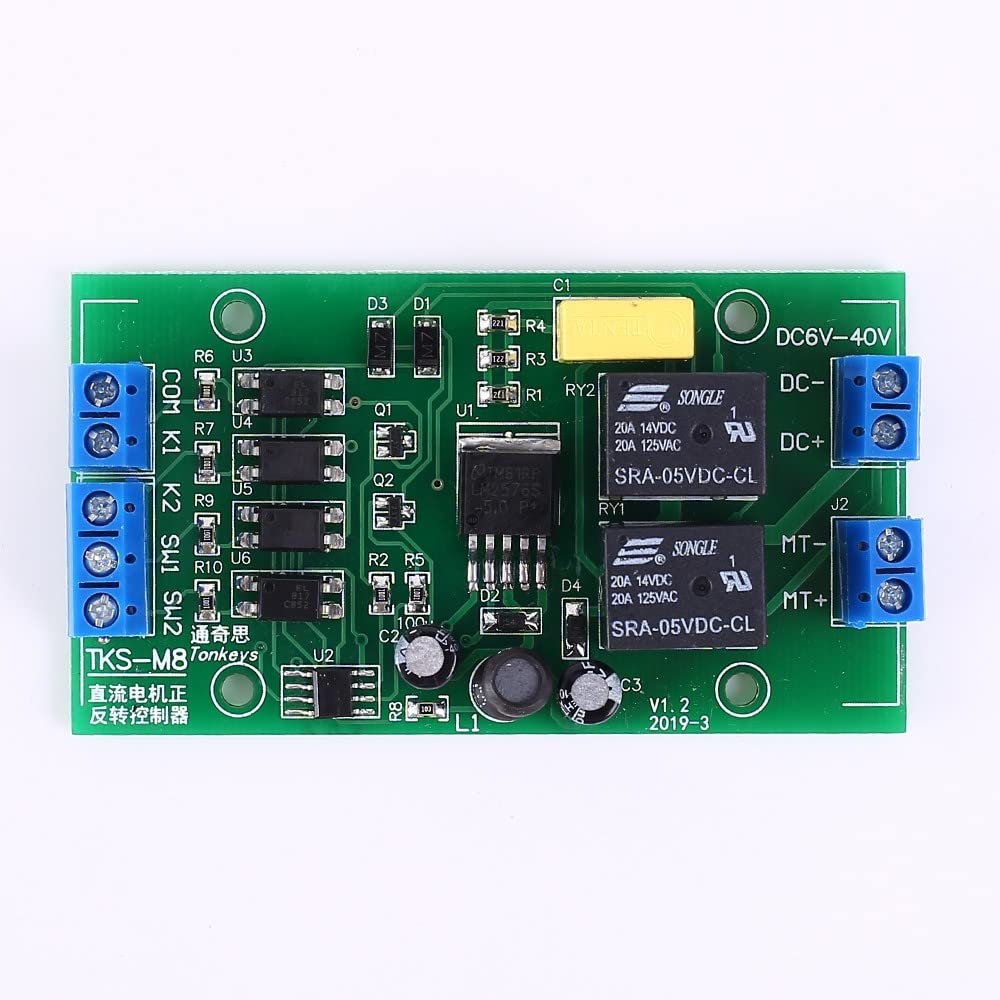

DC Motor Driver Module, Forward Reverse Controller Board 20A Limit Control Intelligent Control

• Motor Forward and Reverse Controller Is Used to Control Motor Work Status to Make Sure Motor Can Be Precisely Controlled.Applicable to Occasions Where the Motor Control Requirements Are Increased.
• Low Power Consumption.Long Work Time.Automatic Control
• Support DC Motor Forward and Reverse.Support Limit Operation
• Work Output LED Indicator.Support Self-locking Mode
• SHOP WITH CONFIDENCE: To Provide You With the Highest Quality Service, If You Have Any Question, Please Contact Us.We Will Provide After-sales Service .

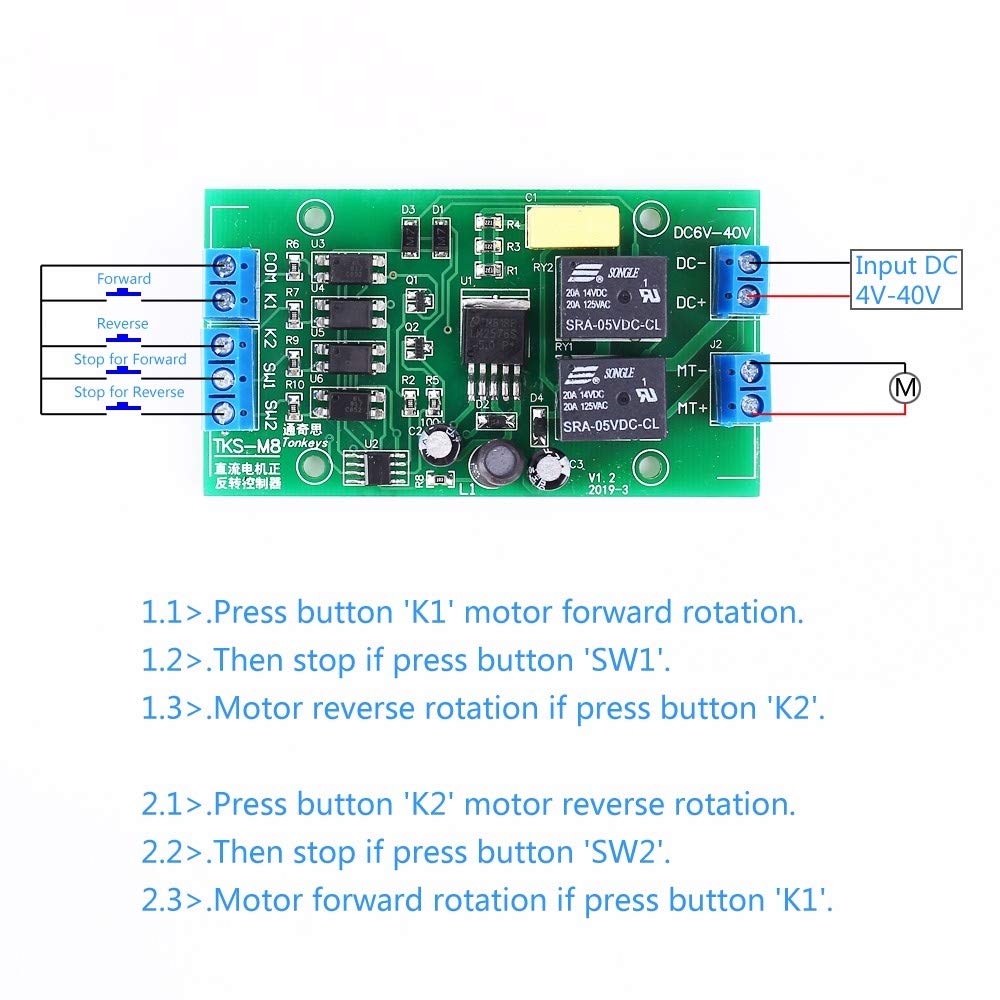

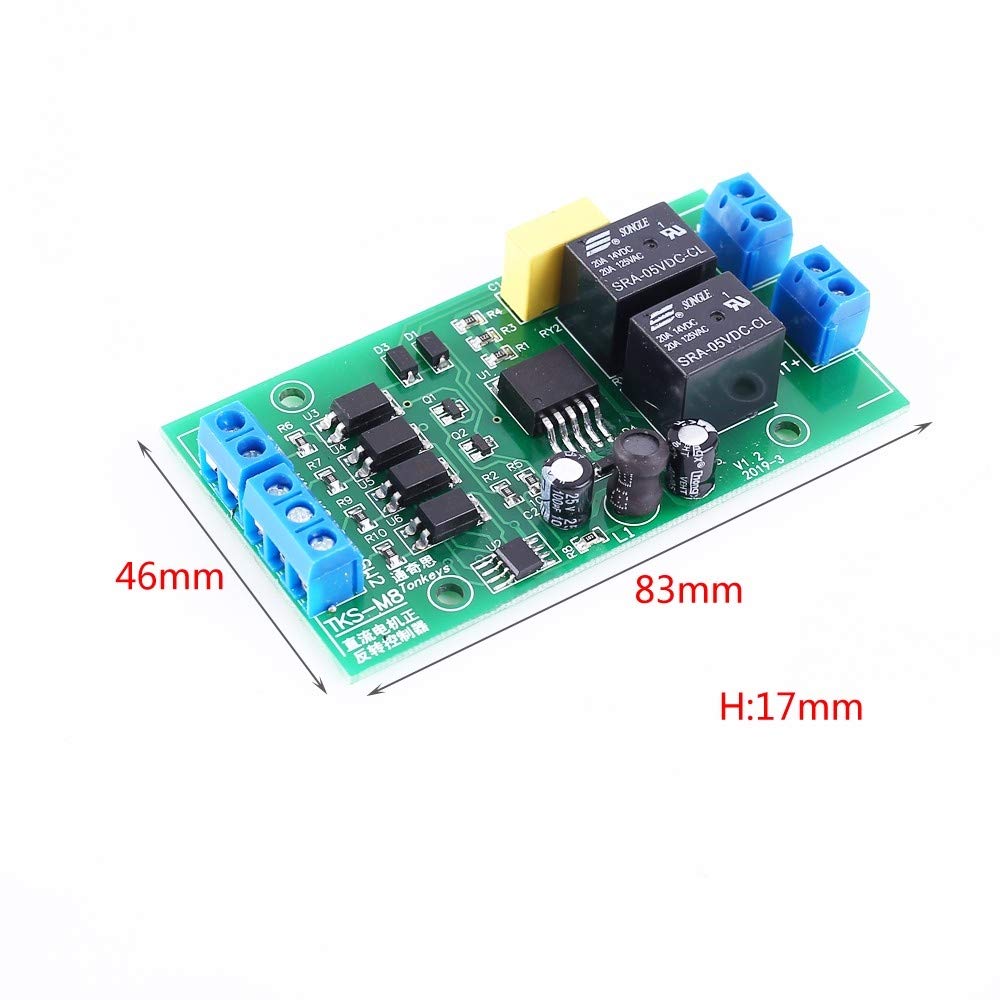

Description: Motor forward and reverse controller is used to control motor work status to make sure motor can be precisely controlled.Applicable to occasions where the motor control requirements are increased. Features: 1>.Low power consumption 2>.Long work time 3>.Automatic control 4>.Support DC motor forward and reverse 5>.Support Limit operation 6>.Work output LED indicator 7>.Support Self-locking Mode Parameters: 1>.Item Name:TKS-M8 DC Motor Driver Module 2>.Model:TKS-M8 3>.Work voltage:DC 4V-40V 4>.Work mode:Trigger mode 5>.Work Temperature:-40℃~85℃ 6>.Work Humidity:0%~95%RH 7>.Size:83*46*17mm Funciton: 1>.Press button 'K1' motor forward rotation.Then stop if press button 'SW1'.Motor reverse rotation if press button 'K2'. 2>.Press button 'K2' motor reverse rotation.Then stop if press button 'SW2'.Motor forward rotation if press button 'K1'. Application: 1>.Toy 2>.Intelligent robot control 3>.Smart car 4>.Curtain 5>.Mechanical control Package List: 1X TKS-M8 DC Motor Driver Module
