LeHang DC Motor Driver L298 DC 6.5V-27V 7A Dual high Bridge Motor Speed Controller PWM Motor Regulator Board 12V 24V Motor Control Module Industrial with Optocoupler Isolation 160W DIY

• The input voltage range of the DC motor driver is DC 6.5V-27V, DC 12V or 24V can be input, the rated output current of each port is 7A, and the total output power is 160W.
• Strong drive: The motor control board adopts double H bridges, which can drive two DC motors at the same time.
• Forward and reverse rotation: IN1, IN2/IN3, IN4 ports can control the motor to rotate forward or reverse.
• PWM SPEED CONTROL: The enable signal terminal (ENA) input PWM can adjust the speed, the PWM frequency range is 0-10KHZ.
• Undervoltage protection: The motor drive module has undervoltage protection to prevent instantaneous high current damage to the module.

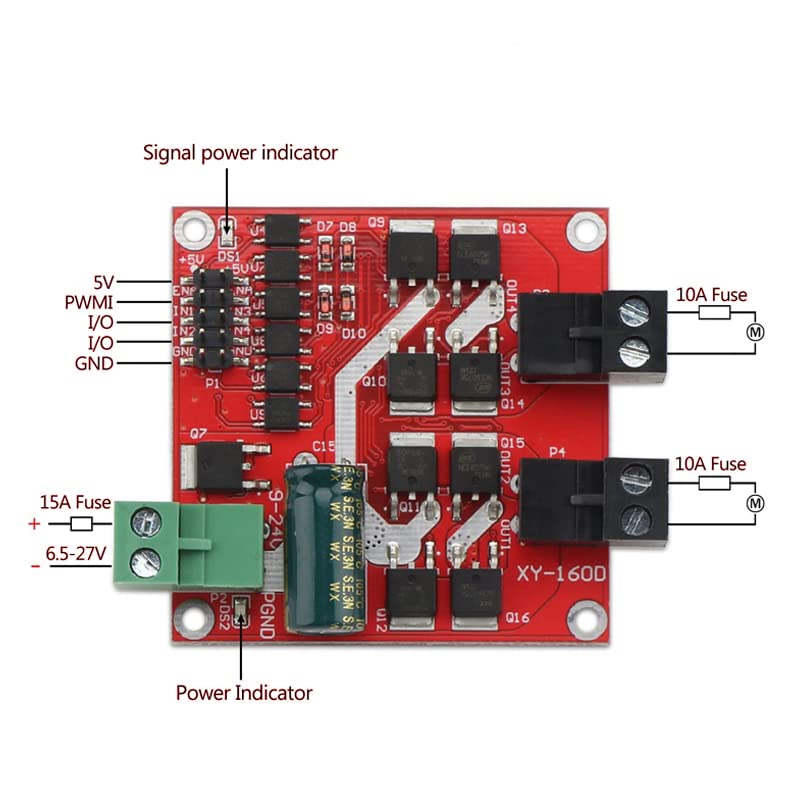

Specifications: Dimensions: 2.16 x 2.16 x 0.63 inches/55 x 55 x 16 mm. Mounting hole diameter: 0.12 inch / 3 mm Package includes: 1 x DC Motor Driver Regulator Board Note: When installing on the back, be careful to avoid short circuiting, and you can add insulating pads or copper pillars to lift the circuit board. It is recommended that the rated output current of the power supply be more than 2 times to prevent the supply voltage from reaching the input voltage required by the motor when starting, otherwise the drive module may be blocked. Voltage protection. The motor interface cannot be short-circuited, otherwise the drive module may be burned. It is recommended to connect a 10A fuse in series with the motor interface.
