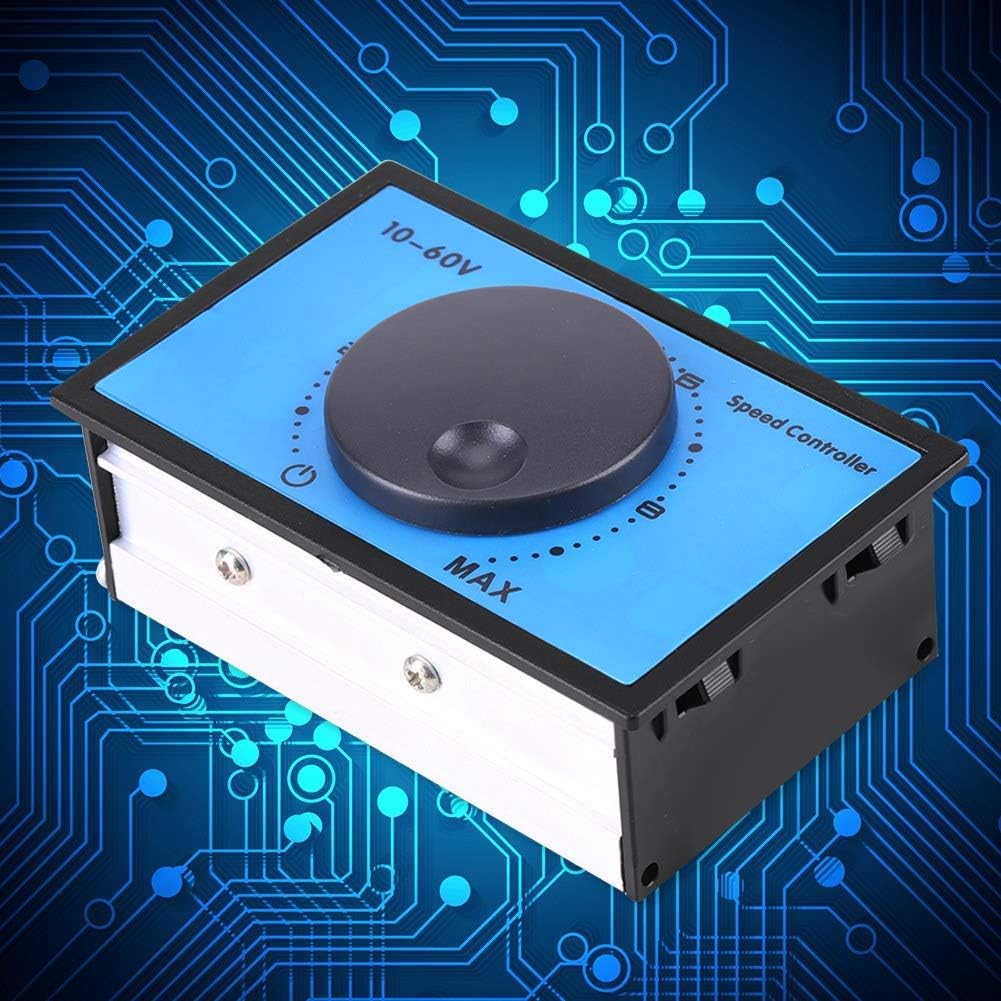

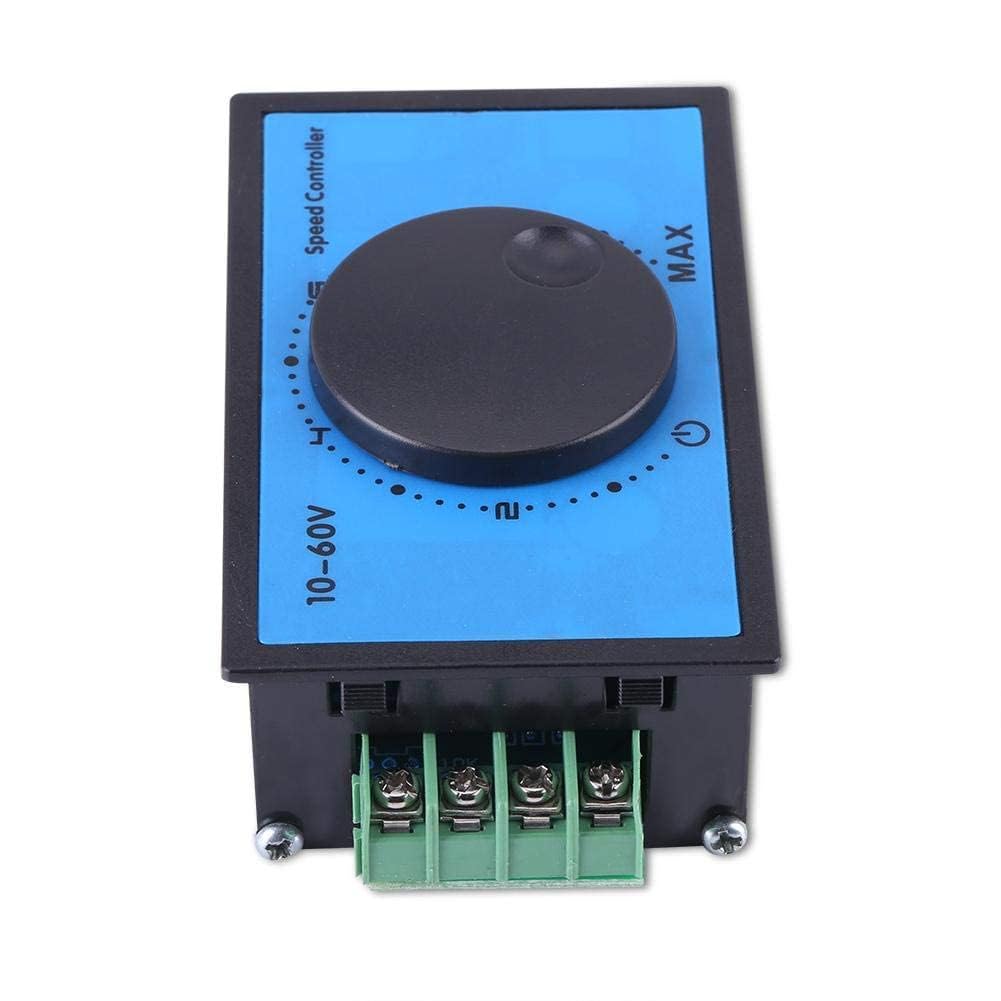

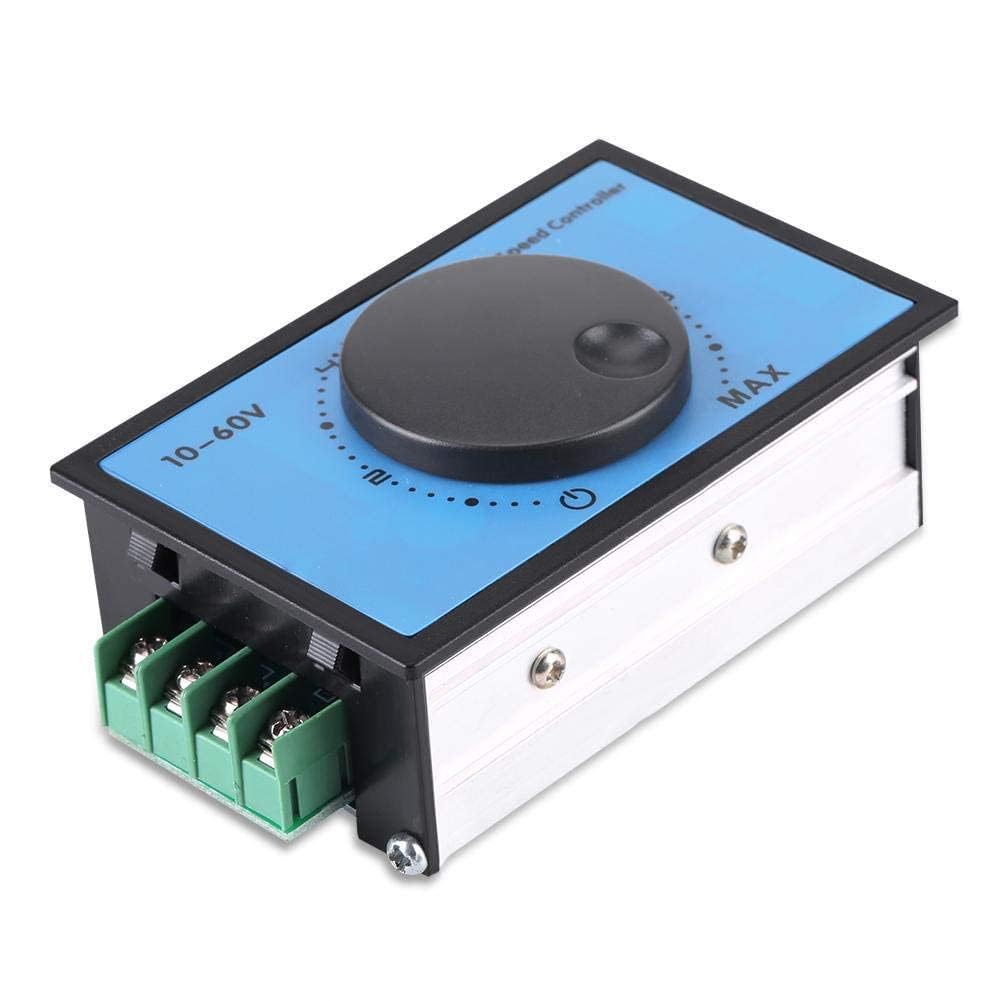

DC Motor Controller 20A 10-60V PWM Motor Speed Controller Switch Module with Low Voltage Stall and Over-Current

• FUNCTION: The motor speed controller has low voltage, stall and over-current Soft start can solve the damage caused by instantaneous high current to speed controller
• BLOCKING The motor speed controller has blocking protection(20A current limited) which can limit the high current produced by the blocking of the motor
• ADVANTAGE: The motor speed controller can make it more easy to control the speed, and make ultra-high power control easily. The maximum current is 20A. It is recommended not to exceed it

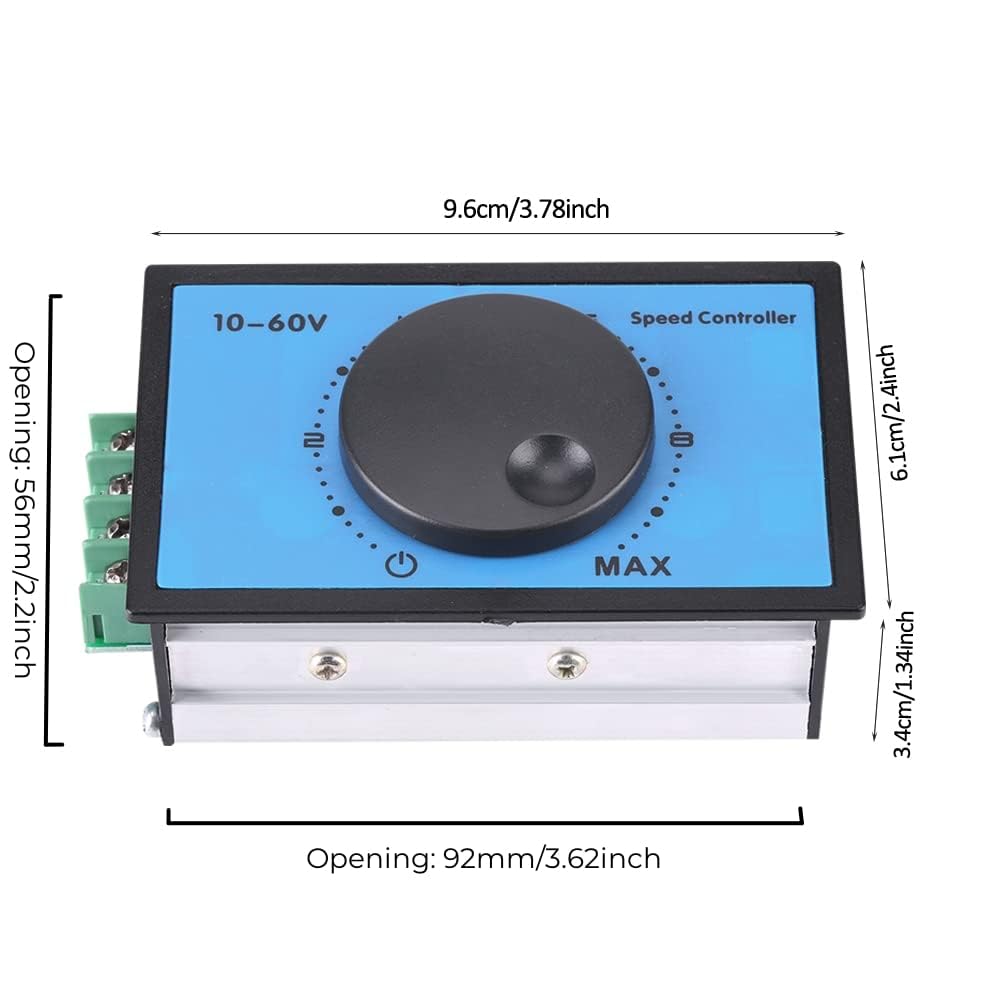

• SPECIFICATION: Input voltage: DC 10-60V, Output voltage: Linear output under load, Regulating type: regulating current, Regulating speed range: 0-100%, Size: Approx. 9.6 x 6.1 x 3.4cm

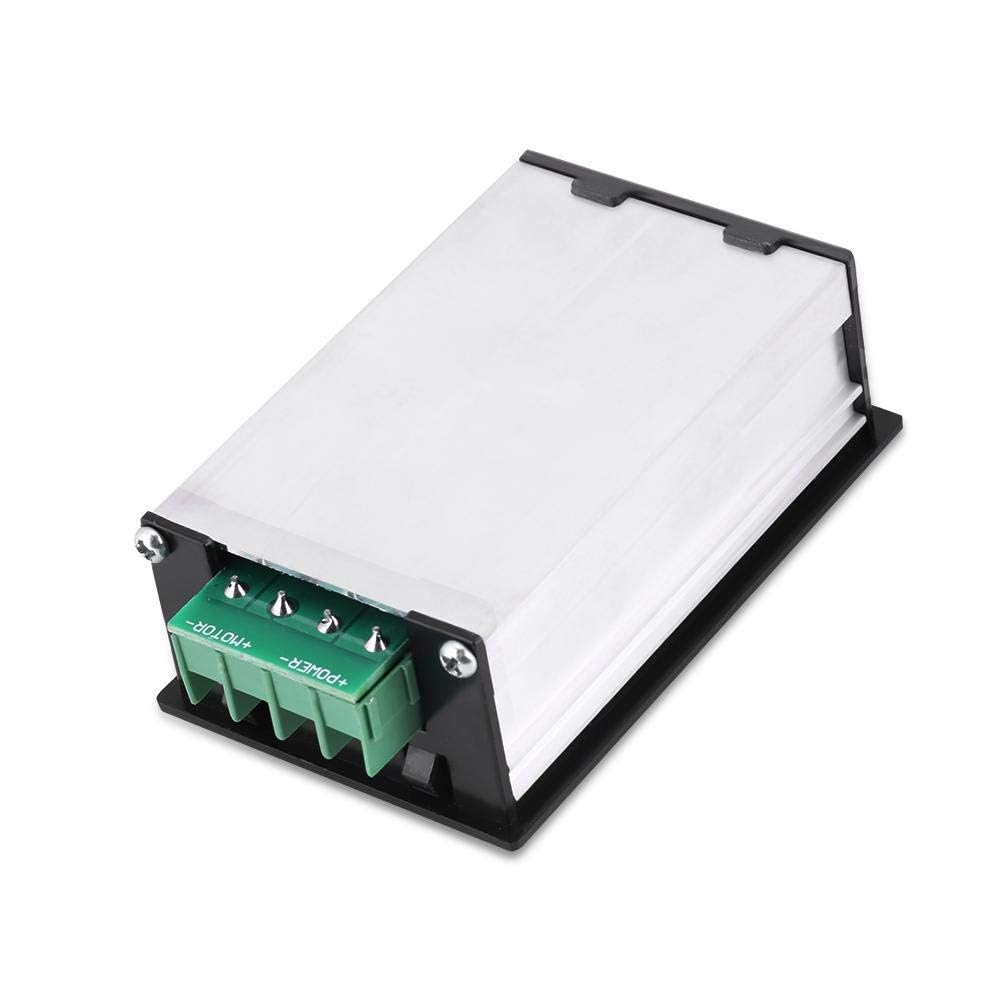

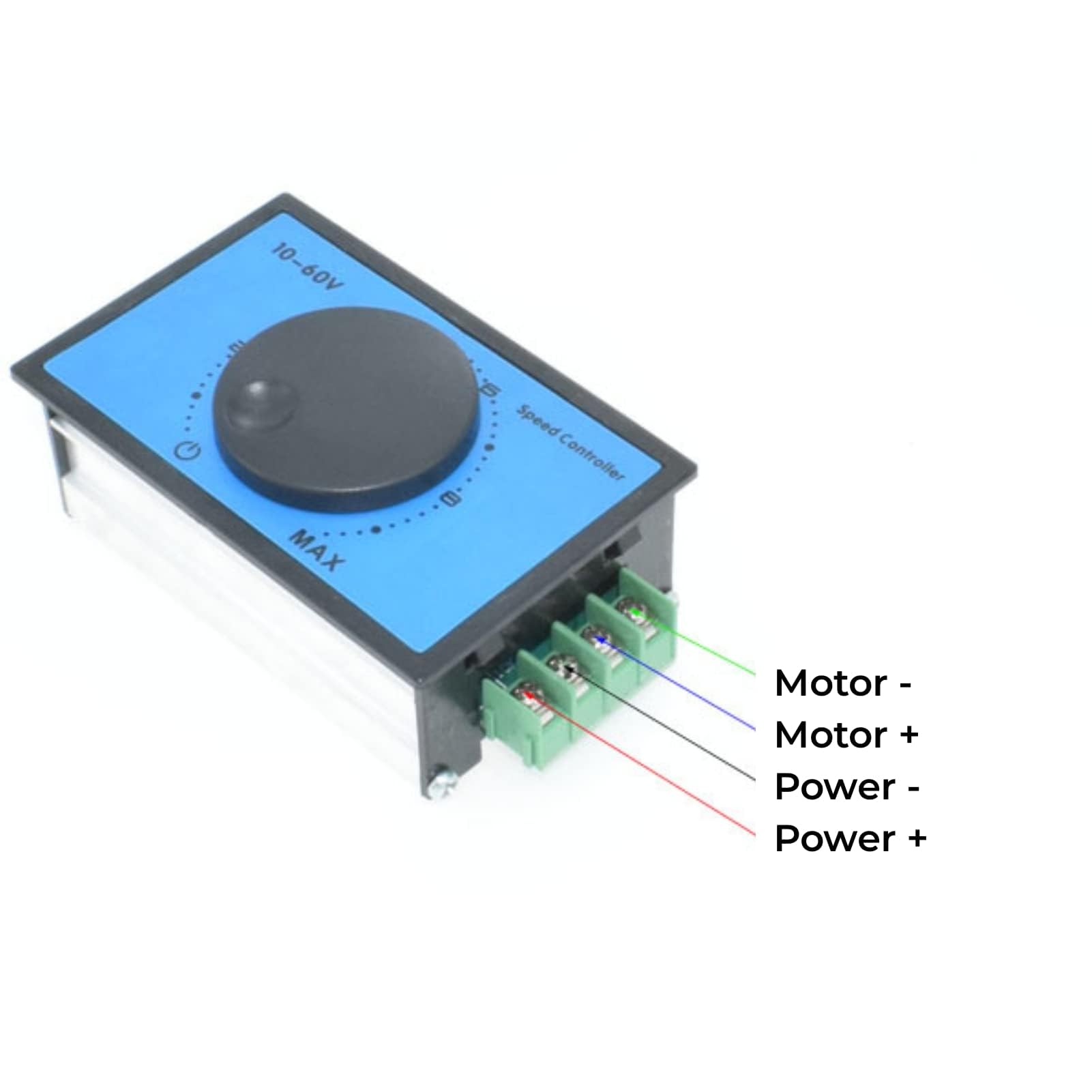

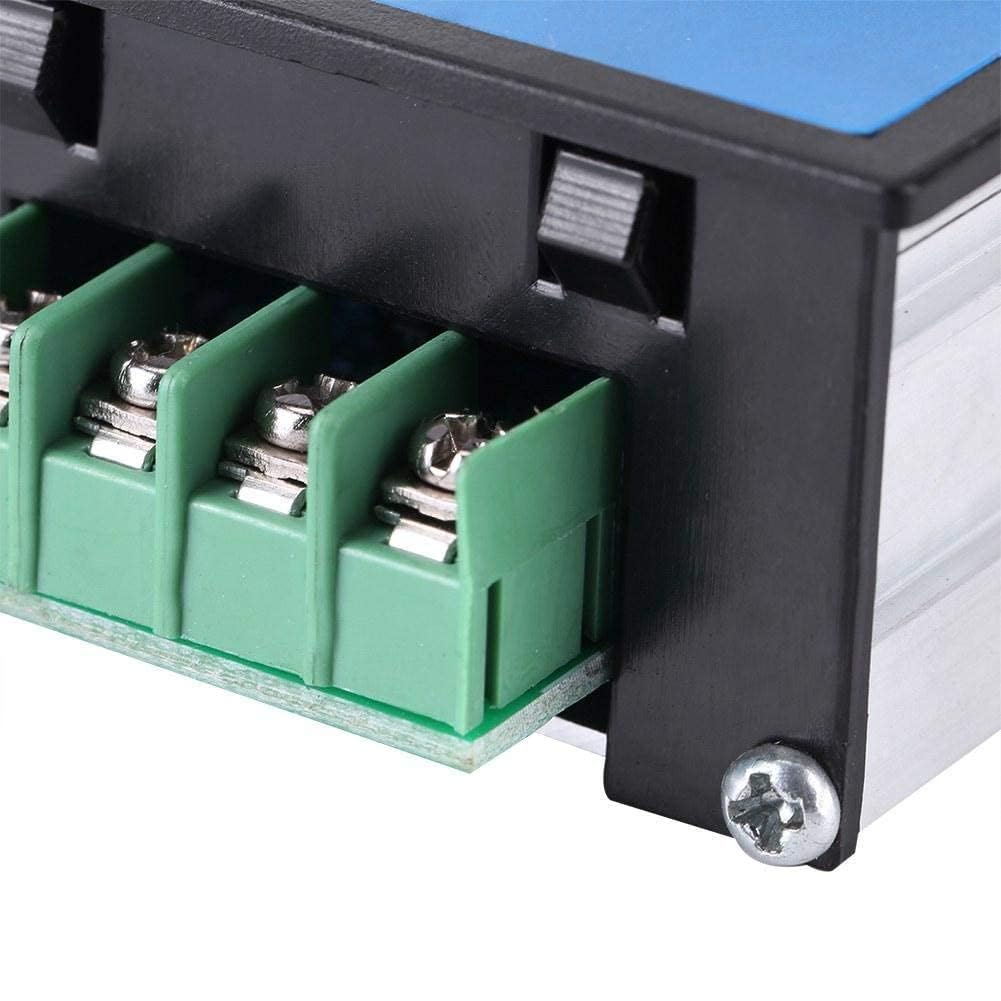

• NOTE: The input terminal must be divided into positive and negative input. The input voltage must be the same as the rated voltage of the motor(within DC 10-60V). Can not input AC 220V, or it will burn up the module directly

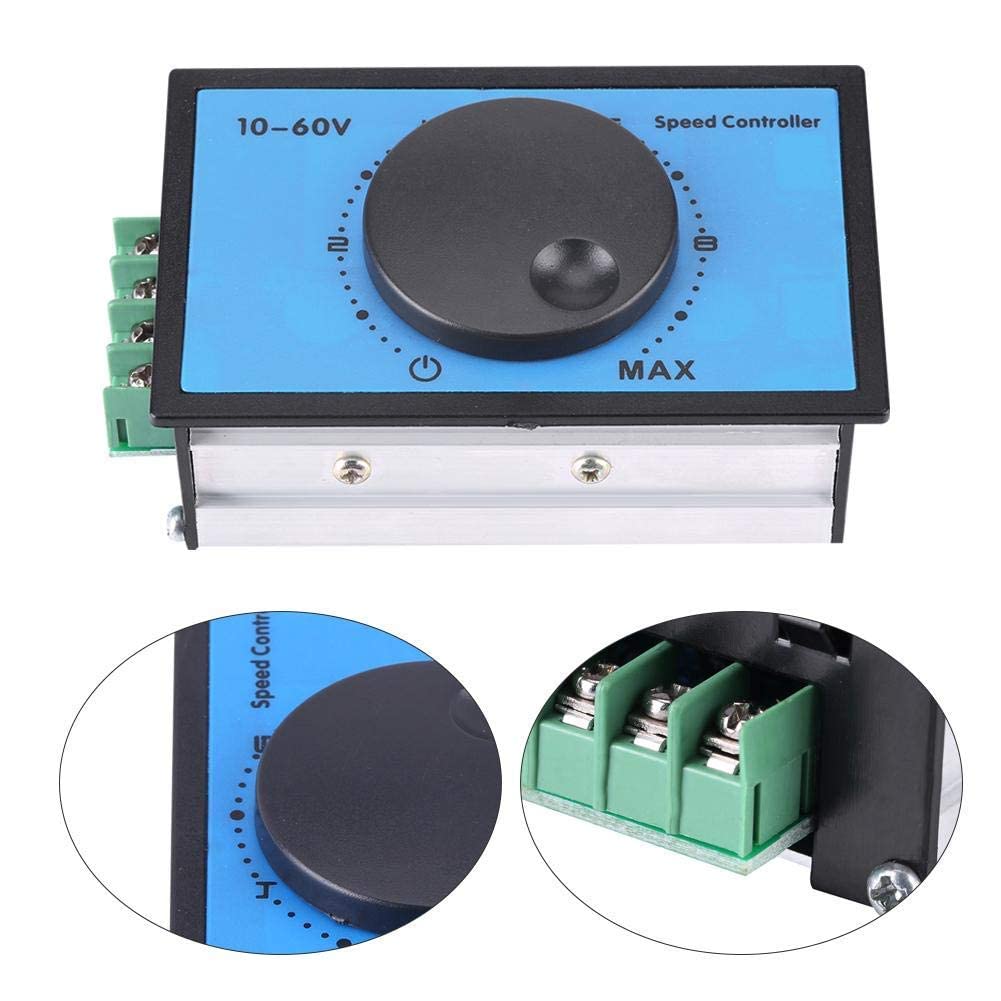

Feature: Smooth start can solve the damage caused by instantaneous high current to cruise control. Blocking protection (current limited to 20A) can limit the high current produced by blocking the motor. Panel switch control makes speed control easy. Ultra-high power control. The maximum current is 20A. It is recommended not to exceed it. With low voltage and stall / over-current protection. Specifications: Input voltage: DC 10-60V (the specific voltage must be the same as the motor rated voltage) Output voltage: linear output under load Current: 0-20A (limited value 20A) Type of regulation: current regulation Regulating method: potentiometer (270° linear) Regulation speed range: 0-100% Control frequency: 15KHZ Button: 10K (with switch) Size: approx. 9.6 x 6 x 3.2 cm/3.78 x 2.4 x 1.34 inches. Weight: 107 g Package includes: 1 x DC Motor Speed Controller Note: The input terminal should be divided into positive and negative input. The input voltage should be the same as the rated motor voltage (between 10 and 60 V DC). Cannot enter 220V AC, or it will burn the module directly. The blocking protection is not a power outage, it is the limited current value of 20A. Please allow for a 1 - 3 cm margin of error due to manual measurement. Thank you for your kind understanding.
