DC CW CCW Controller Module Self Locking Wide Voltage Drive Motor CW Limit Signal DC Motor Speed Controller Lifting Control Module 4Vโ40V
About this item

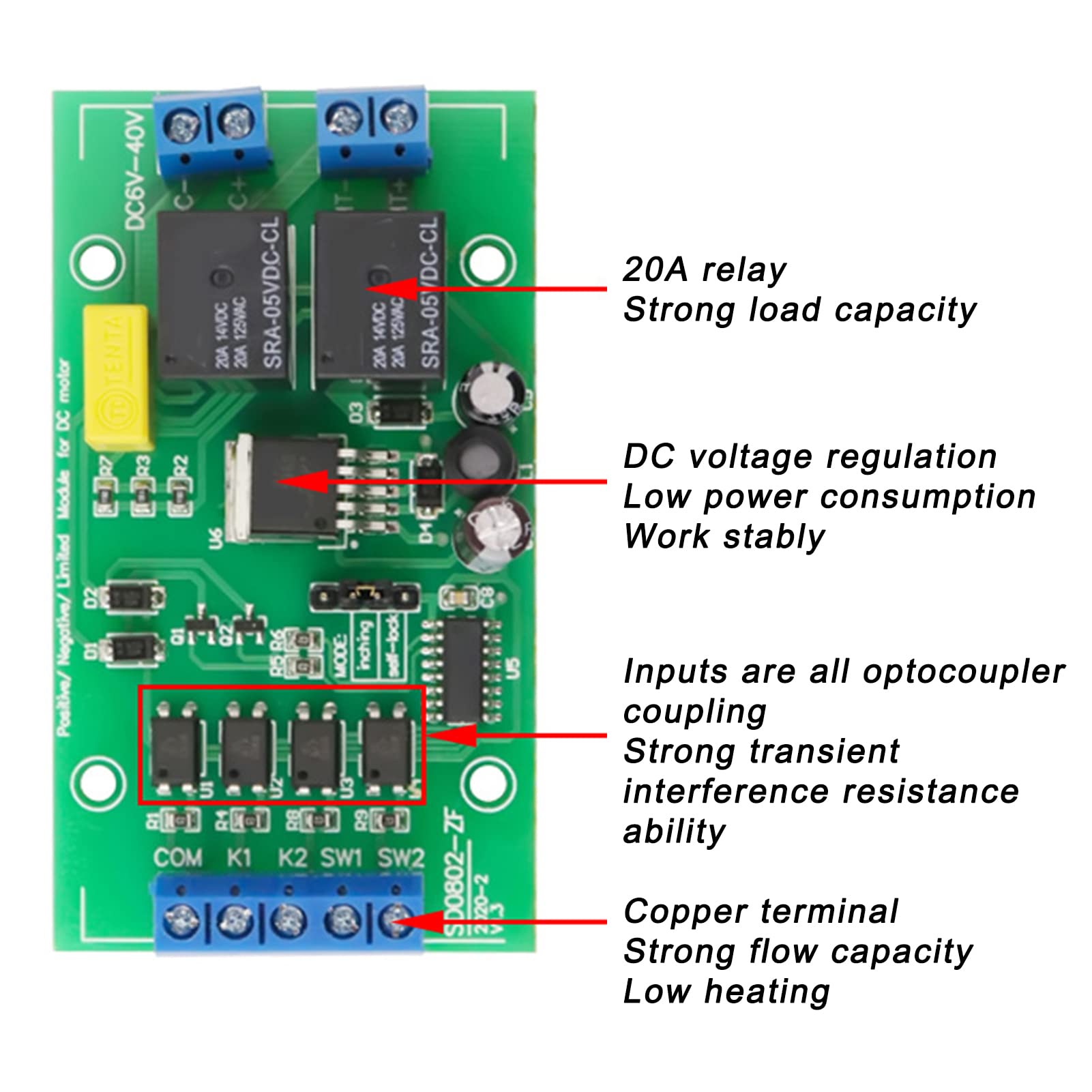

- ABS Shell--ABS shell protection, sturdy and durable, effective when the CW CCW signals are low, that is short 0V level (negative power), start
- Self Locking--M8โP0 standard version self locking, input low level, the signal only needs to be triggered once, and the module self locking runs all the time
- CCW Signal--CCW signal is encountered during CCW, stops immediately after 0.3 seconds and enters CCW

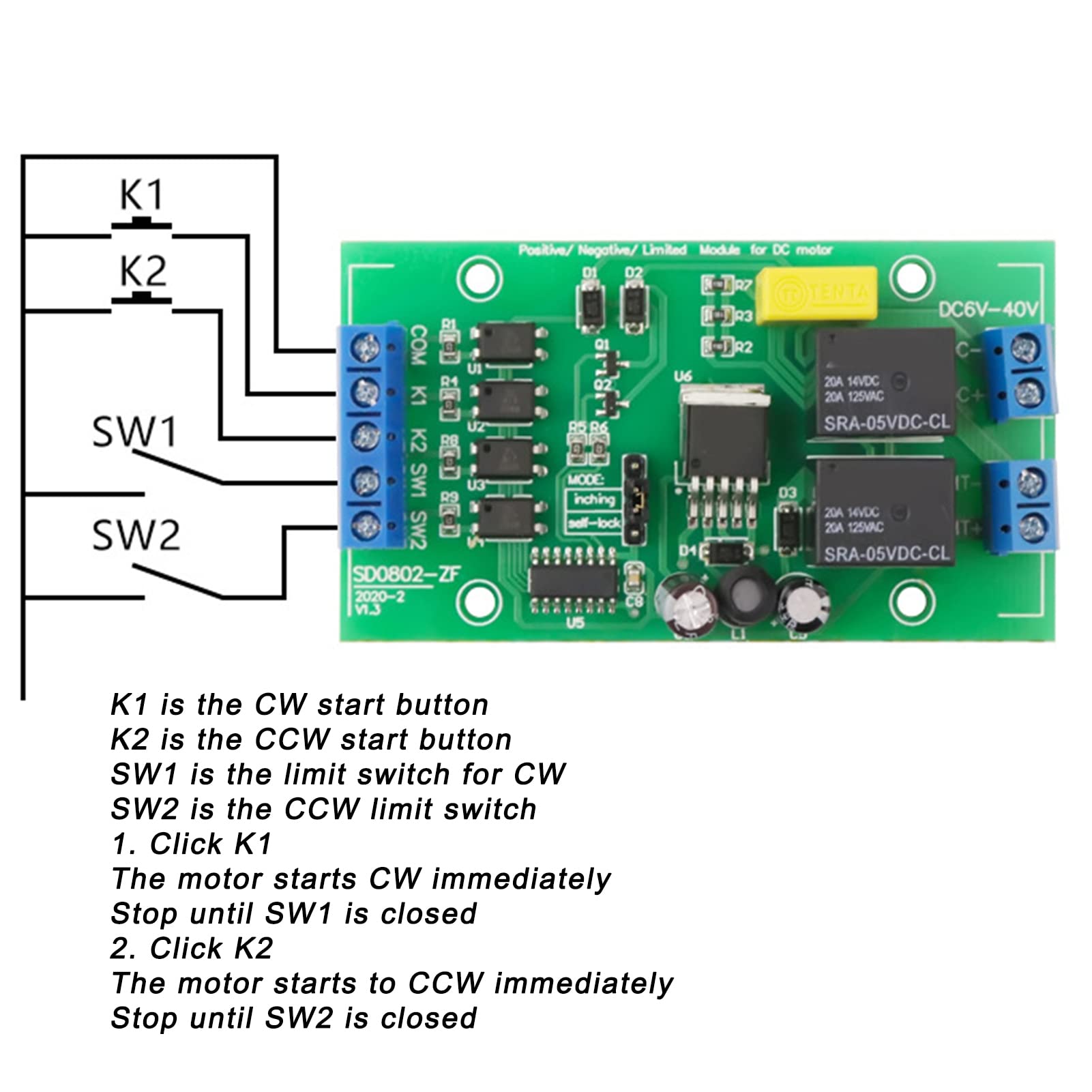

- Limit Signal--The limit signal has priority, and will stop immediately when encounters a CW limit signal when CW
- CW Limit Signal--When there is a CW limit signal, the CW cannot be started, and the CCW is the same
Product description

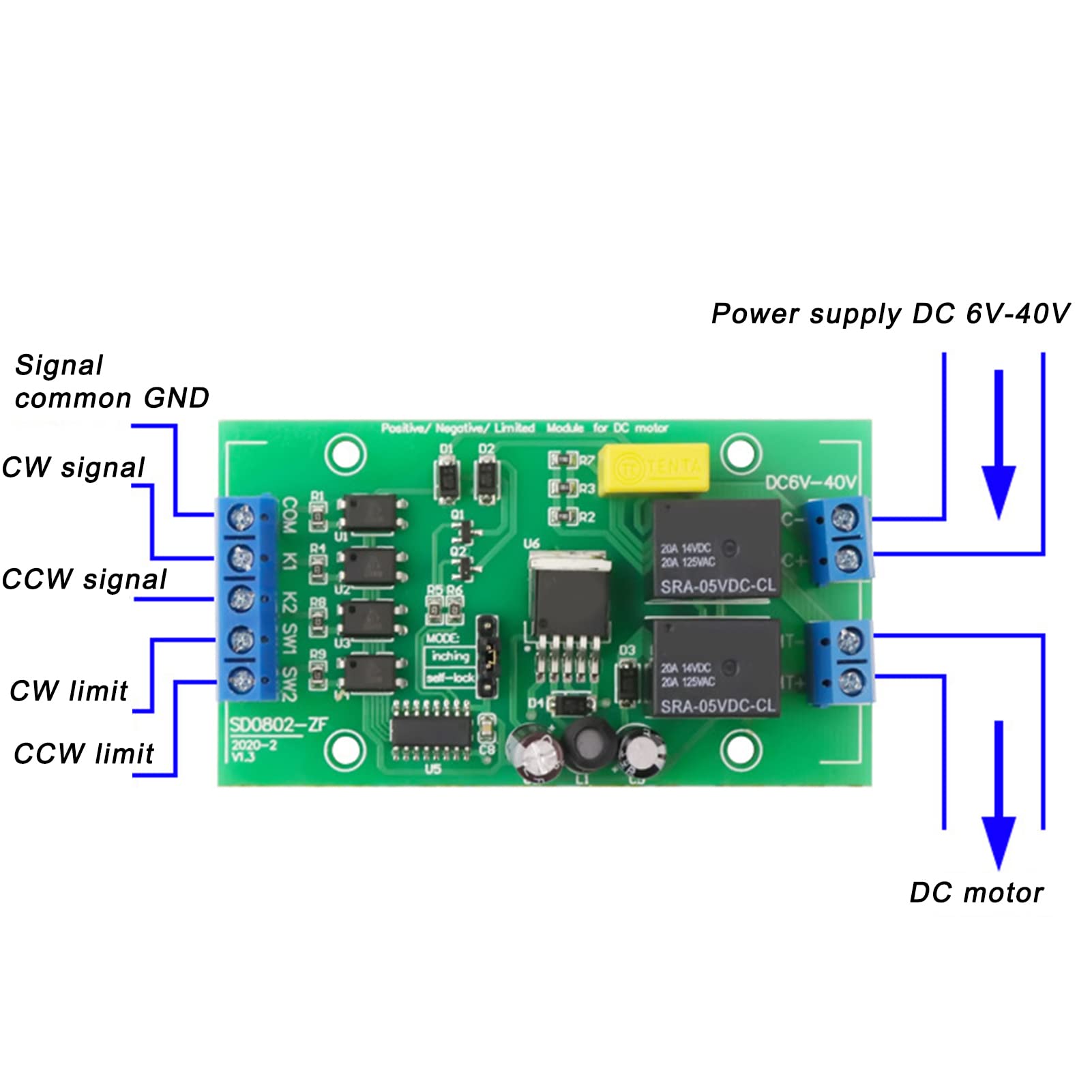

Specification: Item Type: DC CW CCW Controller Material: ABS Working Voltage: DC 4V-40V Rated Current: Rated 5A Response Speed: 20ms for K1 and K2, 50ms for SW1 and SW2 Module Power Consumption: 0.6W (Without Load Motor), Static 0.1W Signal Input: Low level effective, the input is the negative electrode of the optocoupler, and the voltage is lower than 2V, which means there is a signal. Action Life: More than 150,000 times Package List: 1 x DC CW CCW Controller Note: Please use according to the parameter voltage range
