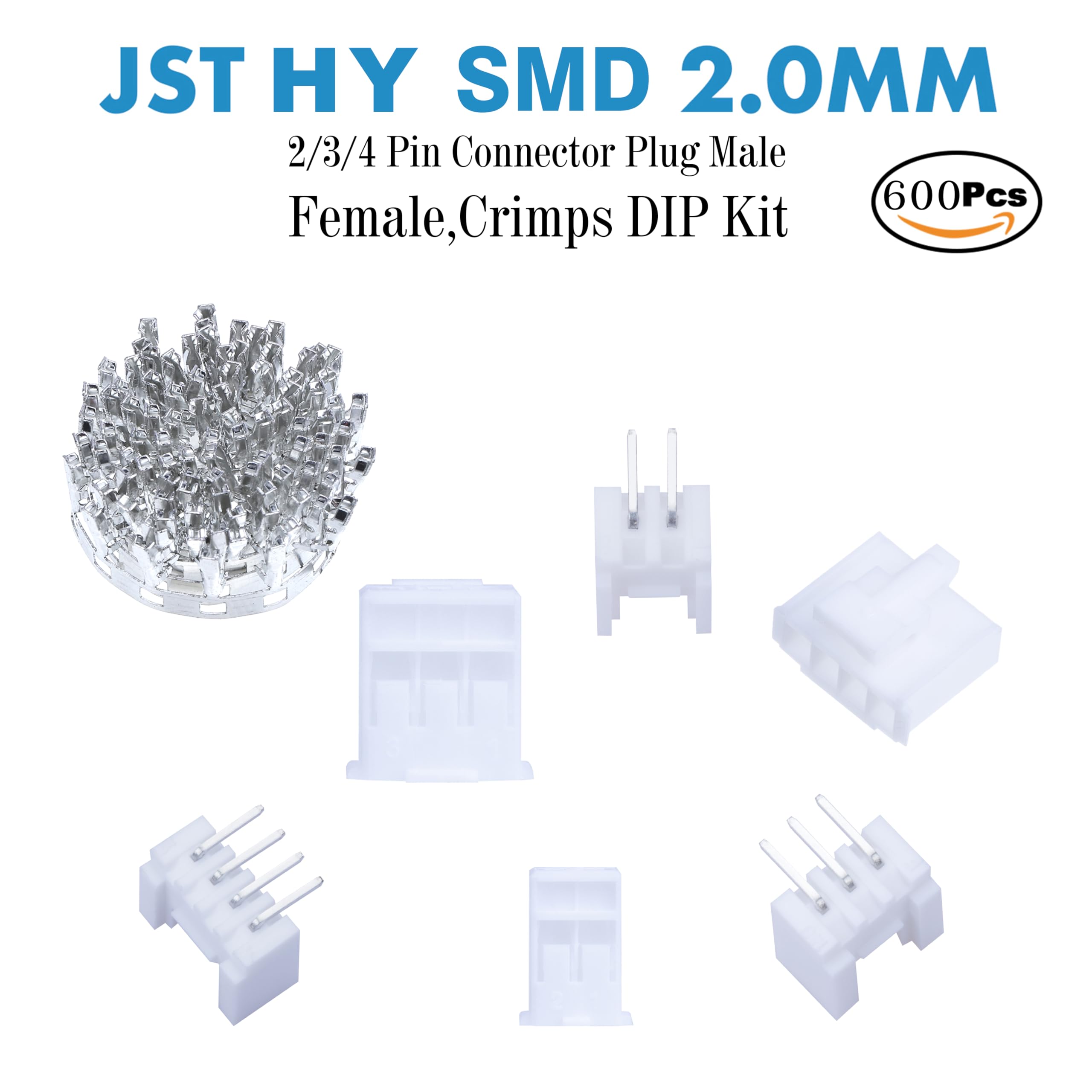

CQRobot JST HY SMD 2.0 mm Pitch 2-Pin/3-Pin/4-Pin Electronic Connector IC Male Plugs, Female Sockets Housing and T-Shaped Crimp Terminal. 120 Sets/600 Pieces Wire-to-Board Adapter Cable Assembly.

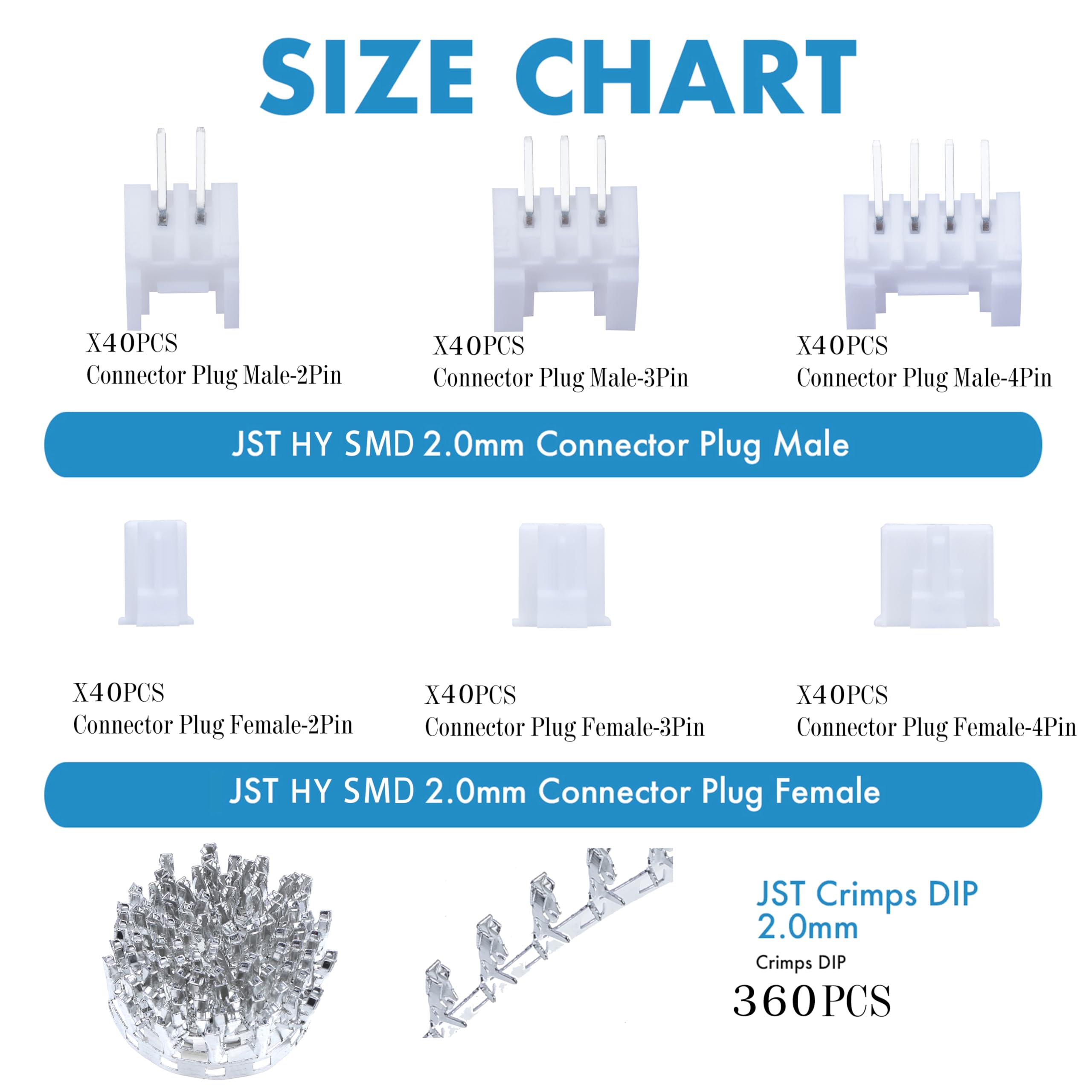

• JST HY SMD 2.0 mm pitch wire connection terminal IC male plug, 40 Pieces each for 2-pin, 3-pin, 4-pin, 120 pieces in total.
• 360 Pieces 2.0 mm pitch JST HY T-shaped Crimp Terminal.
• JST HY 2.0 mm pitch wire connection terminal IC female sockets housing, 40 pieces each for 2-pin, 3-pin, 4-pin, 120 pieces in total.

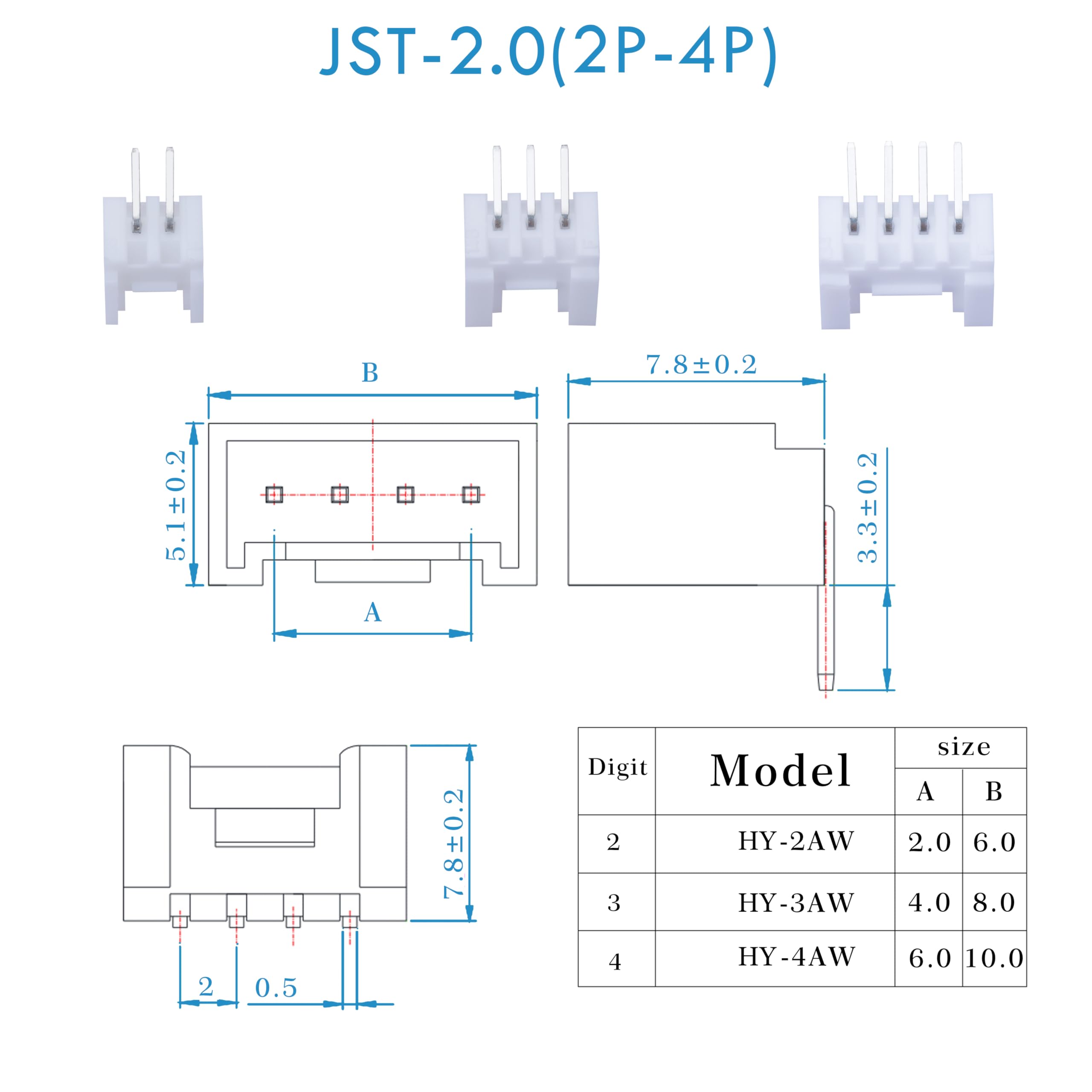

• JST 2.0 mm (0.079 inch) B2B / B3B / B4B-HY-SMD-K-S shrouded socket with through hole.

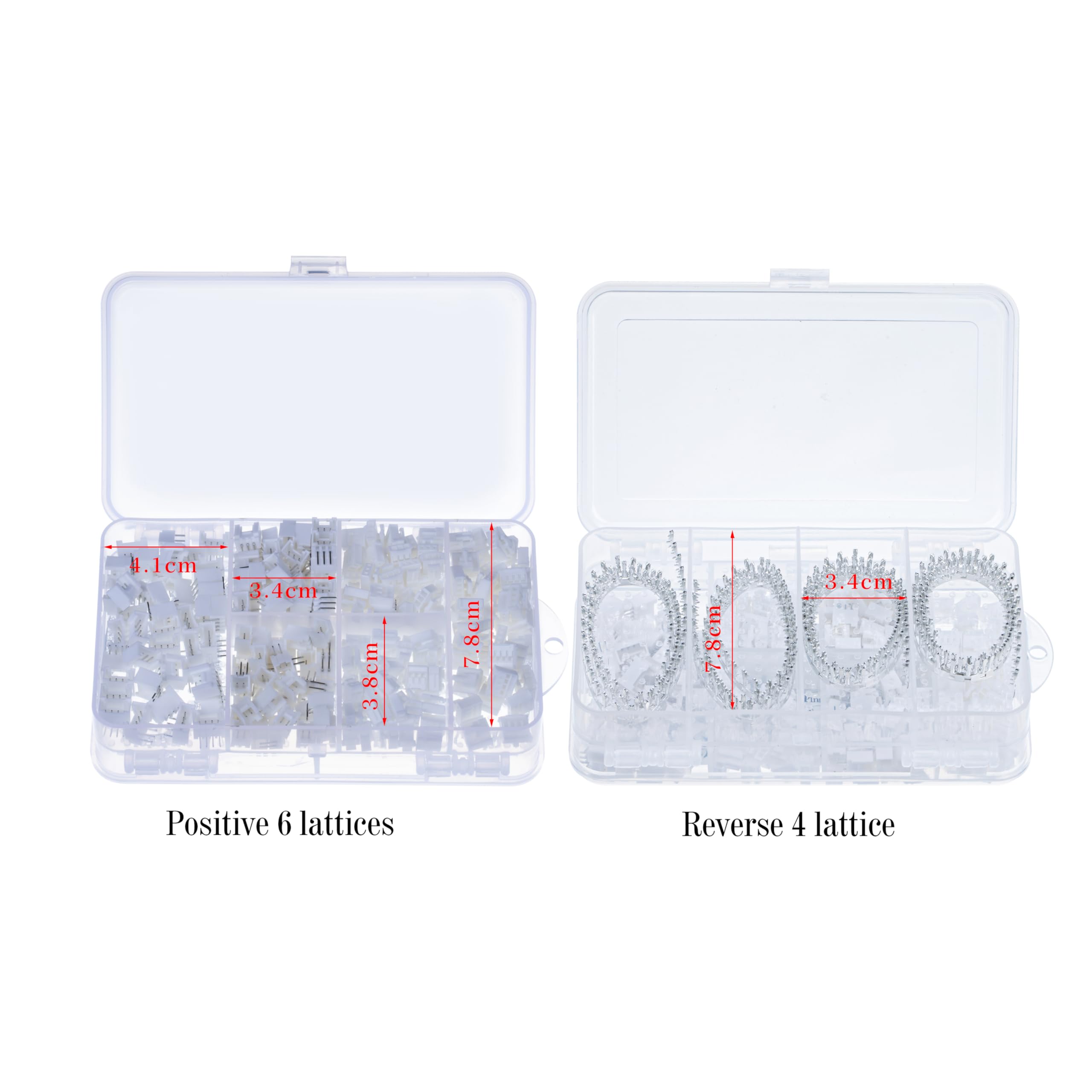

• 600 pieces / 120 sets JST HY SMD 2.0 mm pitch 2 pin / 3 pin / 4 pin wiring connecting IC male plugs, female sockets housing and T-shaped crimp terminal kit. PP plastic double sided compartment parts box - 10 compartments package.

With the development of industrial electronic integrated circuits, there are various IC sockets and plug adapter connectors in electronic equipment. Currently, failures due to faulty IC sockets and connectors account for more than 37% of all equipment failures. The IC sockets and plugs of the JST connector play the role of conducting electricity and connecting signals in electronic equipment. IC sockets and plugs make specialization, part replacement, troubleshooting and quick assembly. Due to their stronger and more reliable characteristics, they are used in various devices. APPLICATION - Industrial production - Electronic integration - Computer application - Medical equipment SPECIFICATION - Model: JST PA SMT 2 pin / 3 pin / 4 pin - Pitch: 2 mm (0.079 inches) - Rated Current: 3 A AC, DC (AWG #22) - Nominal voltage: 250 V AC, DC - Temperature range: -25°C to 85°C (including temperature increase when power on) - Contact resistance: initial value/10m Ohm maximum; after environmental test/20m Ohm max - Insulation Resistance: 1000M ohms minimum - Hold voltage: 800V AC/minute. - Applicable wire: AWG#28 to AWG#22 - Compatible PC Card Thickness: 1.6 mm (0.063 inch) DISTRIBUTION LIST 1 x JST PA SMT 2.0 mm pitch 2/3/4 pin connector suite (120 sets/600 pieces).
