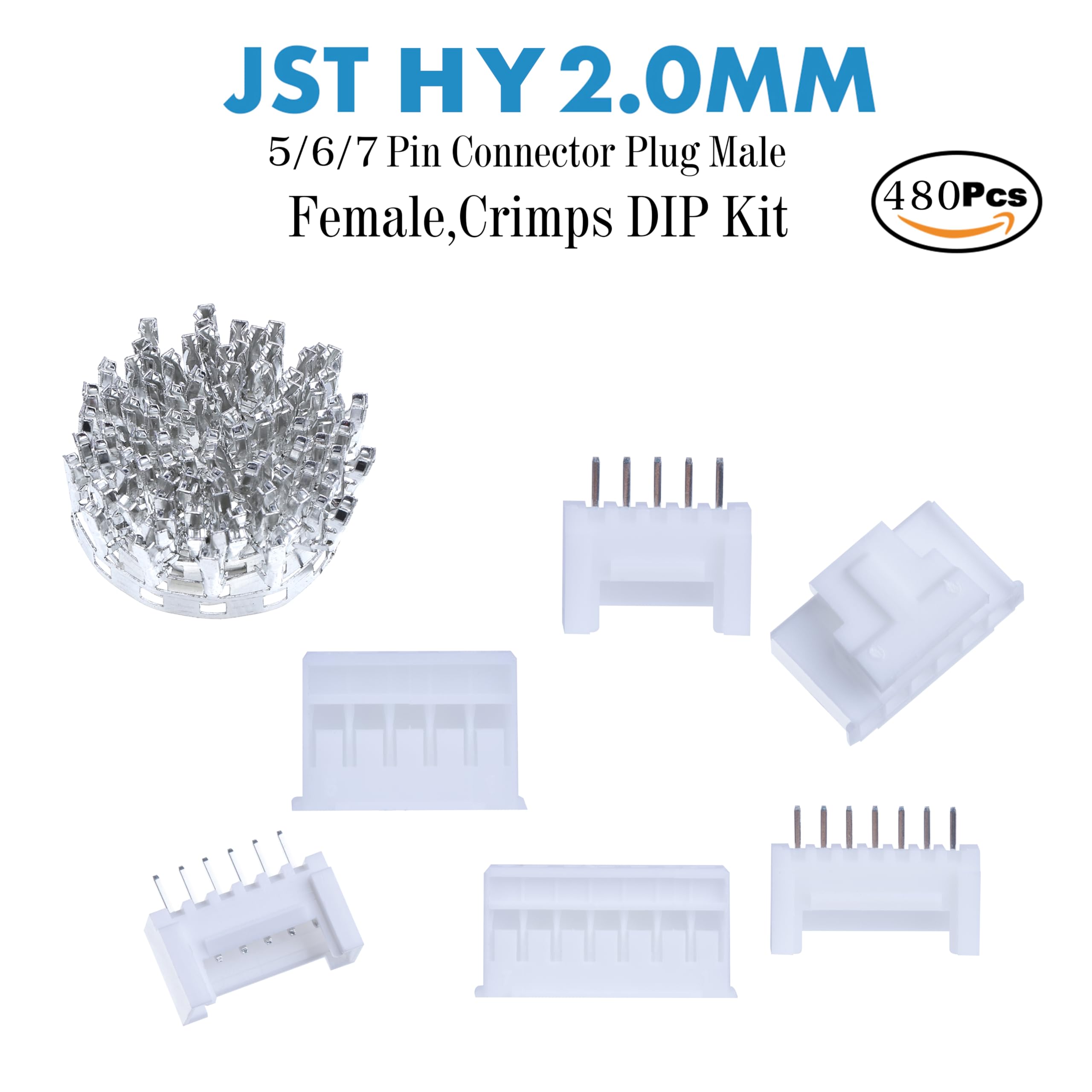

CQRobot JST HY 2.0 mm Pitch 5-Pin/6-Pin/7-Pin Electronic Connector IC Male Plugs, Female Sockets Housing and T-Shaped Crimp Terminal. 60 Sets/480 Pieces Wire-to-Board Adapter Cable Assembly.

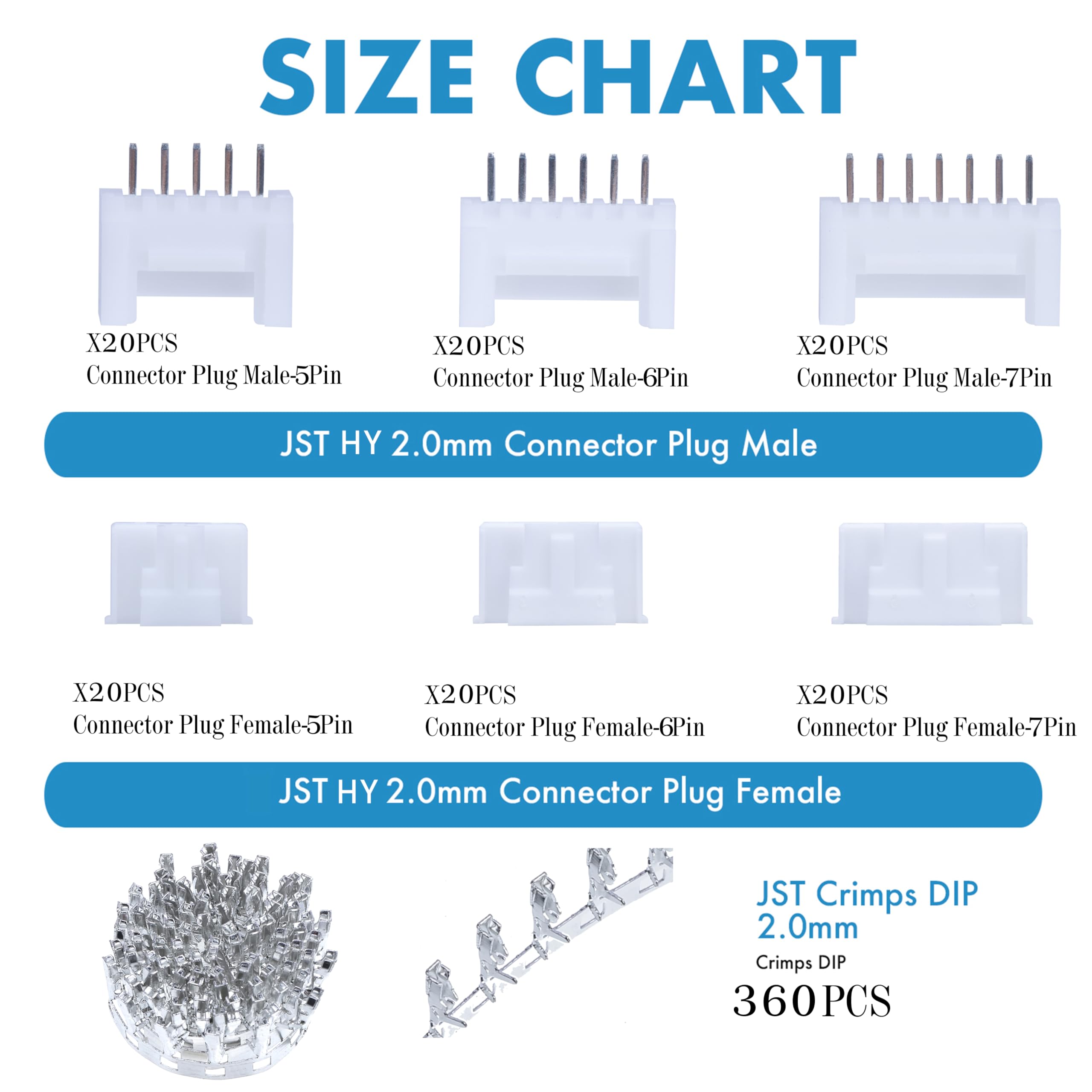

• JST HY 2.0 mm pitch wire connection terminal IC male plug, 20 Pieces each for 5-pin, 6-pin, 7-pin, 60 pieces in total.

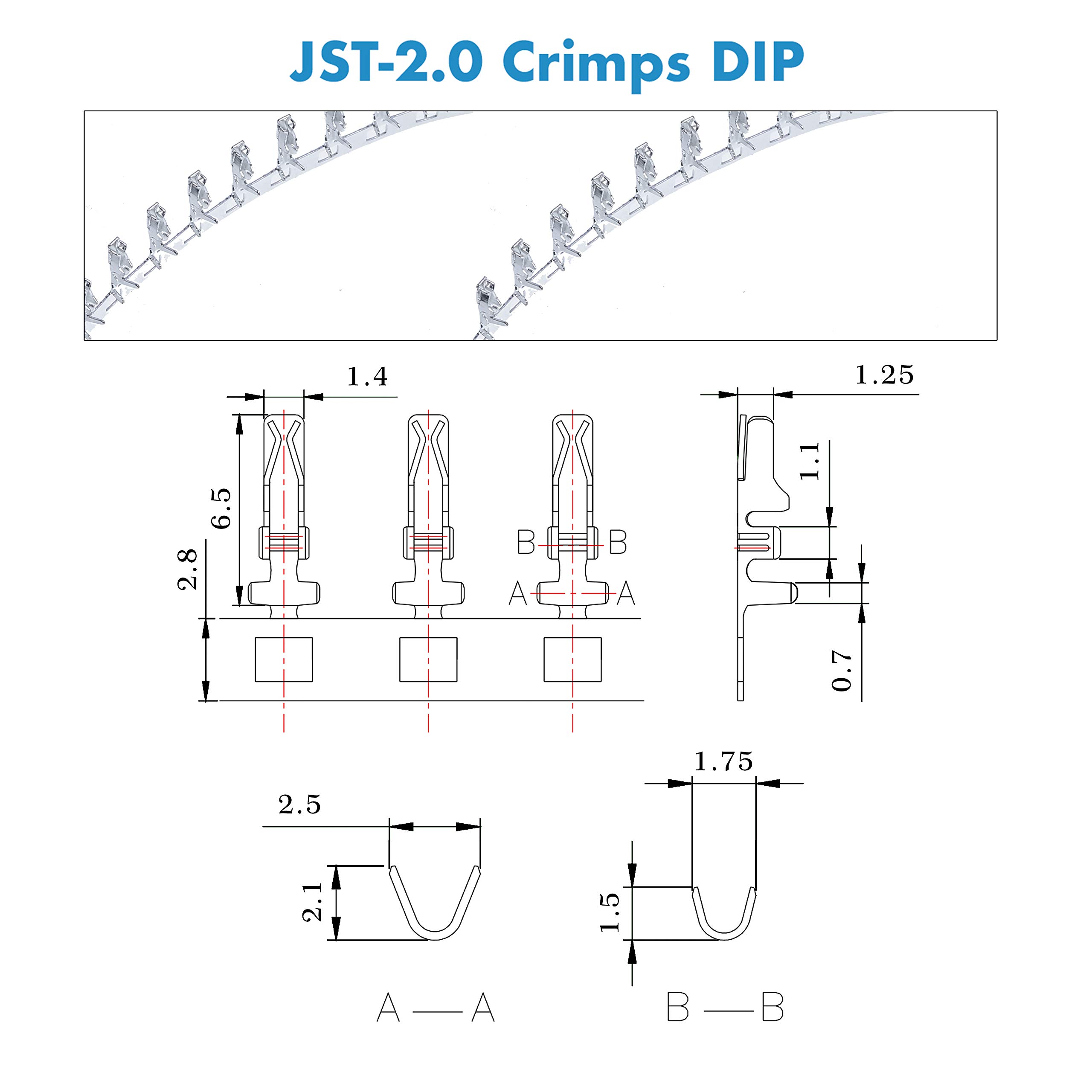

• 360 Pieces 2.0 mm pitch JST HY T-shaped Crimp Terminal.
• JST HY 2.0 mm pitch wire connection terminal IC female sockets housing, 20 pieces each for 5-pin, 6-pin, 7-pin, 60 pieces in total.

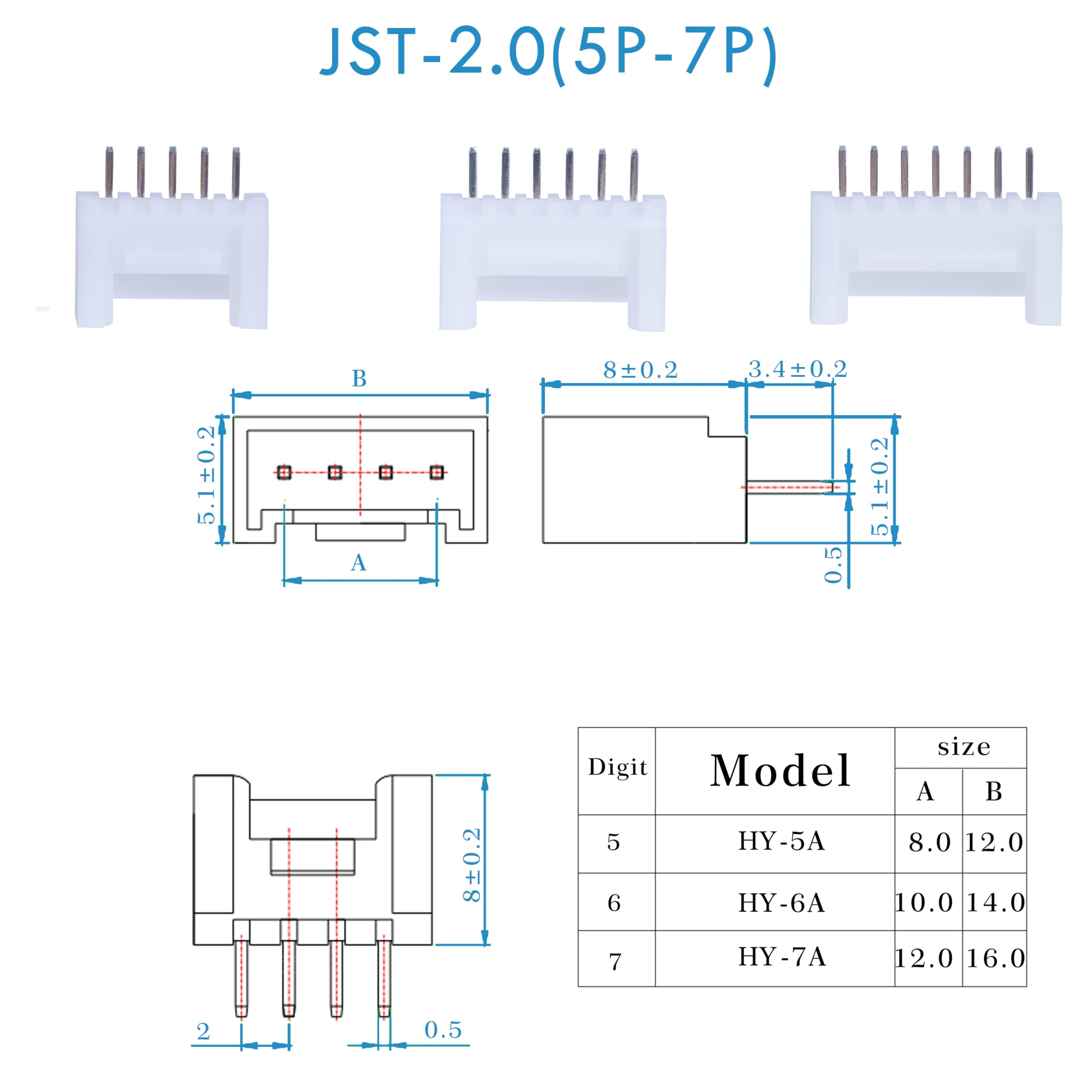

• JST 2.0 mm (0.079 inch) B5B / B6B / B7B-HY-K-S shrouded socket with through hole.

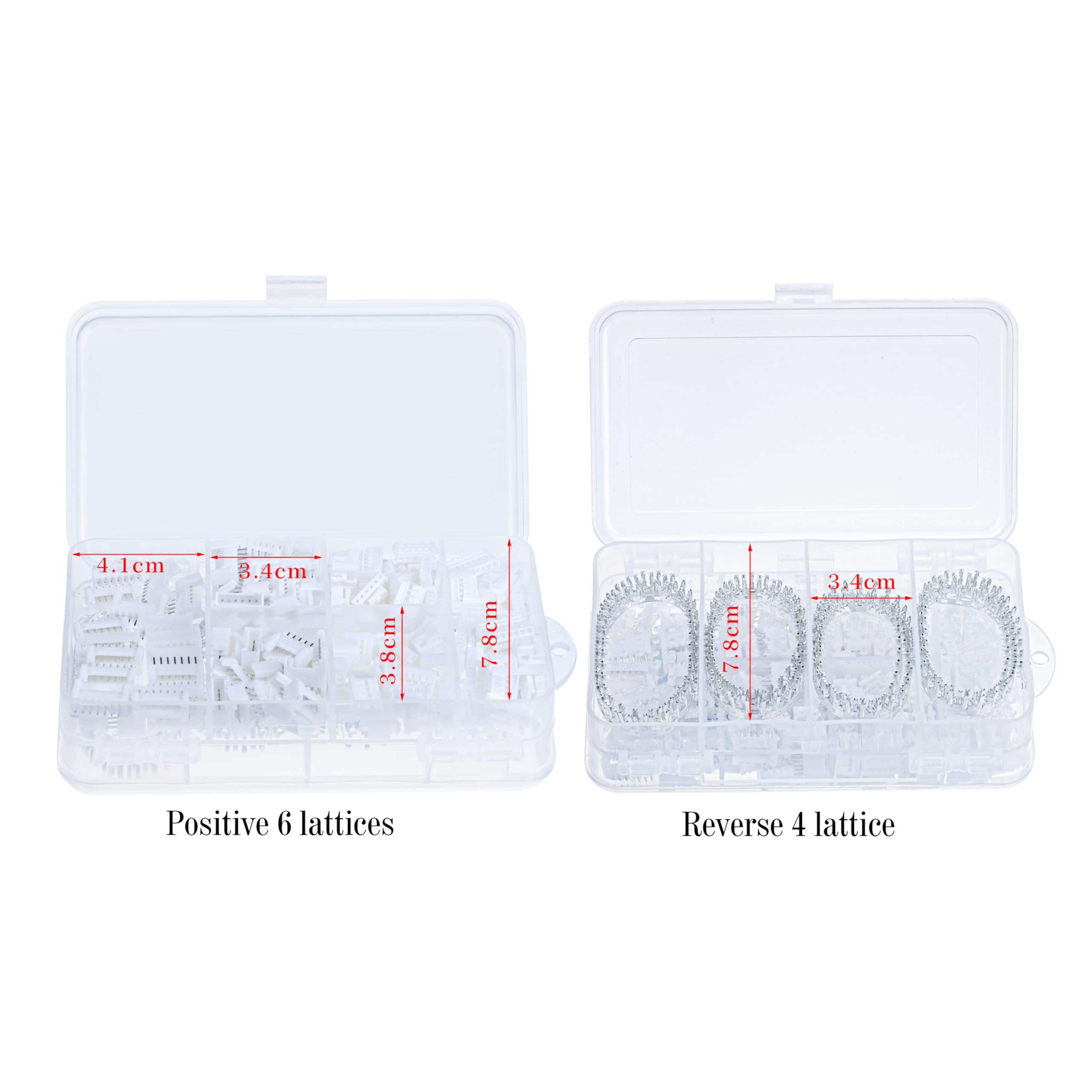

• 480 pieces / 60 sets JST HY 2.0 mm pitch 5 pin / 6 pin / 7 pin wiring connecting IC male plugs, female sockets housing and T-shaped crimp terminal kit. PP plastic double sided compartment parts box - 10 compartments package.

With the development of industrial electronic integrated circuits, there are various IC sockets and plug adapter connectors in electronic equipment. Currently, failures due to defective IC sockets and plug connectors account for more than 37% of all equipment failures. connector IC sockets and plugs play the role of conducting electricity and connecting signals in electronic equipment. IC sockets and plugs facilitate specialization, parts replacement, troubleshooting and quick assembly. Due to their stronger and more reliable characteristics, they are used in various devices. APPLICATION - Industrial Production - Electronic Integration - Computer Application - Medical Equipment SPECIFICATION - Model: JST HY 5 pin / 6 pin / 7 pin - Pitch: 2.0 mm (0.079 inch); - Current Rating: 3A AC/DC (AWG #22); - Voltage Rating: 250V AC/DC; - Temperature Range: -25 Degree Celsius to +85 Degree Celsius(including temperature rise in applying electrical current); - Contact Resistance: Initial value / 10 Milliohm max; After Environmental Testing / 20 Milliohm max; - Insulation Resistance: 1000 Megaohm above; - Withstanding Voltage: 800V AC/one minute; - Applicable Wire: AWG#22 to AWG#28 - Applicable PCB thickness: 1.6mm. (0.063 inches) DISTRIBUTION LIST 1 * JST HY 2.0 mm Pitch 5-Pin/6-Pin/7-Pin Wiring Connecting IC Male Plugs, Female Sockets Housing and T-shaped Crimp Terminal Kit. (60 sets / 480 pieces)
