CoCud Thread Milling Taps, Metric M16 x 2 Thread, Titanium Coated Machine 4 Straight Flutes Screw Threading Tool - (Applications: for Tapping Drilling Machine), 1-Piece

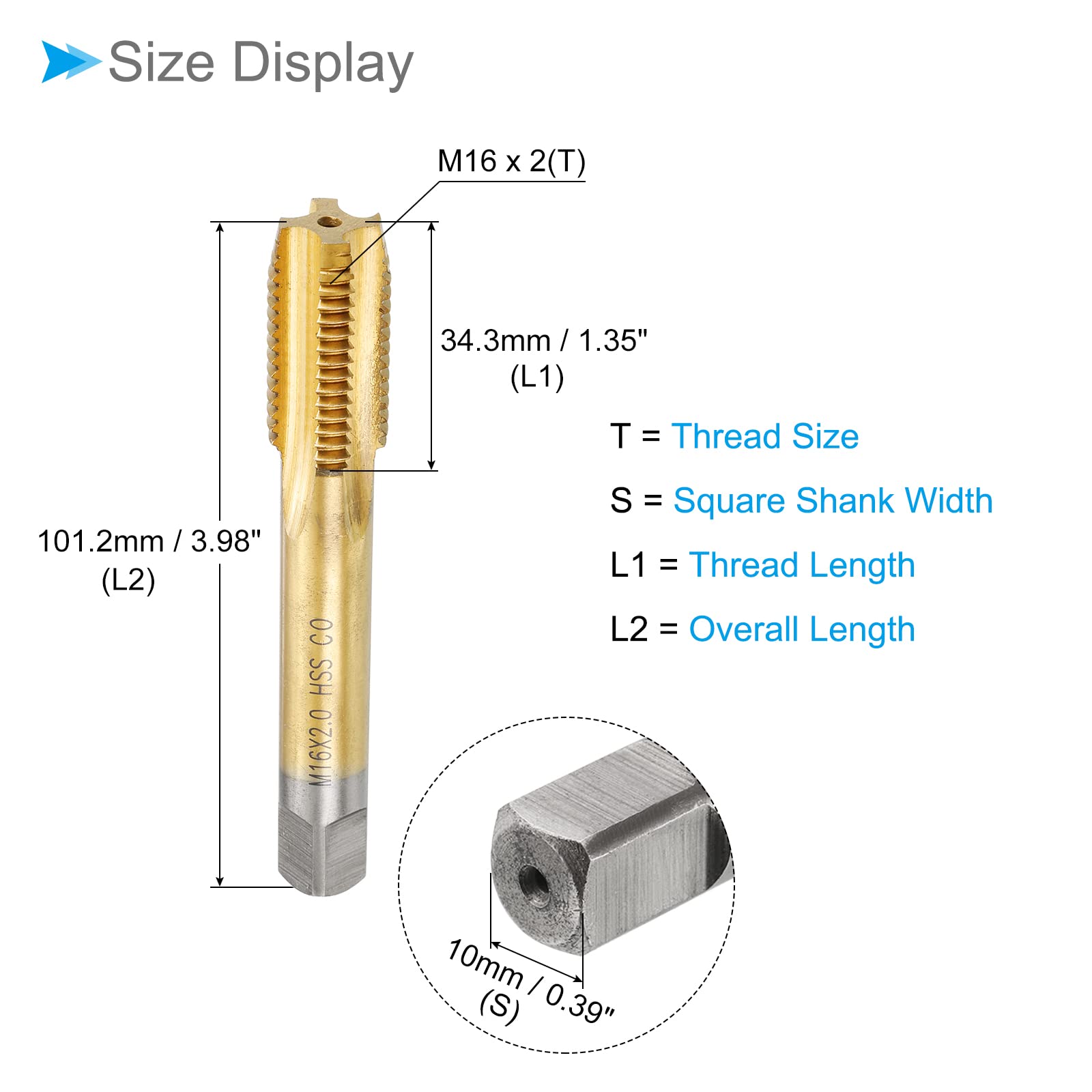

• ★ Thread Tap Size --- Thread size: M16 x 2 (right hand); square shank width: 10mm / 0.39"; thread length: 34.3mm / 1.35"; overall length: 101.2mm / 3.98"; accuracy: H2; flutes quantity: 4 flutes

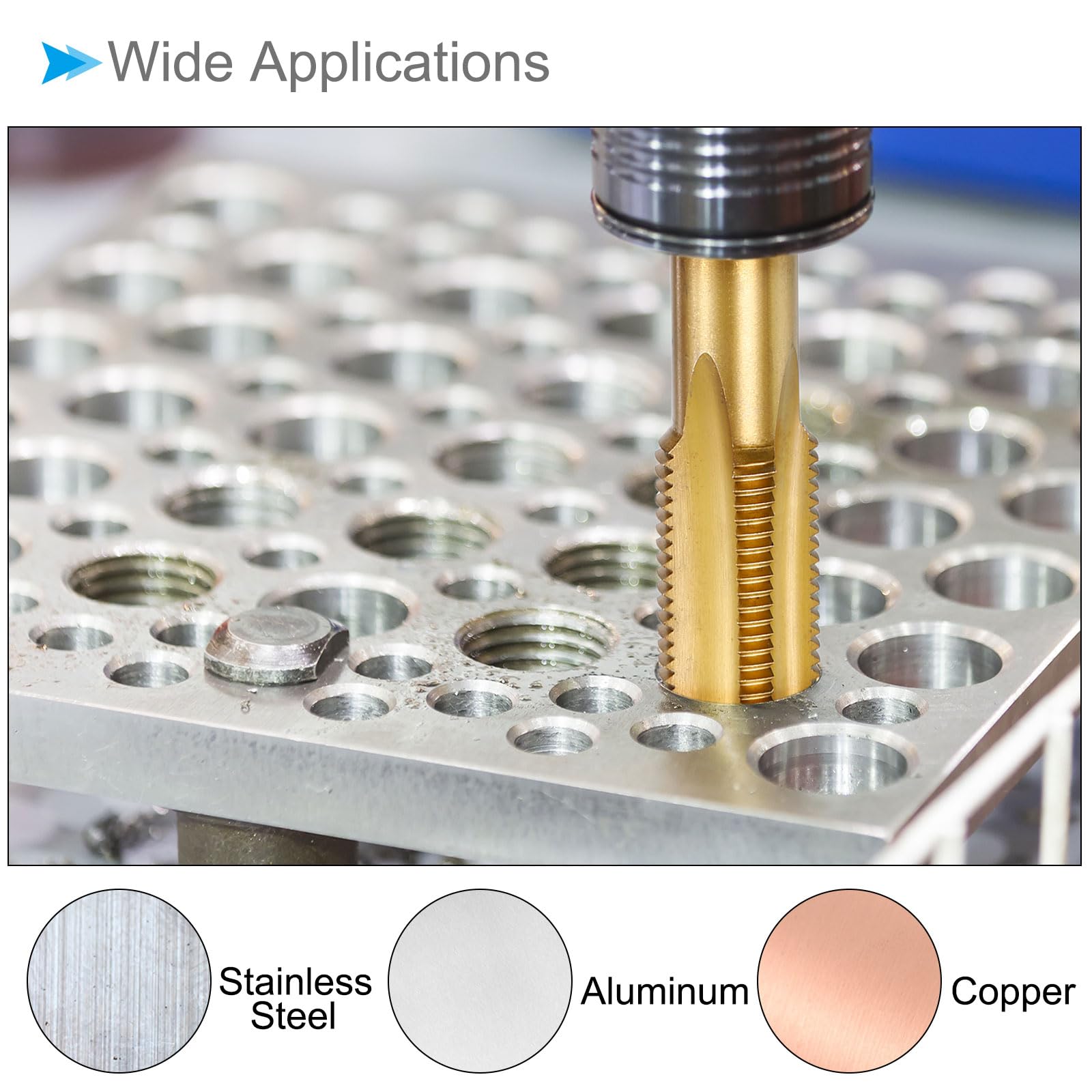

• ★ Wide Application --- For threading through holes or shallow blind holes. 4 straight flutes design, rapid downward chip removal. Make new female threads or re-thread damaged female threads in stainless steel, ordinary steel, copper, aluminum, iron, alloy steel, plastic.
• ★ Machine Taps --- Machine taps are used in tapping machines, vertical drilling and milling machines. Straight flute taps are often used for machining short chip materials such as gray cast iron. Drill holes with a twist drill before tapping. Add appropriate tapping oil for higher quality internal threads and more durable taps.

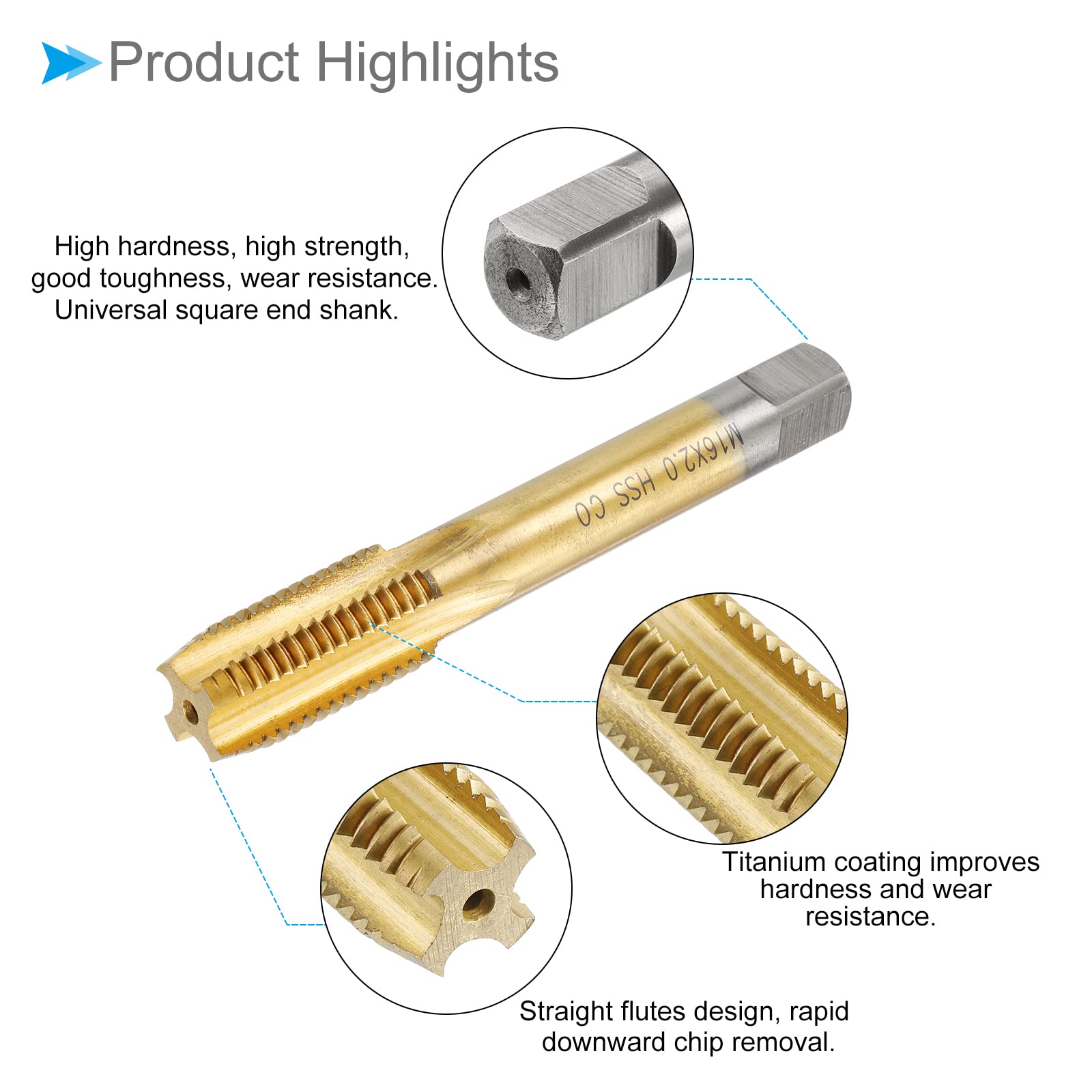

• ★ High Speed Steel --- The high speed steel tool has high hardness, high strength, good toughness, wear resistance, and heat resistance. Titanium (TiN) coating greatly improves hardness and wear resistance, reduces friction coefficient.
• ★ Useful Tips --- Machine tap is recommended for use with tap chucks with overload protection. Using a hand or electric drill can easily cause tap to break and is not recommended. Due to speed overload or non-vertical tapping, chipping or breakage may easily occur.

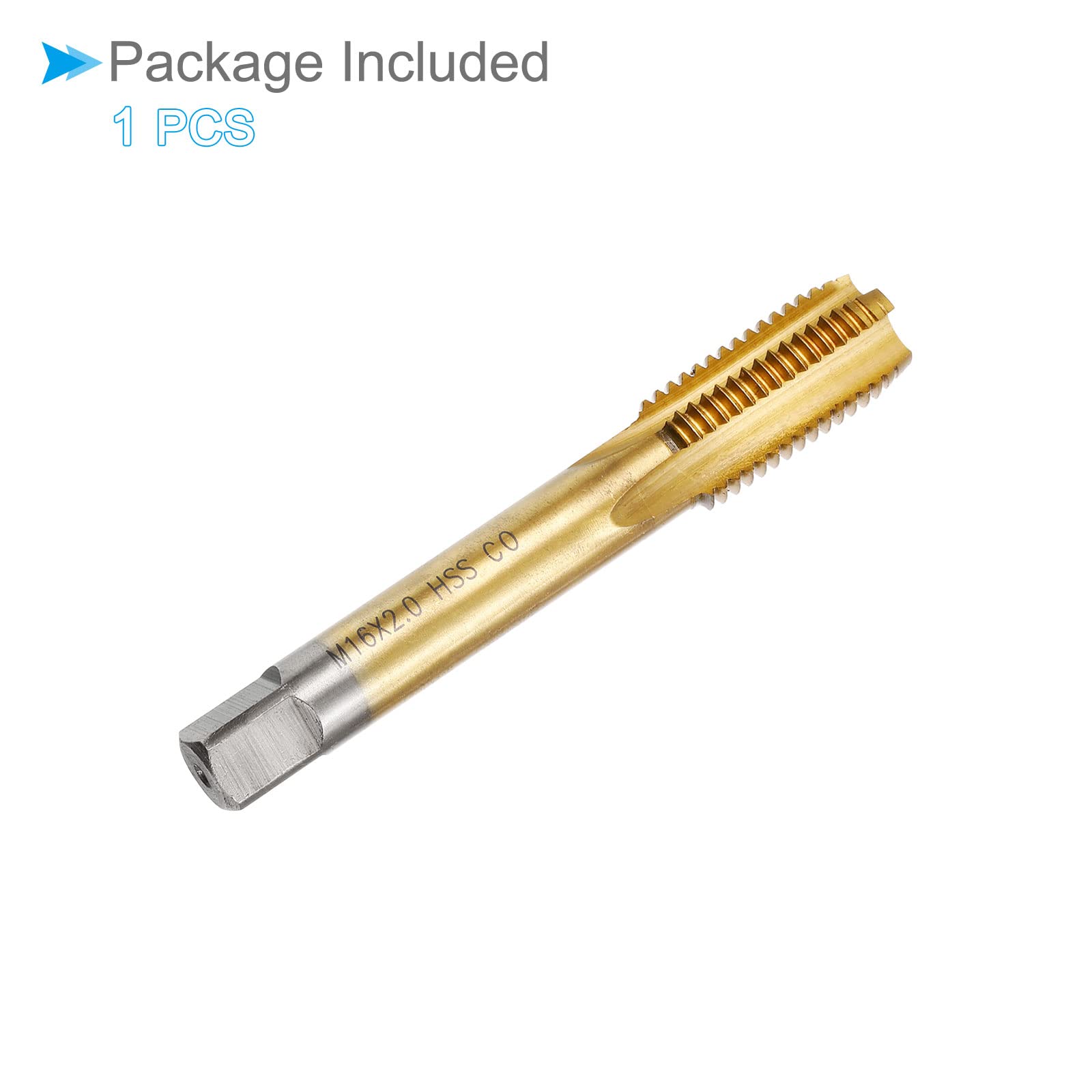

Attributes: * Thread Size: M16 x 2 (Right Hand) * Square Shank Width: 10mm / 0.39" * Thread Length: 34.3mm / 1.35" * Overall Length: 101.2mm / 3.98" * Accuracy: H2 * Material: High Speed Steel * Finish: Titanium Coated * Flutes Quantity: 4 Flutes What Is Included: * 1 Piece x Thread Milling Taps Applications & Features: --- Suitable for threading through holes or shallow holes. 4 straight flutes design, rapid downward chip removal. Straight flute taps are often used for machining short chip materials such as gray cast iron. Make new female threads or re-thread damaged female threads in stainless steel, ordinary steel, copper, aluminum, iron, alloy steel, hard plastic. Machine taps are used in tapping machines, vertical drilling and milling machines. --- The high speed steel tool has high hardness, high strength, good toughness, wear resistance, and heat resistance. Titanium (TiN) coating greatly improves hardness and wear resistance, reduces friction coefficient. The tapping depth should not be over 1.5 times the diameter of the tap (eg: diameter=6mm (M6), maximum tapping depth=9mm). Drill holes with a twist drill before tapping. The tapping angle should be 90 degrees vertical and stable. Useful Tips: --- Control speed based on material hardness. Feed rate (recommended): ordinary steel (copper aluminium alloy): 6-15m/min; hard steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The higher the hardness, the slower the speed. Fast speed and low torque; slow speed and high torque. When tapping plastic, add lubricating coolant. For steel, motor oil is generally used, and vegetable oil is used for high requirements. Use No. 30 motor oil for stainless steel.
