CoCud Tap and Die Set, M5 x 0.8 Thread, Left Hand Metric High-Speed Steel Machine Screw Tap & Round Die Tool Kit - (Applications: for Threading Tapping Repairing), 1-Set

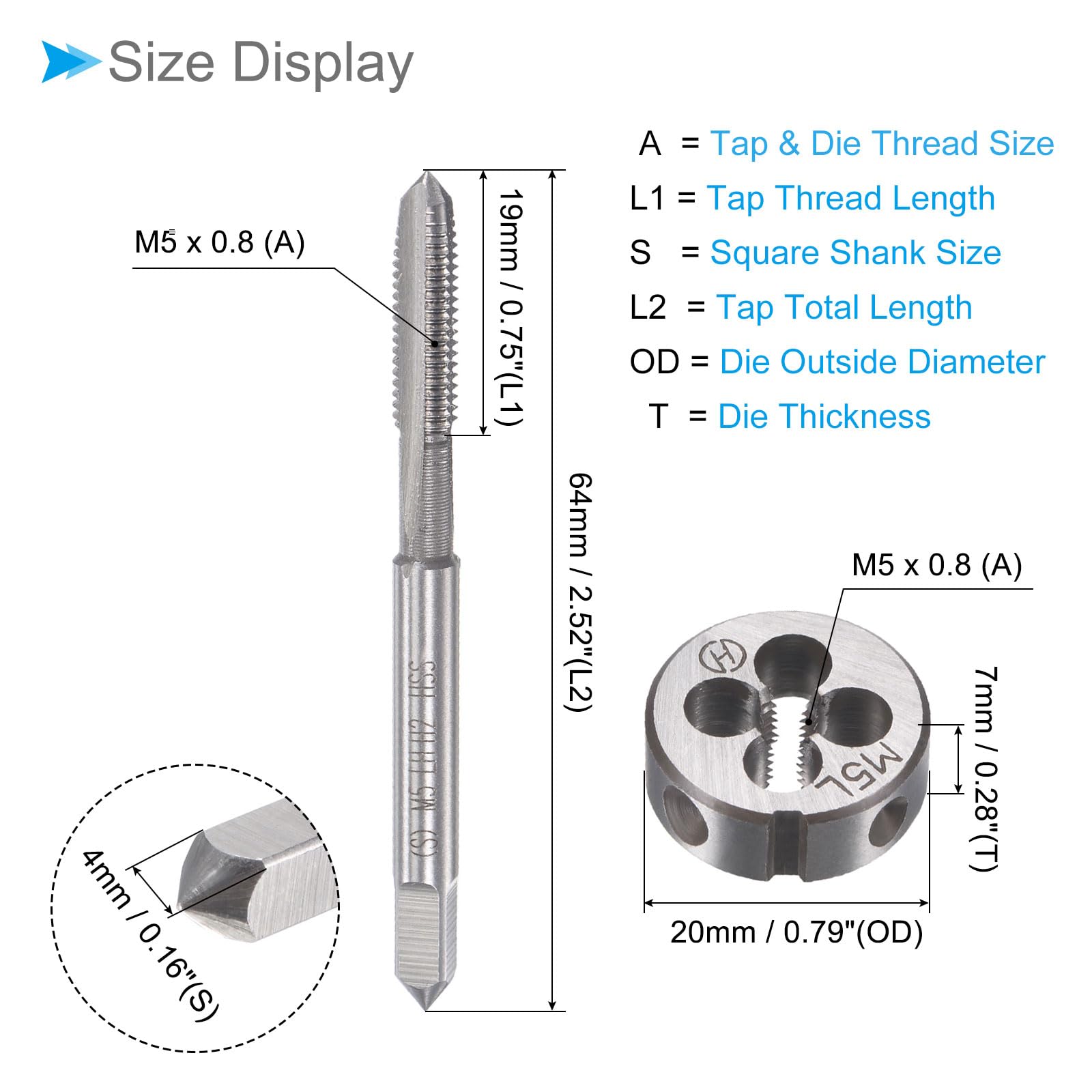

• ★ Tap and Die Set Size --- Tap & die thread size: M5 x 0.8; tapping direction: left hand; tap accuracy: H2; square shank size: 4mm / 0.16"; tap thread length: 19mm / 0.75"; tap total length: 64mm / 2.52"; die outside diameter: 20mm / 0.79"; die thickness: 7mm / 0.28"
• ★ Wide Applications --- Repair damaged threads or create new threads in stainless steel, aluminum alloy, cast iron, copper, iron, aluminum, and plastic. The thread tap is used for tapping internal threads in through holes or shallow blind holes, such as threads in nuts, threaded inserts, pipes, valves, and the round die can process, correct or clean external threads on rods or bars, bolts or studs.

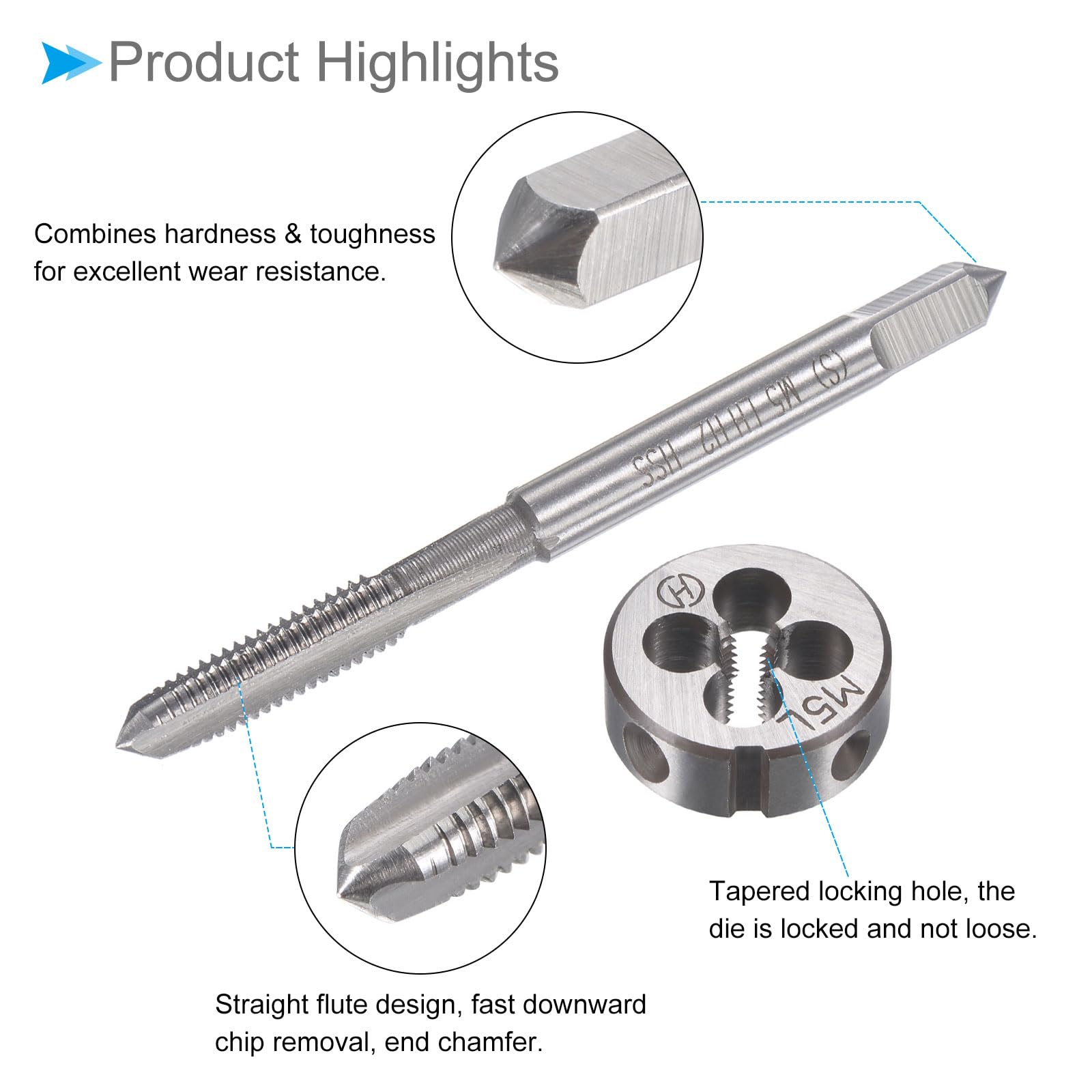

• ★ Ease of Use --- The machine tap is designed with straight flutes and fast downward chip removal, suitable for tapping machines, drilling machines, CNC and milling machines. The die locks firmly and will not loosen, use with the die handle or adjustable wrench to apply pressure and rotate the die around the component to produce the desired threads.
• ★ High-speed Steel & Alloy Tool Steel --- The high-speed steel (hss) tap combines hardness and toughness, with excellent wear resistance and durability. The 9SrCi alloy tool steel round die has high torque, good wear resistance and durability. Produce clear & accurate threads.
• ★ Useful Tips --- Apply a suitable lubricant helps to prolong the tool life, reduce friction, and improve thread quality. Make sure the tap or die is properly aligned with the workpiece and has enough clearance to remove chips. Always use the correct speed and pressure. Reverse every half turn or so to break up chips and prevent binding.

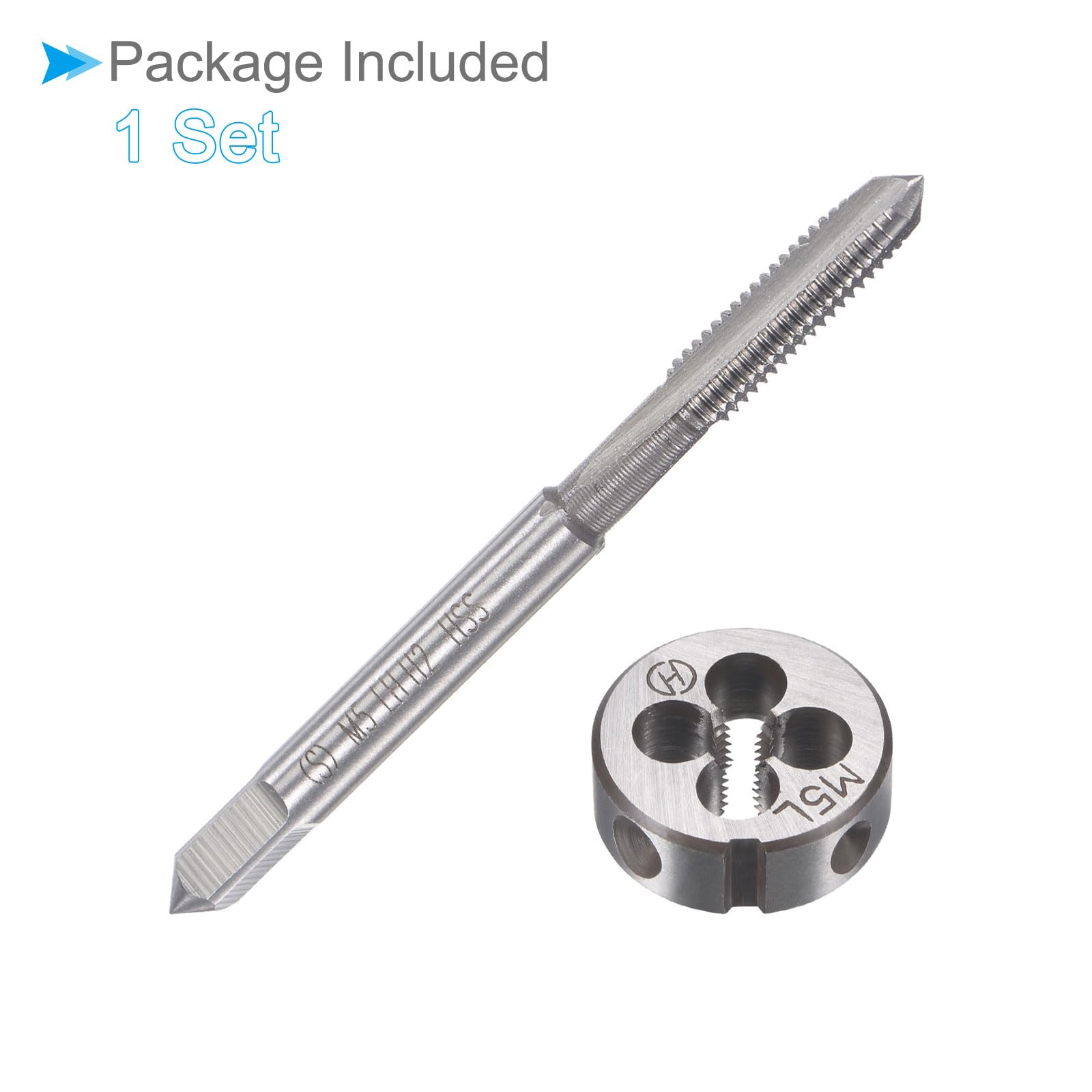

Attributes: * Tap & Die Thread Size: M5 x 0.8 (Left Hand) * Tap Accuracy: H2; * Square Shank Size: 4mm / 0.16"; * Tap Thread Length: 19mm / 0.75"; * Tap Total Length: 64mm / 2.52"; * Die Outside Diameter: 20mm / 0.79"; * Die Thickness: 7mm / 0.28" What Is Included: * 1 Piece x Thread Tap, 1 Piece x Round Die Applications & Features: --- The tap and die set can be used to repair damaged threads or create new threads in maintenance and repair work, suitable for processing stainless steel, aluminum alloy, cast iron, copper, iron, aluminum, and plastic. The thread tap is used for tapping internal threads in through holes or shallow blind holes, such as threads in nuts, threaded inserts, pipes, valves, parts, and the round die is used for processing, correcting or cleaning external threads on rods or bars, bolts or studs. --- The high-speed steel (hss) tap combines hardness and toughness, with excellent wear resistance and durability, straight flute design, fast downward chip removal, and the end chamfer helps guide the tap into the hole and start the thread. The machine tap is used on tapping machines, drill presses, CNC and milling machines. --- The 9SrCi alloy tool steel round die has high torque, good wear resistance and durability. Designed with a tapered locking hole, the die locks firmly and does not loosen when cutting external threads. Used with a die handle or adjustable wrench to apply pressure and rotate the die around the component to produce the desired threads. Useful Tips: --- Apply a suitable lubricant helps to prolong the tool life, reduce friction, and improve thread quality. Make sure the tap or die is properly aligned with the workpiece and has enough clearance to remove chips. Always use the correct speed and pressure.
