CoCud Metric Tap and Die Set, M16 x 2 Thread, Ti-Coated Spiral Flute Screw Tap & Round Die Tool Kit - (Applications: for Threading Tapping Repairing), 1-Set

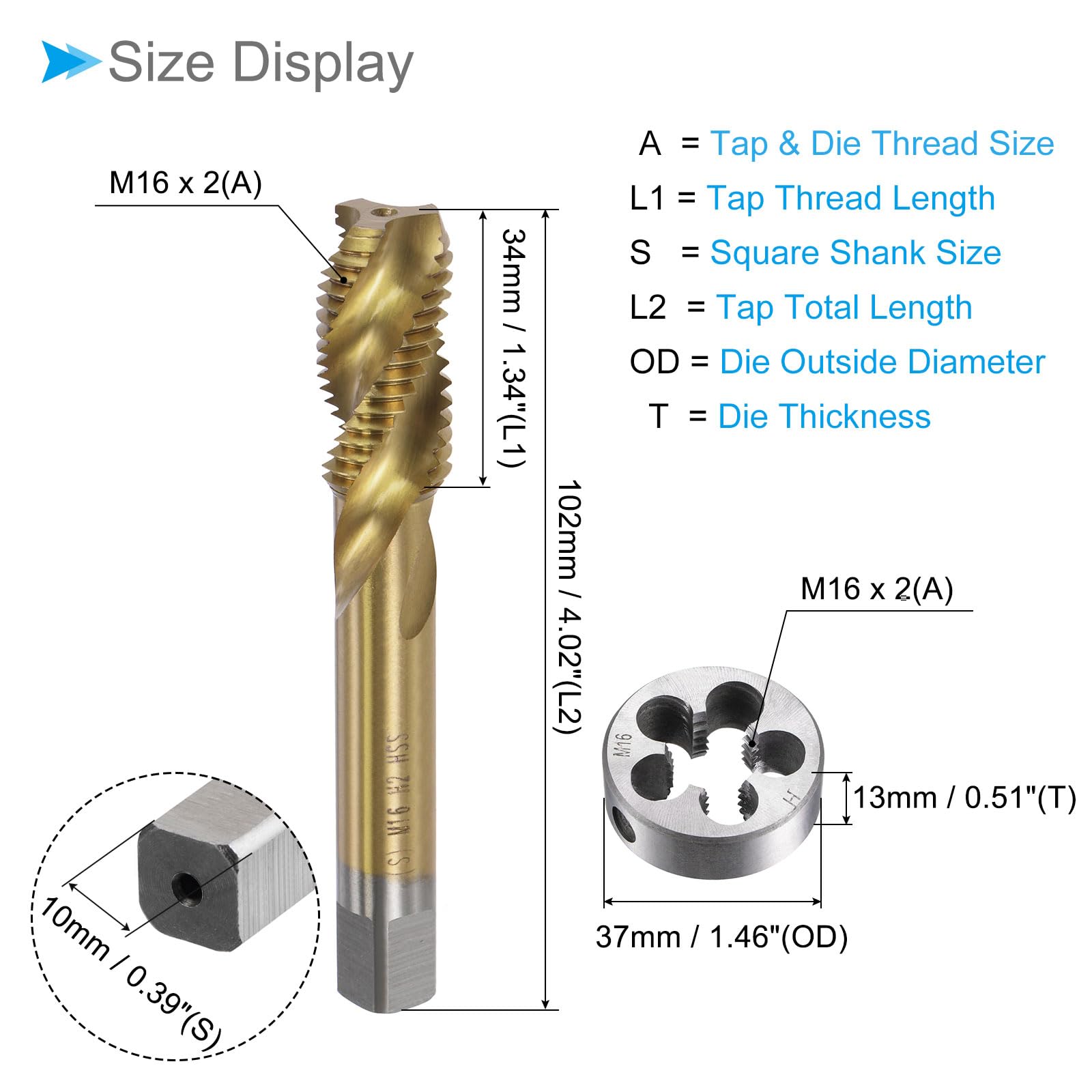

• ★ Tap and Die Set Size --- Tap & die thread size: M16 x 2 (right hand); tap accuracy: H2; square shank size: 10mm / 0.39"; tap thread length: 34mm / 1.34"; tap total length: 102mm / 4.02"; die outside diameter: 37mm / 1.46"; die thickness: 13mm / 0.51"

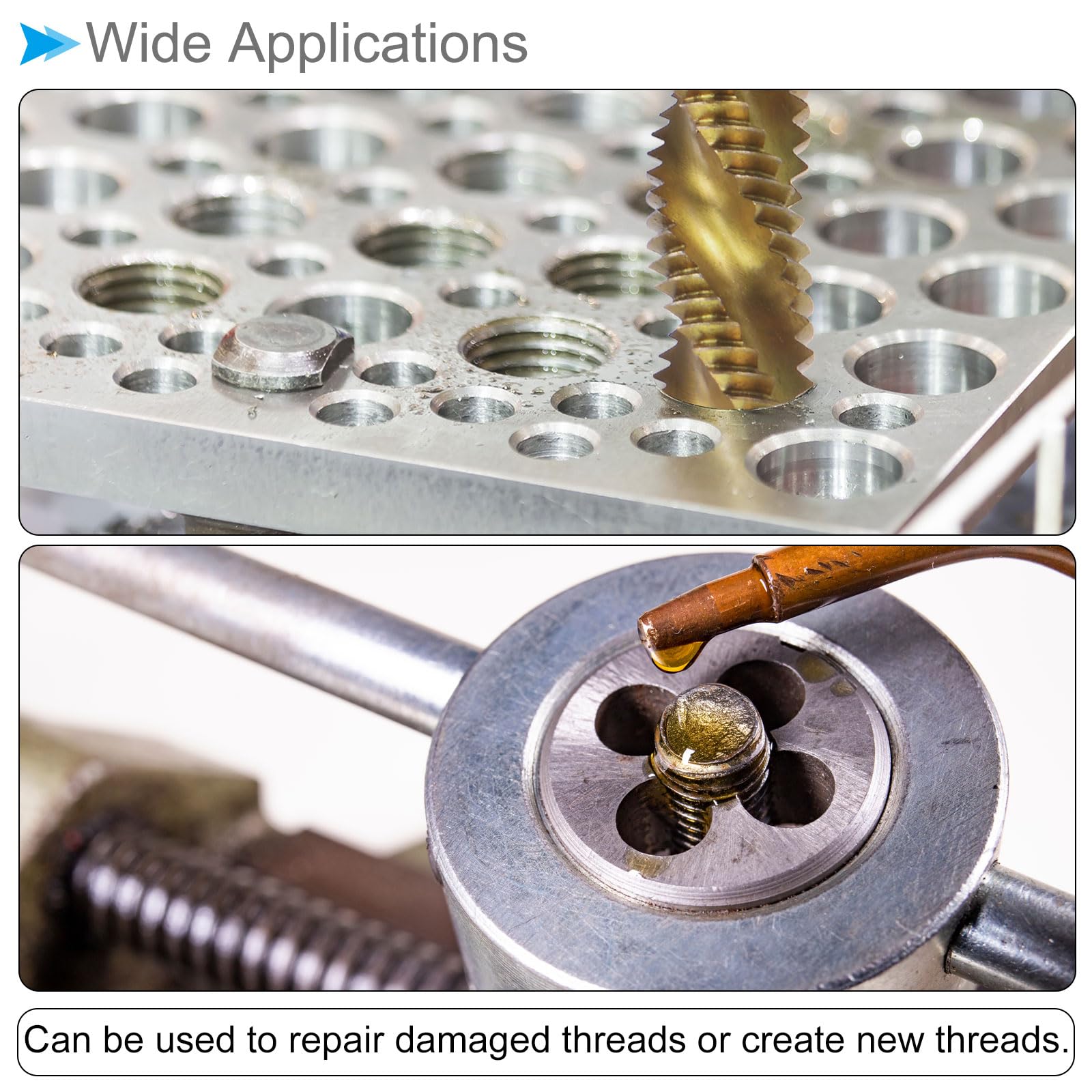

• ★ Wide Applications --- Repair or create new threads in stainless steel, aluminum alloy, cast iron, copper, iron, aluminum, and plastic. The tap is used for tapping blind or deep holes and sticky materials, such as threads in nuts, threaded inserts, pipes, valves, and the round die is used to process, correct or clean threads on rods or bars, bolts or studs.

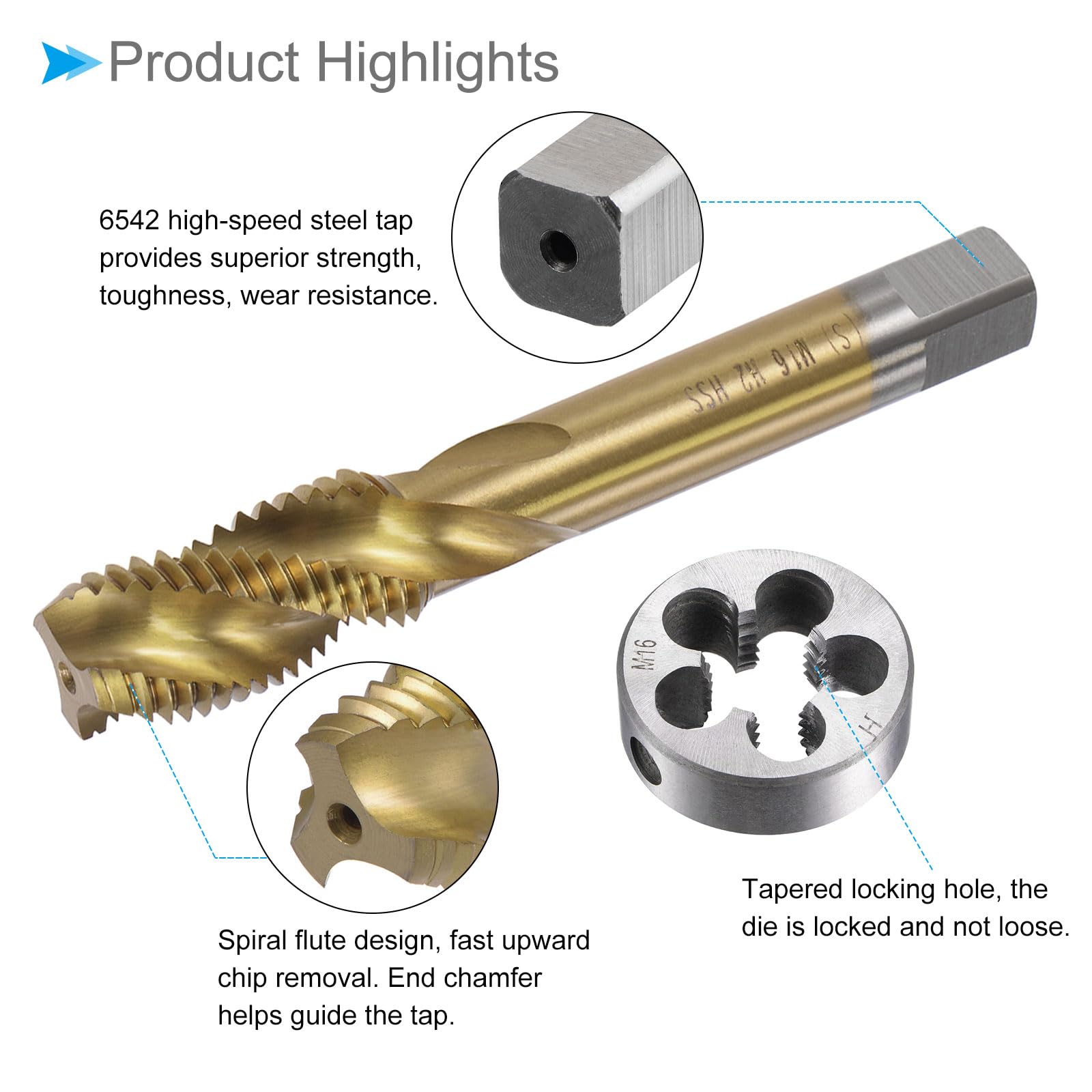

• ★ Ease of Use --- Spiral flute design, fast upward chip removal, and the end chamfer helps guide the tap. The machine tap works with drill presses, tapping and milling machines, CNC. The die locks firmly and will not loosen, use with the die handle or adjustable wrench to apply pressure and rotate the die around the component.
• ★ High-speed Steel & Alloy Tool Steel --- Made of 6542 high-speed steel (5% cobalt), the tap provides superior strength, toughness, wear resistance, high heat resistance, corrosion resistance, and high precision. Titanium coating increases wear resistance, corrosion resistance. The 9SrCi alloy tool steel round die has high torque, good wear resistance and durability.
• ★ Useful Tips --- Apply a suitable lubricant helps to prolong the tool life, reduce friction, and improve thread quality. Make sure the tap or die is properly aligned with the workpiece and has enough clearance to remove chips. Always Use the correct speed and pressure. Reverse every half turn or so to break up chips and prevent binding.

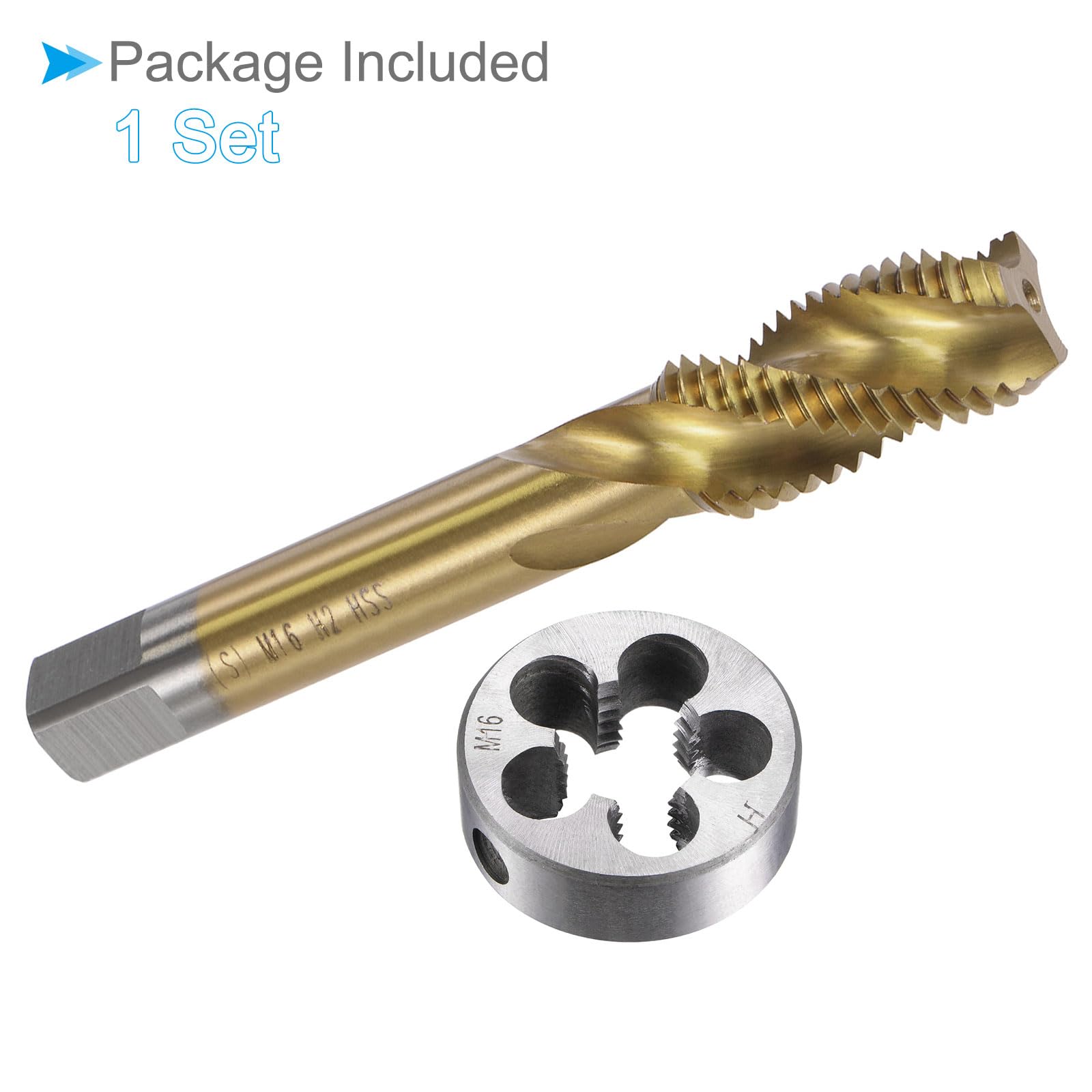

Attributes: * Tap & Die Thread Size: M16 x 2 (Right Hand) * Tap Accuracy: H2; * Square Shank Size: 10mm / 0.39"; * Tap Thread Length: 34mm / 1.34"; * Tap Total Length: 102mm / 4.02"; * Die Outside Diameter: 37mm / 1.46"; * Die Thickness: 13mm / 0.51" What Is Included: * 1 Piece x Spiral Flute Tap, 1 Piece x Round Die Applications & Features: --- The tap and die set can repair damaged threads or create new threads, suitable for processing stainless steel, aluminum alloy, cast iron, copper, iron, aluminum, and plastic. The thread tap is used for tapping blind or deep holes and sticky materials, such as threads in nuts, threaded inserts, pipes, valves, and the round die is used to process, correct or clean threads on rods or bars, bolts or studs. --- Made of 6542 high-speed steel (5% cobalt), the tap provides superior strength, toughness, wear resistance, high heat resistance, corrosion resistance, and high precision. Titanium coating increases hardness, wear resistance, corrosion resistance for higher performance and longer tool life. Spiral flute design, fast upward chip removal, and the end chamfer helps guide the tap. The machine tap works with drill presses, tapping and milling machines, CNC. --- The 9SrCi alloy tool steel round die has high torque, good wear resistance and durability. Designed with a tapered locking hole, the die locks firmly and does not loosen when cutting external threads. Used with a die handle or adjustable wrench to apply pressure and rotate the die around the component. Useful Tips: --- Apply a suitable lubricant helps to prolong the tool life, reduce friction, and improve thread quality. Make sure the tap or die is properly aligned with the workpiece and has enough clearance to remove chips. Always use the correct speed and pressure.
