CoCud Metric Tap and Die and Drill Bit Set, M6 x 1 Tap & Die Thread 5.0mm Drill Diameter, Left Hand Machine Screw Tap Tool Kit - (Applications: for Threading Tapping Repair)

• ★ Tap and Die and Drill Bit Set Size --- Tap & Die Thread Size: M6 x 1 (Left Hand); Tap Accuracy: H2; Tap Total Length: 70mm / 2.76"; Die Outside Diameter: 20mm / 0.79"; Die Thickness: 7mm / 0.28". Drill Bit Diameter: 5.0mm / 0.2"; * Overall Length: 86mm / 3.39"

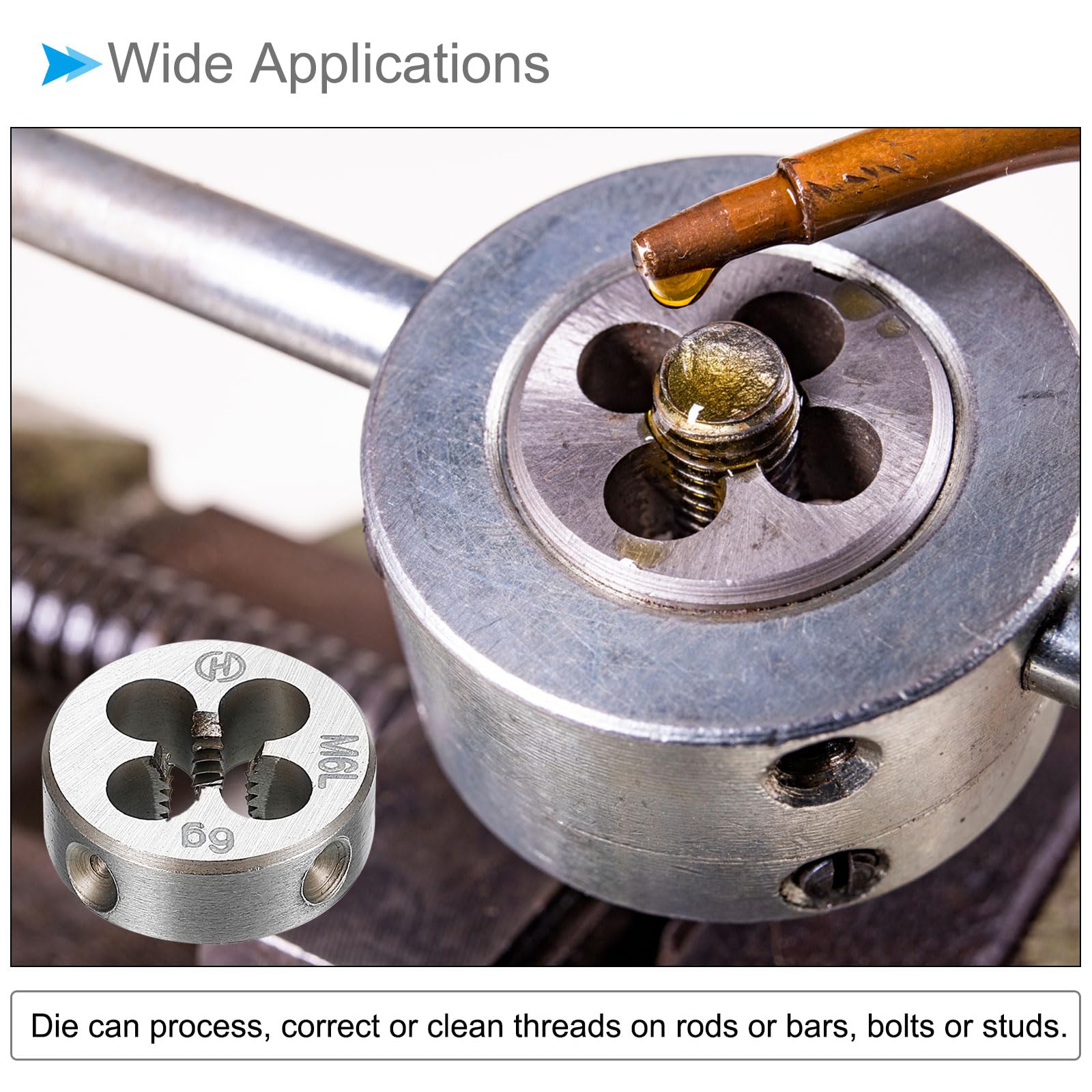

• ★ Wide Applications --- The tap & die & drill bit set can repair or create threads on stainless steel, aluminum alloy, cast iron, copper, iron, aluminum, plastic. The thread tap is used for tapping through holes or shallow blind holes, such as threads in nuts, threaded inserts, pipes. The die can process, correct or clean threads on rods or bars, bolts or studs.

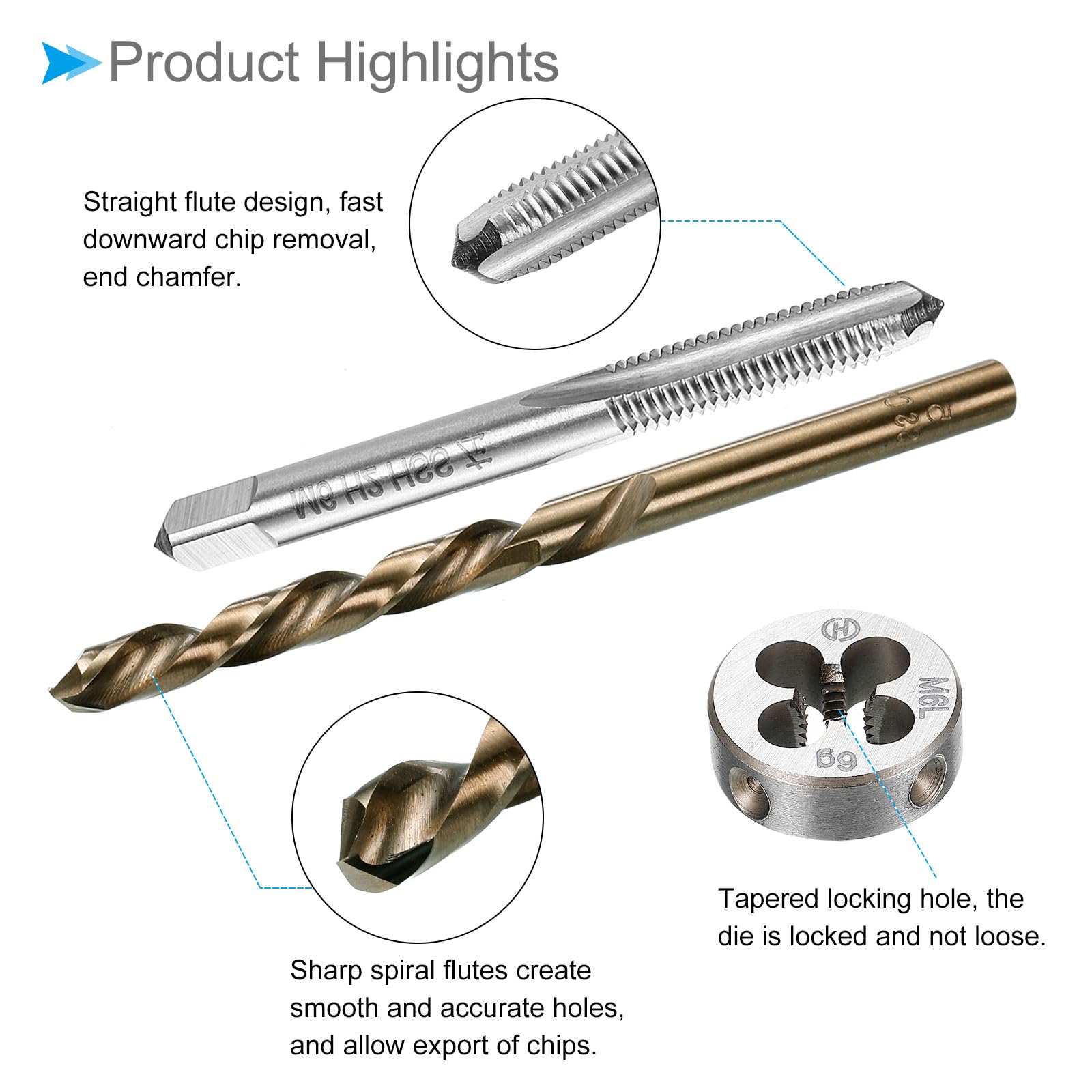

• ★ Ease of Use --- Machine straight flute tap provides fast downward chip removal for drill presses, CNC, tapping and milling machines. The die with a tapered locking hole locks firmly and does not loosen, used with a die handle or adjustable wrench. The drill bit with sharp spiral flutes creates smooth and accurate holes, and allows export of metal chips.
• ★ High-speed Steel & Alloy Tool Steel --- The 6542 high-speed steel (hss) tap combines hardness and toughness for excellent wear resistance and durability. The 9SrCi alloy tool steel round die has high torque, good wear resistance and durability. M35 5% cobalt high speed steel (hss-co) drill bit provides excellent wear resistance, durability, heat resistance.
• ★ Useful Tips --- Apply a suitable lubricant helps to prolong the life, reduce friction, and improve hole and thread quality. Drill a hole with the correct size drill bit before tapping. Make sure the tool is properly aligned with the workpiece and has enough clearance to remove chips. Always use the correct speed and pressure.

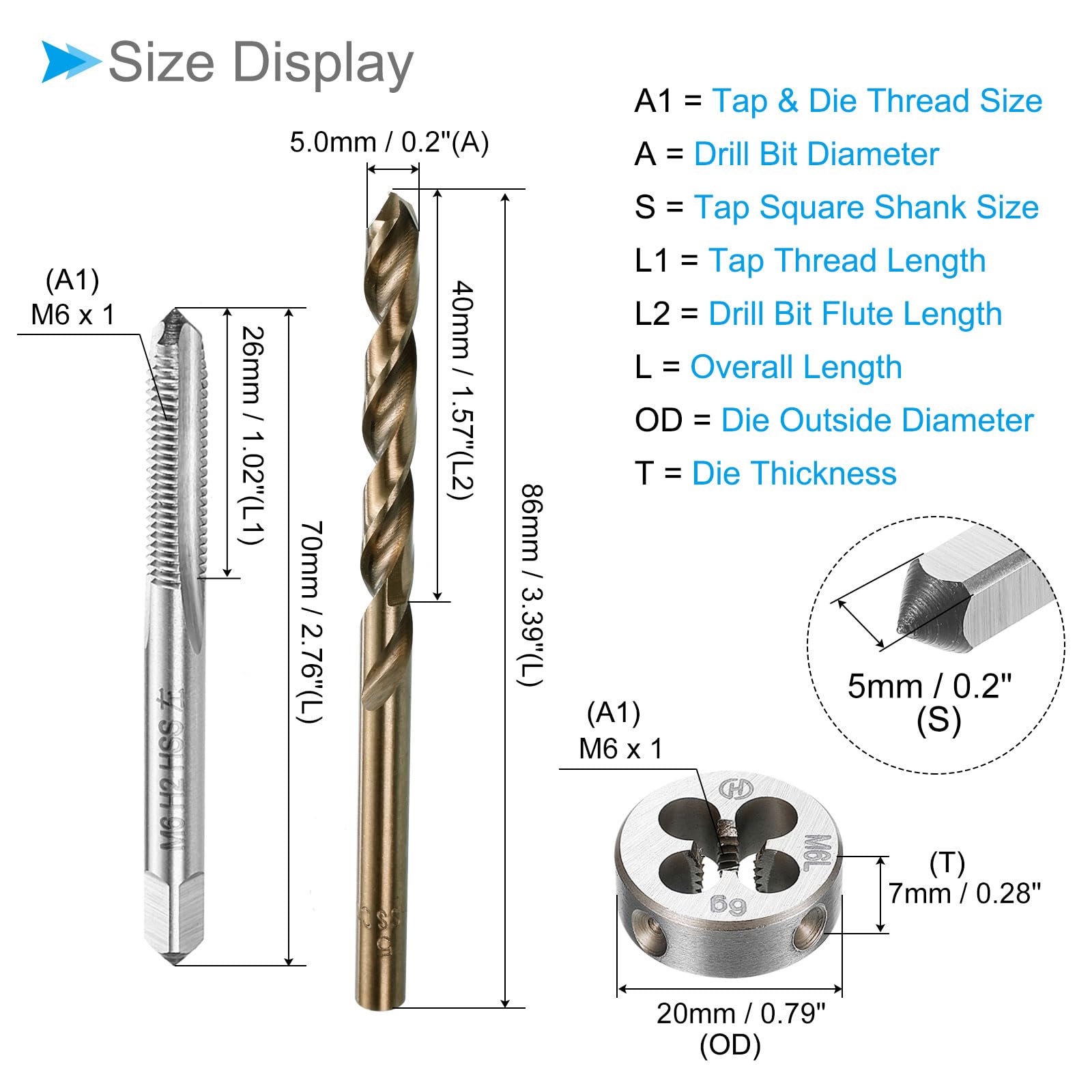

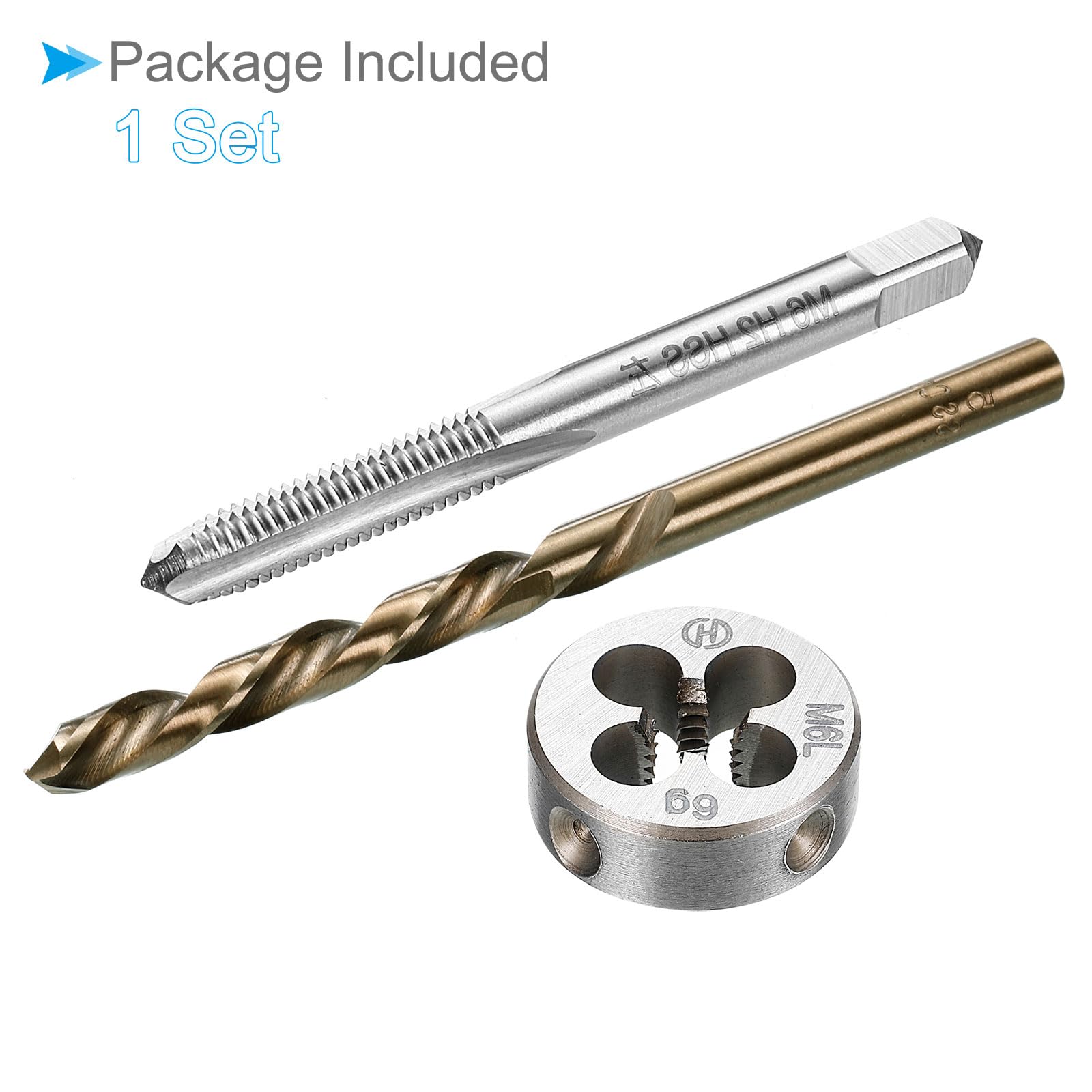

Attributes: * Tap & Die Thread Size: M6 x 1 (Left Hand) * Tap Accuracy: H2; * Square Shank Size: 5mm / 0.2"; * Tap Thread Length: 26mm / 1.02"; * Tap Total Length: 70mm / 2.76"; * Die Outside Diameter: 20mm / 0.79"; * Die Thickness: 7mm / 0.28" * Drill Bit Diameter: 5.0mm / 0.2"; * Drill Bit Flute Length: 40mm / 1.57"; * Overall Length: 86mm / 3.39" What Is Included: * 1 Piece x Thread Tap, 1 Piece x Round Die, 1 Piece x Drill Bit Applications & Features: --- The tap and die and drill bit set can repair or create threads on stainless steel, aluminum alloy, cast iron, copper, iron, aluminum, plastic. The thread tap is used for tapping through holes or shallow blind holes, such as threads in nuts, threaded inserts, pipes. The metric round die can process, correct or clean threads on rods or bars, bolts or studs. --- The 6542 high-speed steel (hss) screw tap combines hardness and toughness for excellent wear resistance and durability. Straight flute design, fast downward chip removal, and the end chamfer helps guide the tap. Used on, drill presses, CNC, tapping and milling machines. --- The 9SrCi alloy tool steel round die has high torque, good wear resistance and durability. Designed with a tapered locking hole, the die locks firmly and does not loosen. Used with a die handle or adjustable wrench. --- The M35 5% cobalt high speed steel (hss-co) drill bit provides excellent wear resistance, durability, and optimal chip removal. Sharp spiral flutes create smooth and accurate holes, and allow export of metal chips and improved coolant flow. Useful Tips: --- Apply a suitable lubricant helps to improve hole and thread quality. Always drill a hole with the correct size drill bit before tapping, and use the correct speed and pressure.
