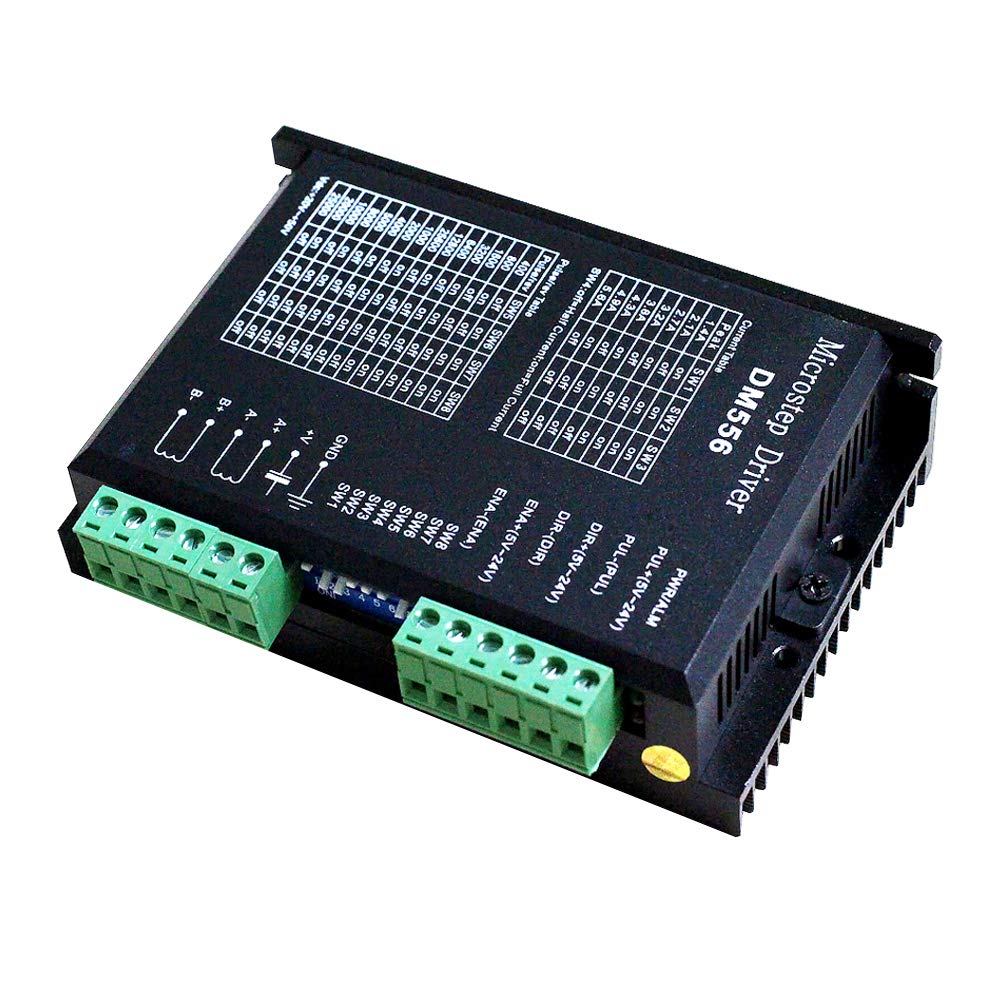

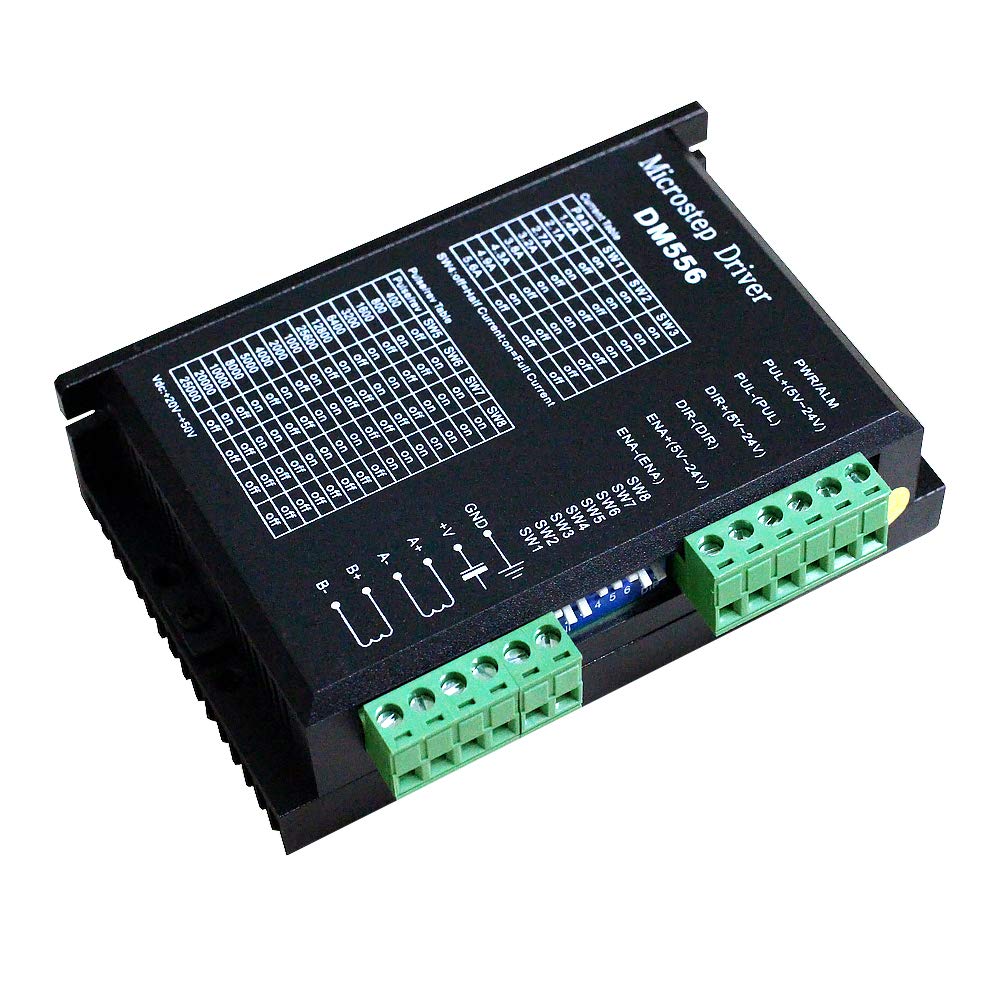

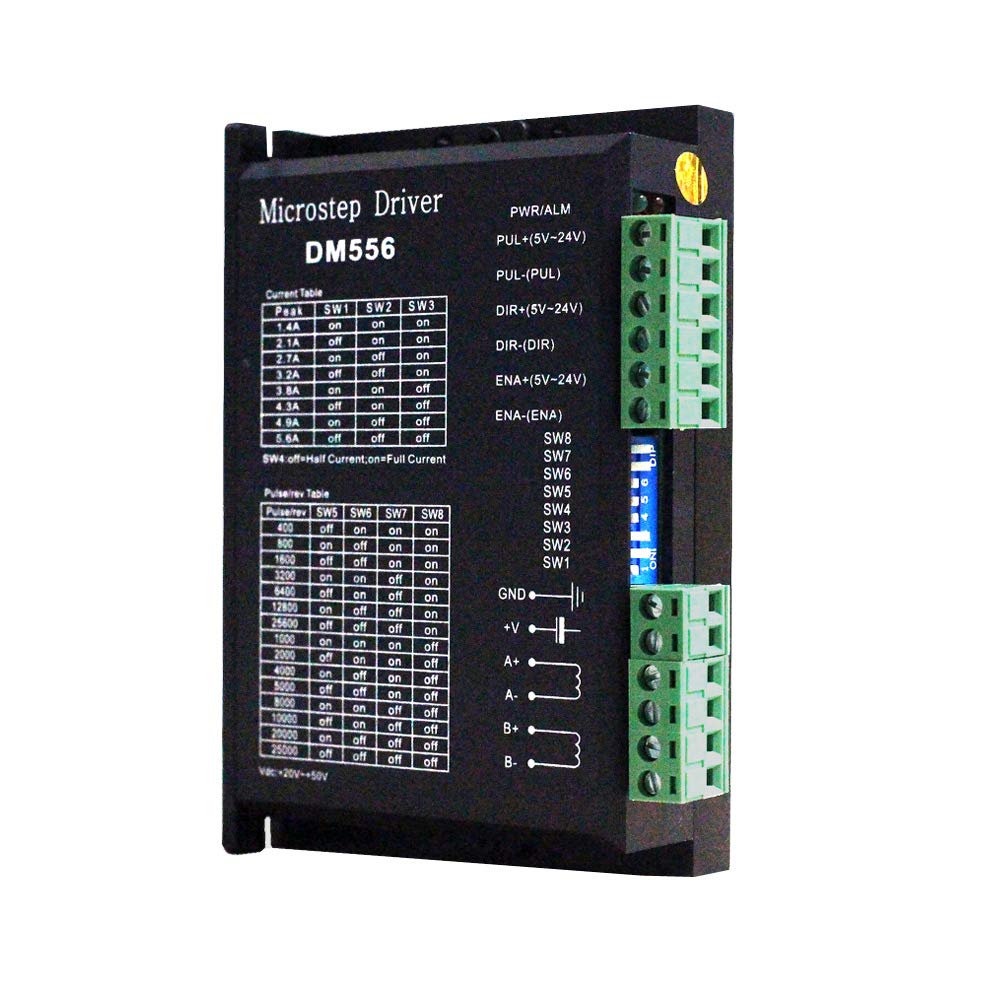

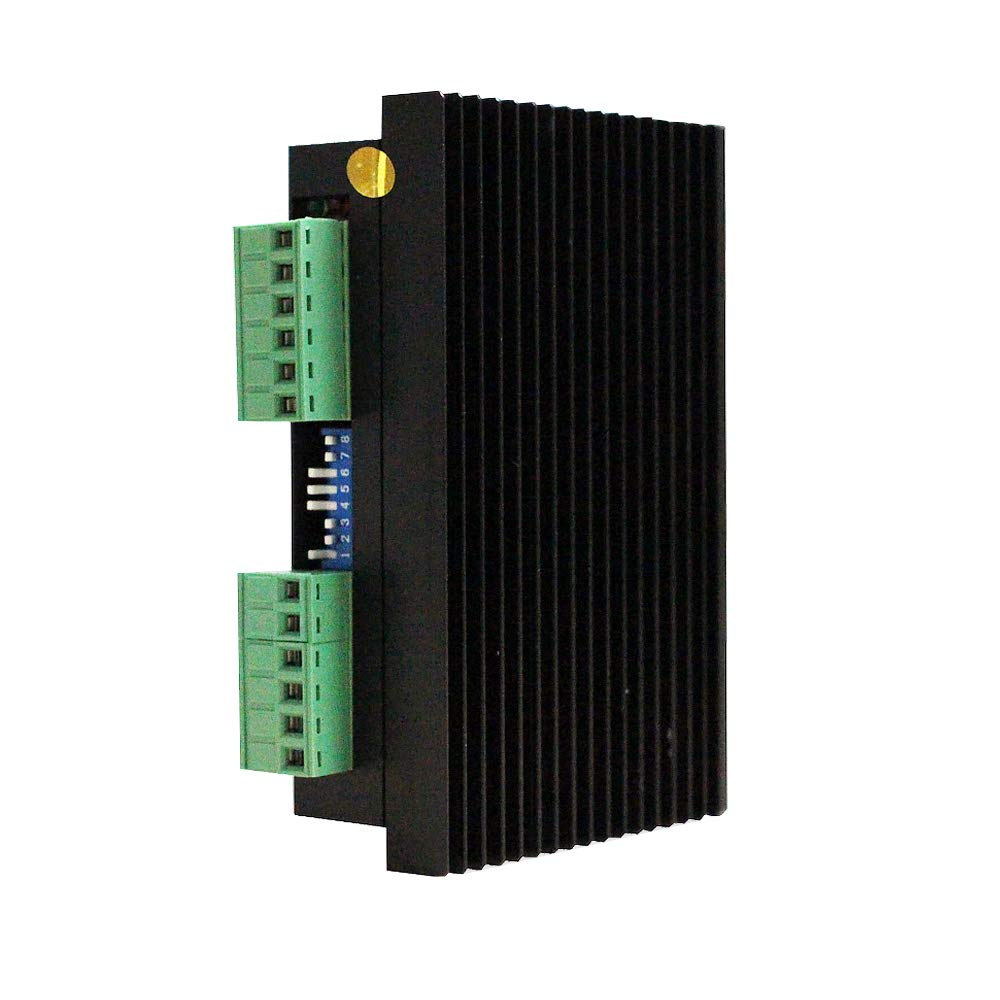

CNC Digital Stepper Driver DM556 Stepper Motor Controller 2-phase Stepper Motor Driver 20-50V DC Max 5.6A 128 subdivision For Nema 23, 24 and Nema 34 stepper motor

• Suitable for Nema 23 ,Nema 24 and Nema34 Stepper Motor，2-phase hybrid stepper motors (Outer diameter: 57, 60,86mm).
• This high subdivision driver is suitable for high subdivision motor. Suitable for stepper motor: 57,60,86 type 2-phase (4-wire, 6-wire, 8-wire)
• Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
• Package: 1piece DM556 driver
• PLEASE NOTE: if there is any problem, please feel free to contact us, each defect items could be refunded or reshipped, we will try out utmost to support you.

Specification: 5-24 V universal to control signal, without series resistance; TTL compatible and optically isolated inputs to 5.6A; Input voltage 20-50VDC; Up to 128 subdivision, 16 selectable micro-step resolutions of 400-25,600 via DIP switches; 8 selectable output current settings of 1.4A to 5.6A via DIP switches; Pulse input frequency up to 200 KHz; Protections for over-voltage and over-current. Electrical Specifications: * Output Peak Current: 1.4~5.6A * Input Voltage: +20~50VDC (Typical 24-48VDC) * Logic Signal Current: 7~16mA (Typical 10mA) * Pulse Input Frequency: 0~200kHz * Isolation Resistance: 500MΩ * Vibration: 10-55Hz/0.15mm * Weight: Approx.260g
