Broco Stepper Motor Driver Controller, DM556 2-phase Stepper Motor Driver 42/57 Stepping Motor Driver 24V-50V DC Low Noise
About this item
- 24V-50V DC power supply, 8 level adjustable output current 1.0A-5.6A.

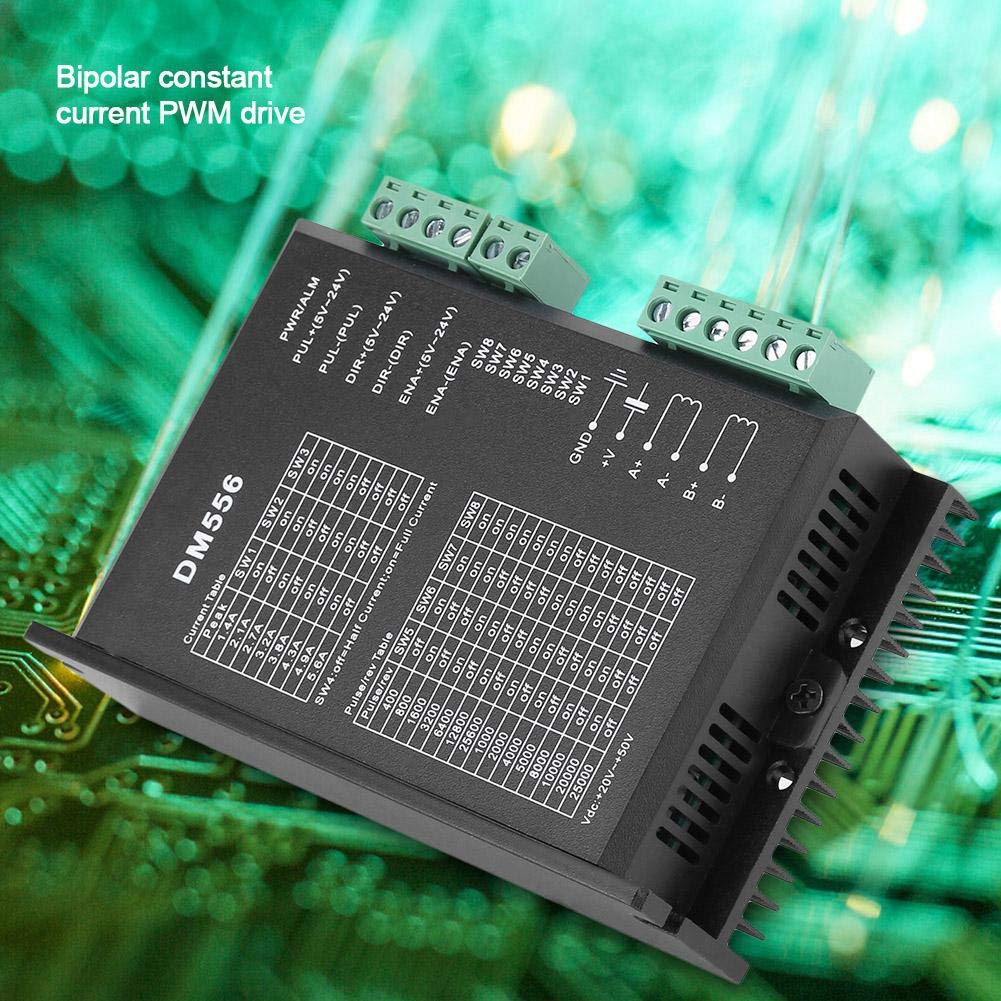

- Bipolar constant current PWM drive output.

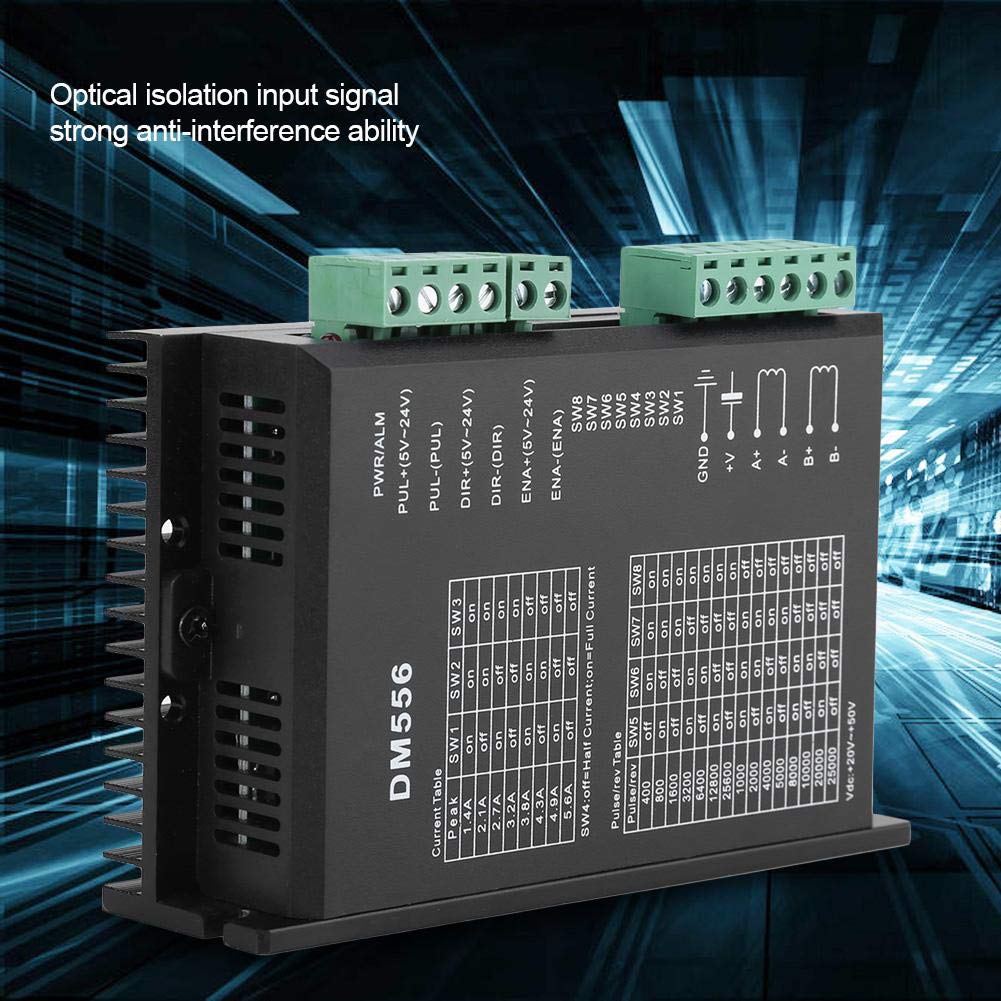

- Optical isolation input signal, pulse response frequency up to 200kHz.
- Strong anti-interference capability, achieve high precision positioning in complicated environment.
- Energy-saving semi-automatic current lock function, built-in temperature protection and over current protection.
Product description

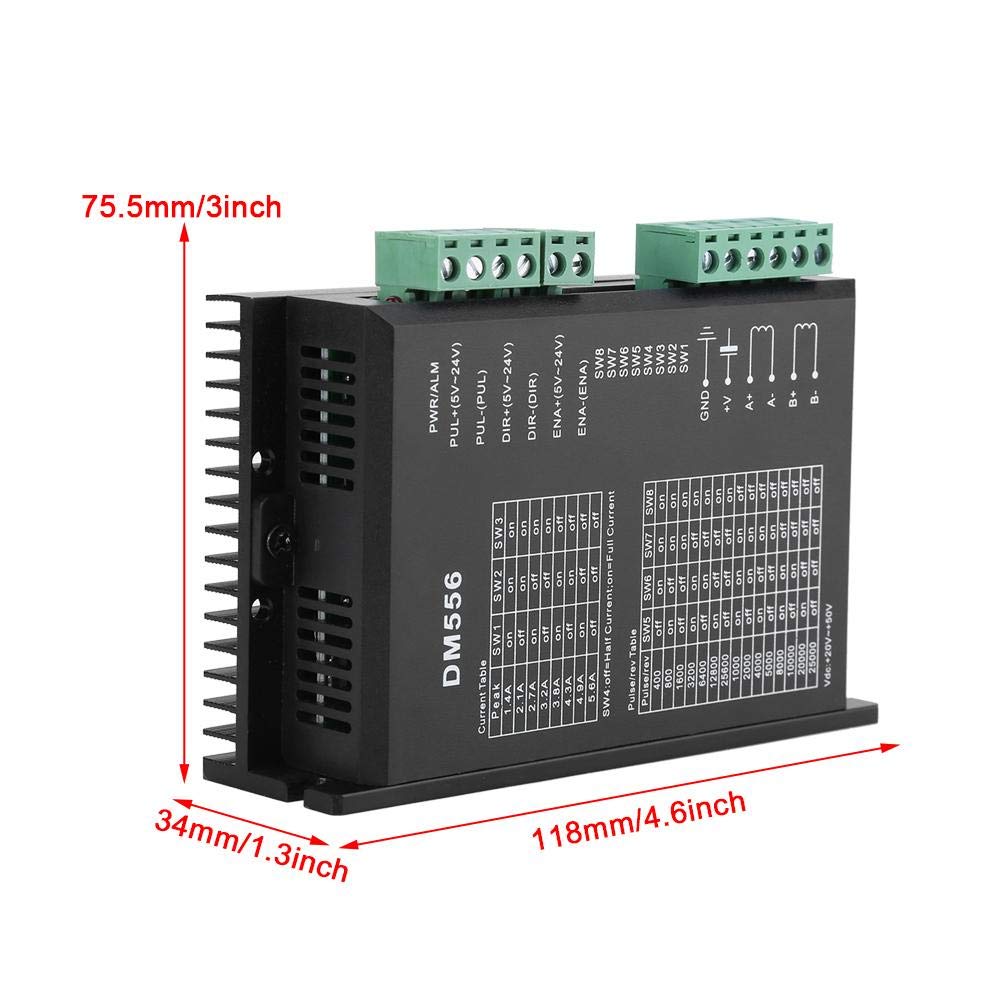

Features: 1. 24V-50V DC power supply, 8 level adjustable output current 1.0A-5.6A. 2. Bipolar constant current PWM drive output. 3. Optical isolation input signal, pulse response frequency up to 200kHz. 4. Strong anti-interference capability, achieve high precision positioning in complicated environment. Specification: Model: DM556 Application: 42/57 stepper motor Input voltage: DC 20-50V Output current: 1.0-5.6A, 8 level adjustable, 0.5A resolution Drive method: Bipolar constant current PWM drive Pulse response frequency: 200kHz(Max) Insulation resistance: >500Mฮฉ Insulation strength: 500V/min Dimensions: 118*75.5*34mm / 4.6*3.0*1.3in Weight: Approx. 270g / 9.5oz Package list: 1 * Steeper Motor Driver
