YWBL-WH Boost Converter Module 1500W 30A DC-DC Boost Converter Step-up Power Supply Module 10-60V In 12-90V

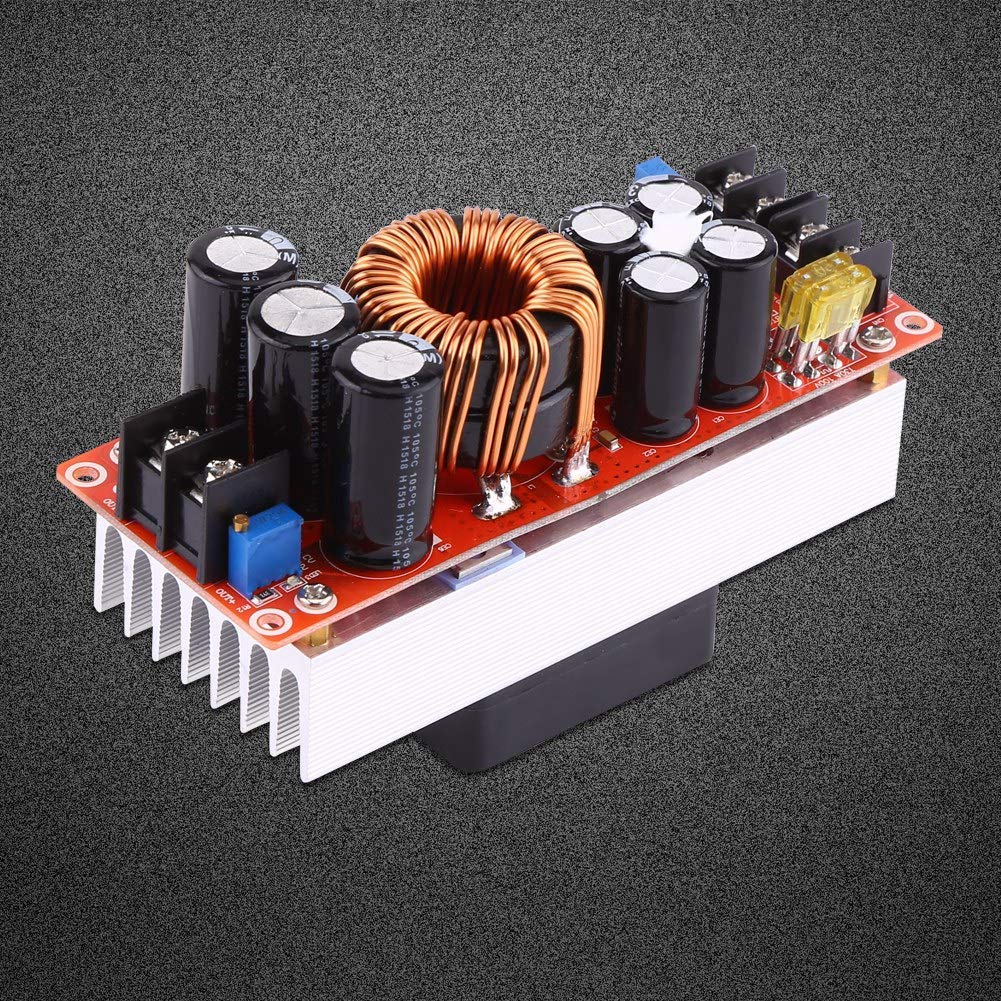

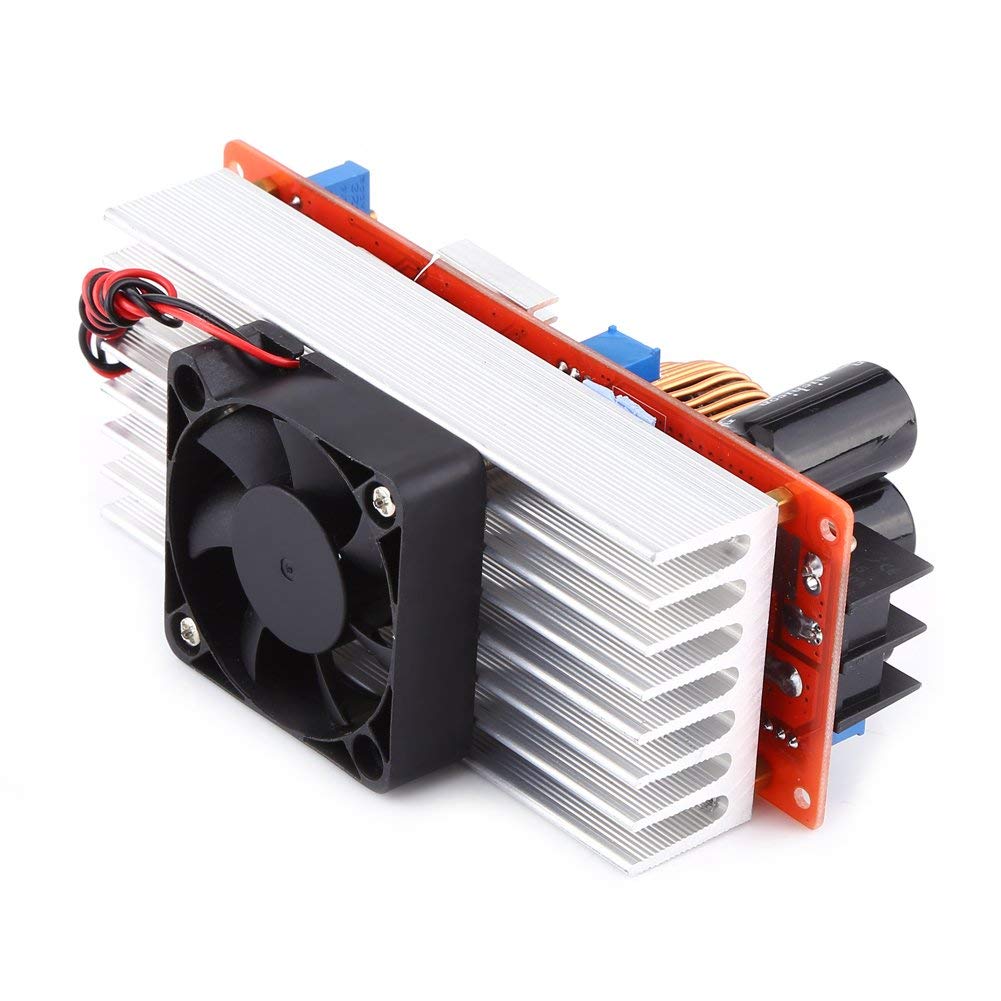

• BETTER HEAT DISSIPATION---With thickened heatsink and intelligent temperature control cooling fan, the boost converter module is of better heat dissipation
• LOW VOLTAGE PROTECTION---Low voltage will protect module and battery against damage from over-discharge when use a storage battery as input
• SUITABLE FOR---With 100V/210A low resistance MOS with big power and current input, the boost converter module is suitable for big power LED, motors
• WITH MOS---The boost converter module supports reverse input with MOS so there is no worry about wrong input wire and burn out power supply

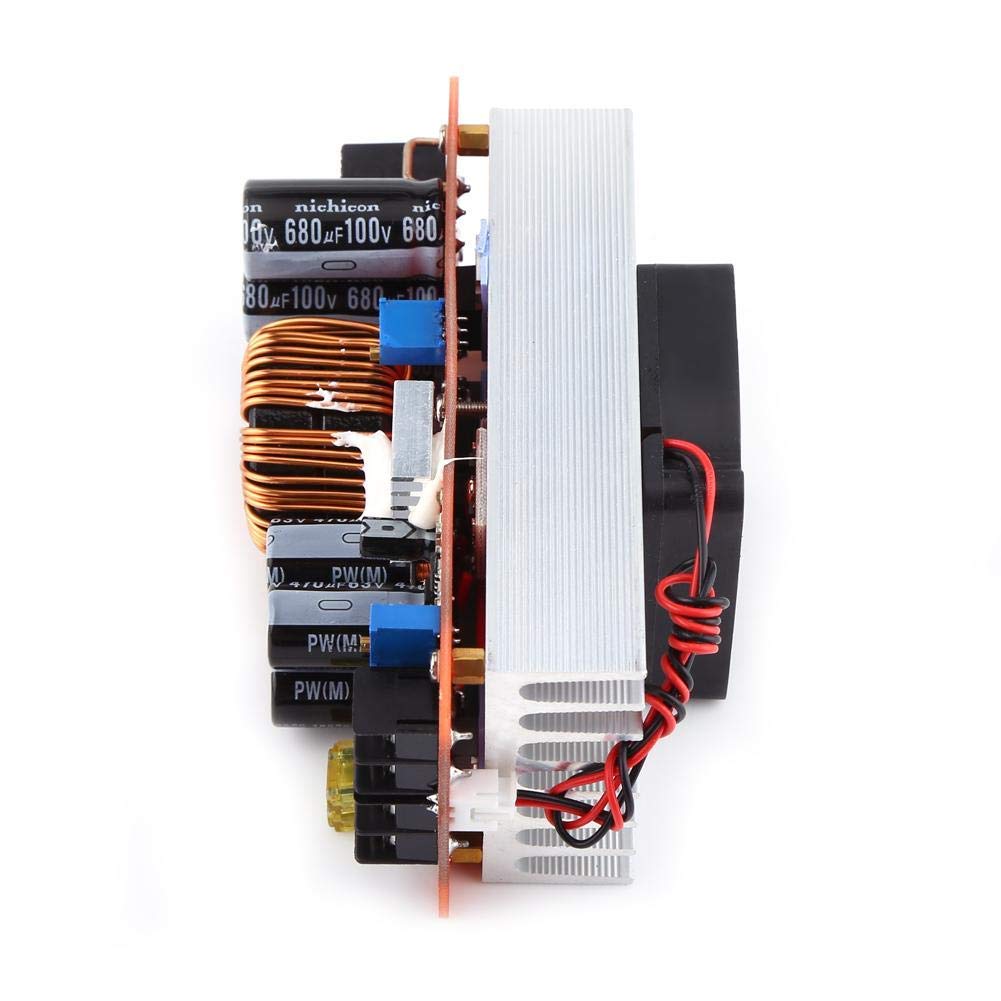

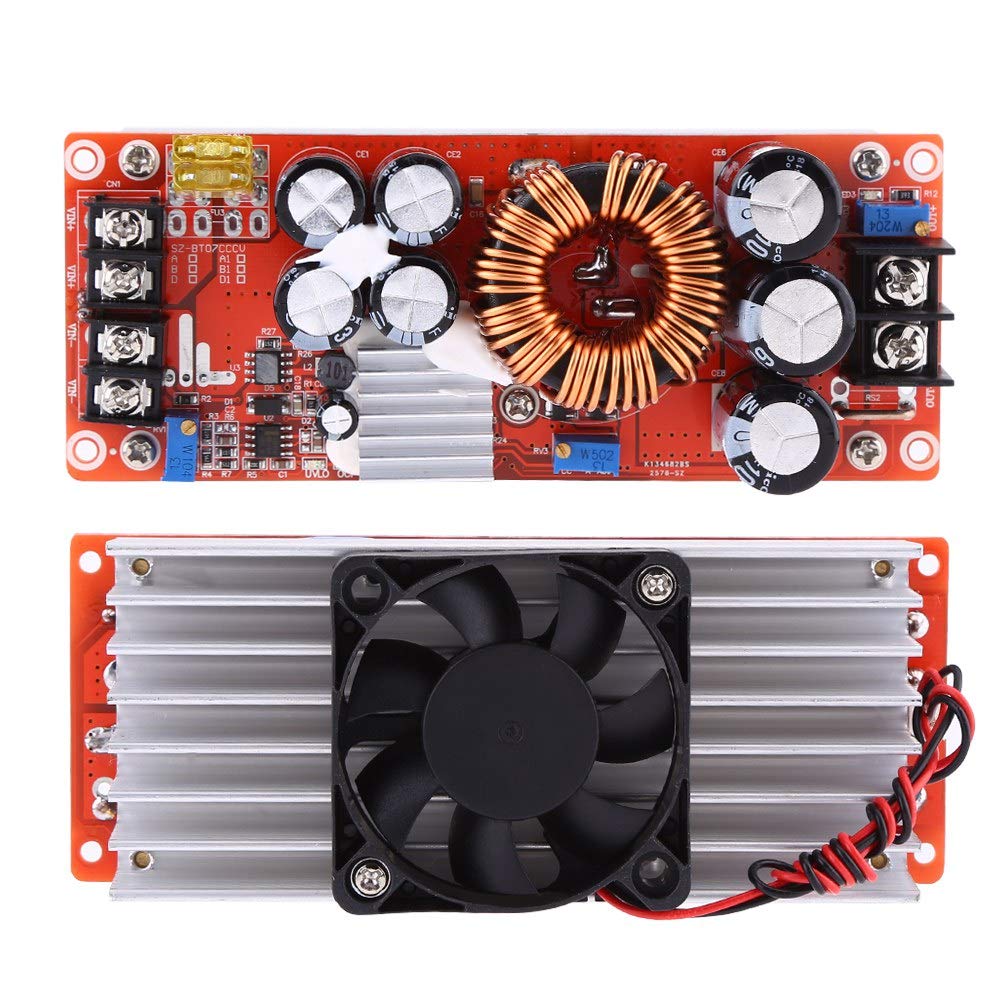

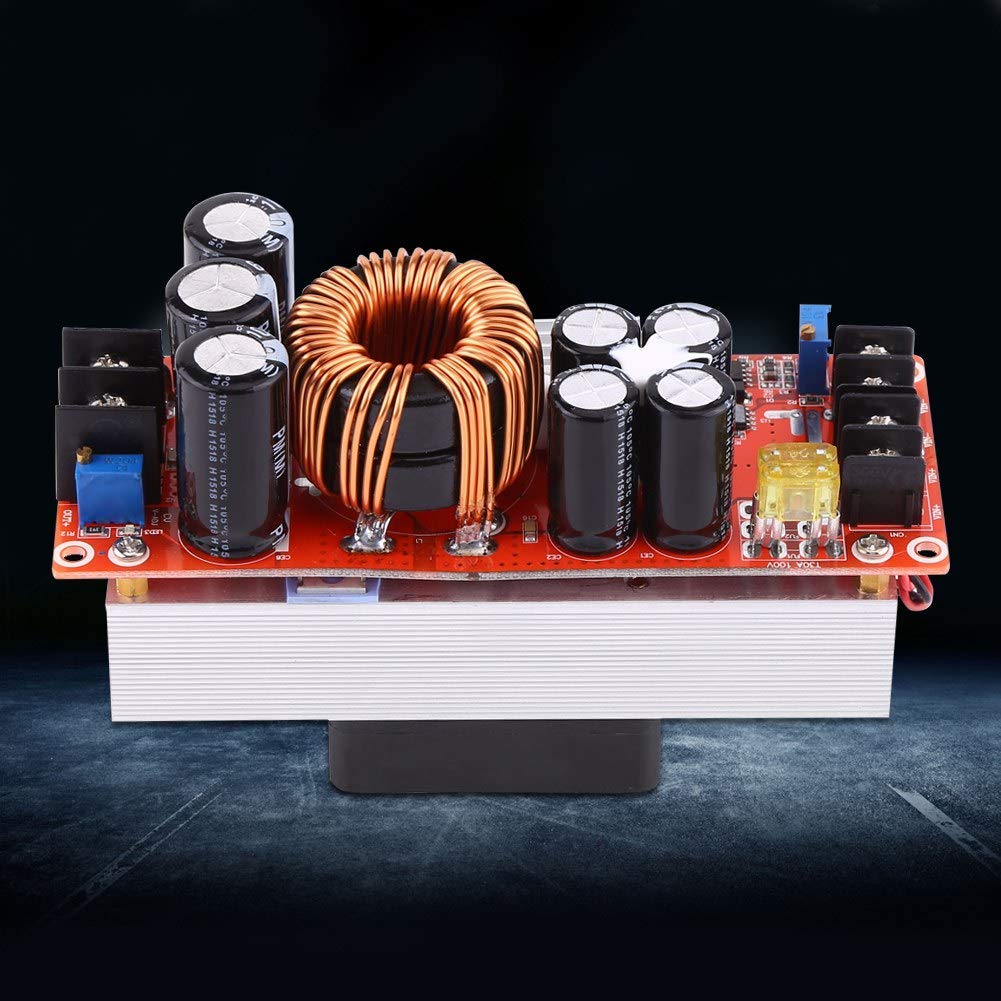

• DOUBLE SENDUST MAGNETS---The boost converter module is of double sendust magnets winded with 1.2mm copper wires

Specifications: Type: Non-isolated step-up module (BOOST) Input Voltage: DC10V to 60V Max. Input Current: 30A(input voltage 10V to 30V) 25A(input voltage 31V to 60V) Quiescent Current: 15mA(will increase when convert 12V to 20V) Output Voltage: 12V to 90V (adjustable, default is 19V) Max. Output Current: 20A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A) Constant Current Range: 0.8A to 20A(+/-0.3A) Reverse Input Protection: Yes (150A MOS) Lower Voltage Protection: Yes (V8 to 50V adjustable, self-recovery) Operating Temperature: - 40℃ to +85 ℃(if temperature is too high, please enhance heat dissipation) Frequency: 150KHz Conversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be) Input Over-current Protection: Yes (automatically protect when input is more than 35A, and power supply voltage will not increase) Short Circuit Protection: Yes(input 30A fuse) Wiring Method: Terminals(please use large current copper wire) Max. Output Power = Input Voltage×Max Current (If input 12V, the max output power=12V×30A = 360W) Size:130 × 84 × 52mm / 5.11 × 3.3 × 2.04" Instruction: Voltage Adjustment: Power on module while not connect to load, then adjust "V-ADJ" potentiometer clockwise to increase, counterclockwise to decrease. Due to large output capacitance capacity, response will be slow when adjust high voltage to low voltage. Package Includes: 1 × Module
